Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

31 part groups · 25 illustrations

Illustrations

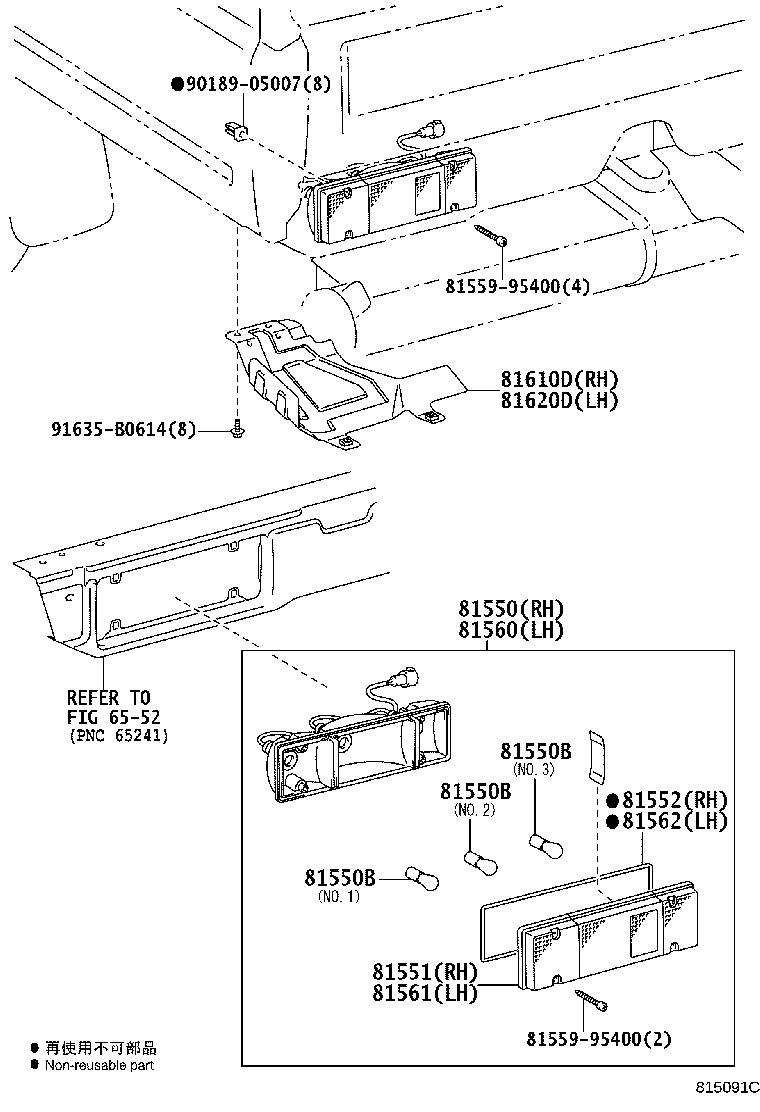

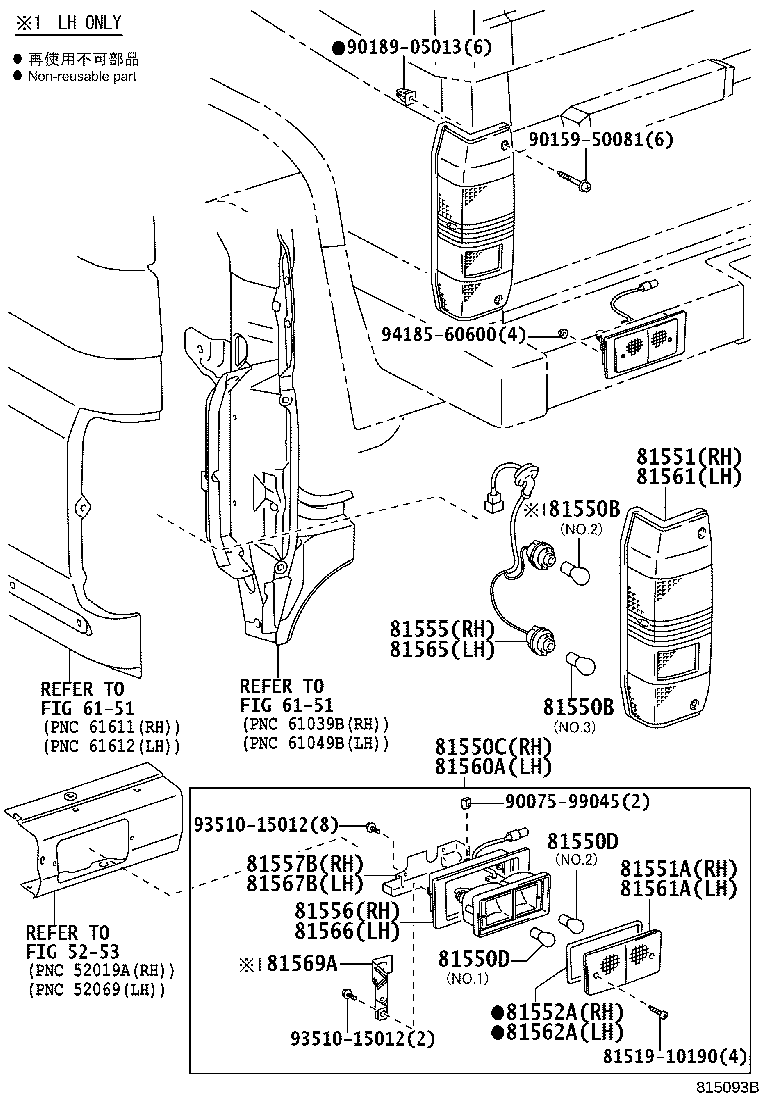

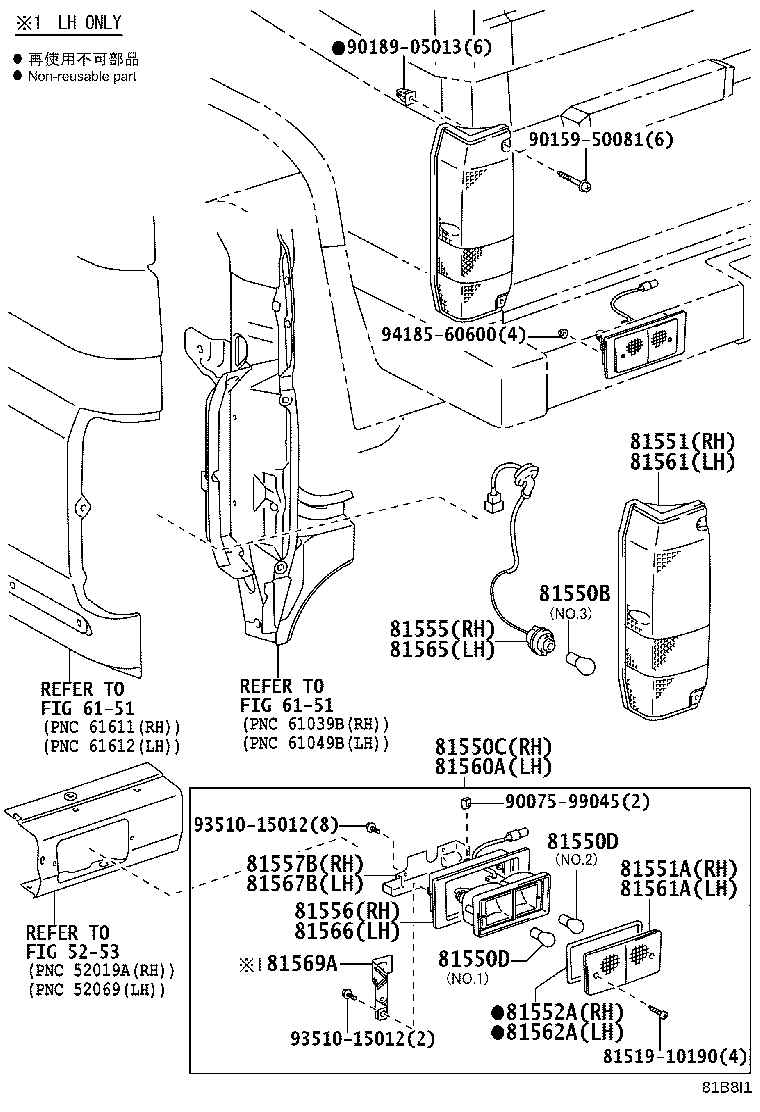

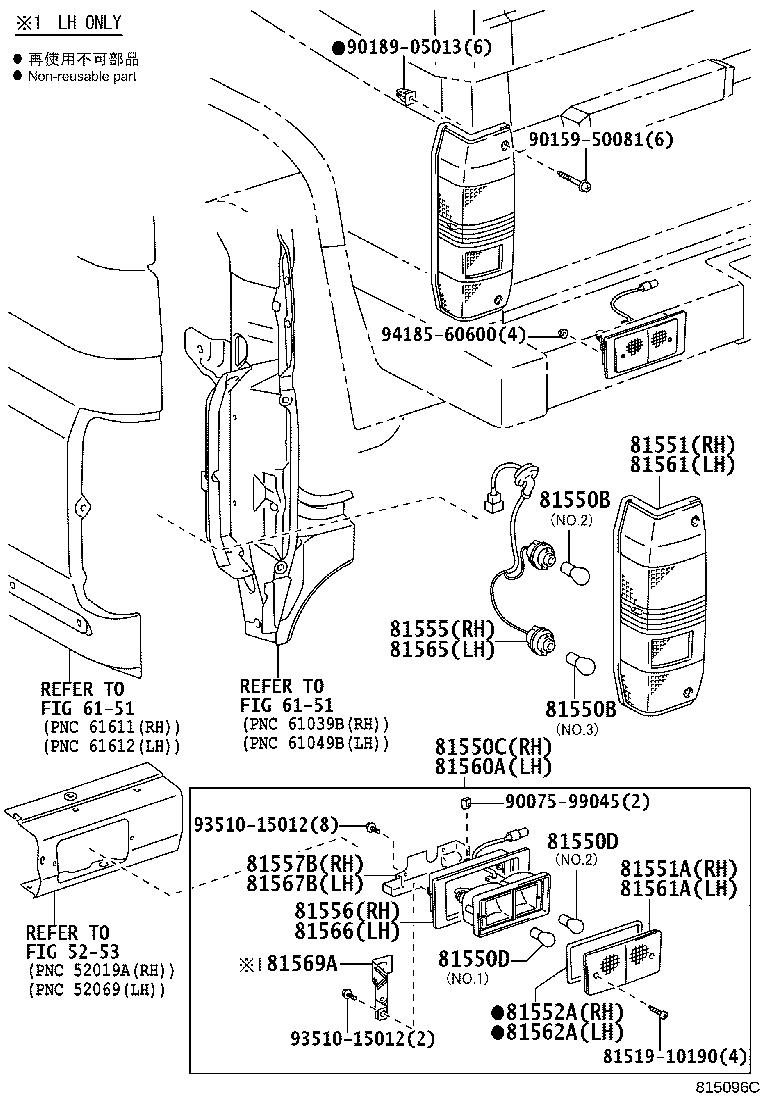

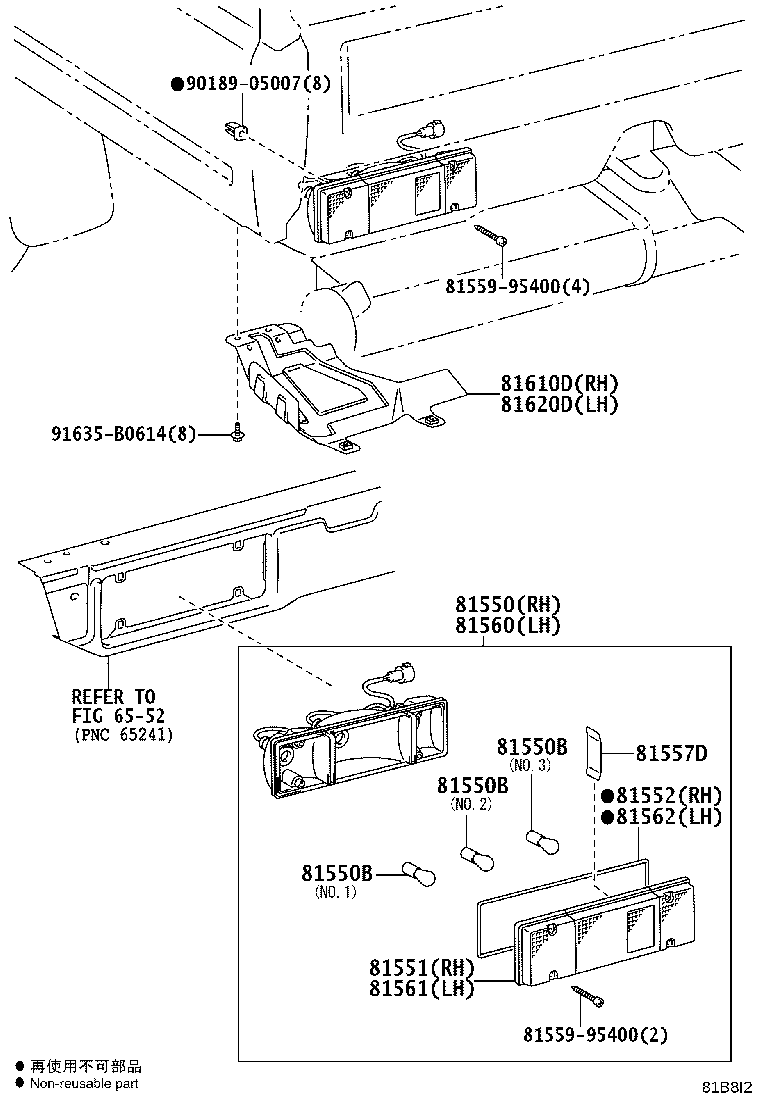

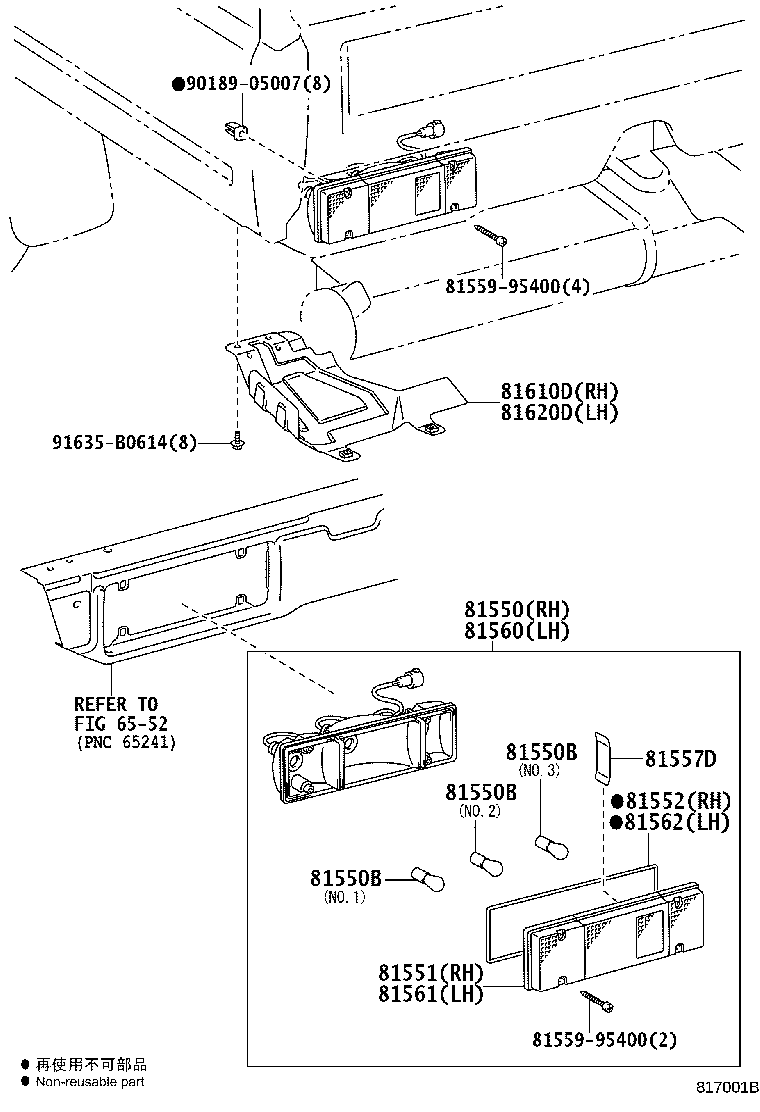

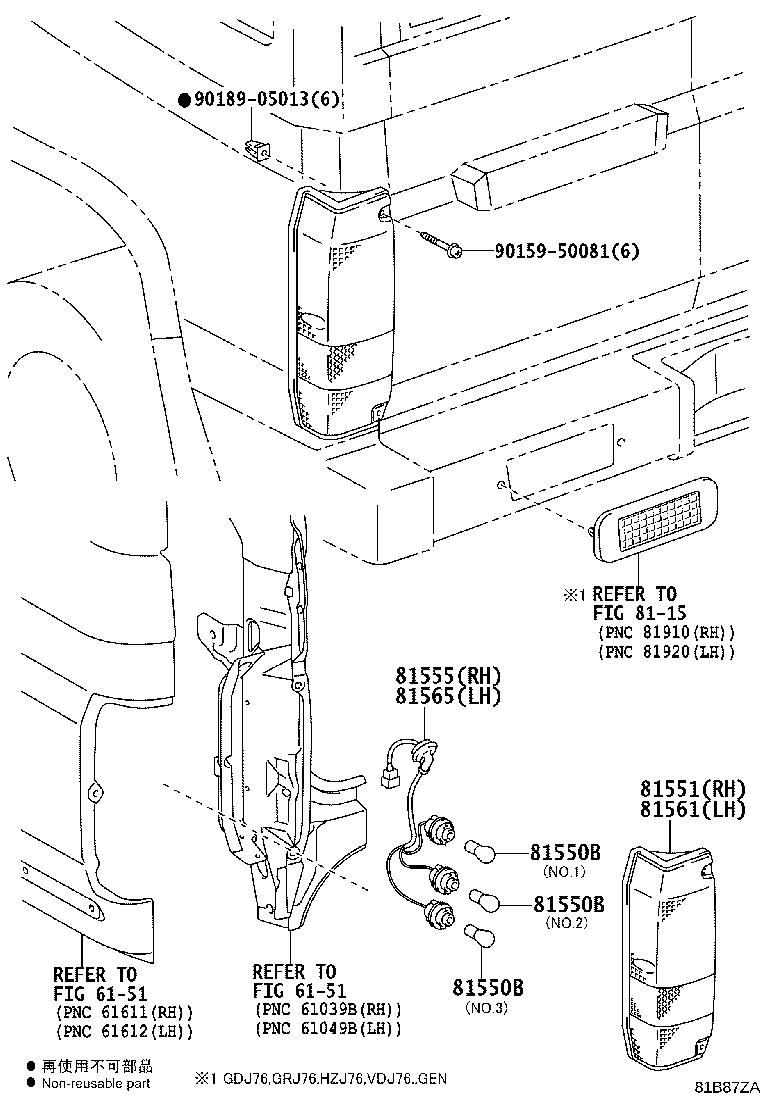

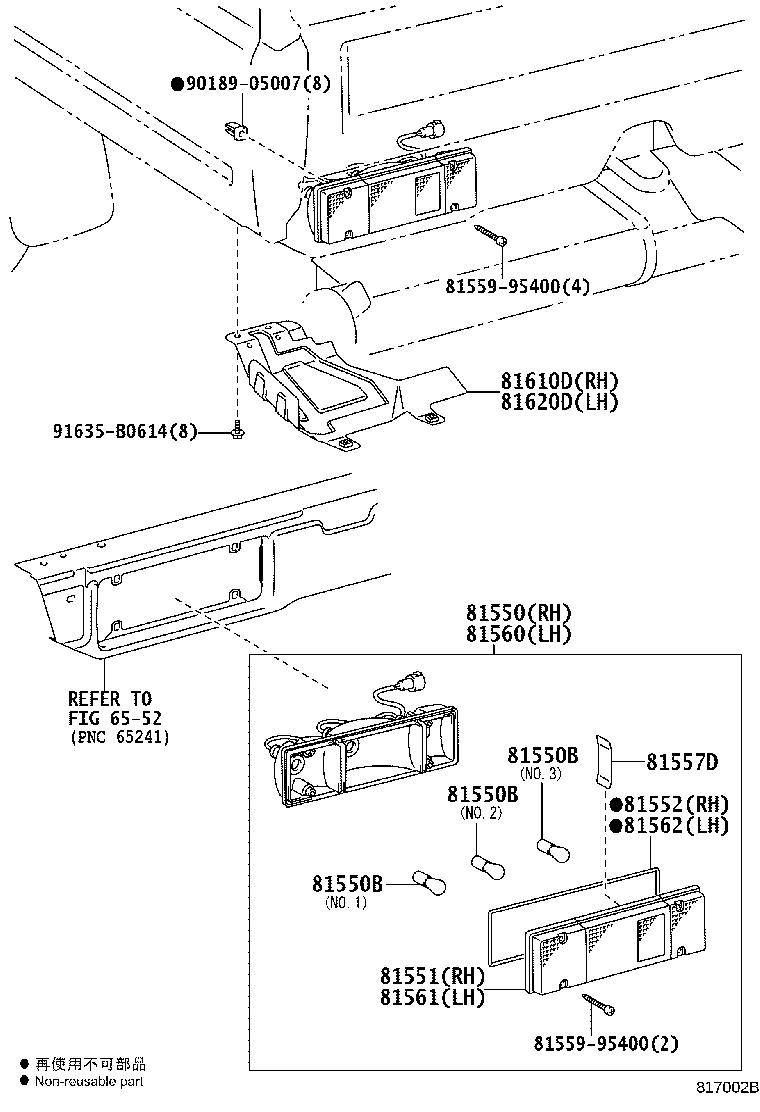

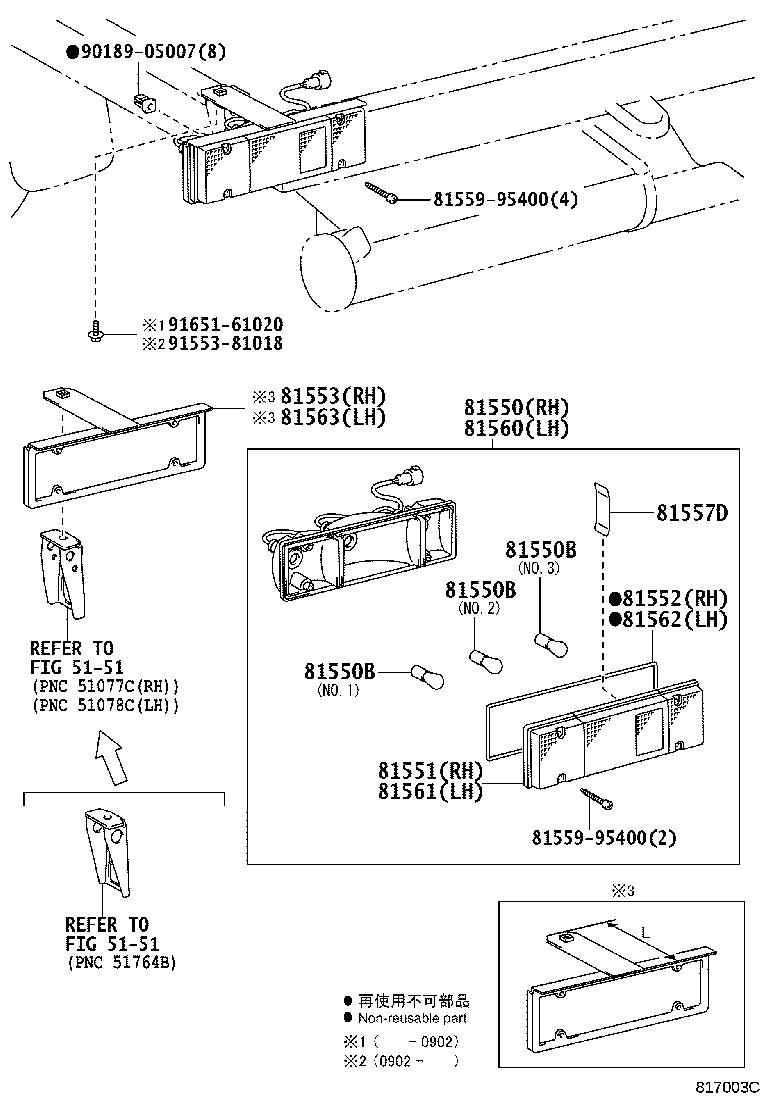

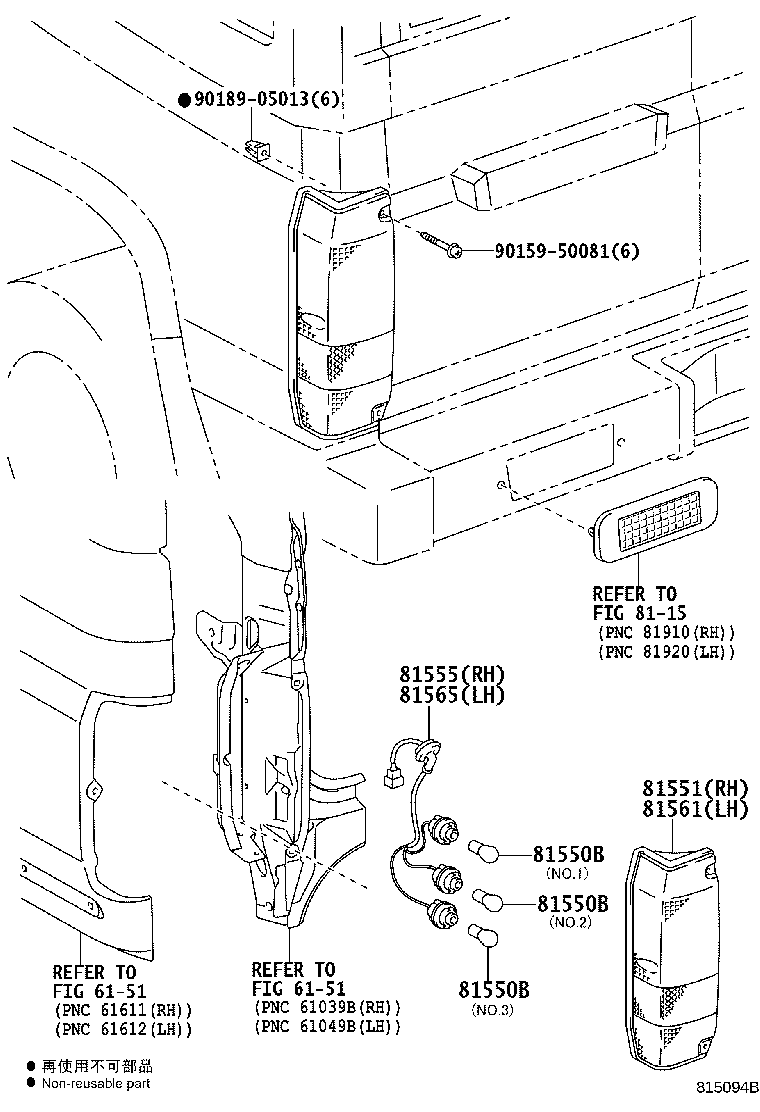

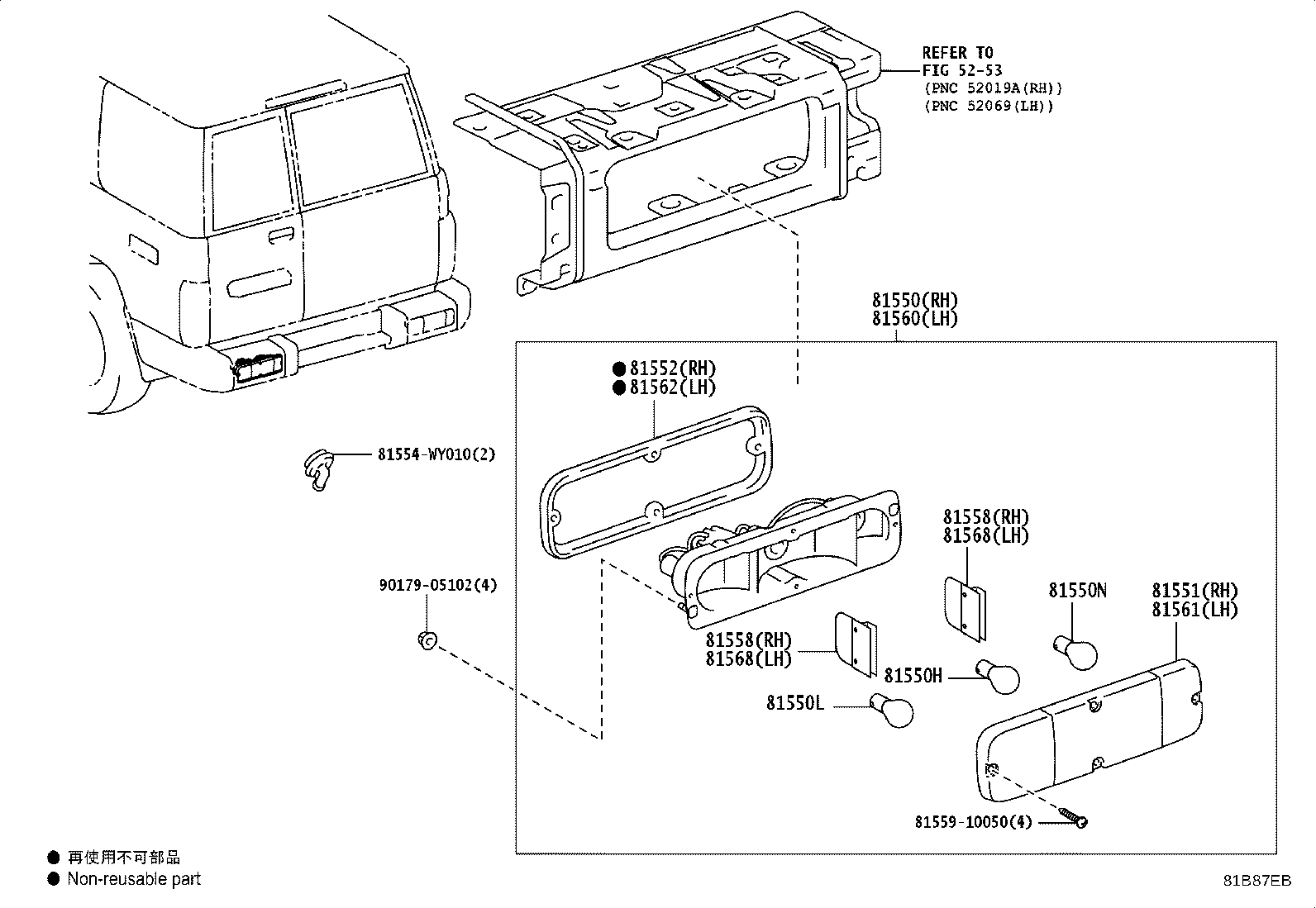

Figure 816998B 816998B 2007-01 → 2023-09 Figure 815094B 815094B 2007-01 → 2023-09 Figure 81B87ZA 81B87ZA 2023-09 → — Figure 814090F 814090F 2007-01 → 2023-09 Figure 814090F 814090F 2023-09 → — Figure 815095B 815095B 2007-01 → 2023-09 Figure 815095B 815095B 2023-09 → — Figure 81B8I1 81B8I1 2007-01 → 2023-09 Figure 81B8I1 81B8I1 2023-09 → — Figure 815096C 815096C 2007-01 → 2023-09 Figure 815096C 815096C 2023-09 → — Figure 815093B 815093B 2007-01 → 2023-09 Figure 815093B 815093B 2023-09 → — Figure 815093B 815093B 2023-09 → — Figure 817000B 817000B 2010-08 → 2023-09 Figure 817000B 817000B 2023-09 → — Figure 815091C 815091C 2007-01 → 2023-09 Figure 815091C 815091C 2023-09 → — Figure 81B8I2 81B8I2 2007-01 → 2023-09 Figure 817001B 817001B 2007-01 → 2023-09 Figure 817002B 817002B 2013-04 → 2023-09 Figure 817002B 817002B 2023-09 → — Figure 817003C 817003C 2007-01 → 2023-09 Figure 817003C 817003C 2023-09 → — Figure 81B87EB 81B87EB 2023-09 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81550C Lamp Assy, Rear Combination, RH
81550D Bulb(FOR REAR COMBINATION LAMP)
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551 Lens, Rear Combination Lamp, RH
81551A Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81552A Gasket, Rear Combination Lamp, RH
81553 Bracket, Rear Combination Lamp, NO.1 RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81556 Rim, Rear Combination Lamp, RH
81557B Protector, Rear Combination Lamp, RH
81557D Reflector, Rear Combination Lamp
81558 Shade, Rear Combination Lamp, NO.1 RH
81560 Lamp Assy, Rear Combination, LH
81560A Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81561A Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81562A Gasket, Rear Combination Lamp, LH
81563 Bracket, Rear Combination Lamp, NO.1 LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81566 Rim, Rear Combination Lamp, LH
81567B Protector, Rear Combination Lamp, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
81569A Bracket, Rear Combination Lamp, LH
81610D Cover, Rear Combination Lamp, RH
81620D Cover, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
