Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

8 part groups · 6 illustrations

Illustrations

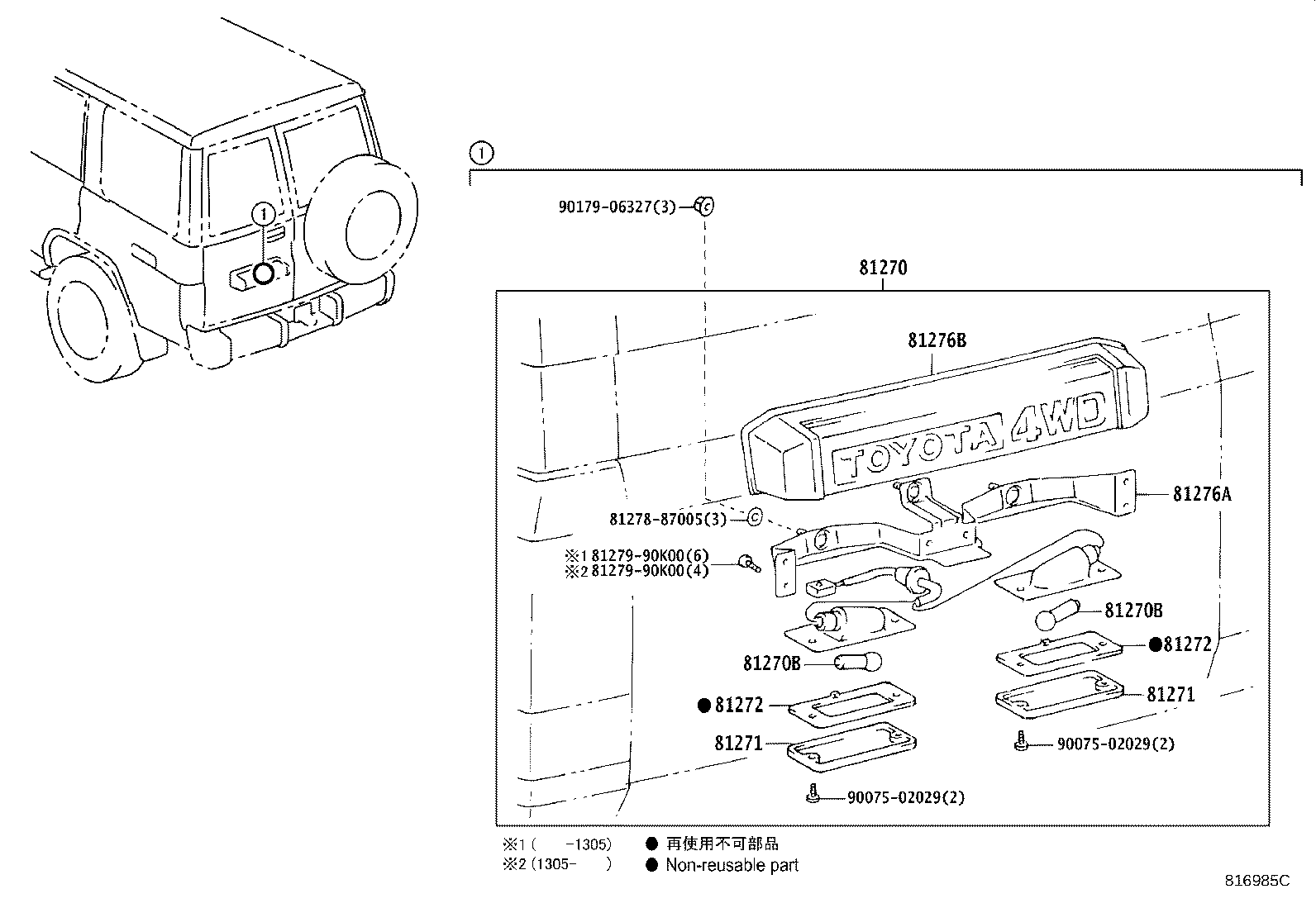

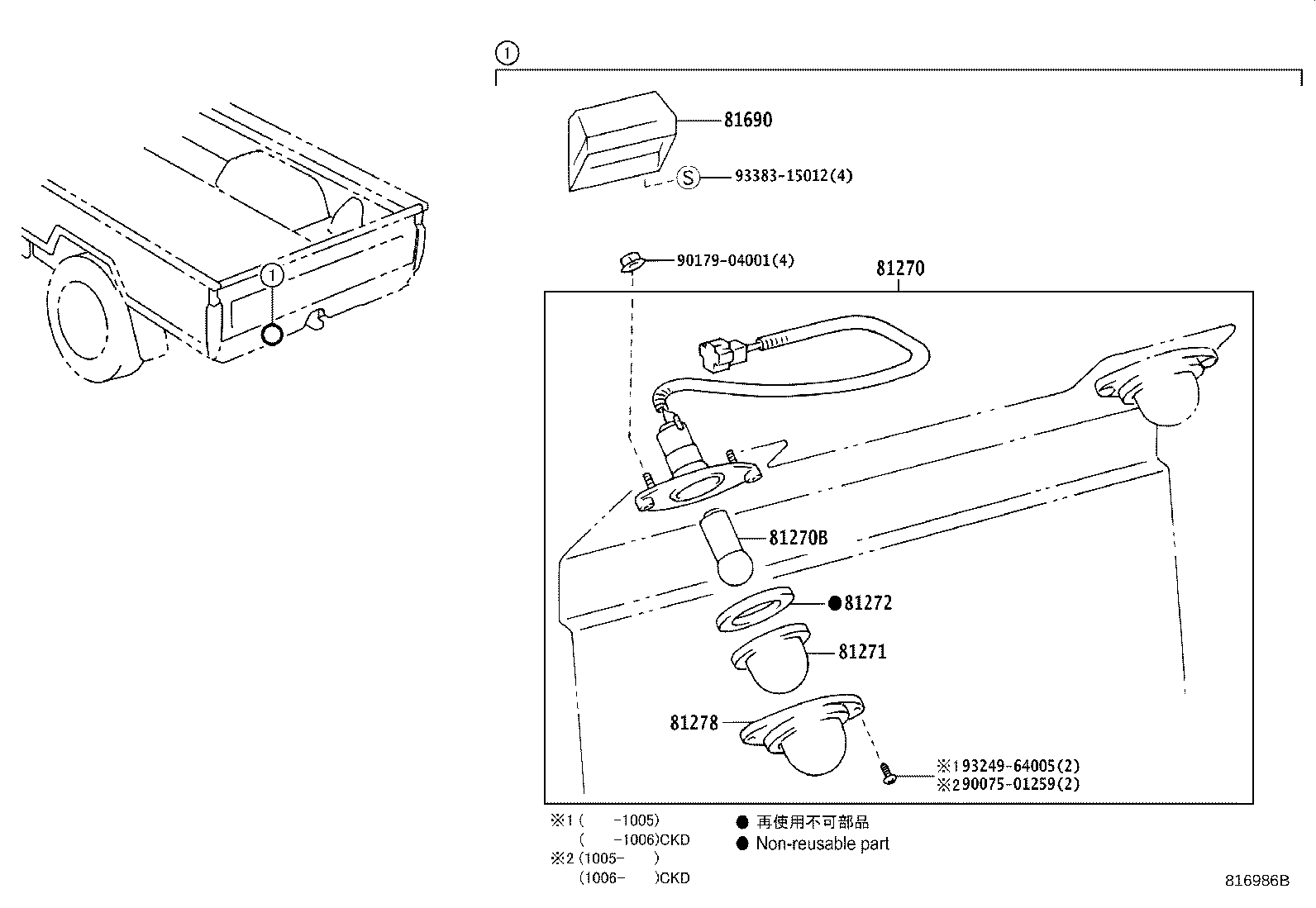

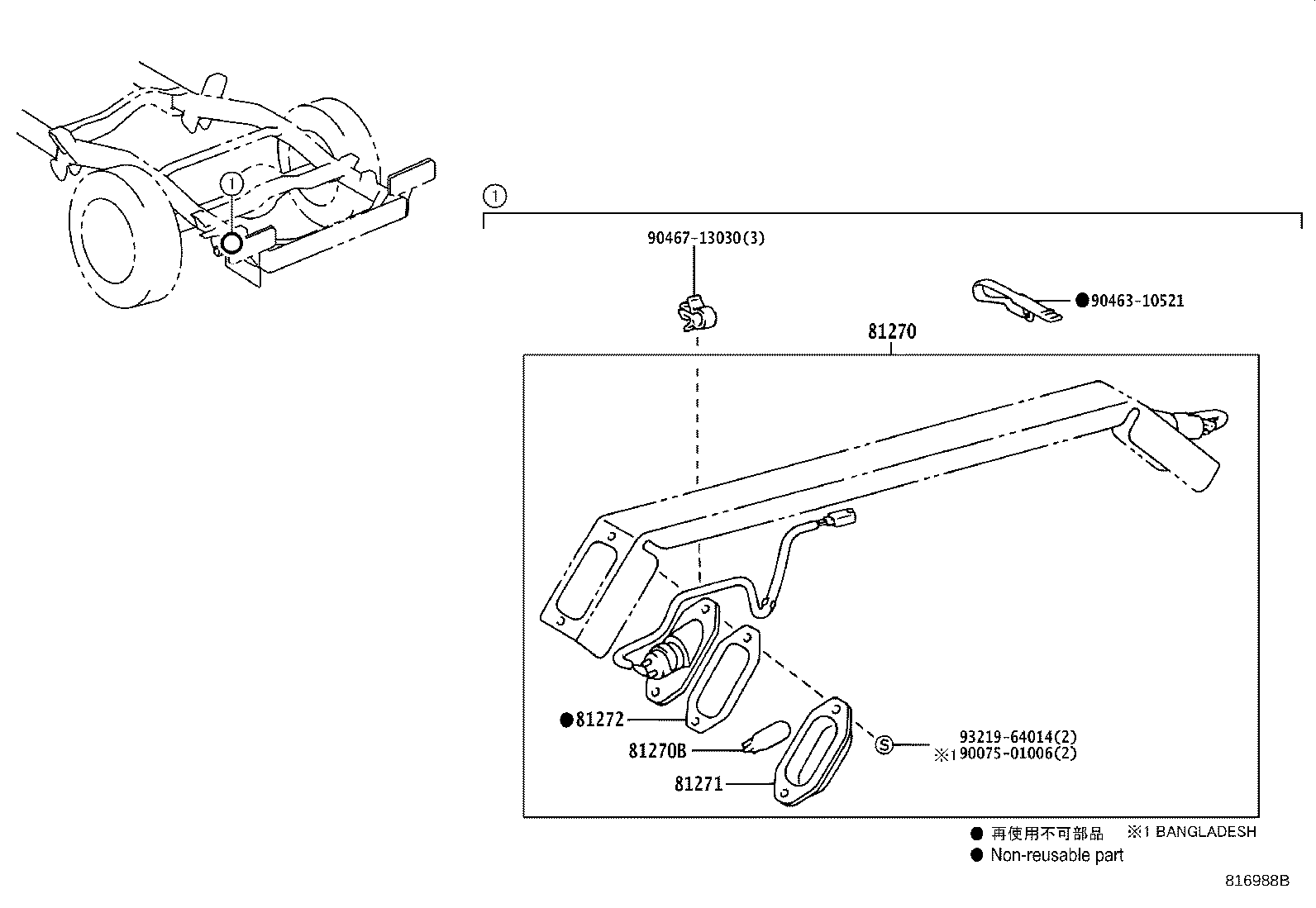

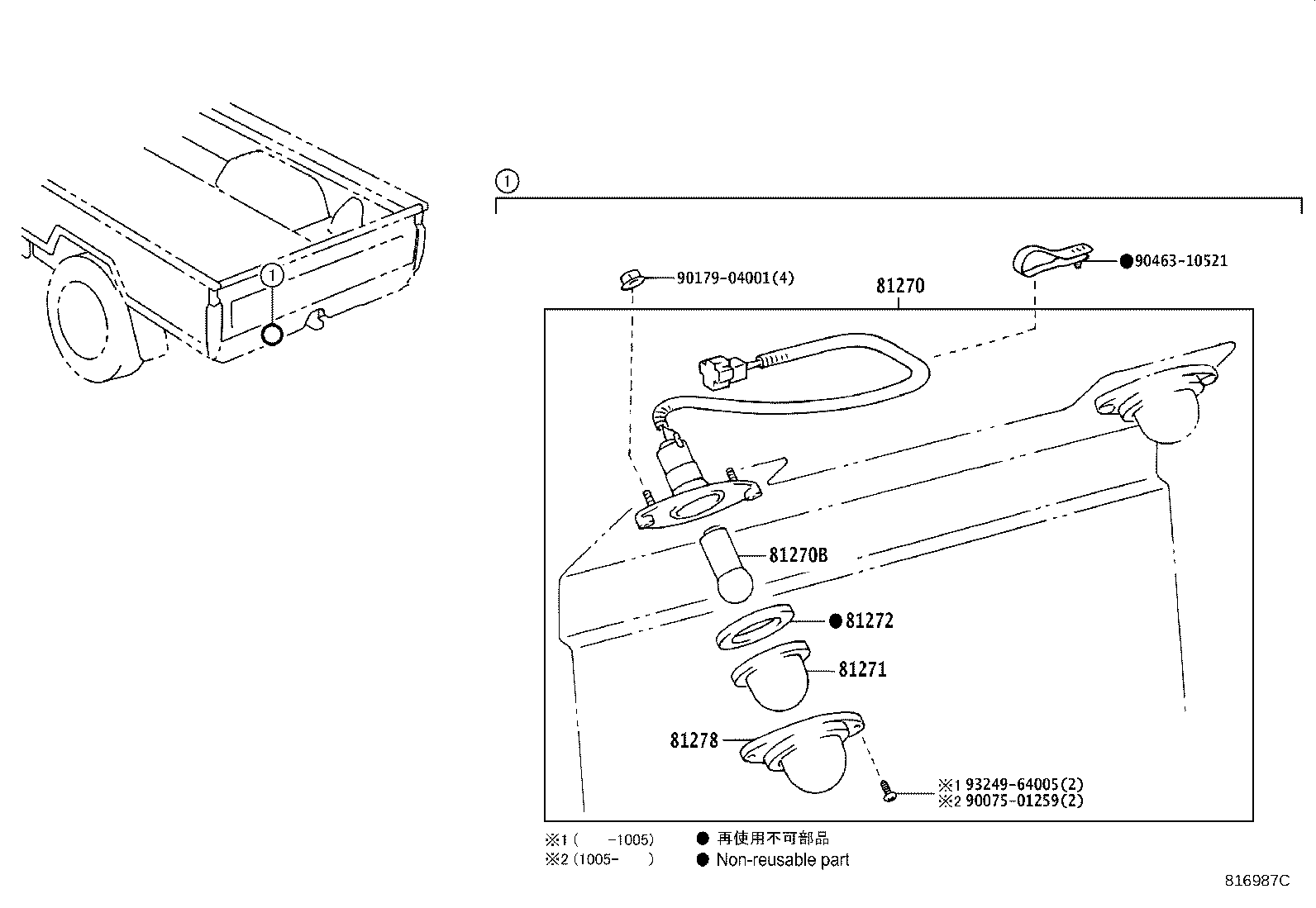

Figure 816984B 816984B 2007-01 → — Figure 816985C 816985C 2007-01 → — Figure 816986B 816986B 2007-01 → 2016-08 Figure 816987C 816987C 2007-01 → — Figure 816988B 816988B 2007-01 → — Figure 816988B 816988B 2007-01 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81276A Plate, License Plate Lamp
81276B Cover, License Plate Lamp
81278 Cover, License Plate Lamp
81690 Cover Sub-assy, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
