Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

10 part groups · 6 illustrations

Illustrations

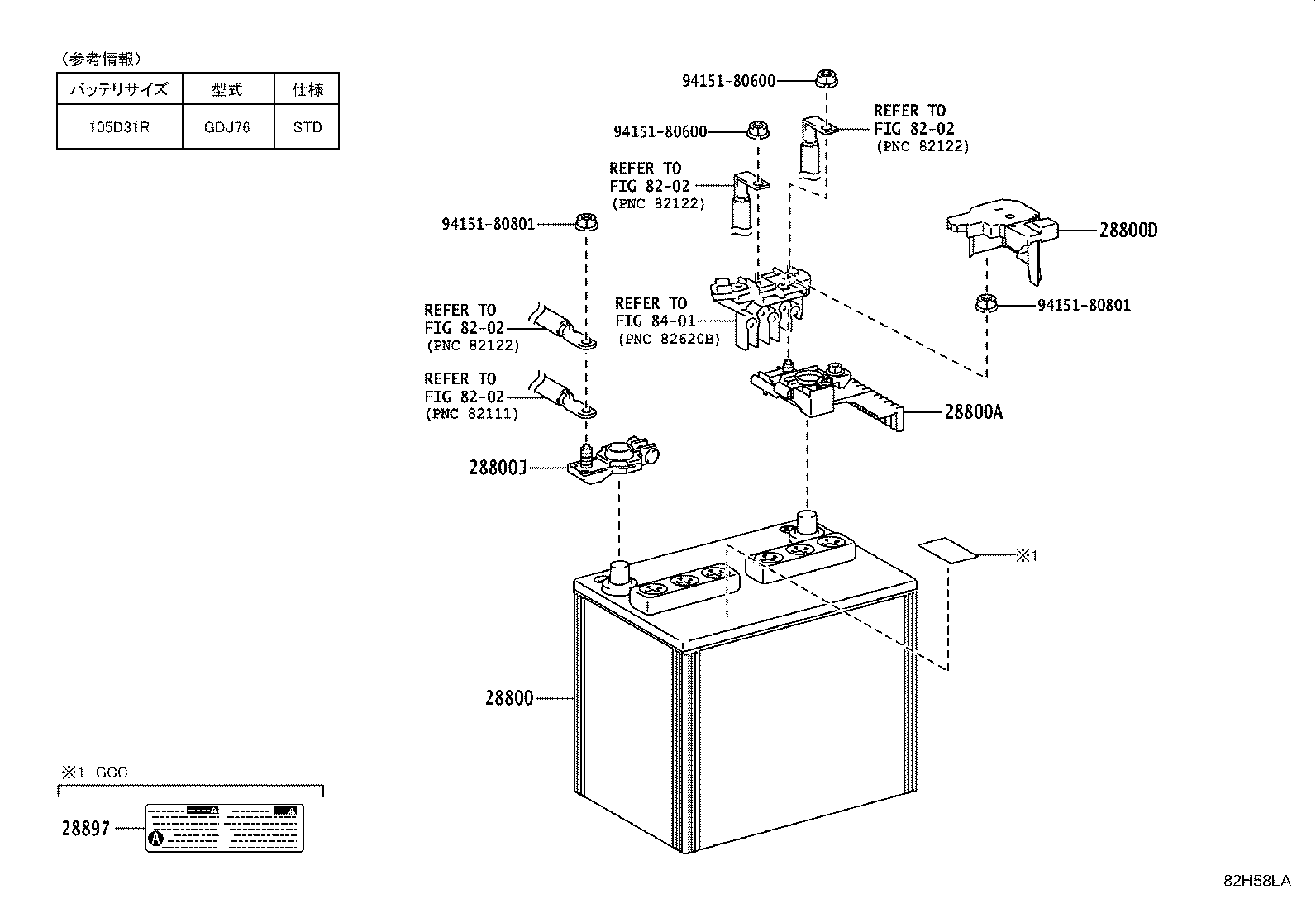

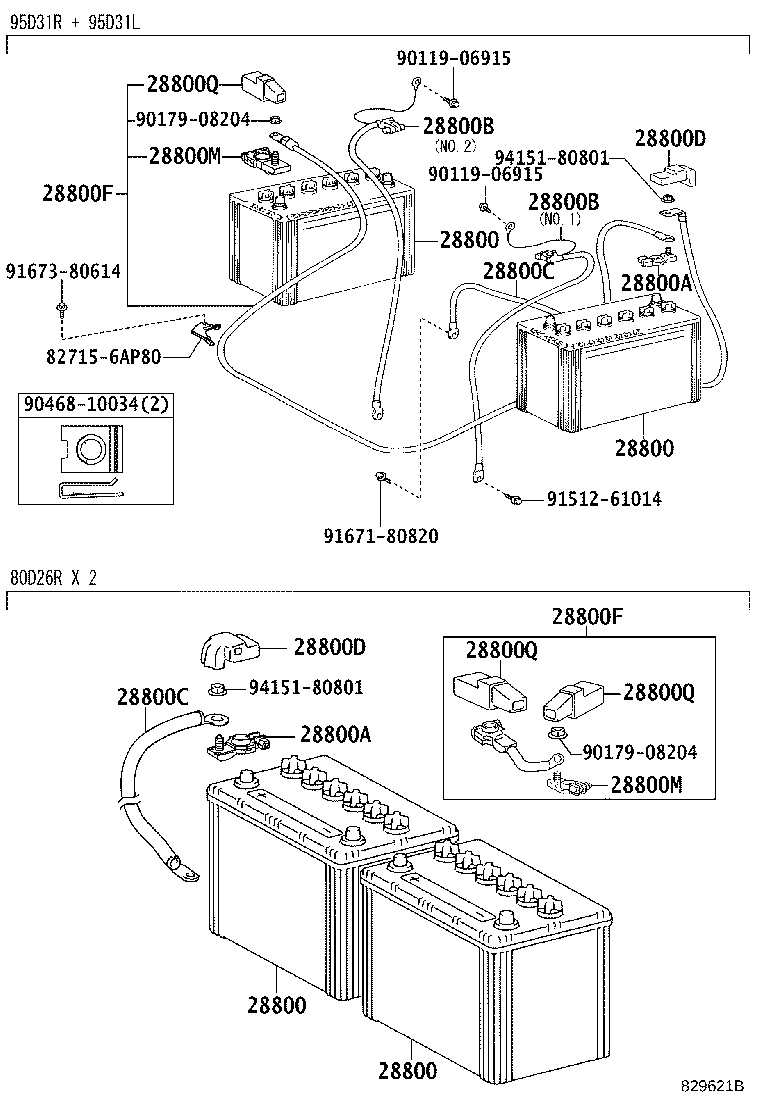

Figure 829619B 829619B 2007-01 → — Figure 829619B 829619B 2007-01 → — Figure 82B073 82B073 2007-01 → — Figure 829620B 829620B 2009-07 → — Figure 829621B 829621B 2007-01 → — Figure 82H58LA 82H58LA 2023-09 → —

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28800B Cable, Battery TO Ground
28800C Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800F Cable, Battery TO Battery
28800J Terminal, Battery Negative
28800M Terminal, Battery Positive
28800Q Cover, Connector(FOR BATTERY)
28897 Plate, Battery Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
