Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

104 part groups · 67 illustrations

Illustrations

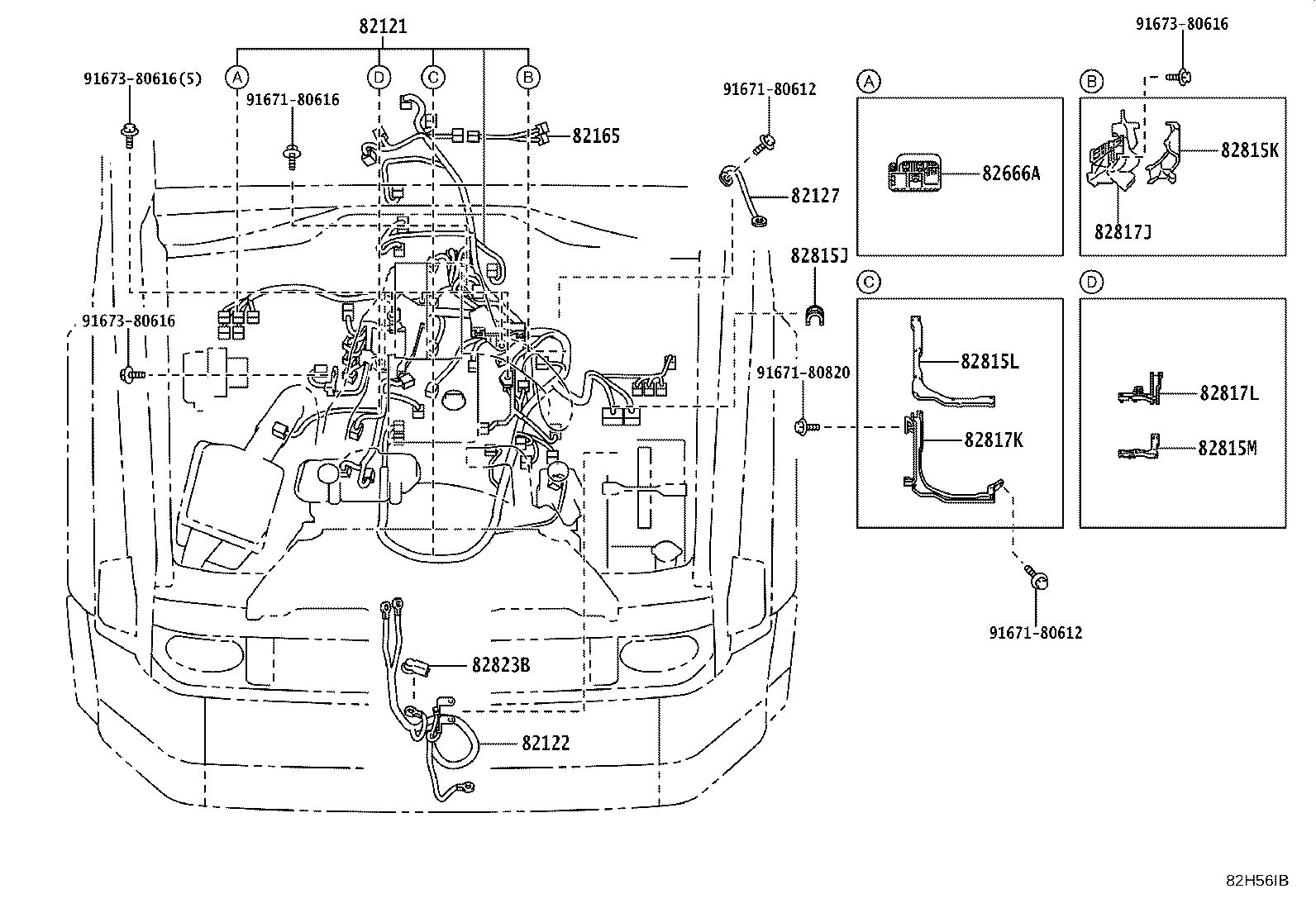

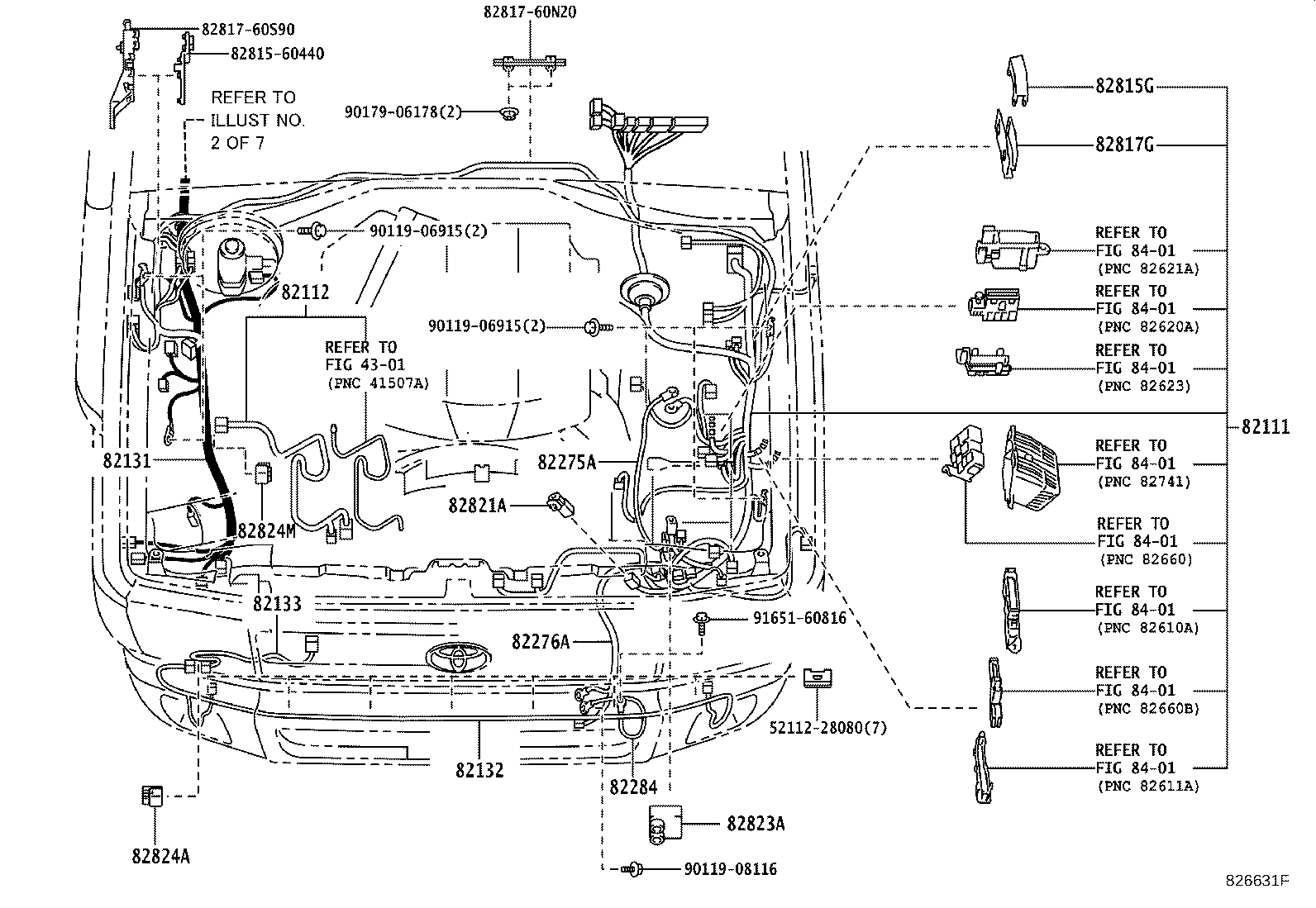

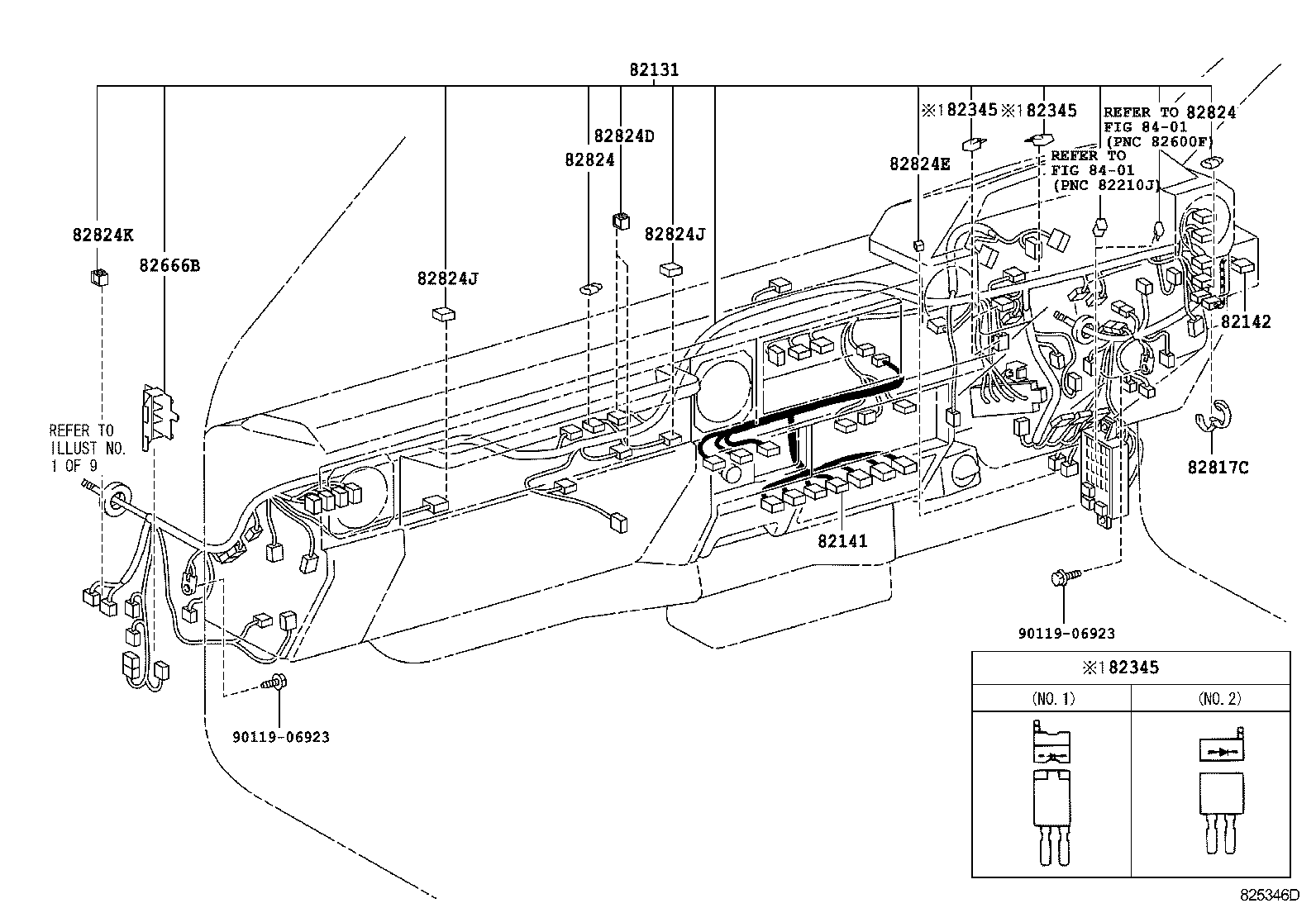

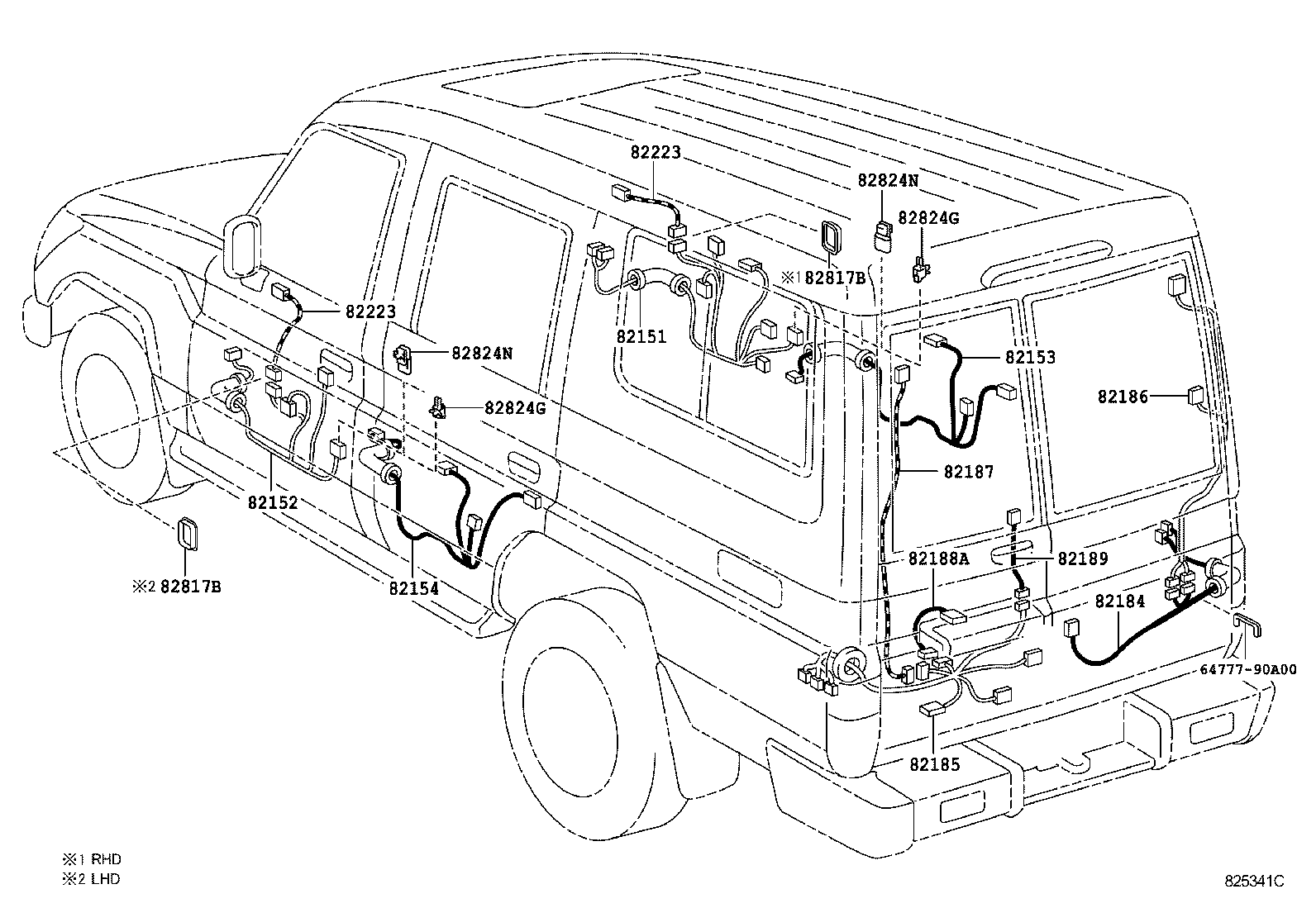

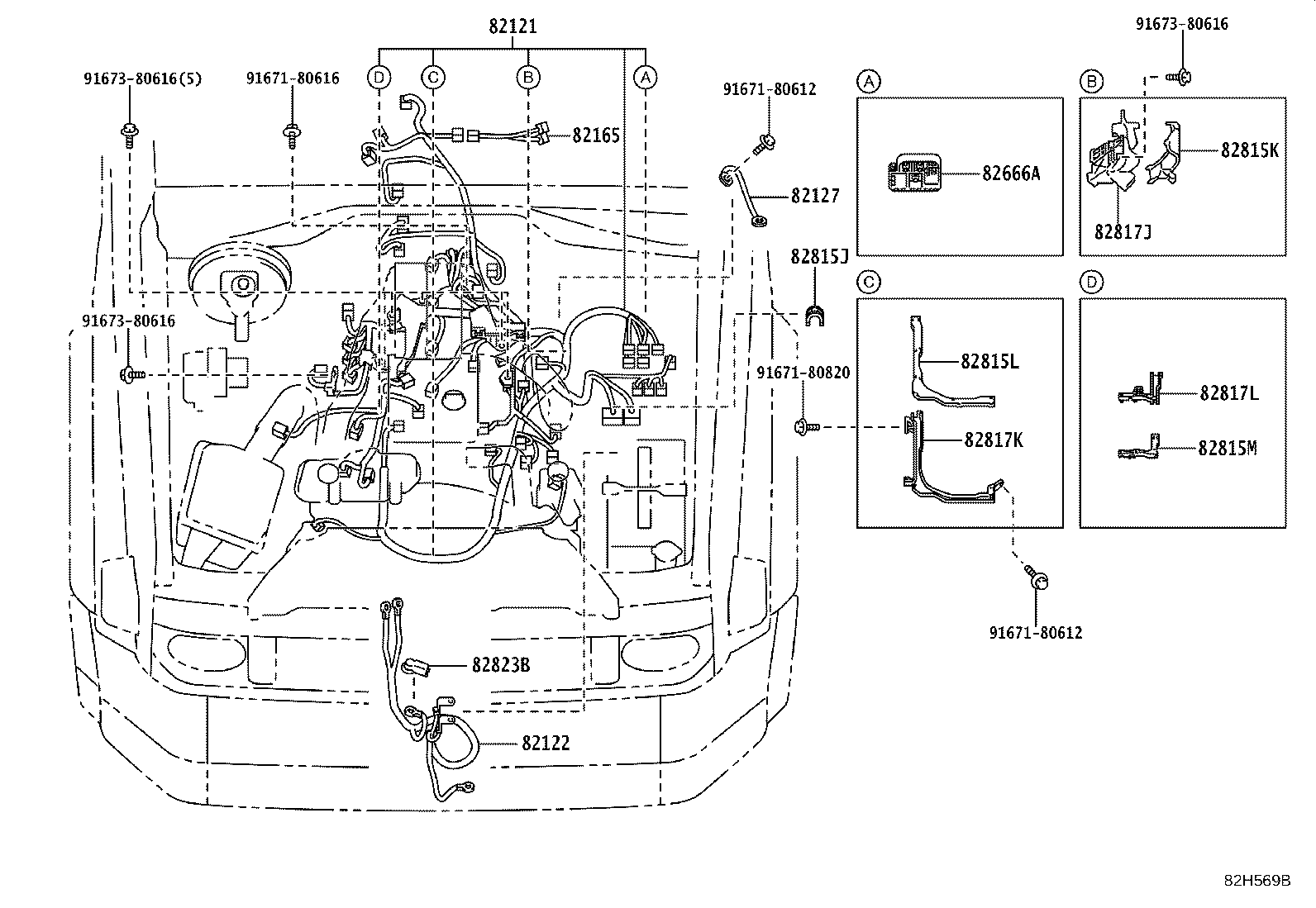

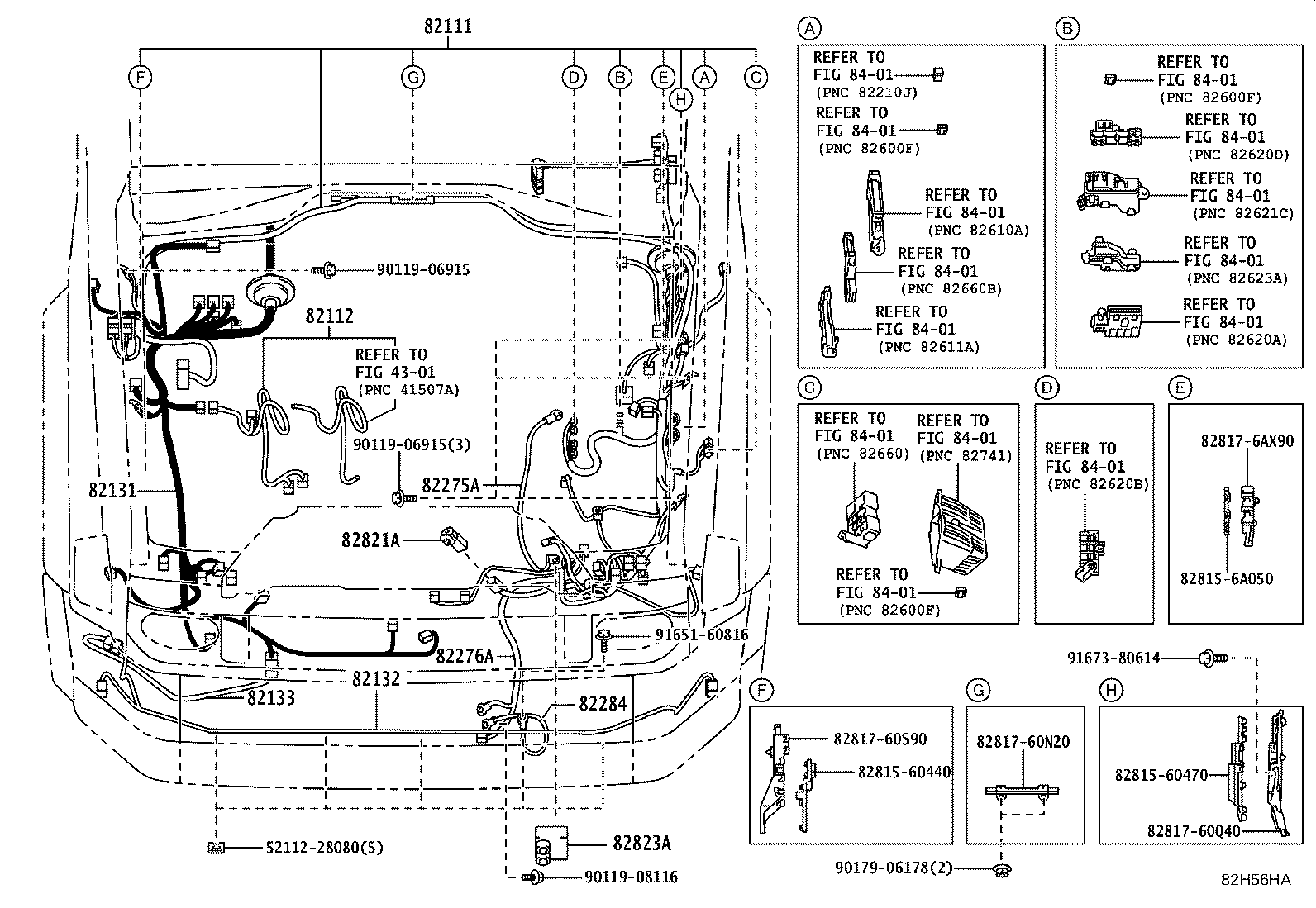

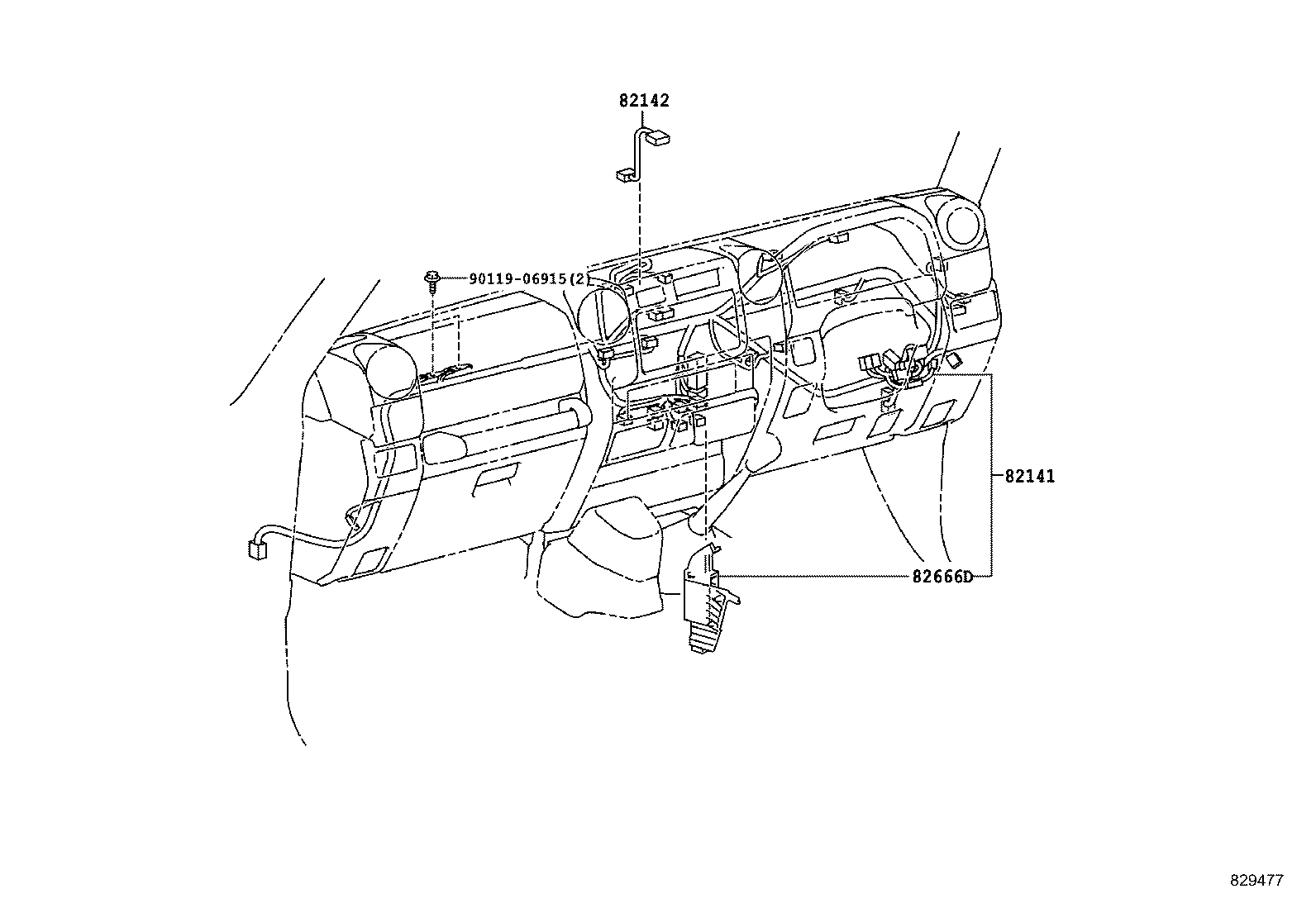

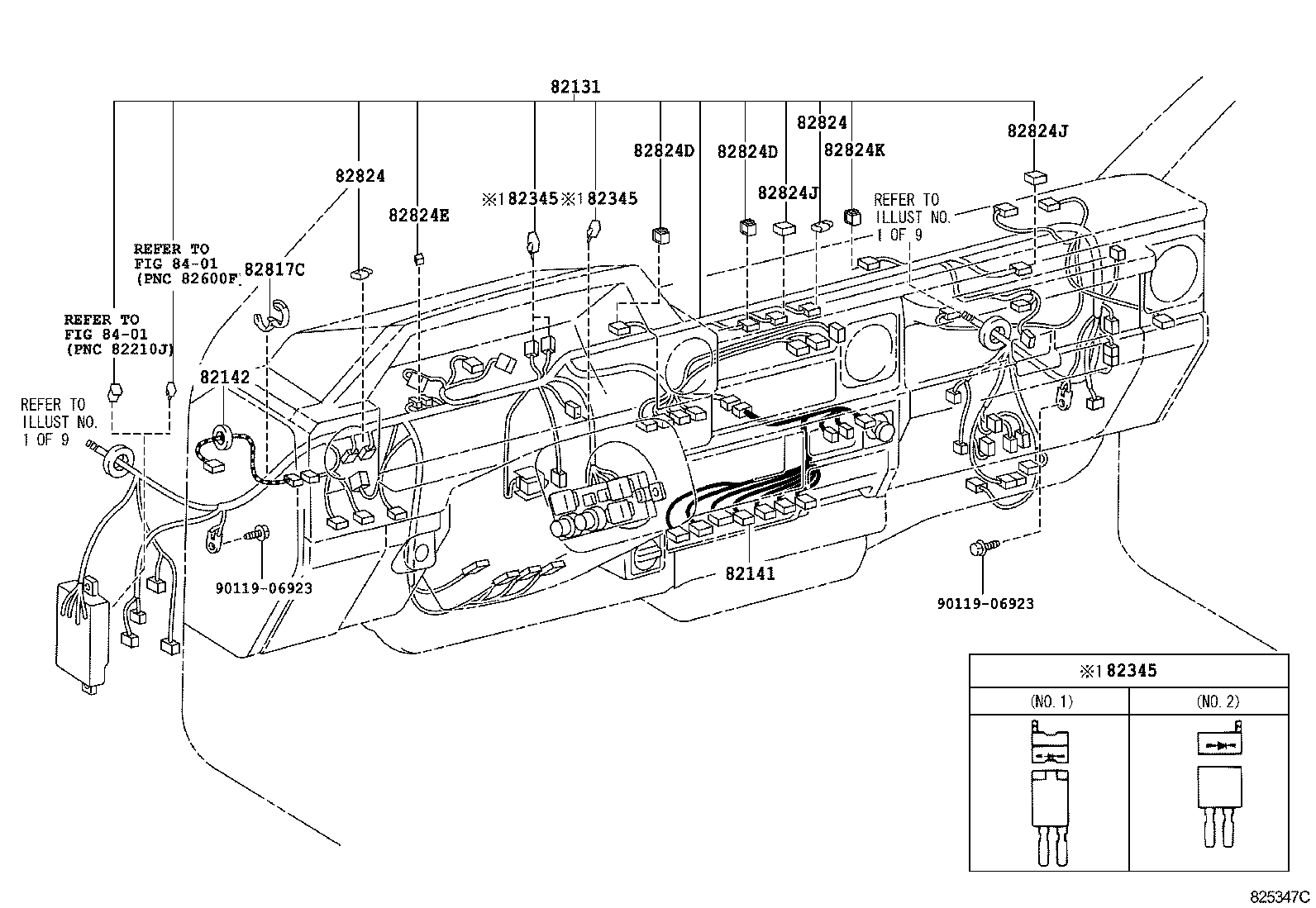

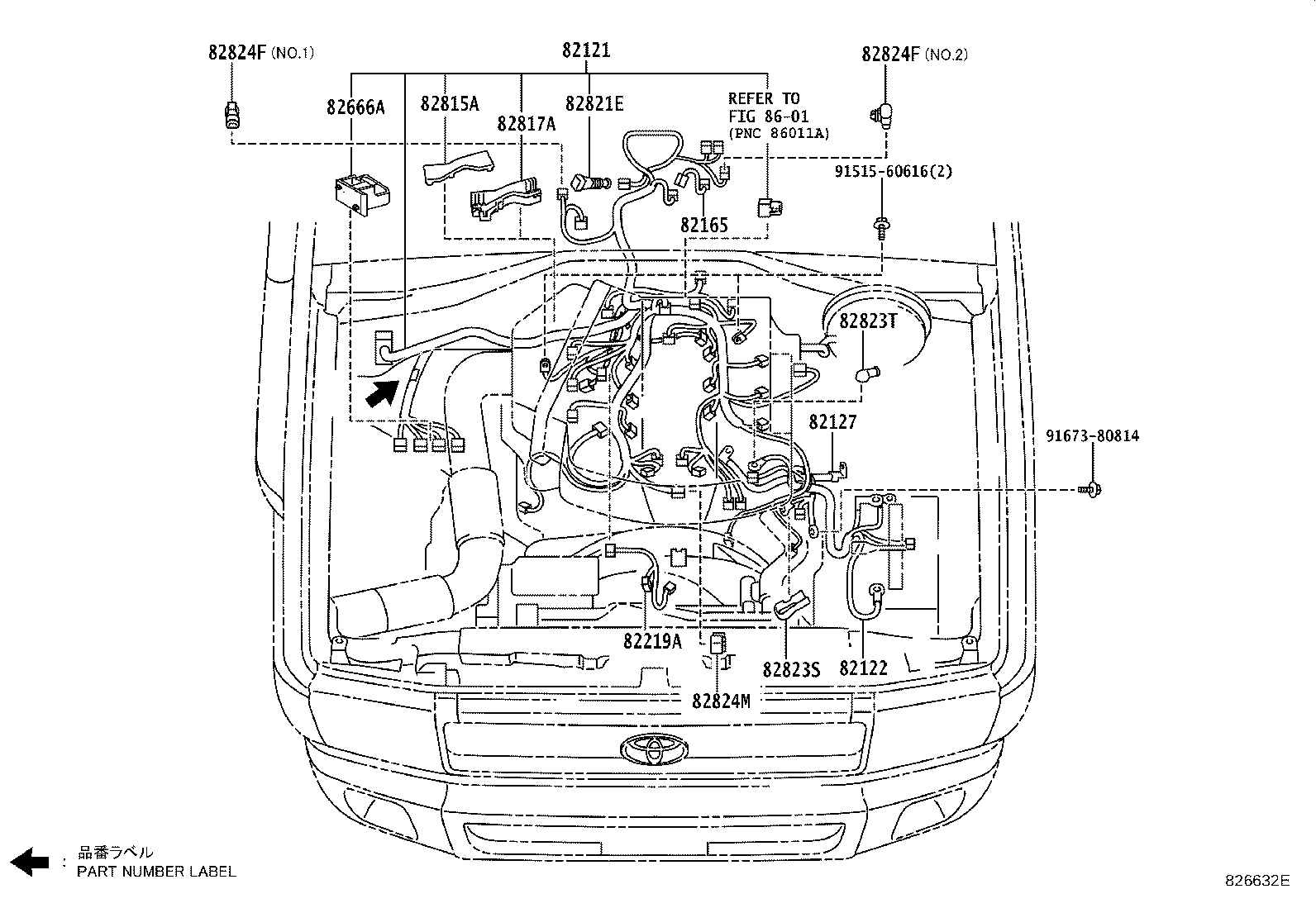

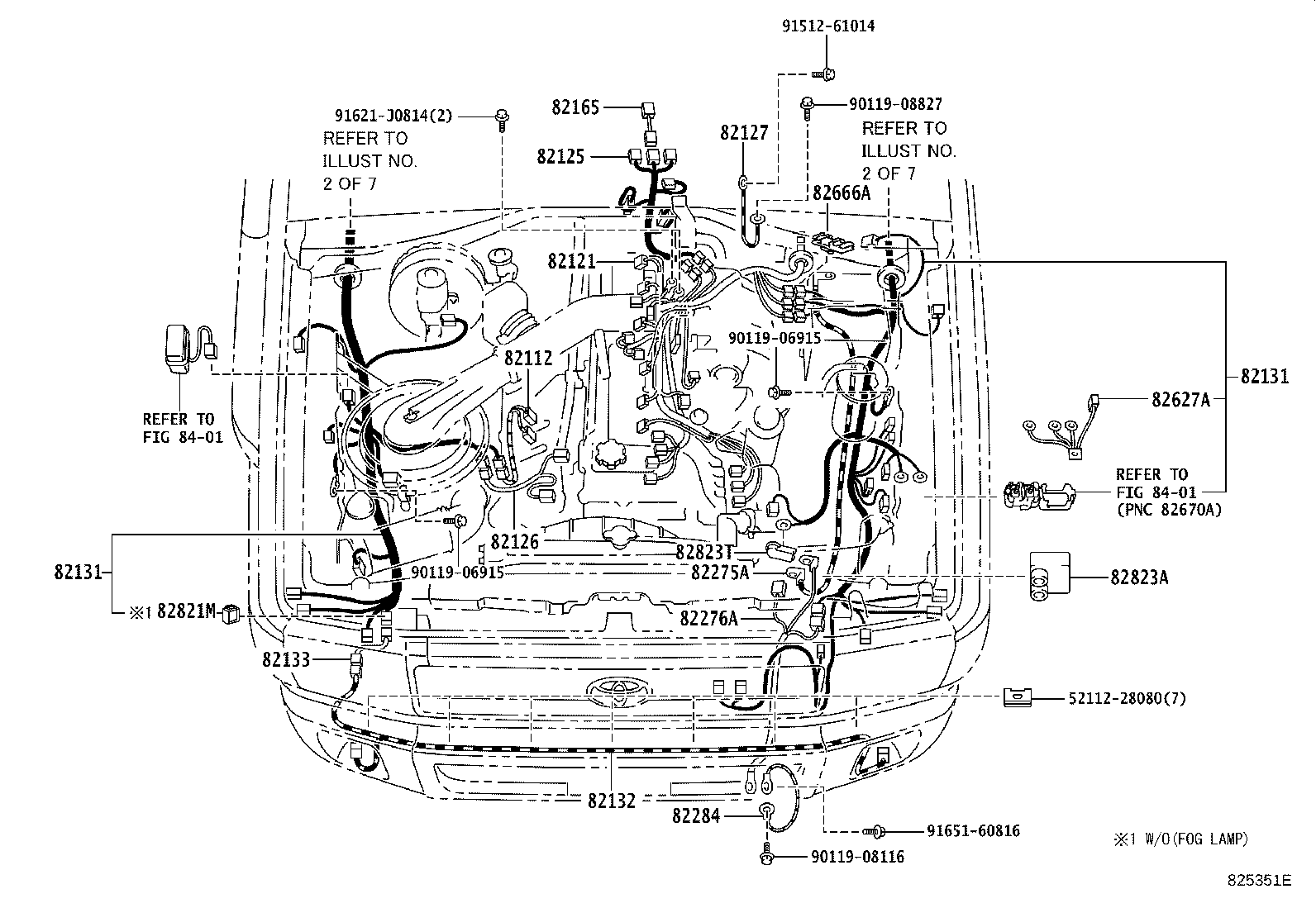

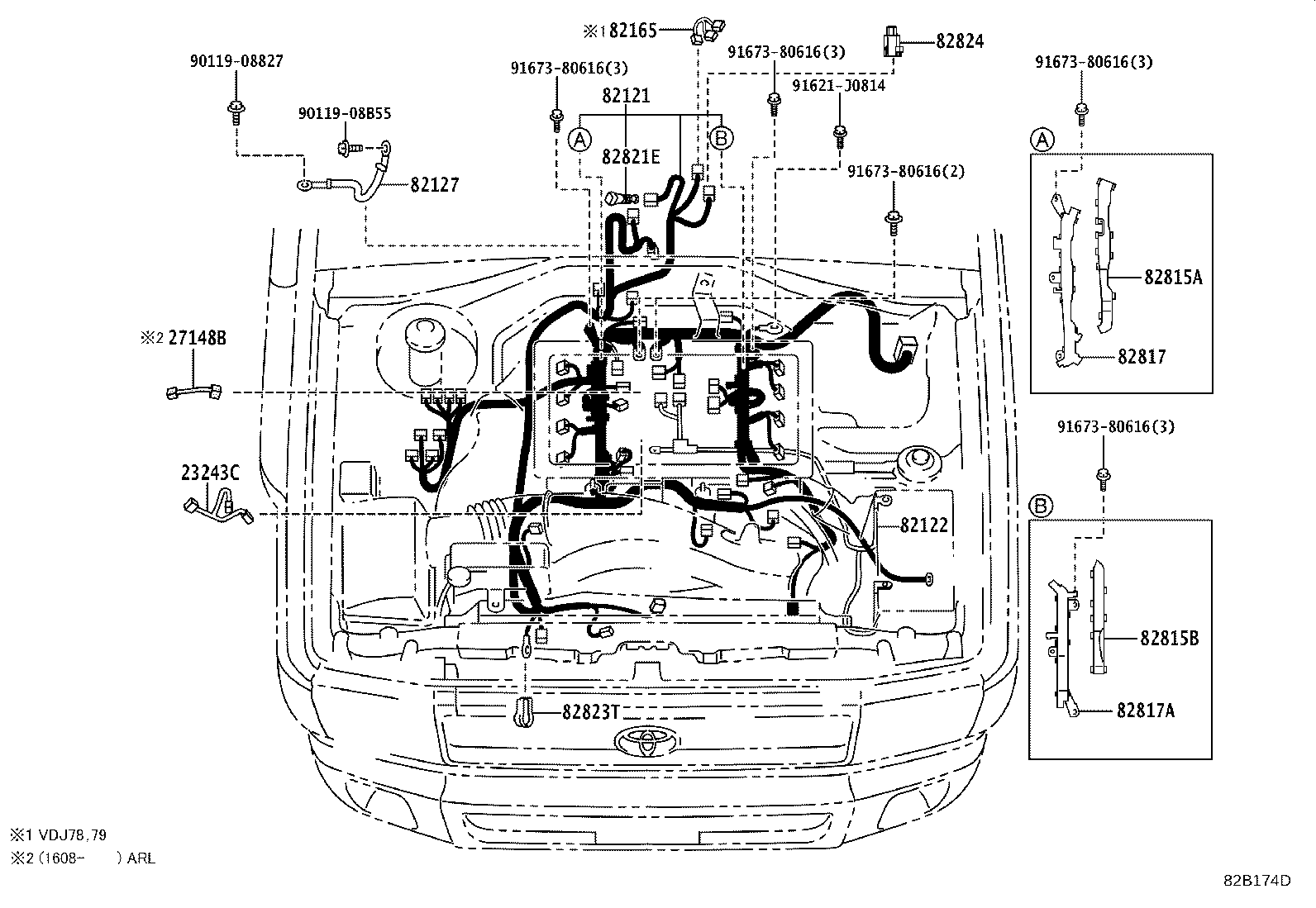

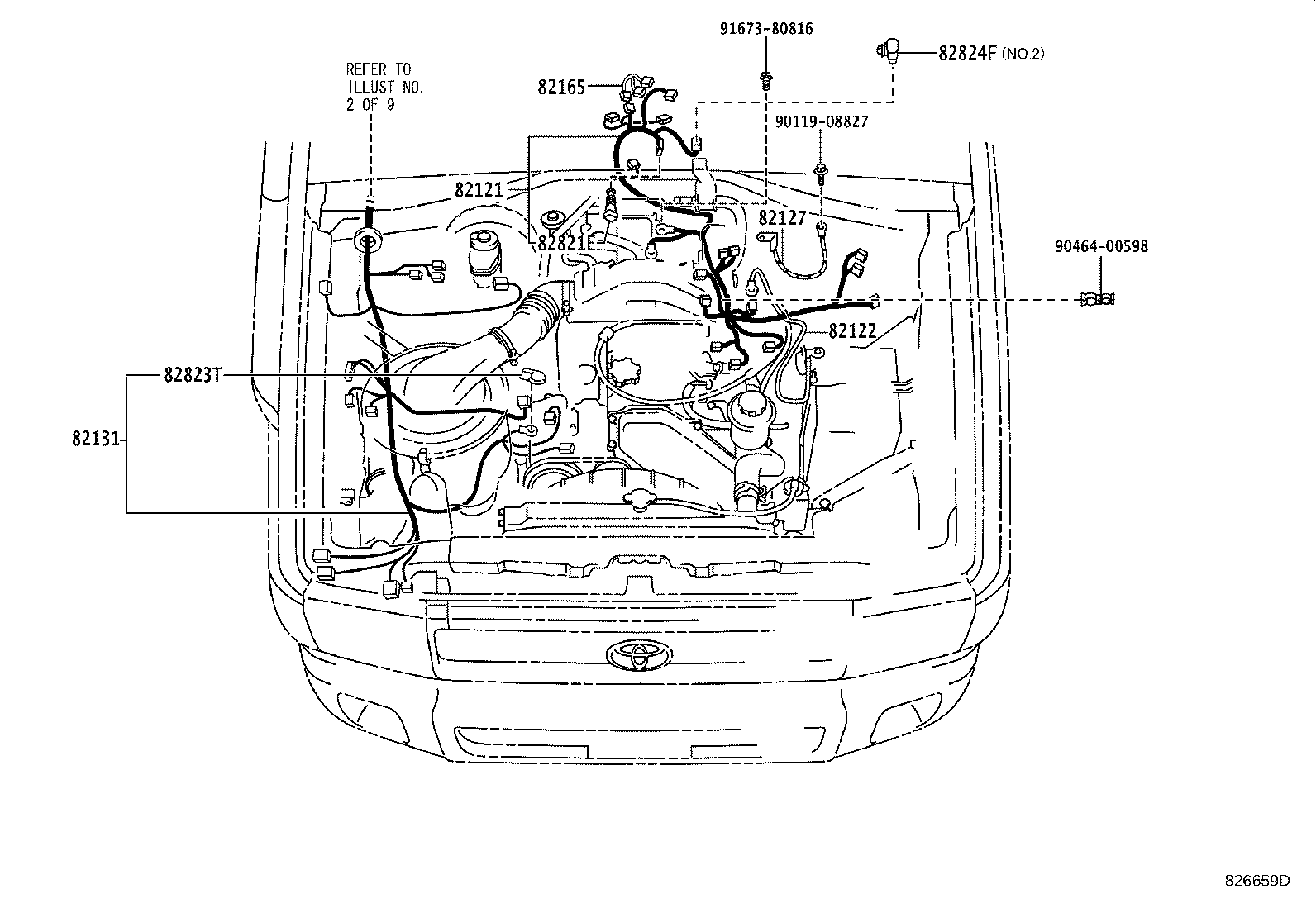

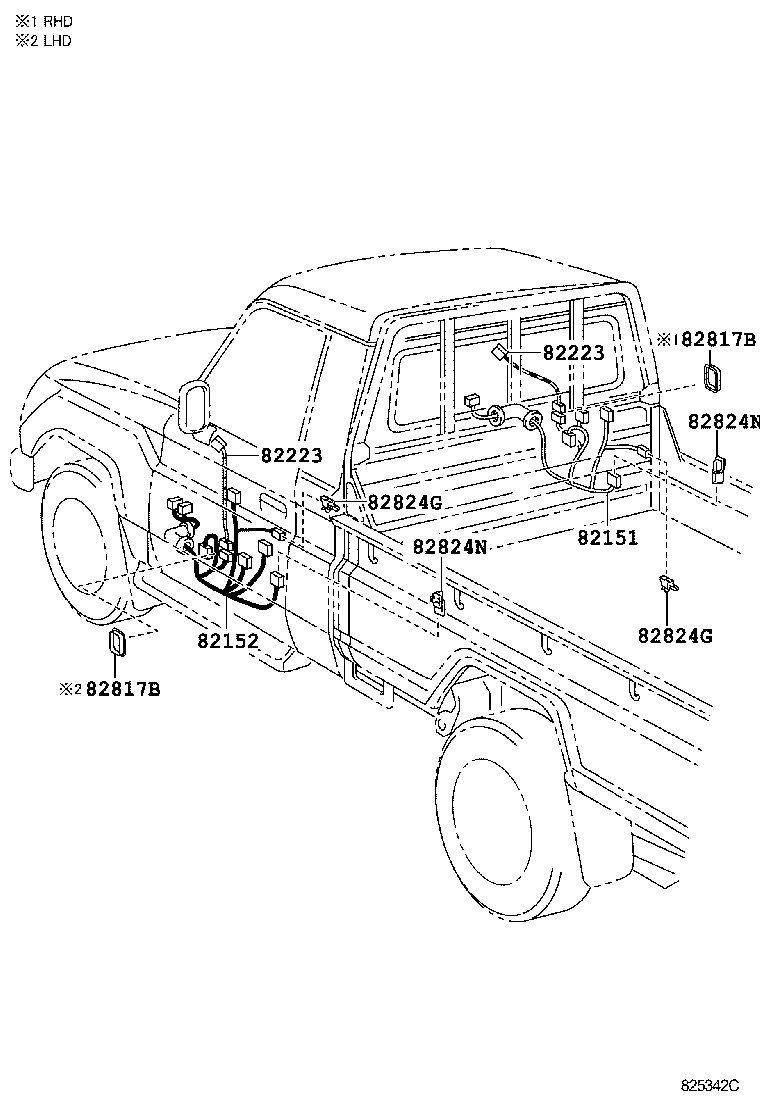

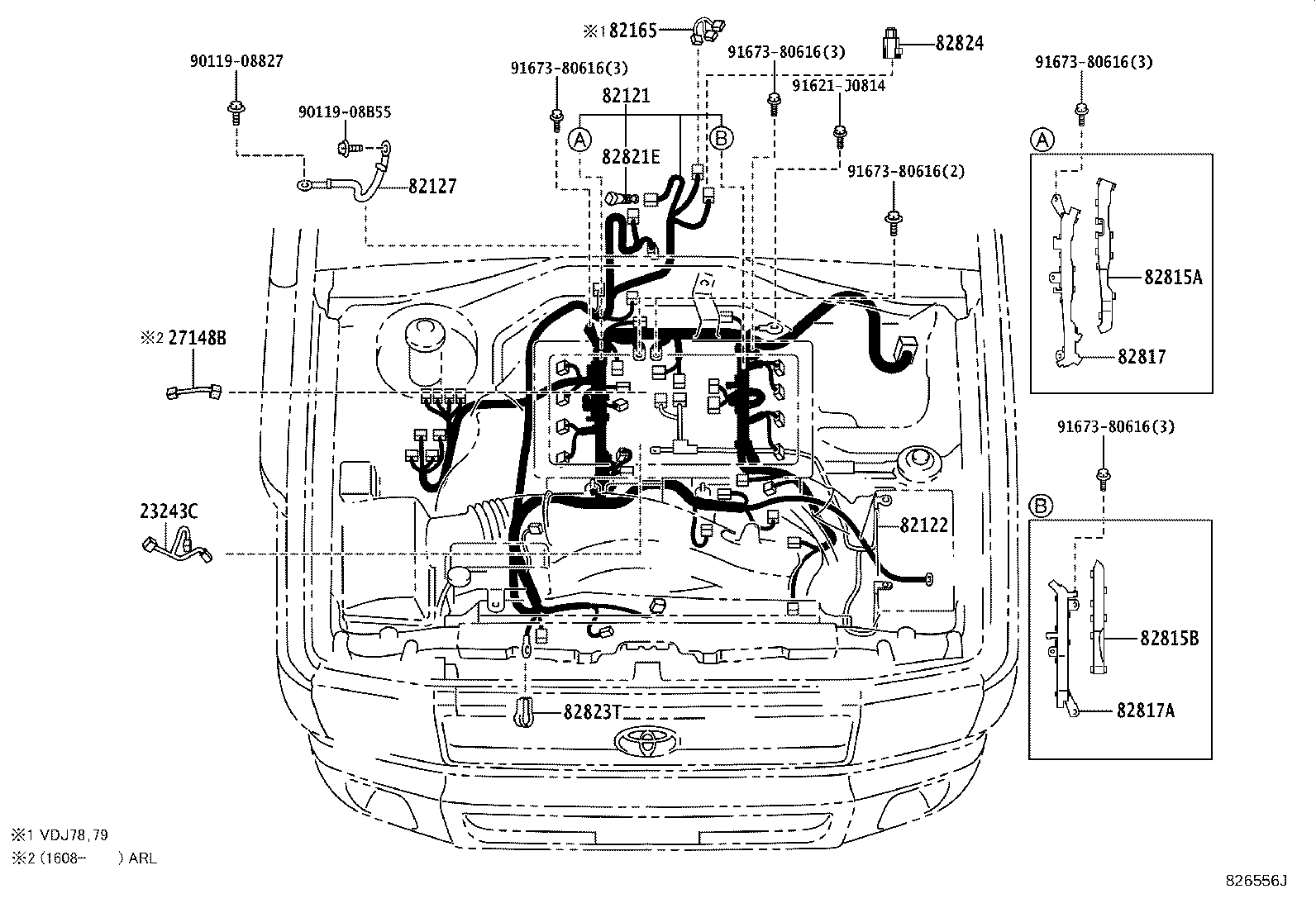

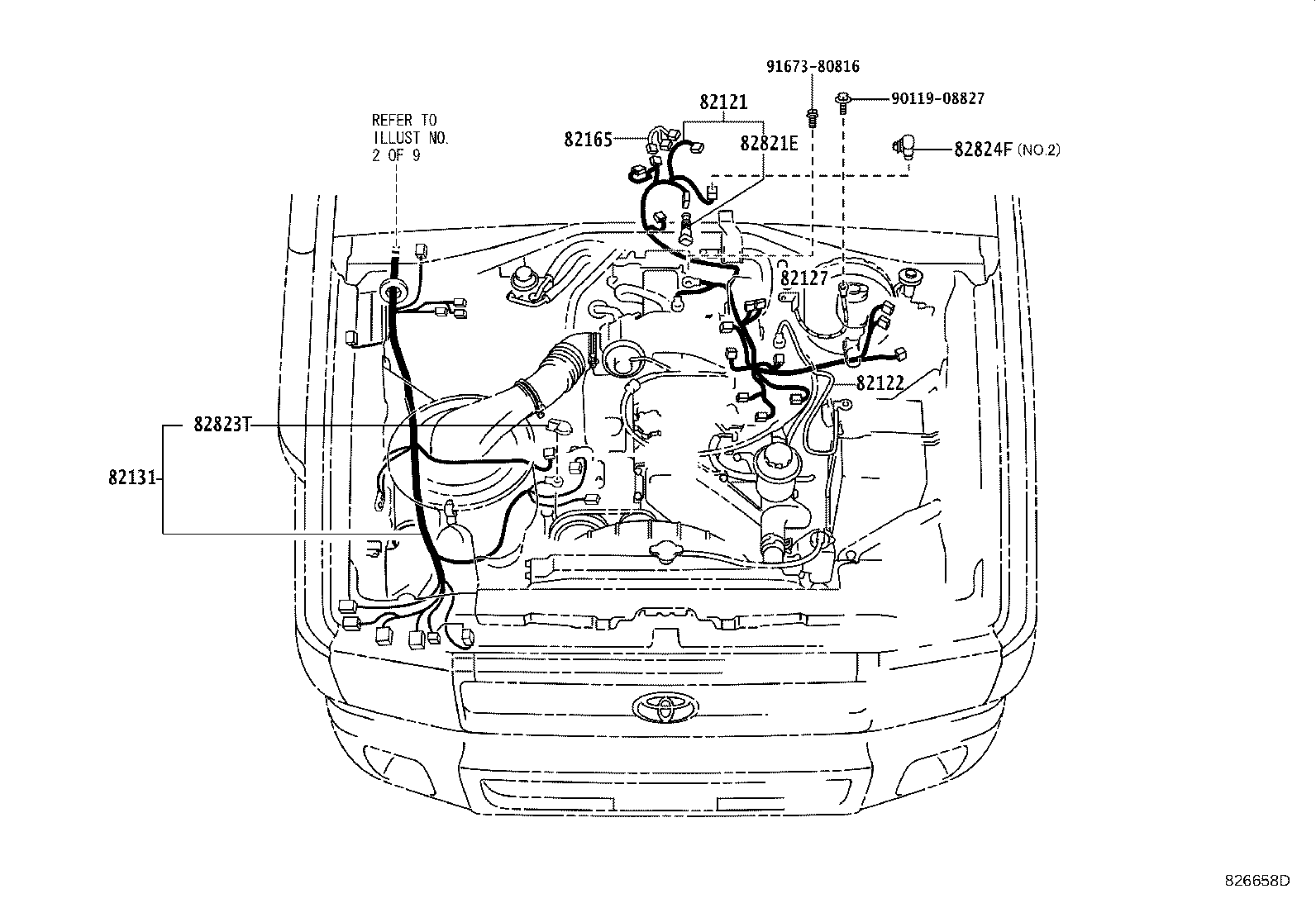

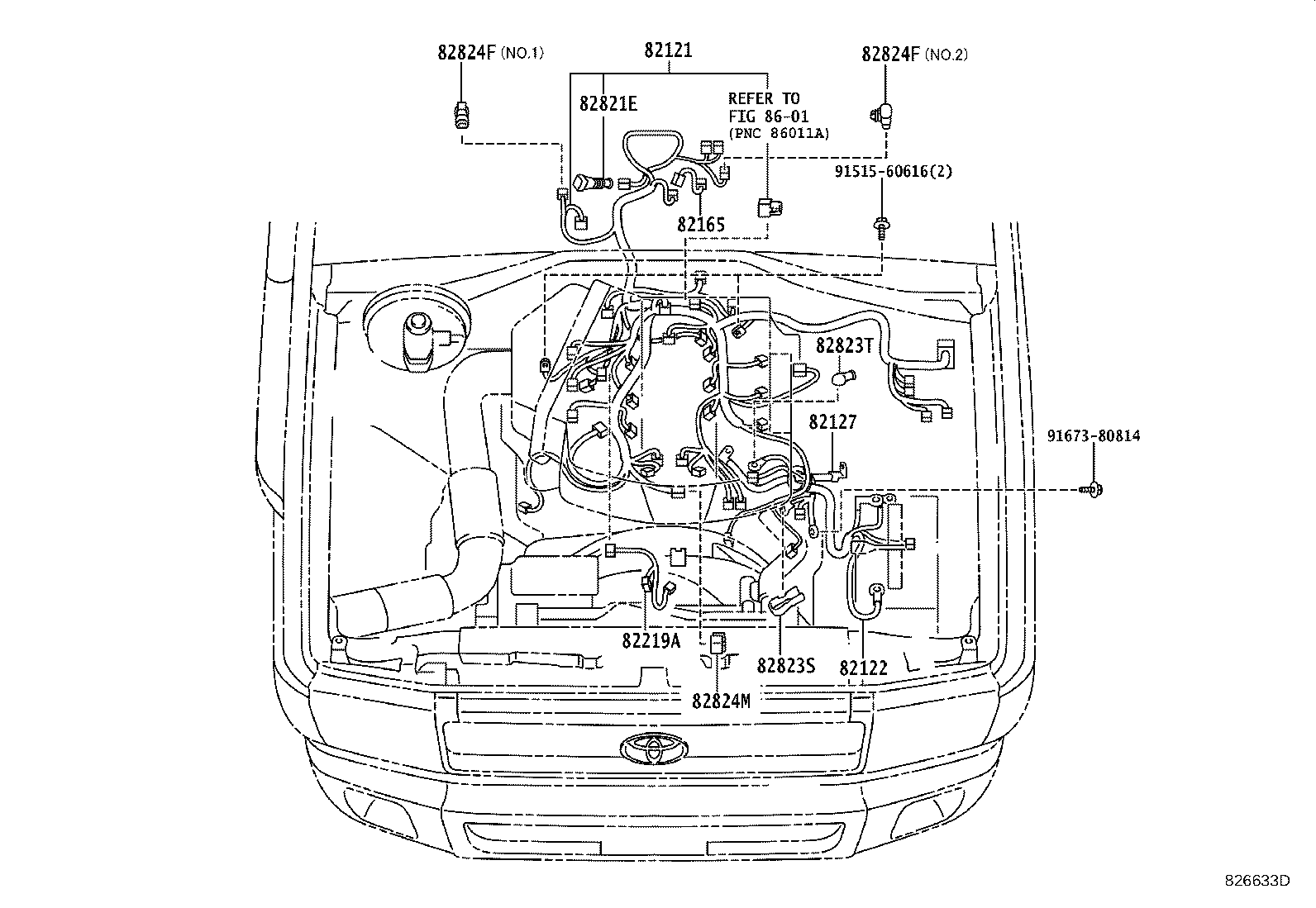

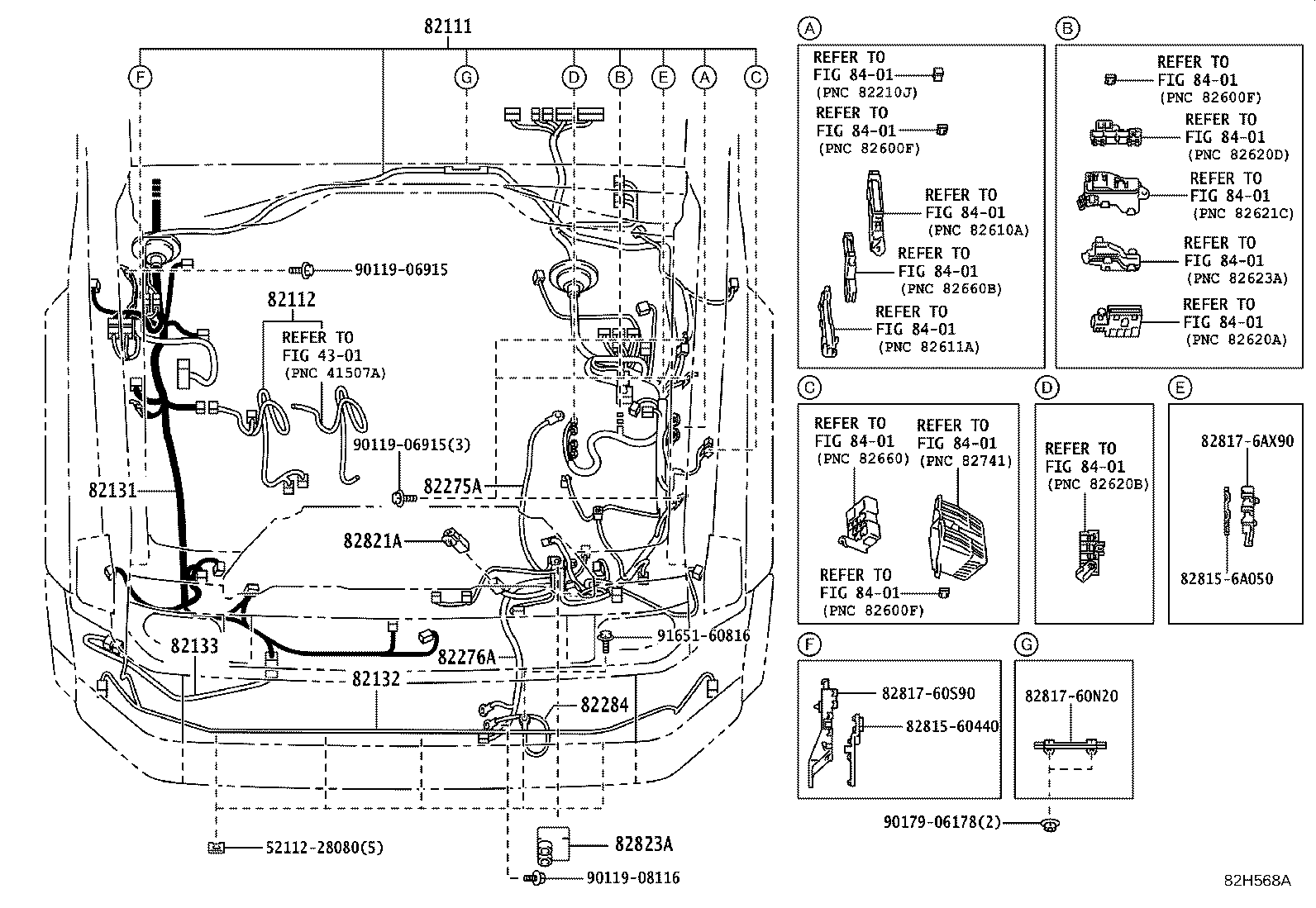

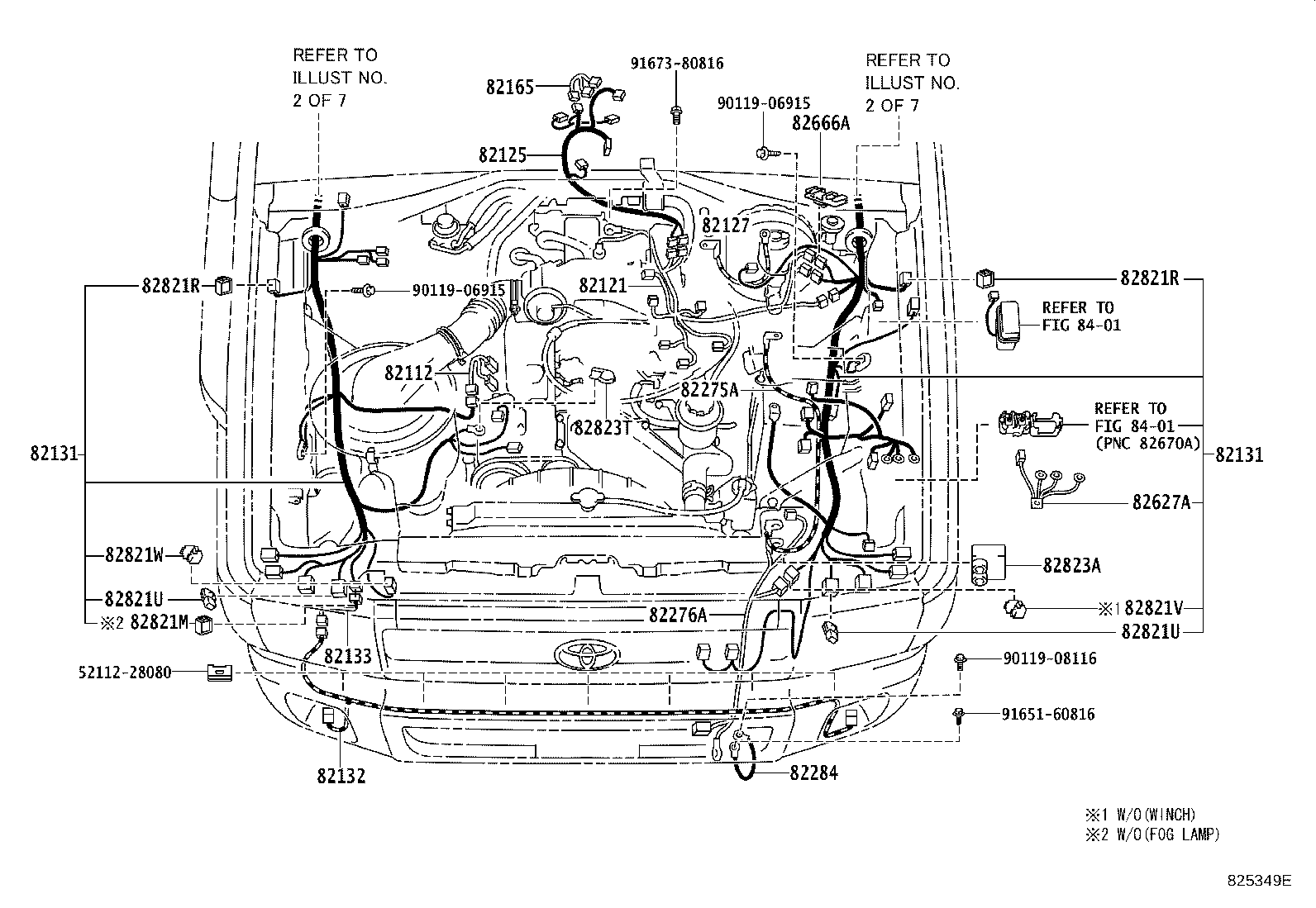

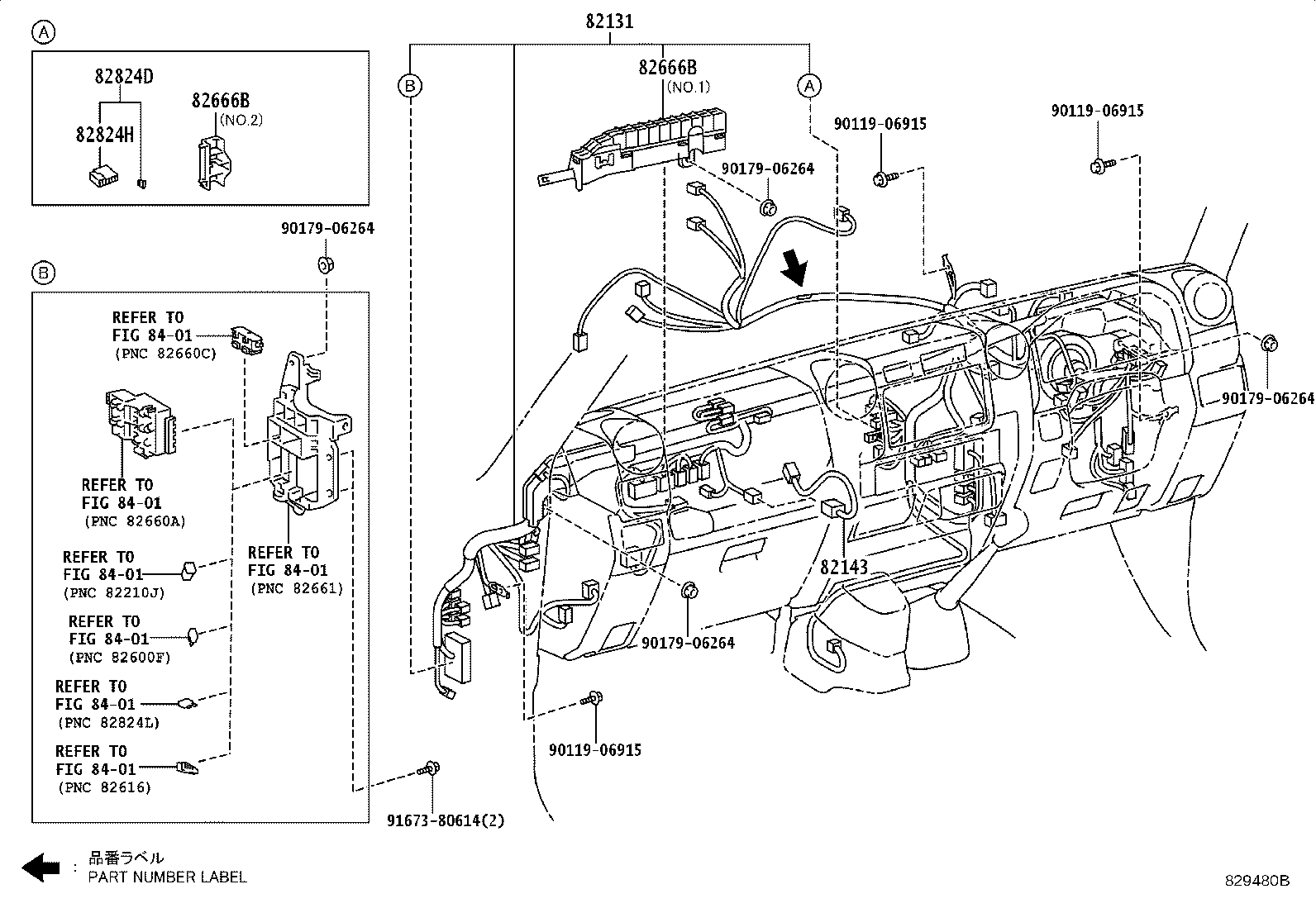

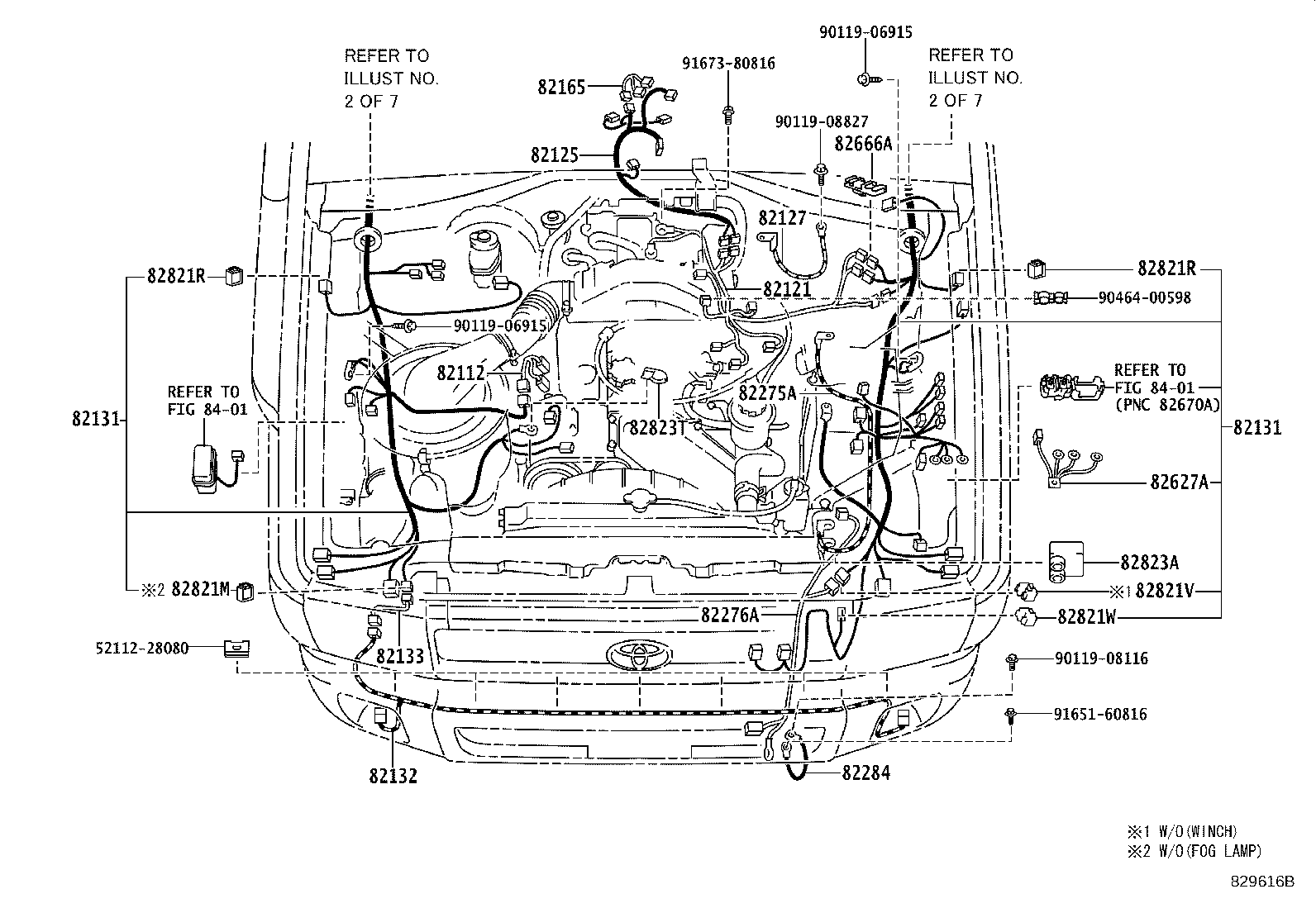

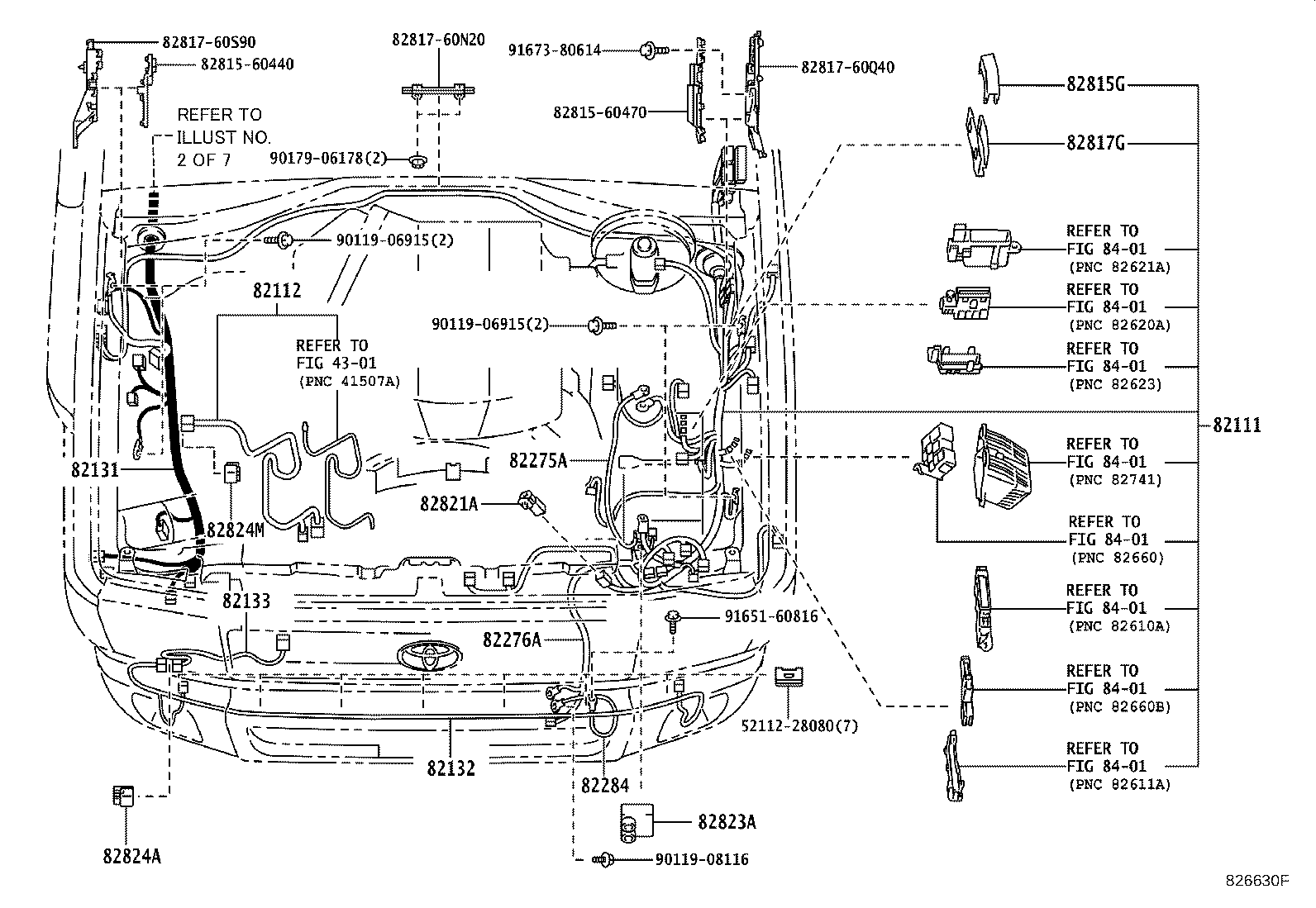

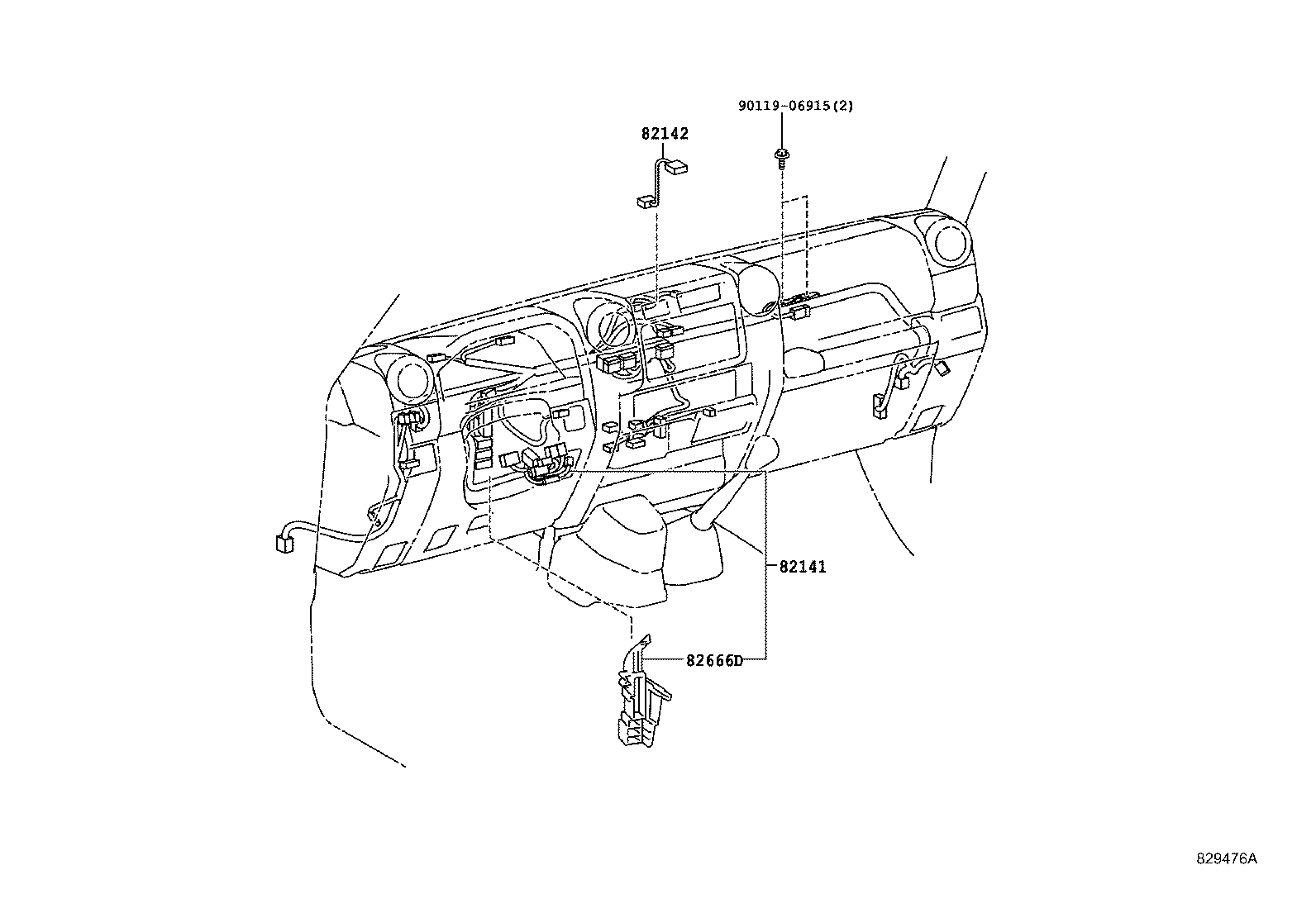

Figure 825348E 825348E 2007-01 → — Figure 825351E 825351E 2007-01 → — Figure 825349E 825349E 2007-01 → 2009-07 Figure 829616B 829616B 2007-01 → 2009-07 Figure 825350G 825350G 2007-01 → 2009-07 Figure 826630F 826630F 2009-07 → — Figure 826631F 826631F 2009-07 → — Figure 82H568A 82H568A 2023-09 → — Figure 82H56HA 82H56HA 2023-09 → — Figure 826632E 826632E 2009-07 → — Figure 826633D 826633D 2009-07 → — Figure 826658D 826658D 2009-07 → — Figure 826659D 826659D 2009-07 → — Figure 82B174D 82B174D 2017-01 → — Figure 826556J 826556J 2009-07 → — Figure 82H569C 82H569C 2023-09 → — Figure 82H56IB 82H56IB 2023-09 → — Figure 825347C 825347C 2007-01 → 2009-07 Figure 825346D 825346D 2007-01 → 2009-07 Figure 829479A 829479A 2009-07 → — Figure 829480B 829480B 2009-07 → — Figure 829476A 829476A 2009-07 → — Figure 829477 829477 2009-07 → — Figure 825341C 825341C 2007-01 → — Figure 825341C 825341C 2007-01 → — Figure 825341C 825341C 2017-01 → — Figure 825341C 825341C 2022-09 → — Figure 825341C 825341C 2022-09 → — Figure 825341C 825341C 2023-09 → — Figure 825341C 825341C 2024-10 → — Figure 825342C 825342C 2007-01 → — Figure 825342C 825342C 2017-01 → — Figure 825342C 825342C 2023-09 → — Figure 825342C 825342C 2023-09 → — Figure 825342C 825342C 2024-10 → — Figure 825343G 825343G 2007-01 → 2016-08 Figure 825343G 825343G 2007-01 → — Figure 825343G 825343G 2023-09 → — Figure 825343G 825343G 2023-09 → — Figure 825344H 825344H 2007-01 → 2016-08 Figure 82A865E 82A865E 2016-08 → — Figure 82A865E 82A865E 2016-08 → — Figure 82A865E 82A865E 2017-01 → — Figure 82A865E 82A865E 2023-09 → — Figure 82A865E 82A865E 2023-09 → — Figure 82A865E 82A865E 2024-10 → — Figure 825345B 825345B 2007-01 → — Figure 82A864C 82A864C 2016-08 → — Figure 82A864C 82A864C 2017-01 → — Figure 82A864C 82A864C 2023-09 → — Figure 82B365A 82B365A 2017-02 → 2017-04 Figure 82B365A 82B365A 2018-02 → — Figure 829615 829615 2007-01 → — Figure 826639A 826639A 2009-07 → — Figure 82A910D 82A910D 2007-01 → — Figure 825998D 825998D 2007-01 → — Figure 82A911D 82A911D 2007-01 → — Figure 825354M 825354M 2007-01 → — Figure 829618B 829618B 2007-01 → — Figure 82A913A 82A913A 2009-07 → — Figure 82A914 82A914 2009-07 → — Figure 826638G 826638G 2009-07 → — Figure 82H56JE 82H56JE 2023-09 → — Figure 82H56KC 82H56KC 2023-09 → — Figure 826690H 826690H 2007-01 → — Figure 82A999D 82A999D 2007-01 → — Figure 82G604B 82G604B 2007-01 → —

Part groups

PNCDescription

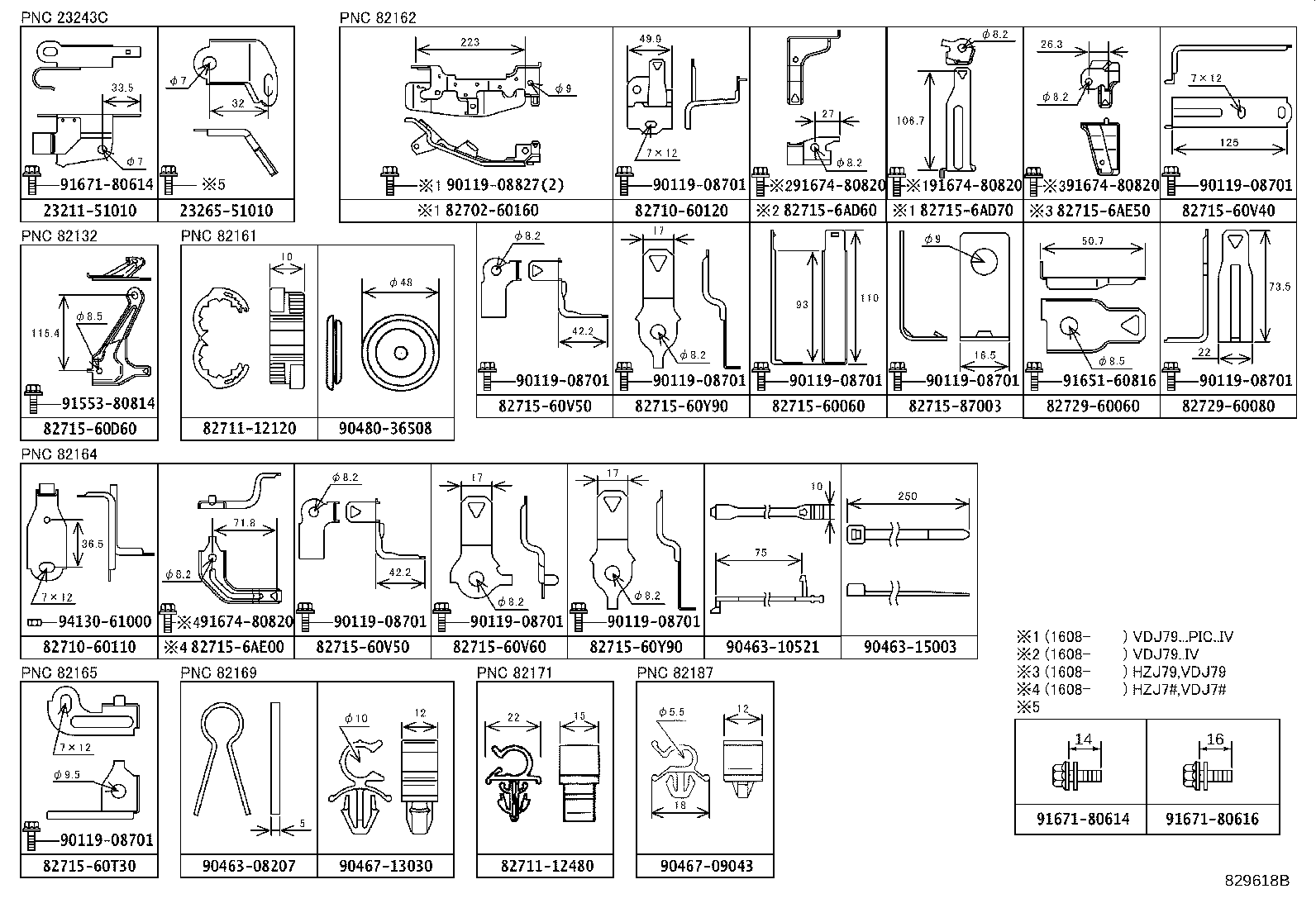

23243C Wire, Fuel Pump Motor
27148B Wire, Connecting

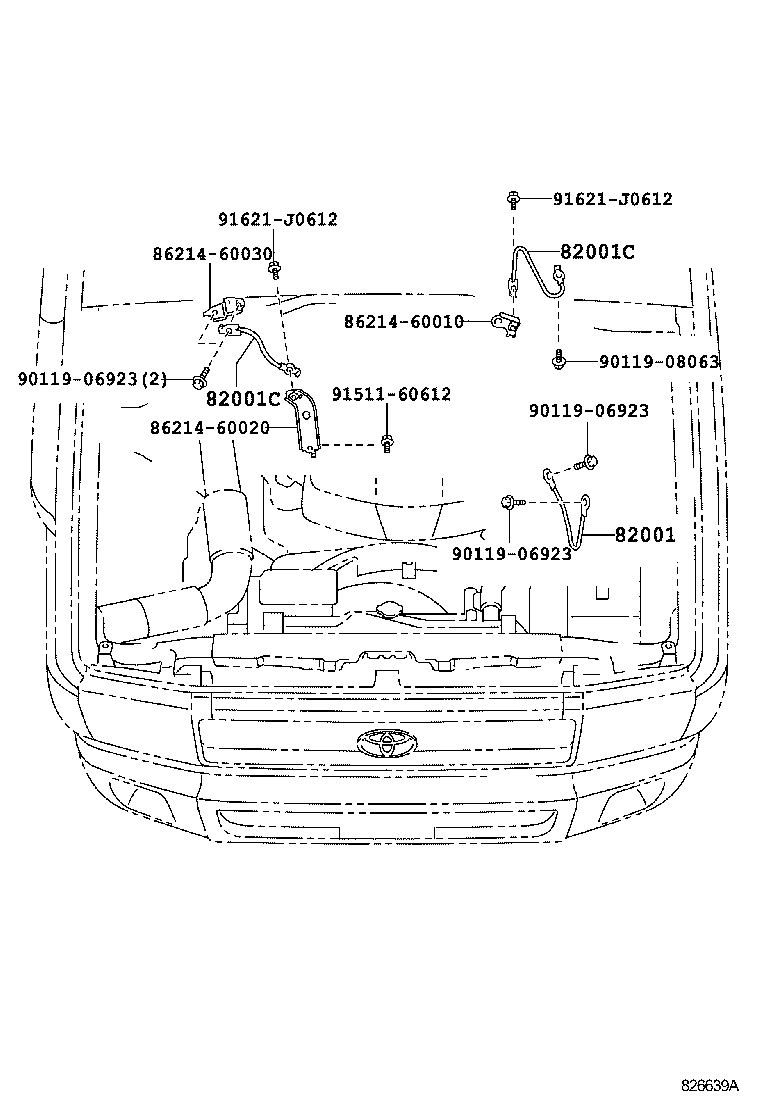

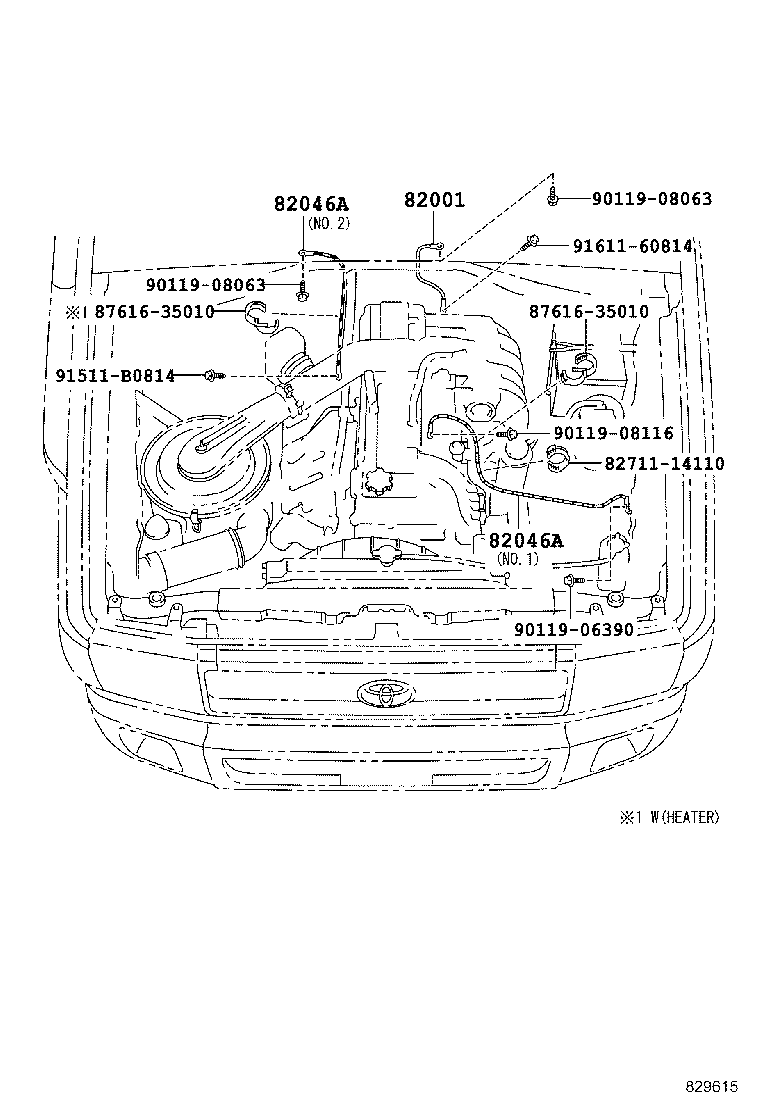

82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82046A Wire Sub-assy, Body Ground, NO.1

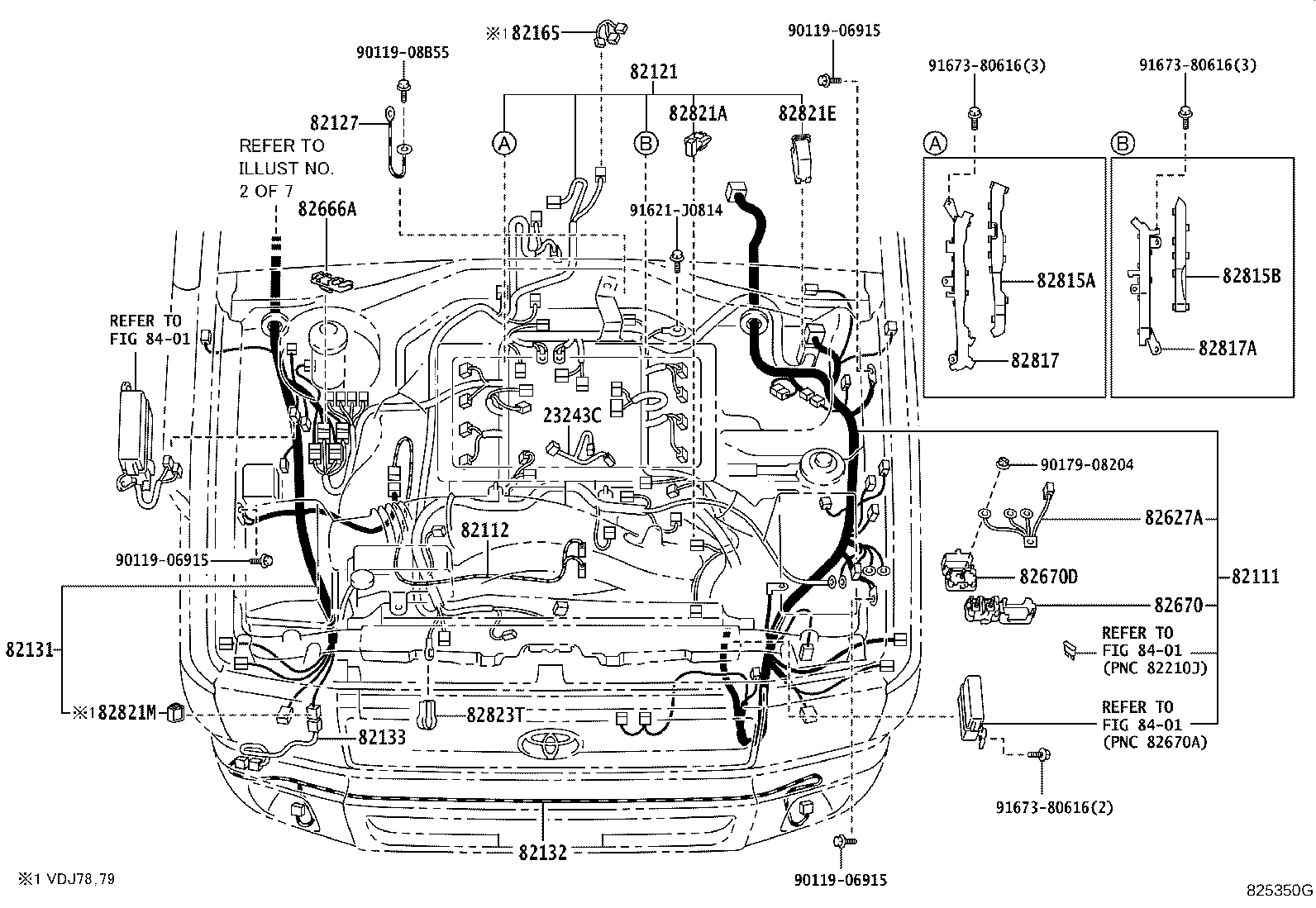

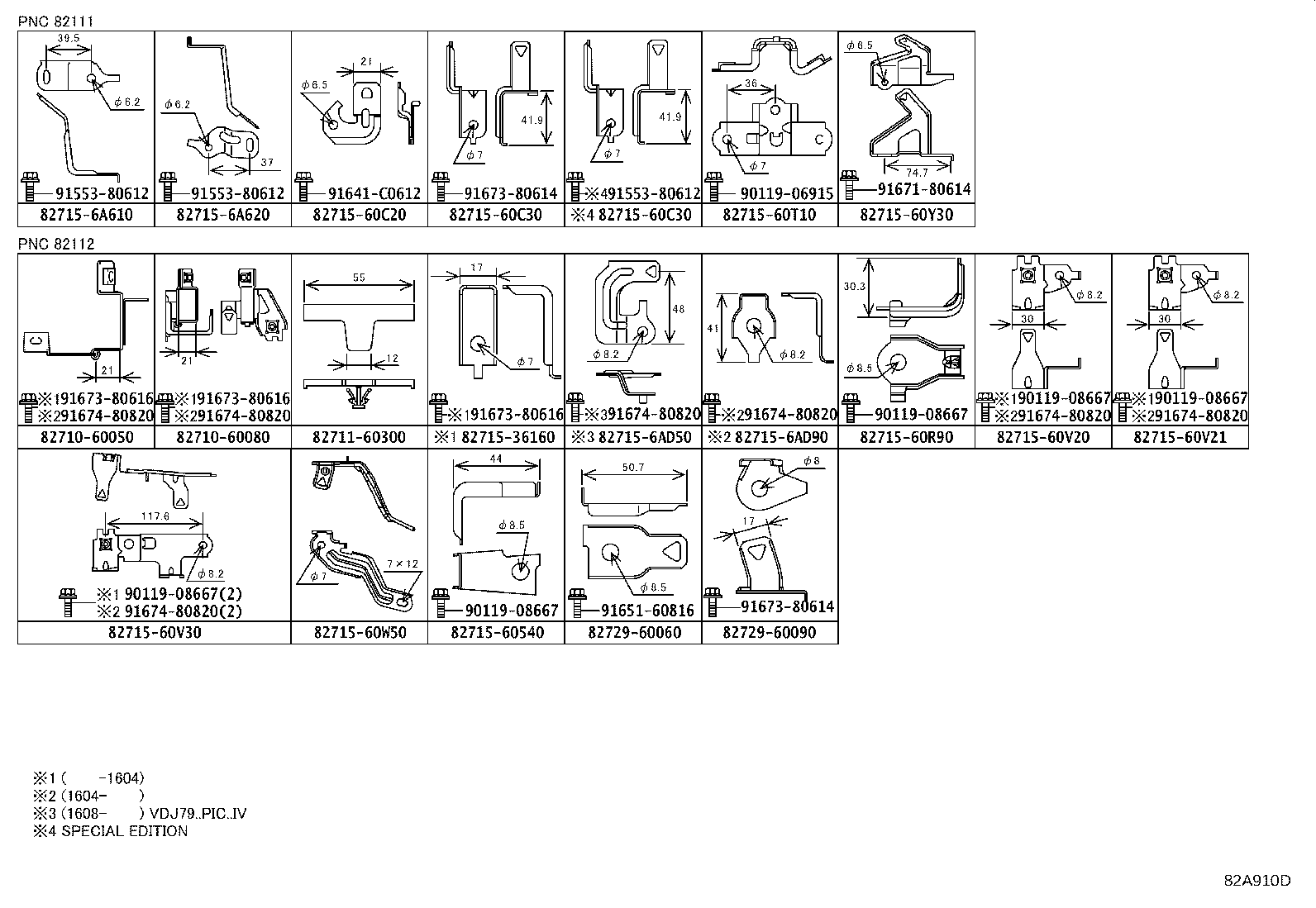

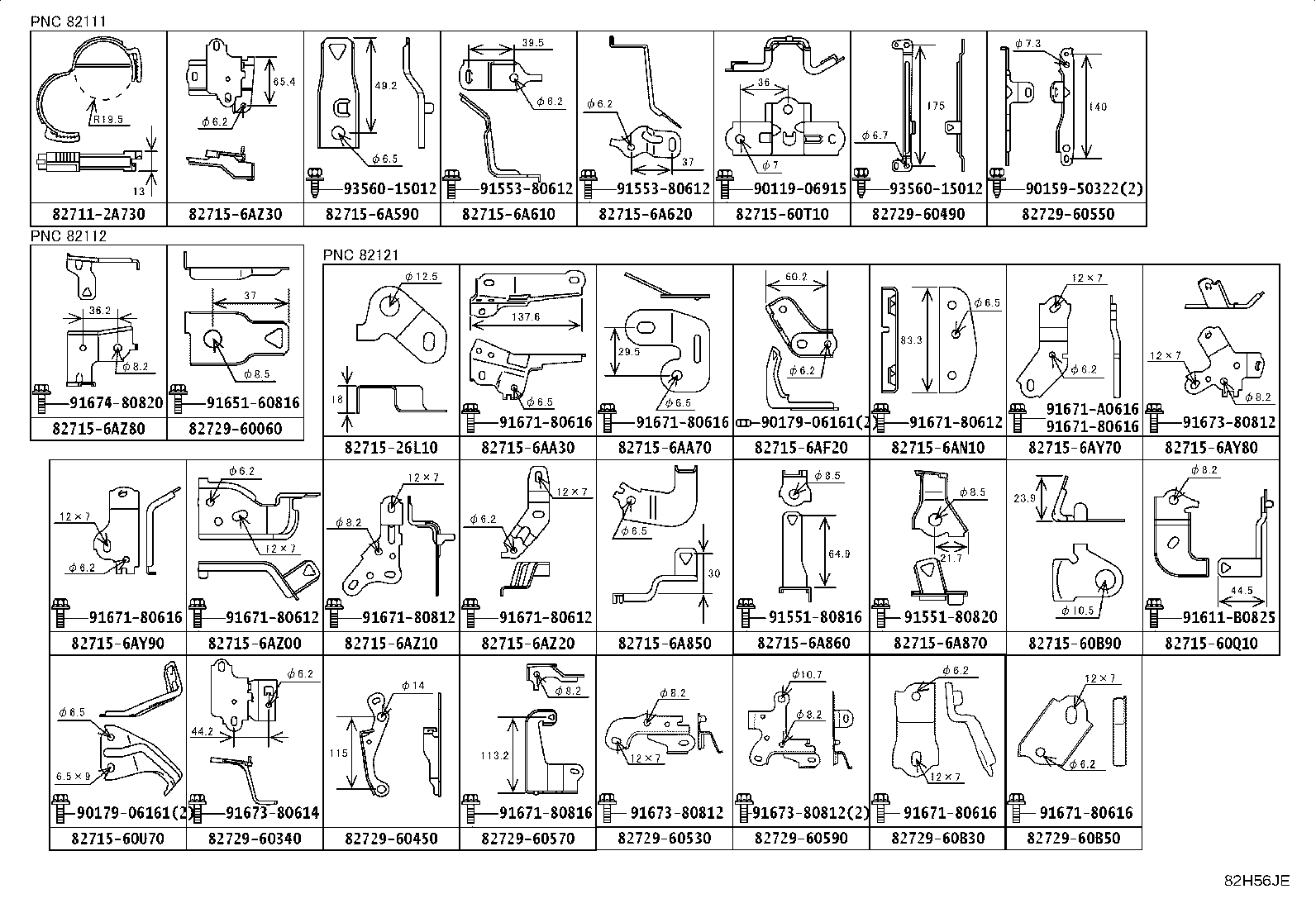

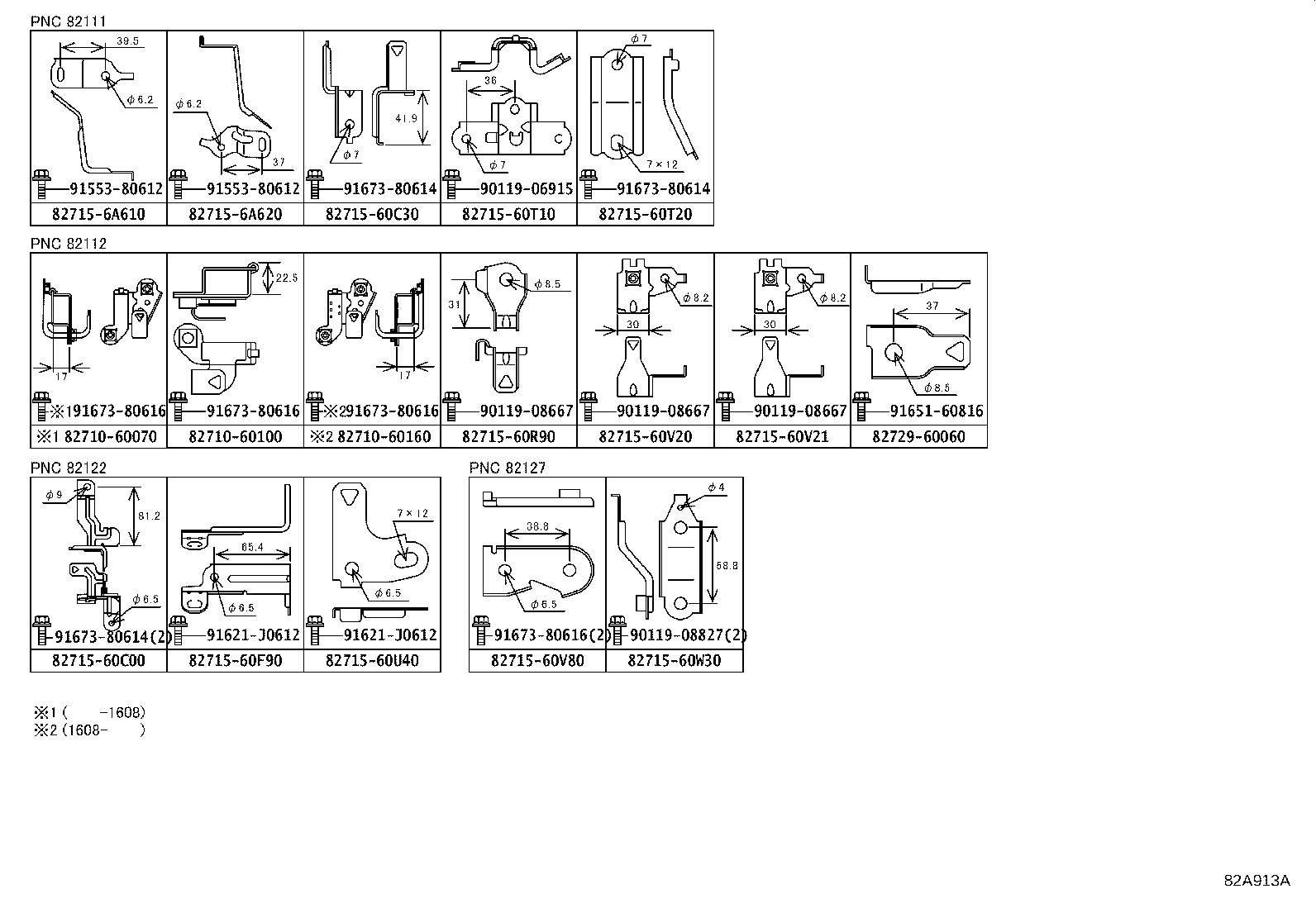

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2

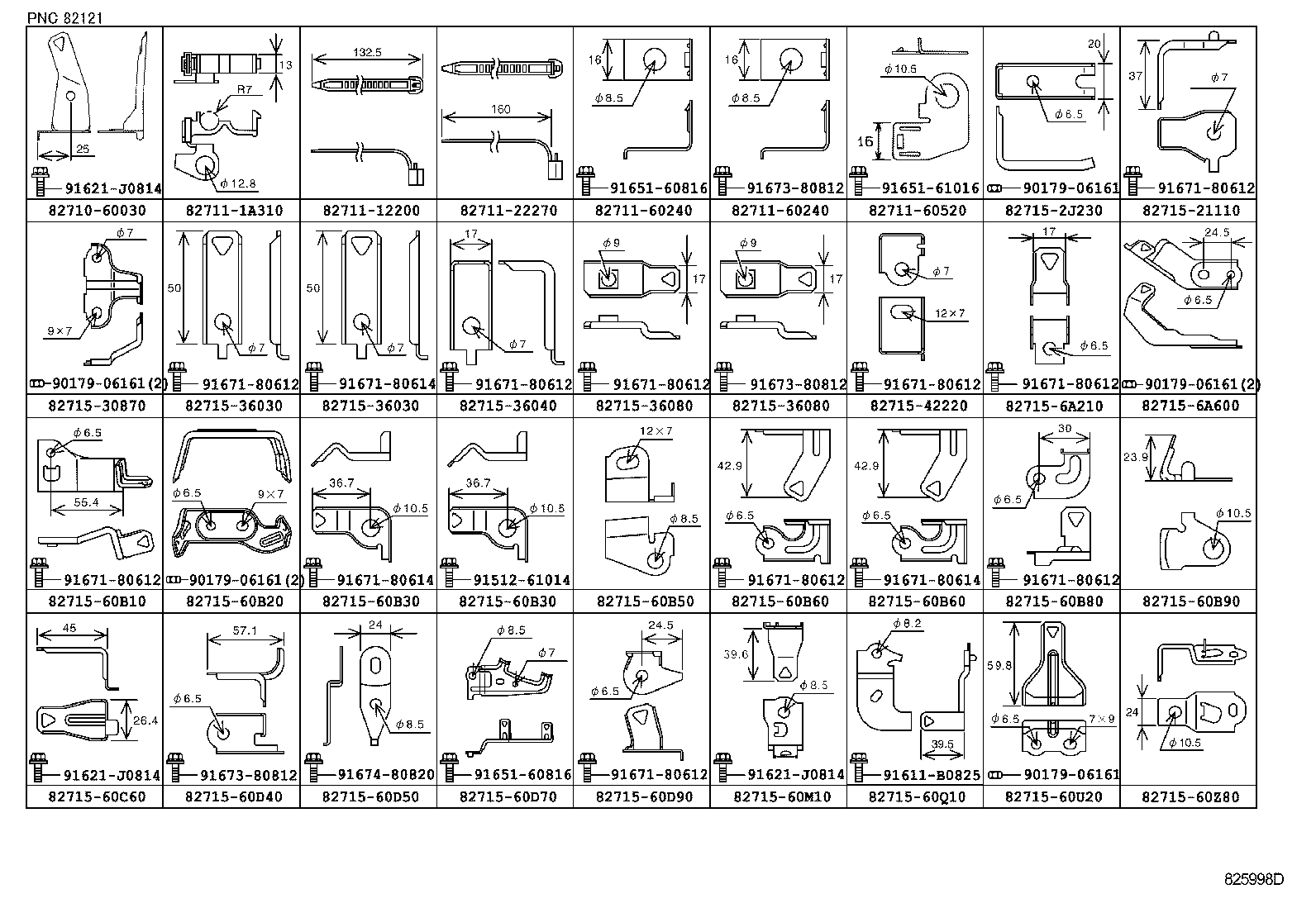

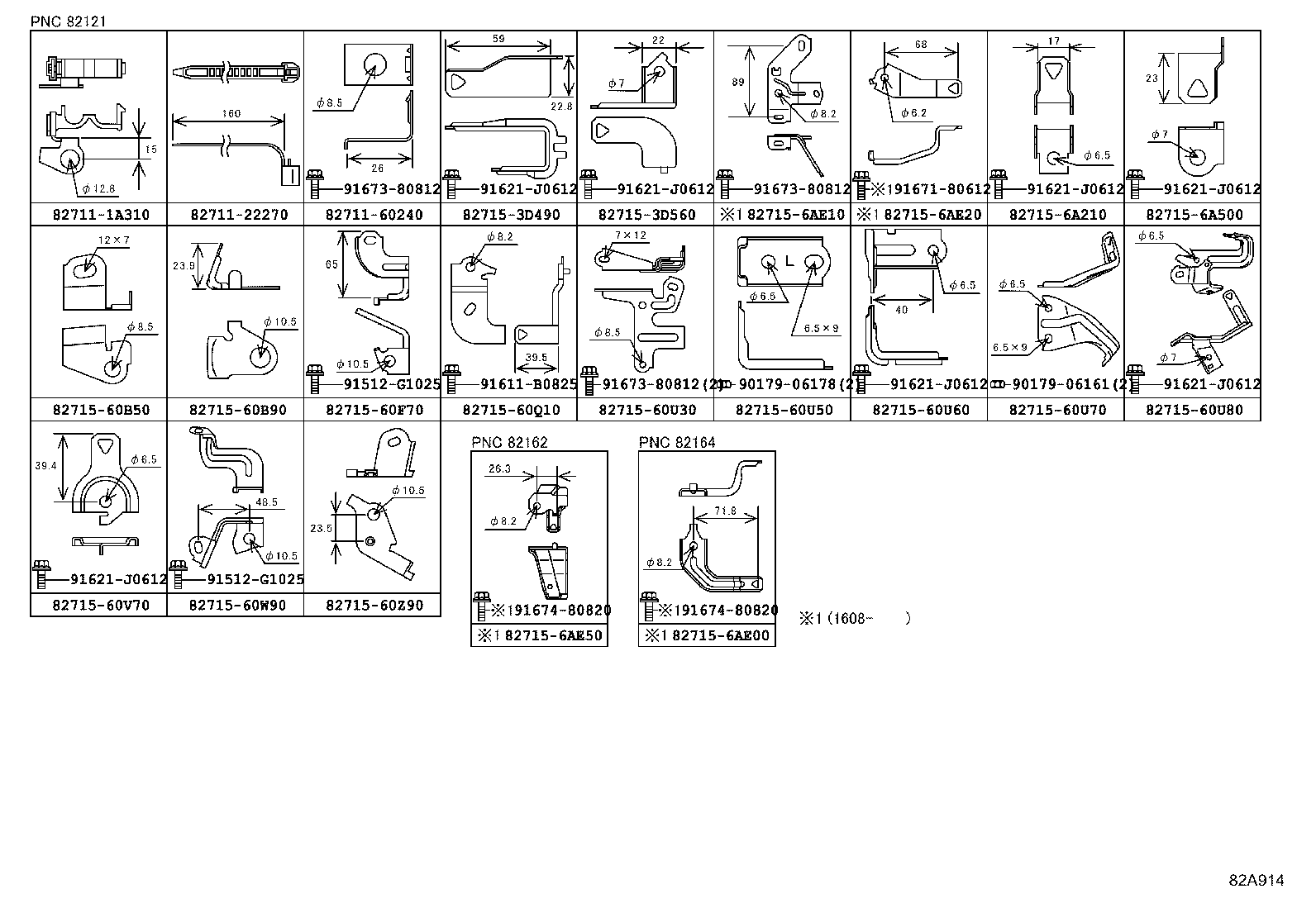

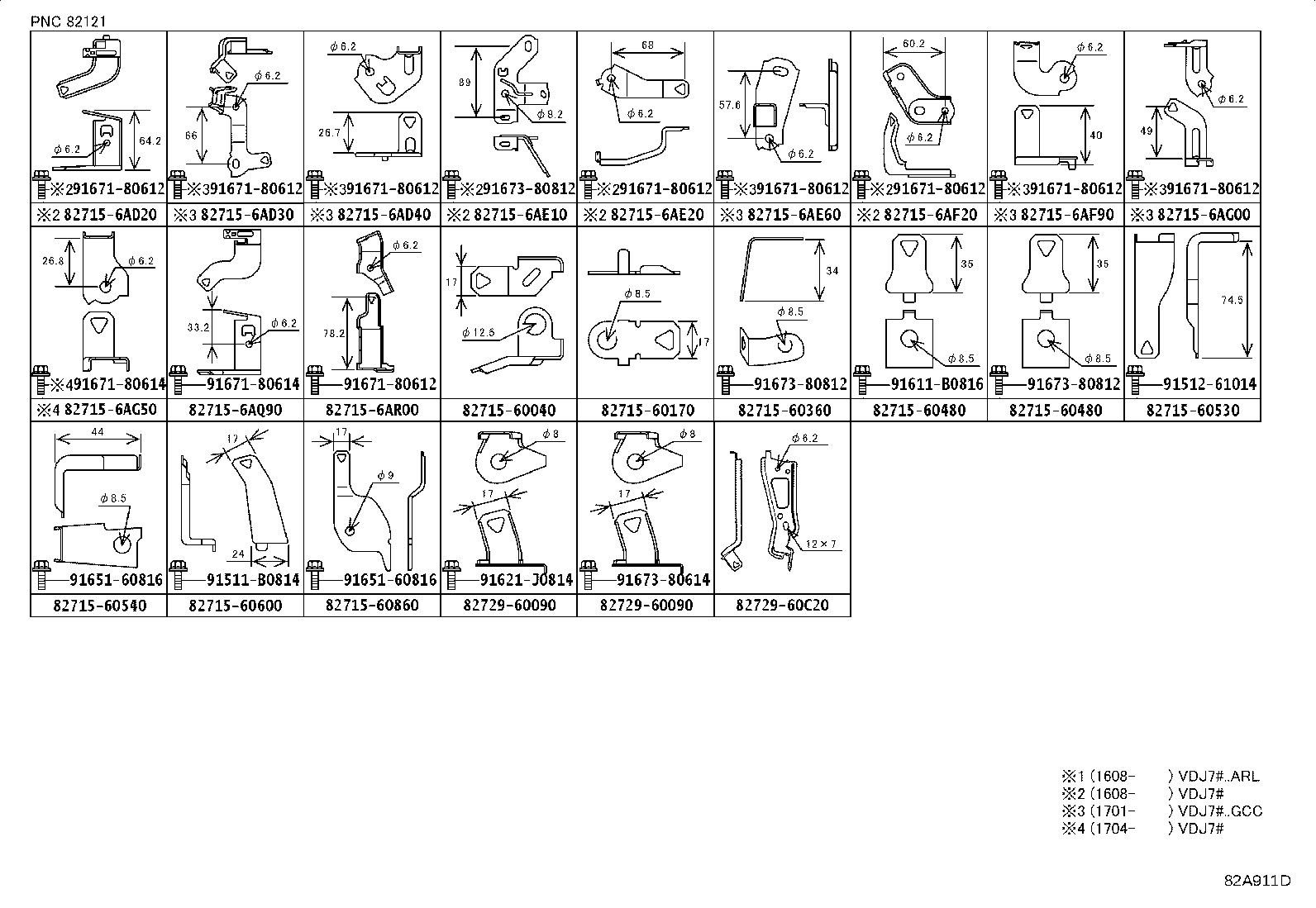

82121 Wire, Engine

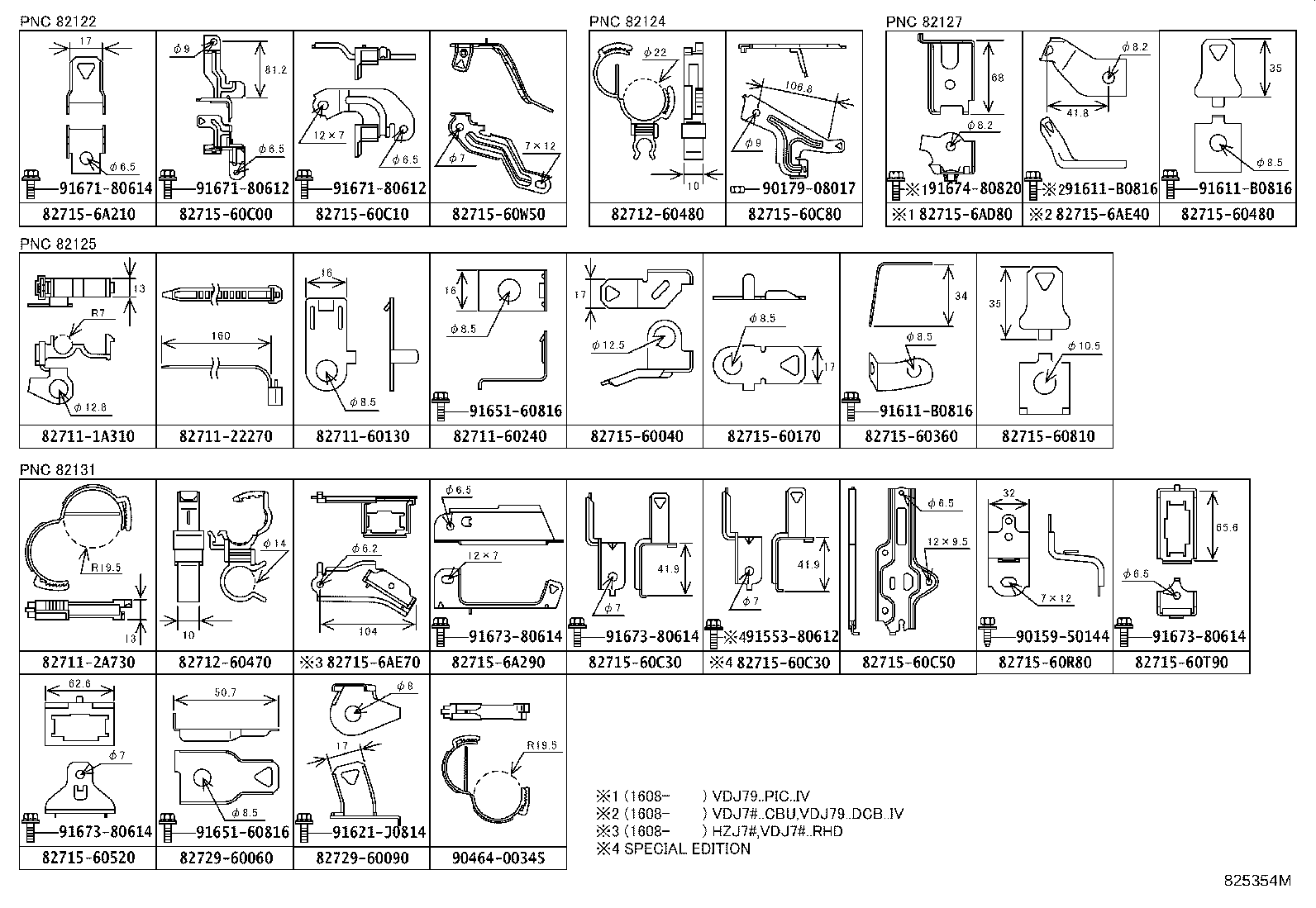

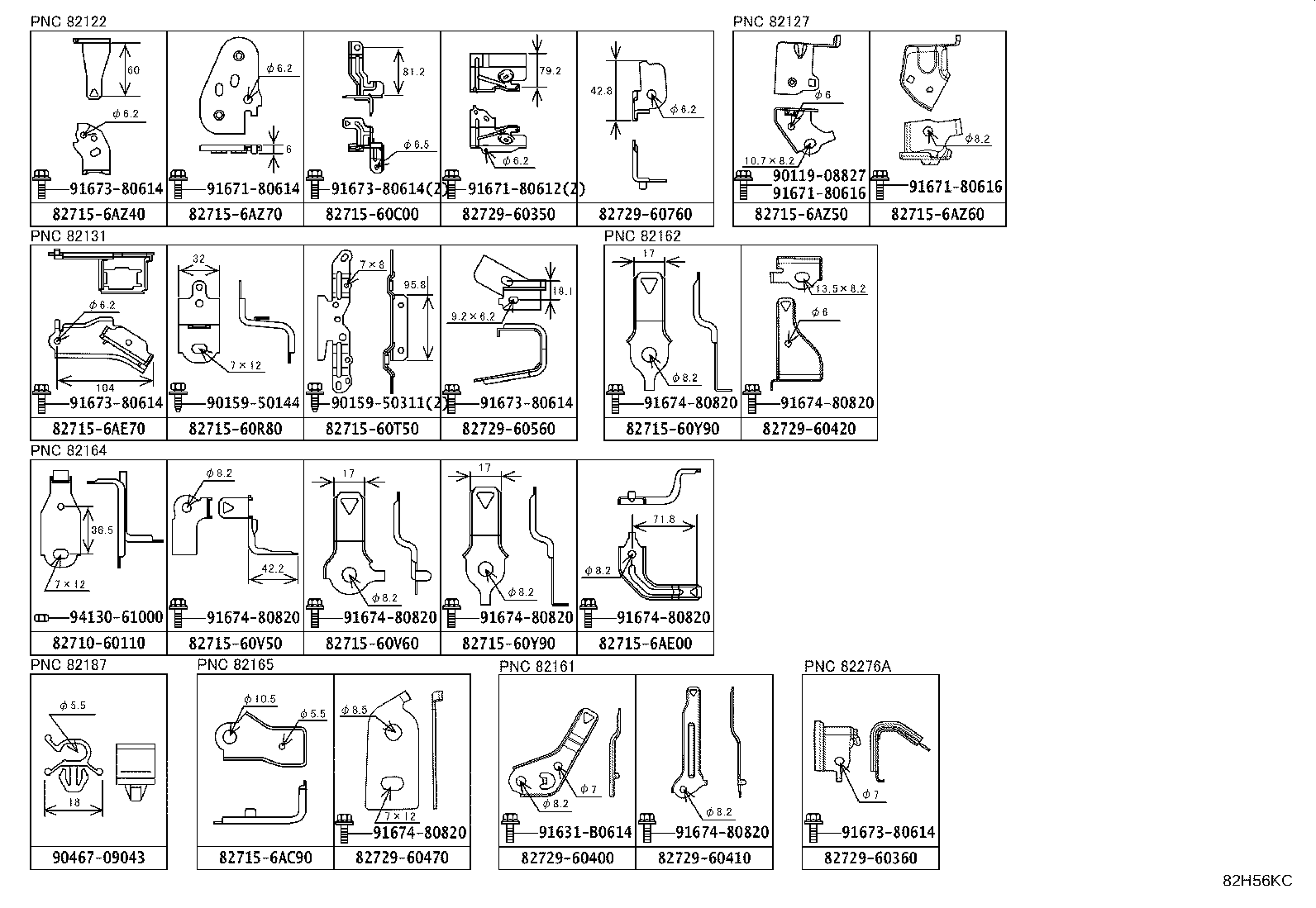

82122 Wire, Engine, NO.2
82125 Wire, Transmission
82126 Wire, Engine
82127 Wire, Differential

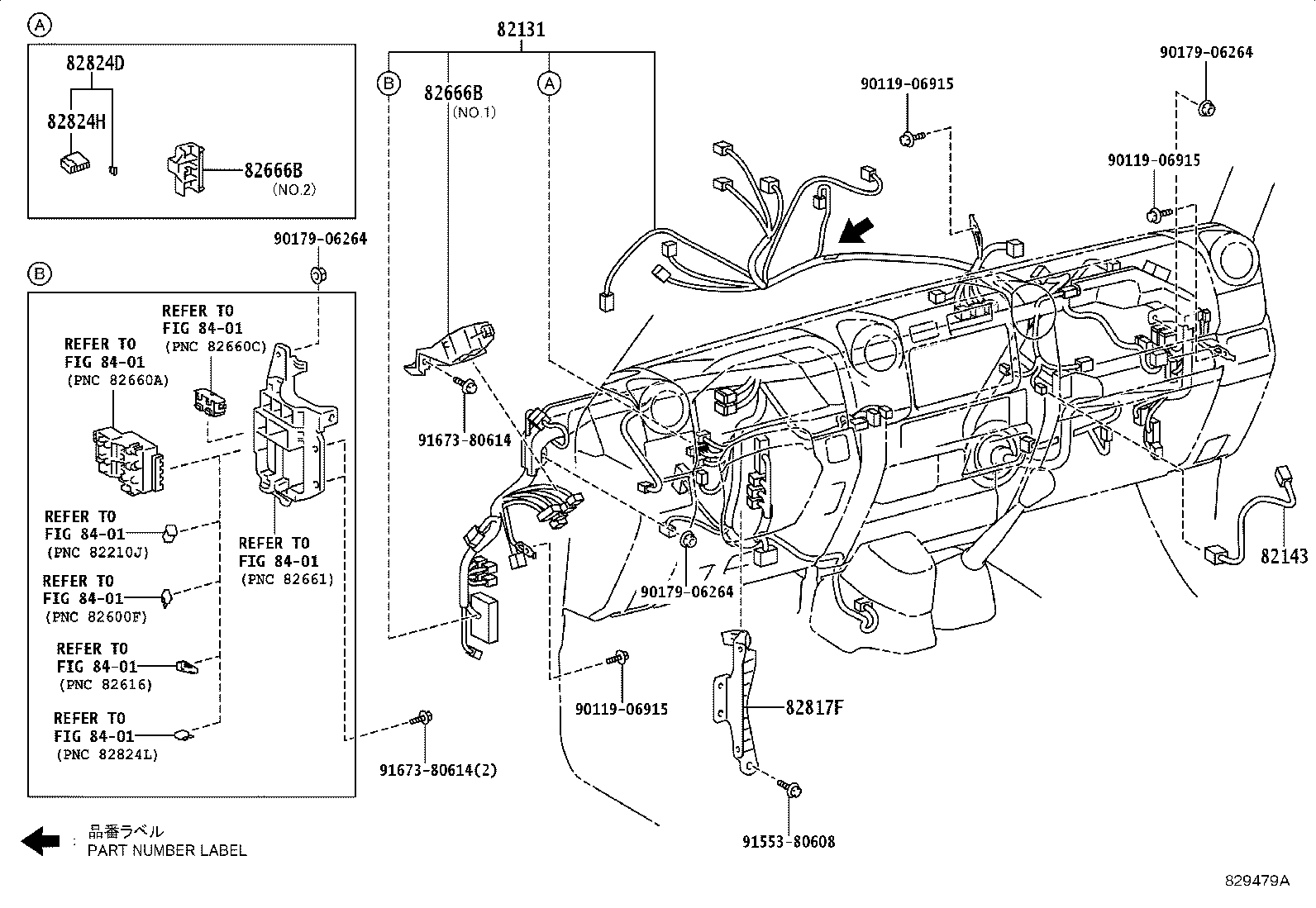

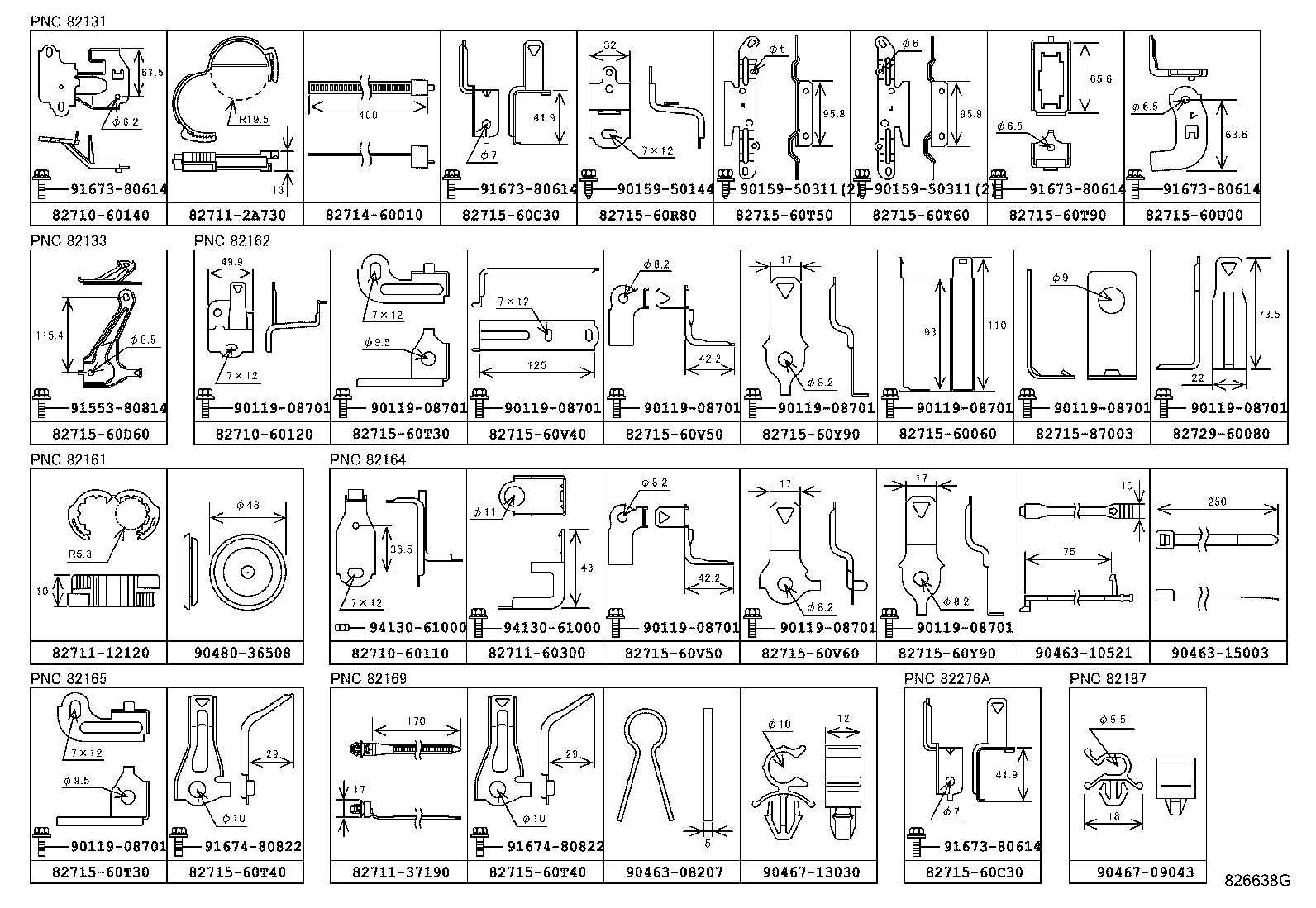

82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

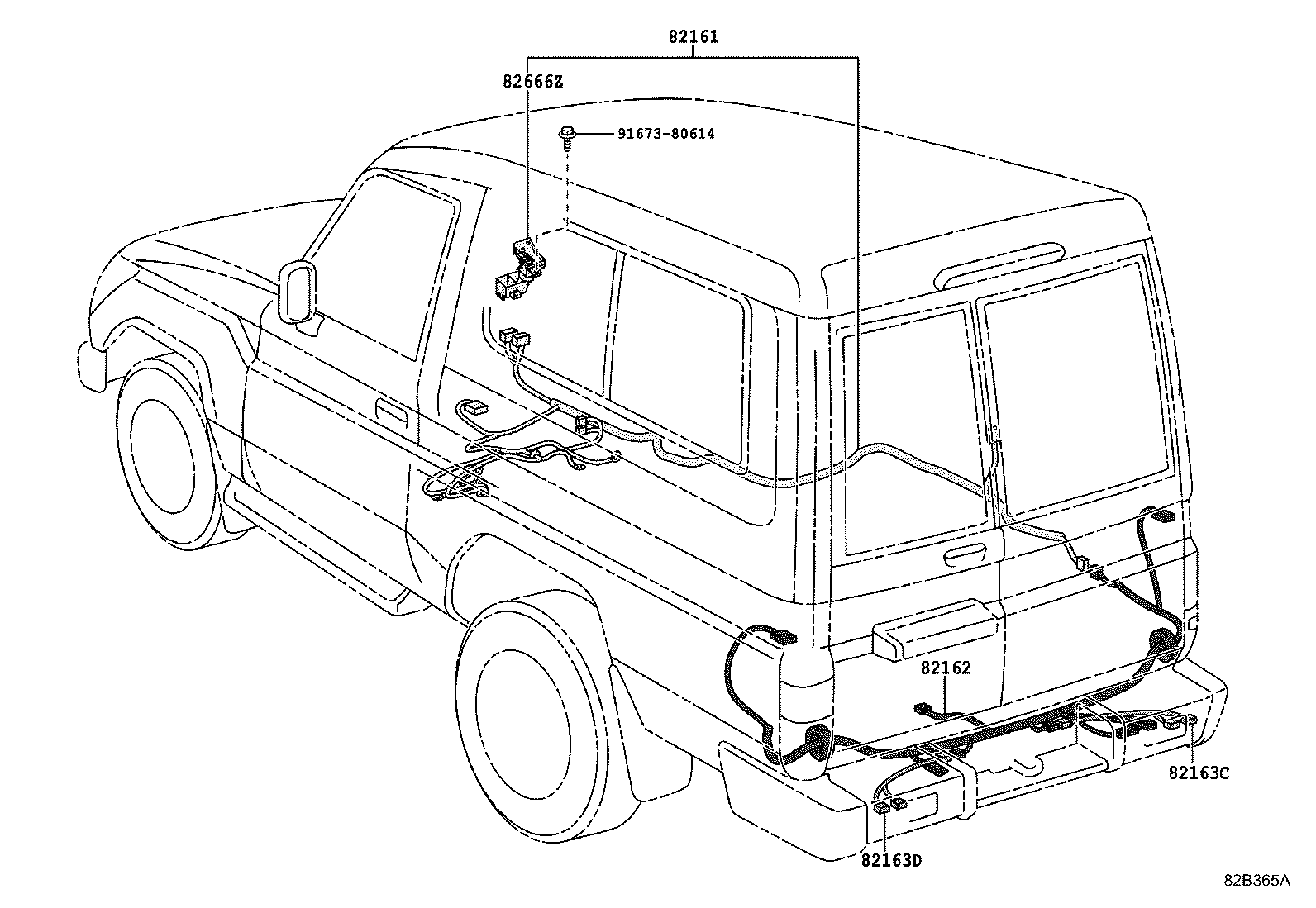

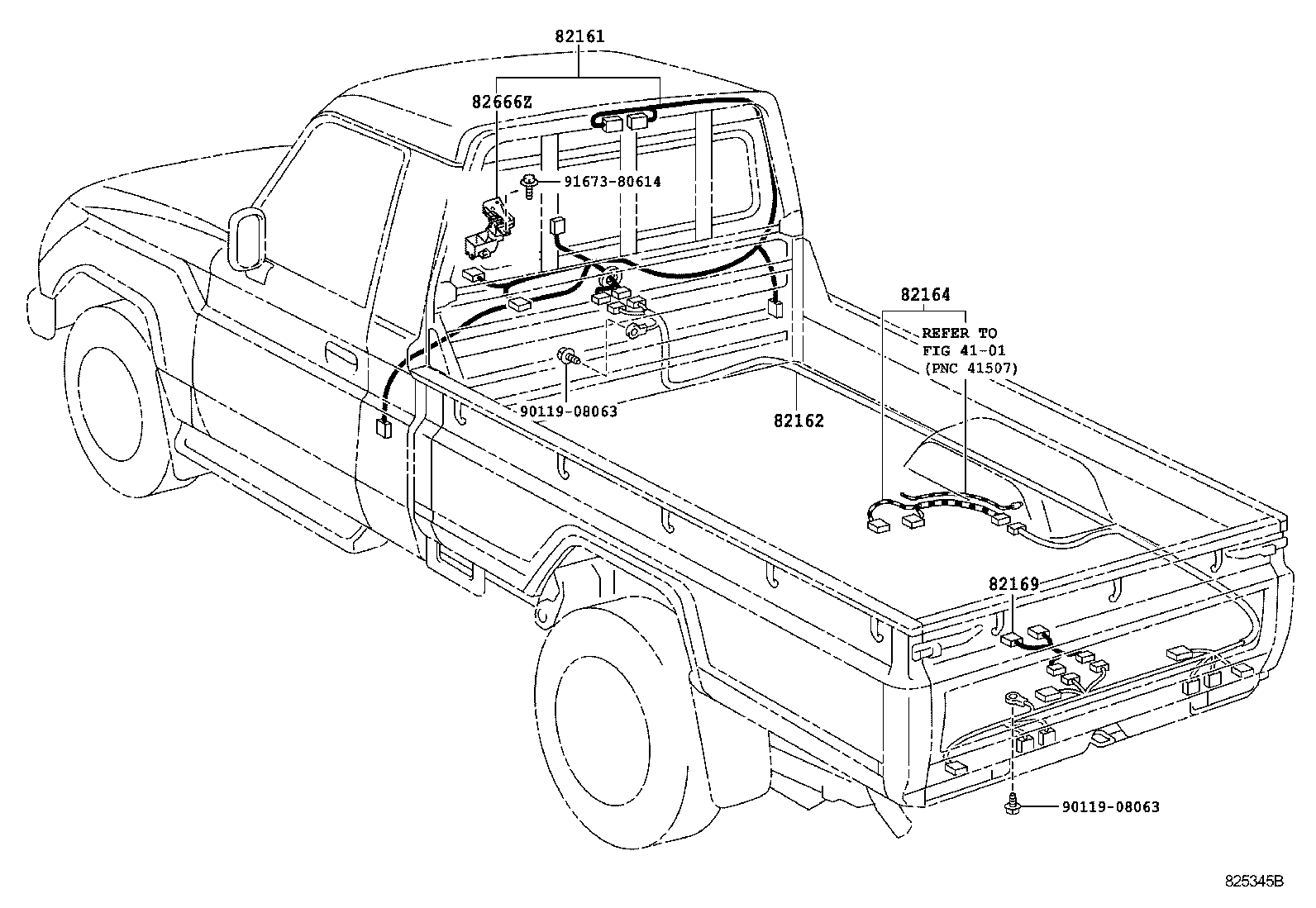

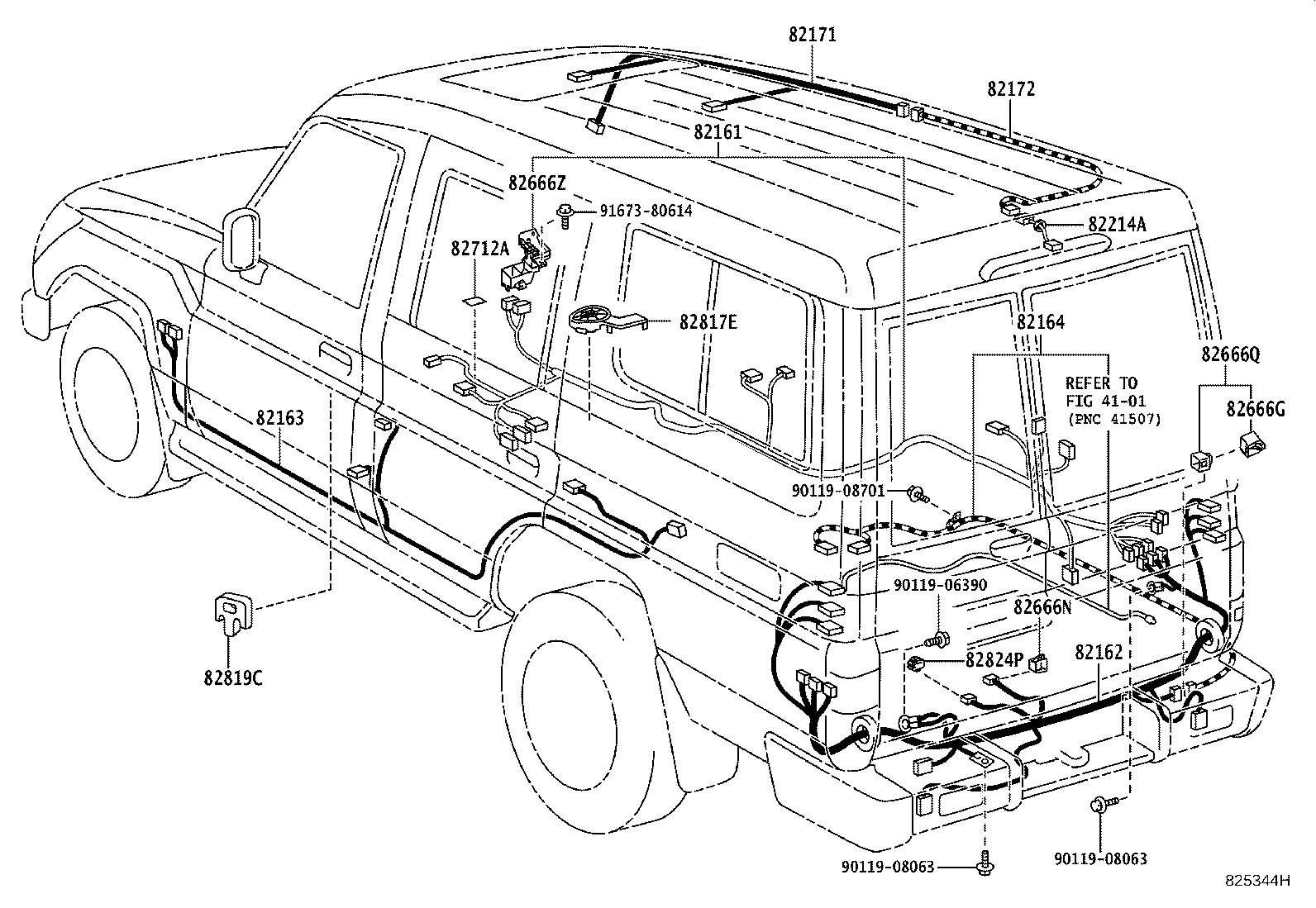

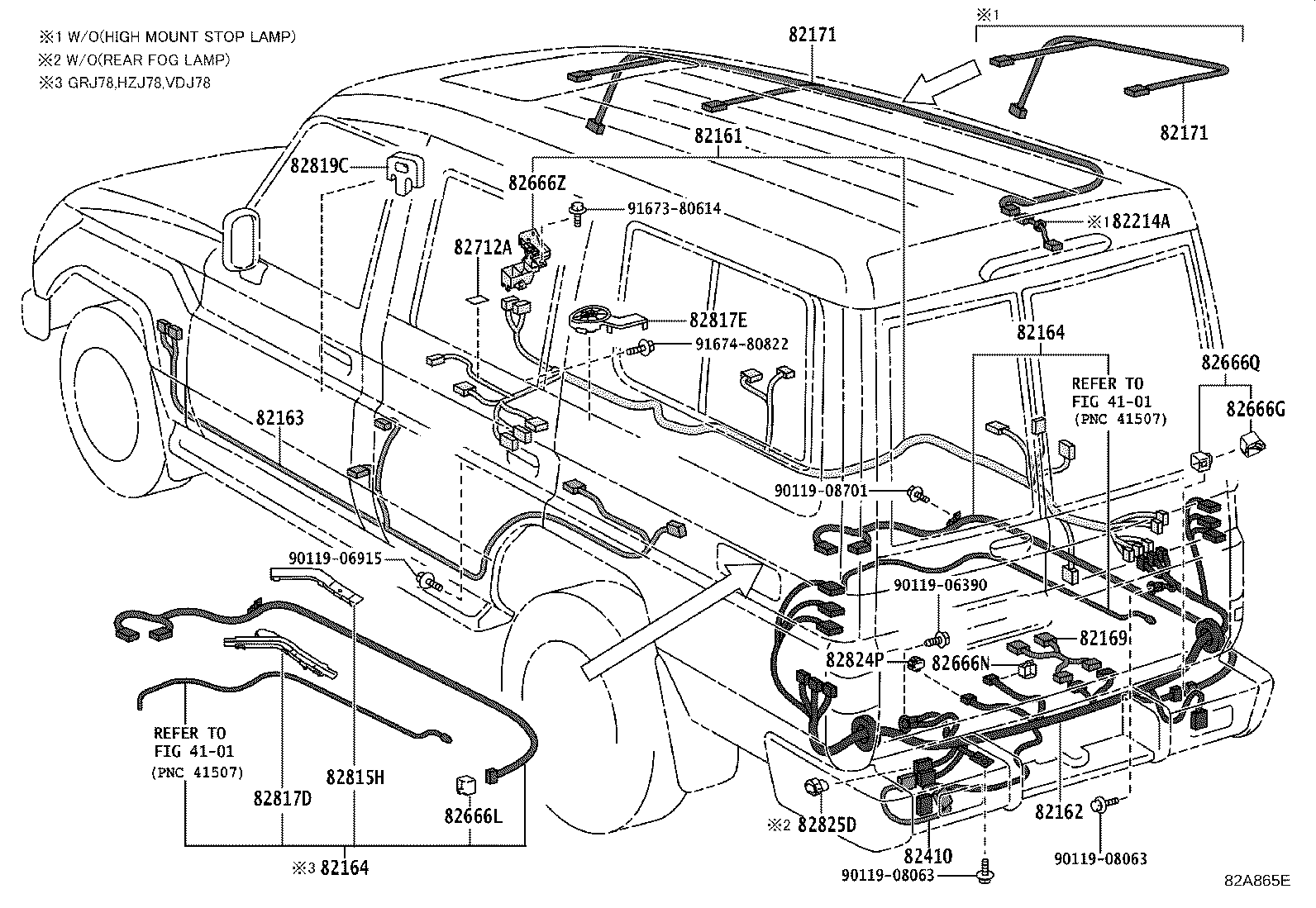

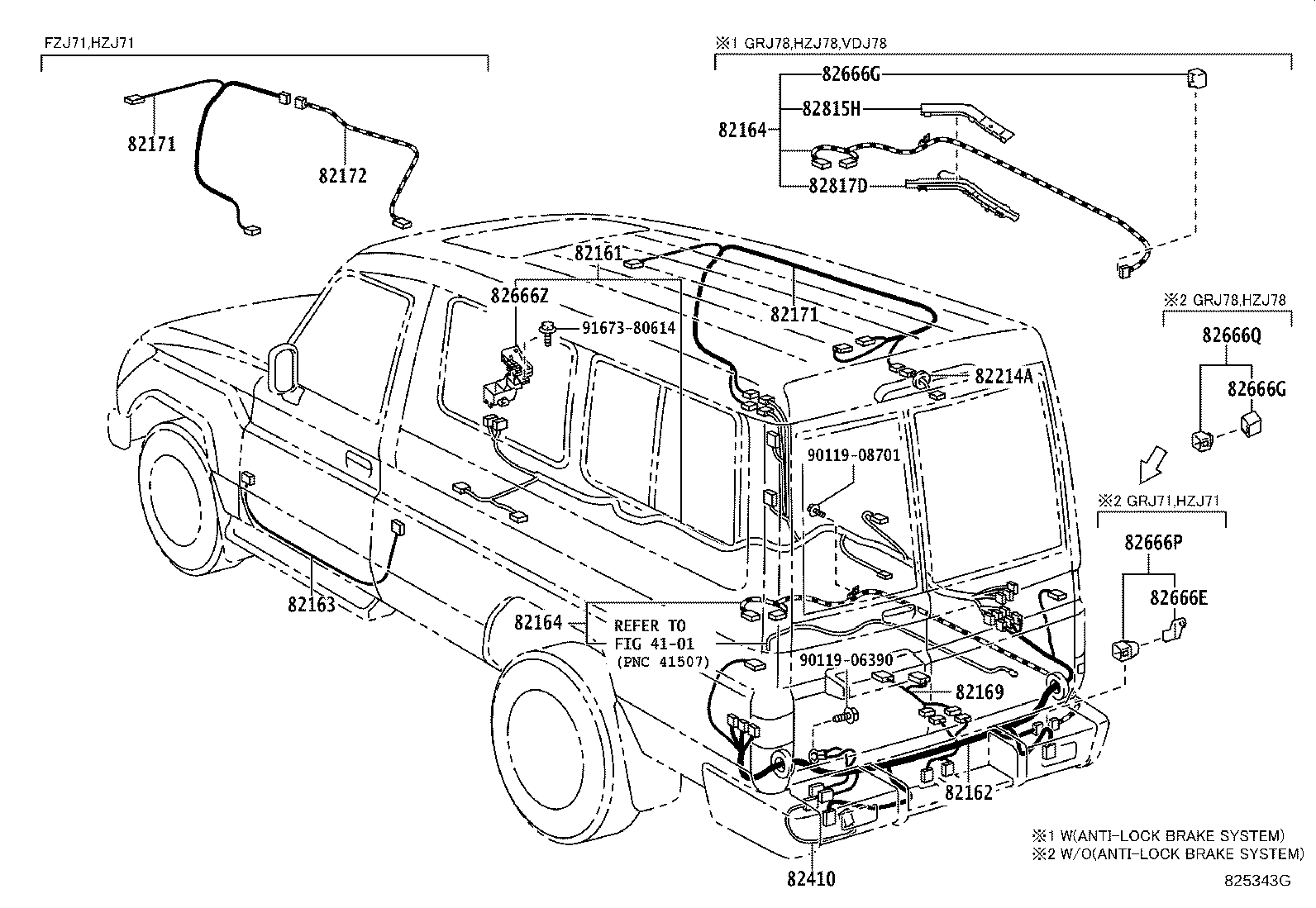

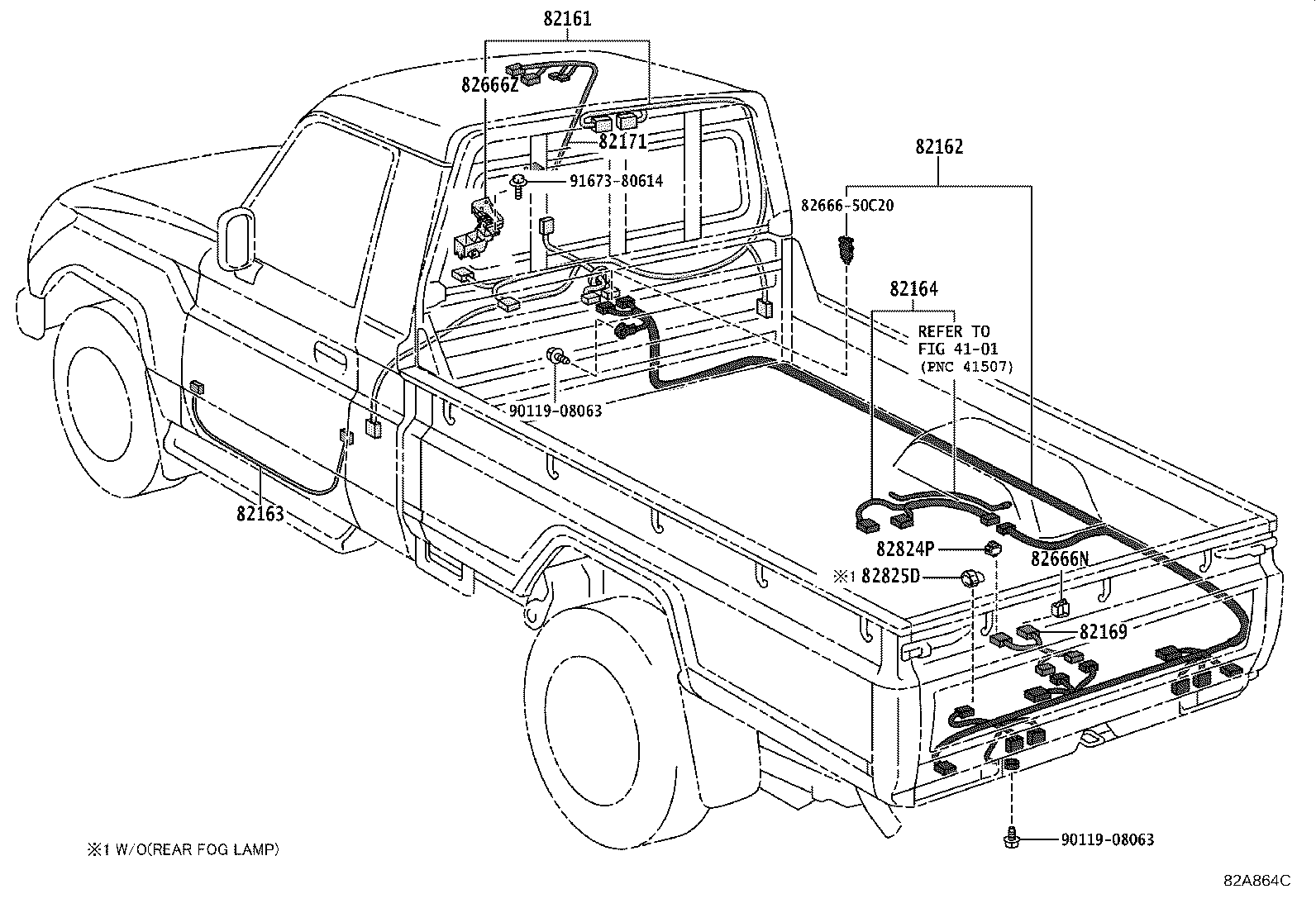

82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163C Wire, Floor NO.3 RH
82163D Wire, Floor NO.3 LH
82164 Wire, Frame
82165 Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82188A Wire, Back Door, NO.3
82189 Wire, Back Door, NO.4
82214A Wire, Lamp
82219A Wire, Sensor
82223 Wire, Switch
82275A Cable, Battery TO Magnet Switch
82276A Cable, Magnet Switch TO Winch
82284 Wire, Earth
82345 Diode
82410 Harness Assy, Wiring TO Rear Lamp
82627A Wire, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666Z Holder, Connector NO.19
82670 Block Assy, Junction, NO.1
82670D Block Assy, Junction,NO.2
82712A Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82819C Grommet, Wiring Harness
82821A Cover, Connector
82821E Cover, Connector
82821M Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82823A Cap, Terminal, NO.2
82823B Cap, Terminal, NO.3
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal

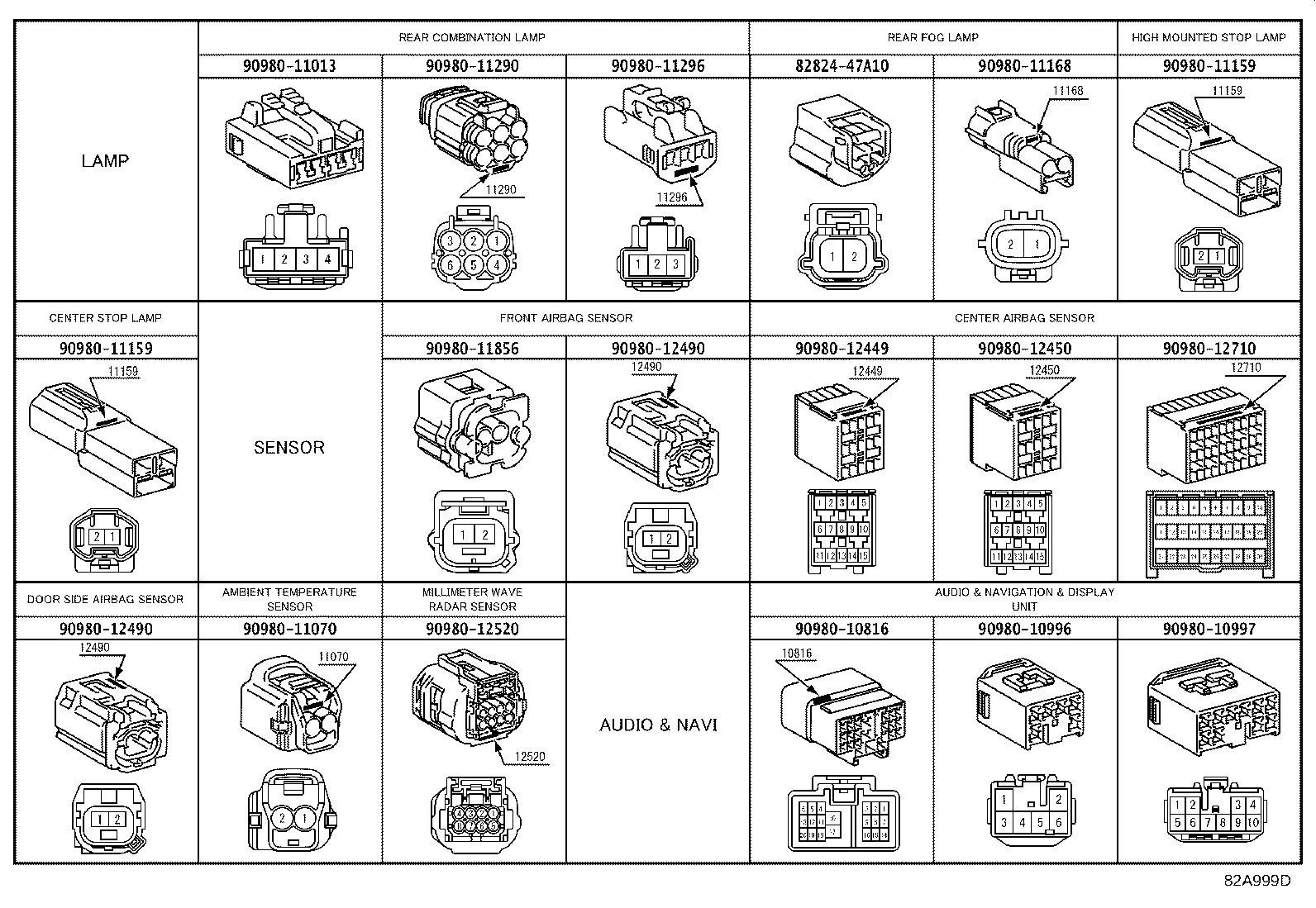

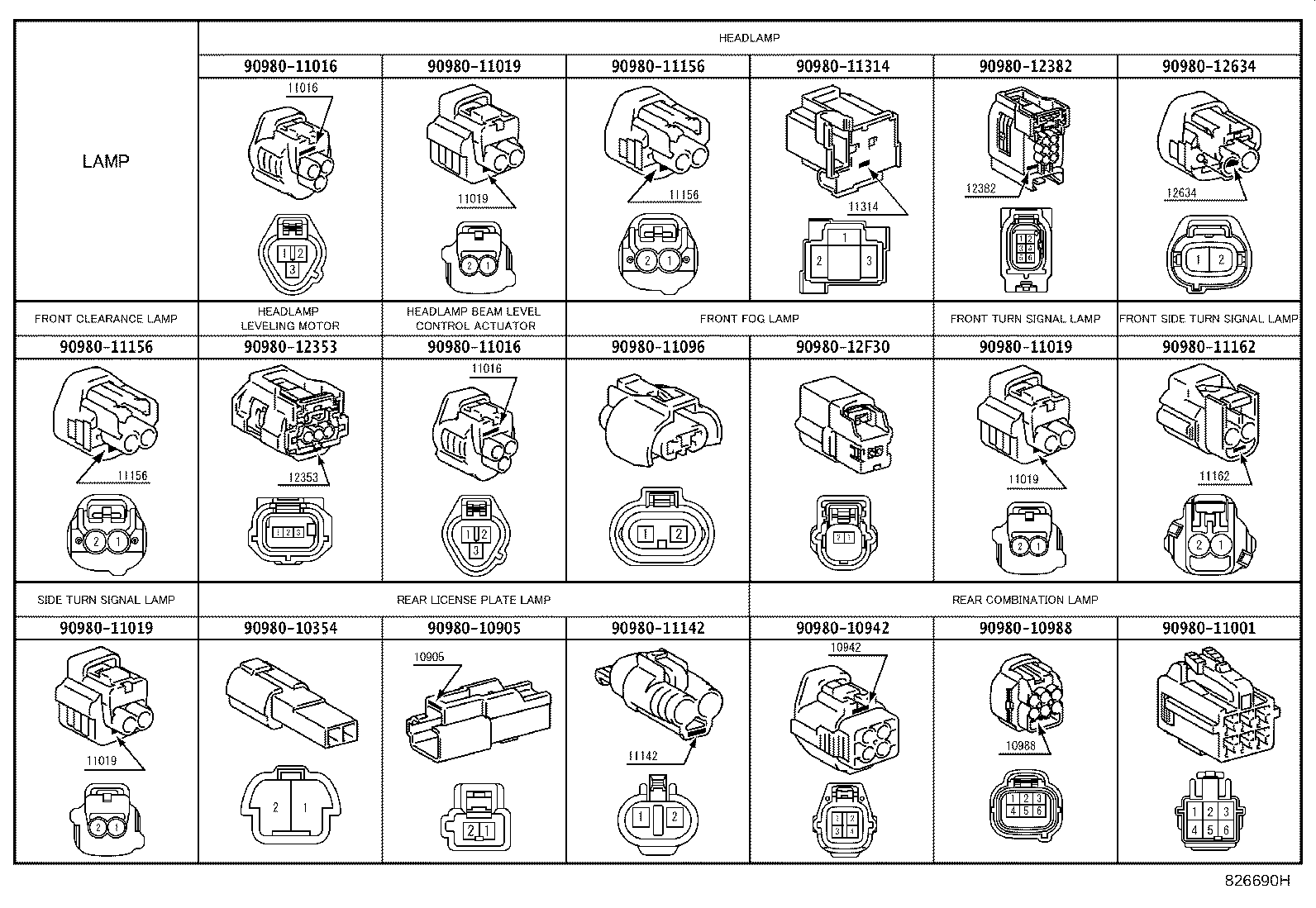

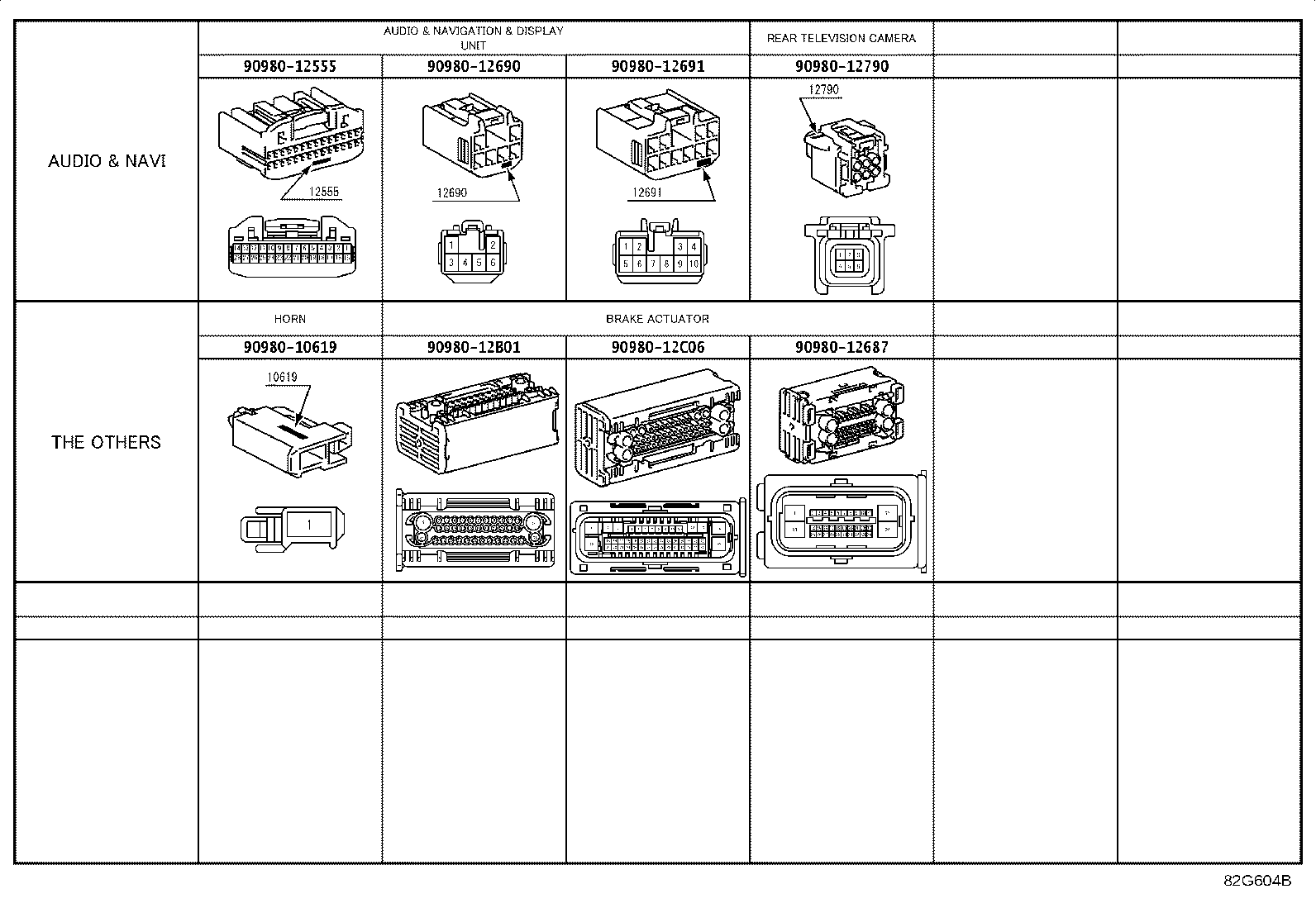

82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824M Connector, Wiring Harness
82824N Connector, Wiring Harness
82824P Connector, Wiring Harness
82825D Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
