Toyota Land Cruiser
2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States
Supported model
Data version 2024-10
Meter
28 part groups · 16 illustrations
Illustrations
Part groups

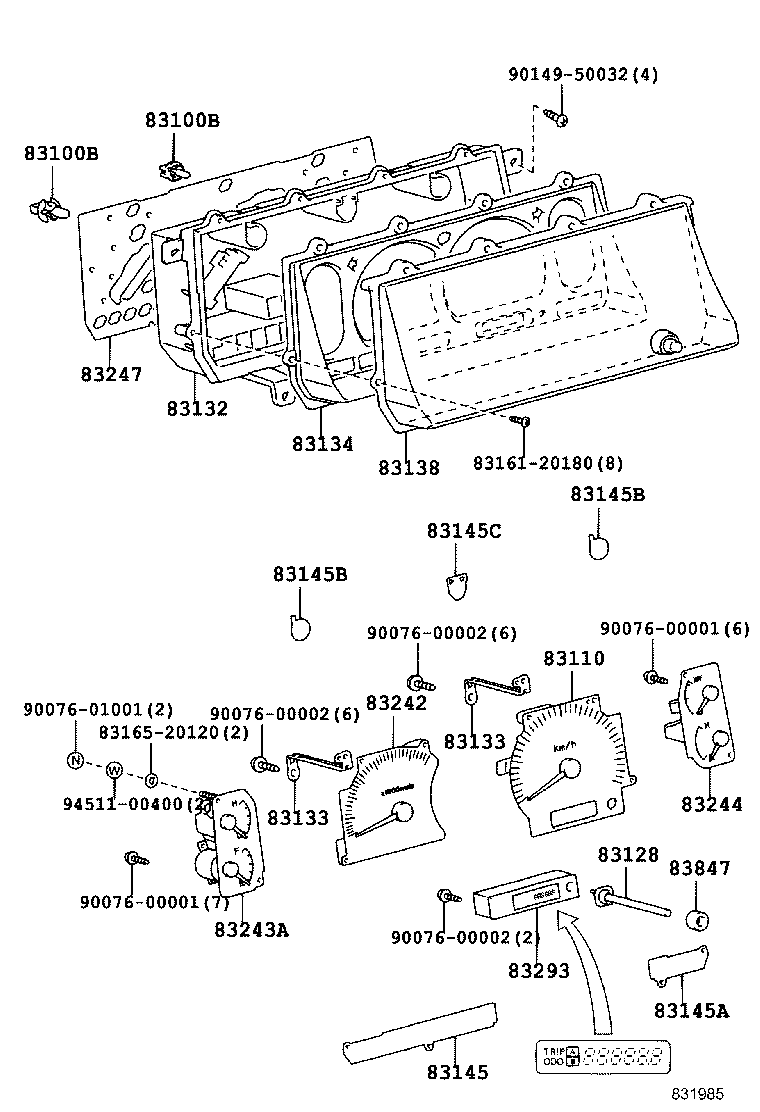

| PNC | Description |
|---|---|

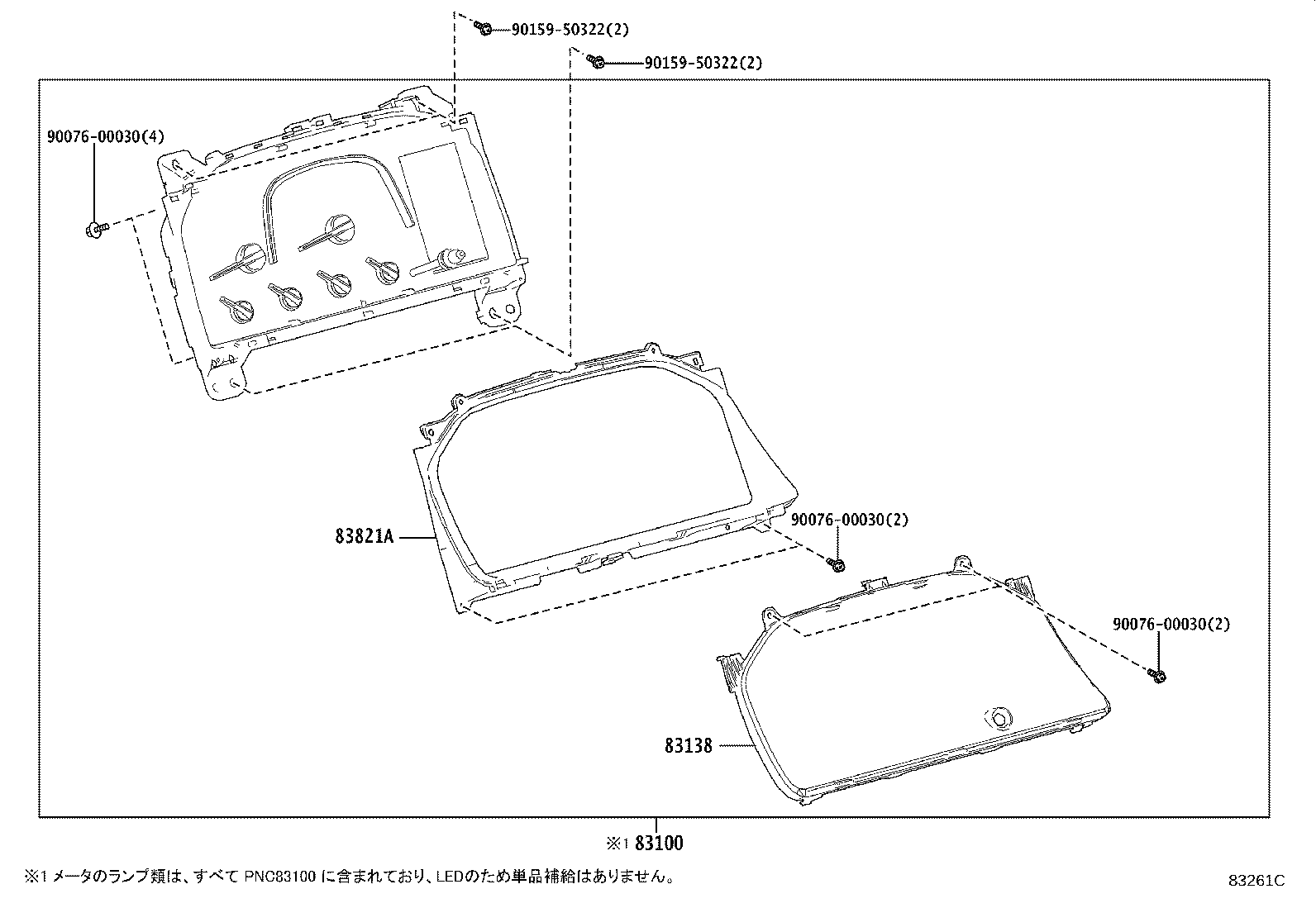

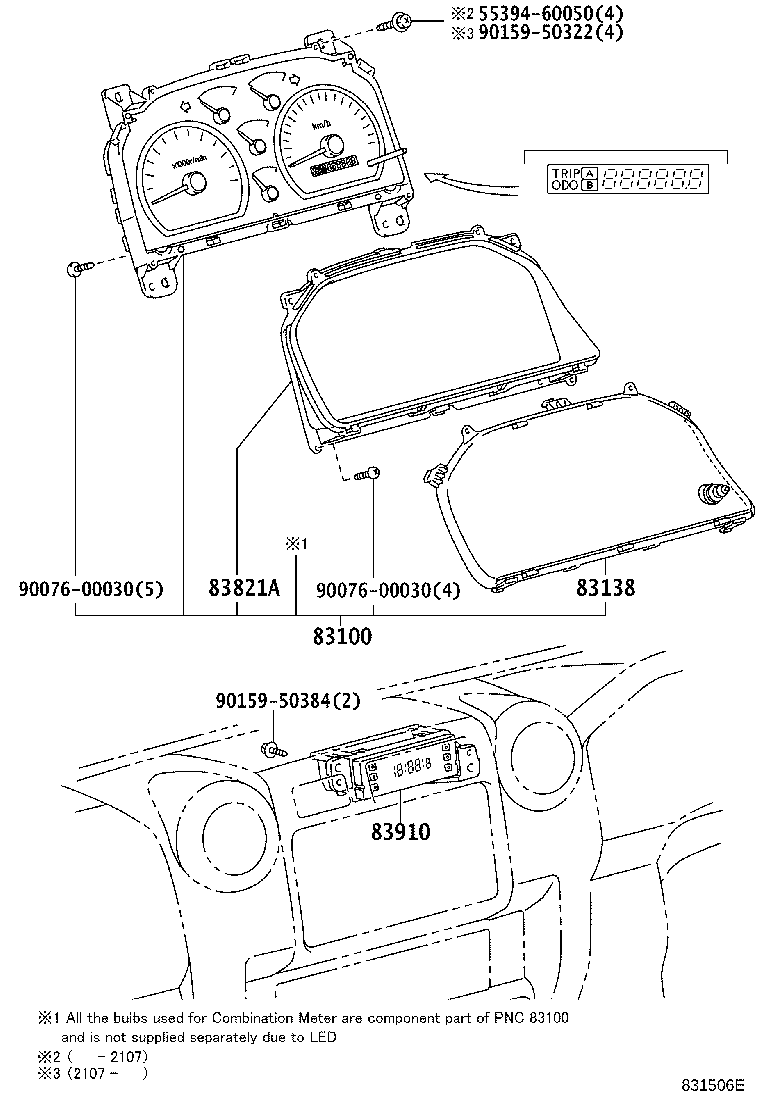

| 83100 | Meter Assy, Combination |

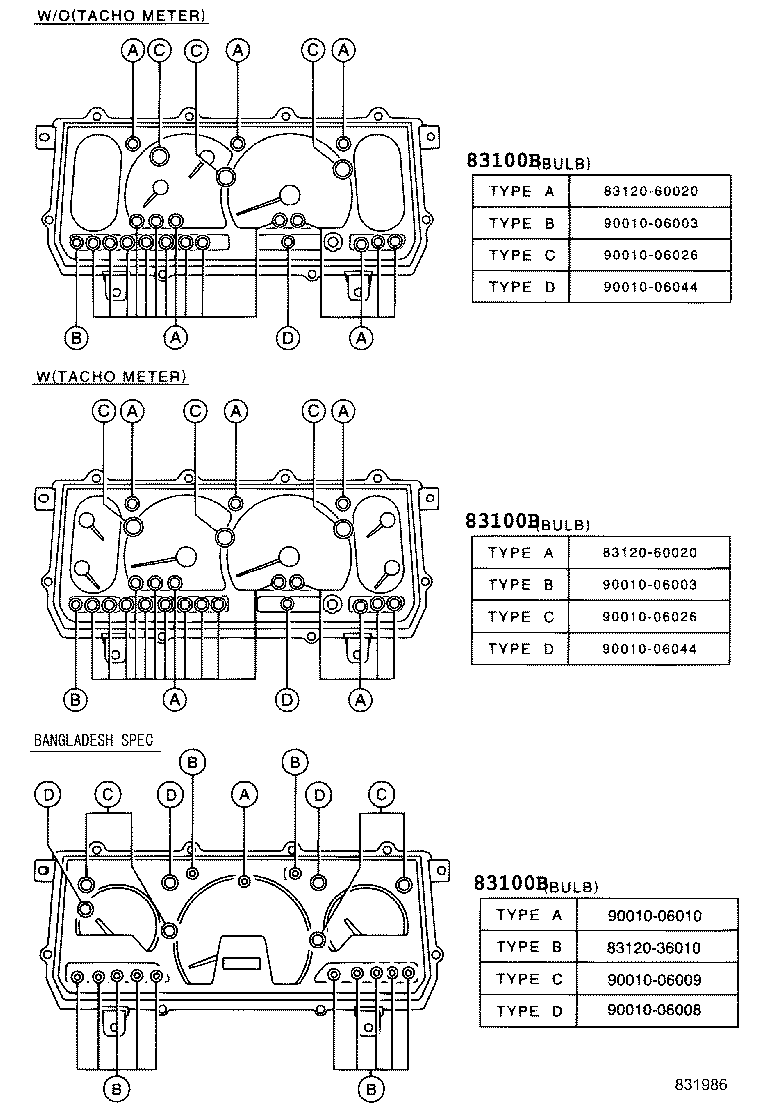

| 83100B | Bulb, Combination Meter, NO.1 |
| 83110 | Speedometer Assy |
| 83128 | Knob, Trip Counter |
| 83128A | Knob, Meter |

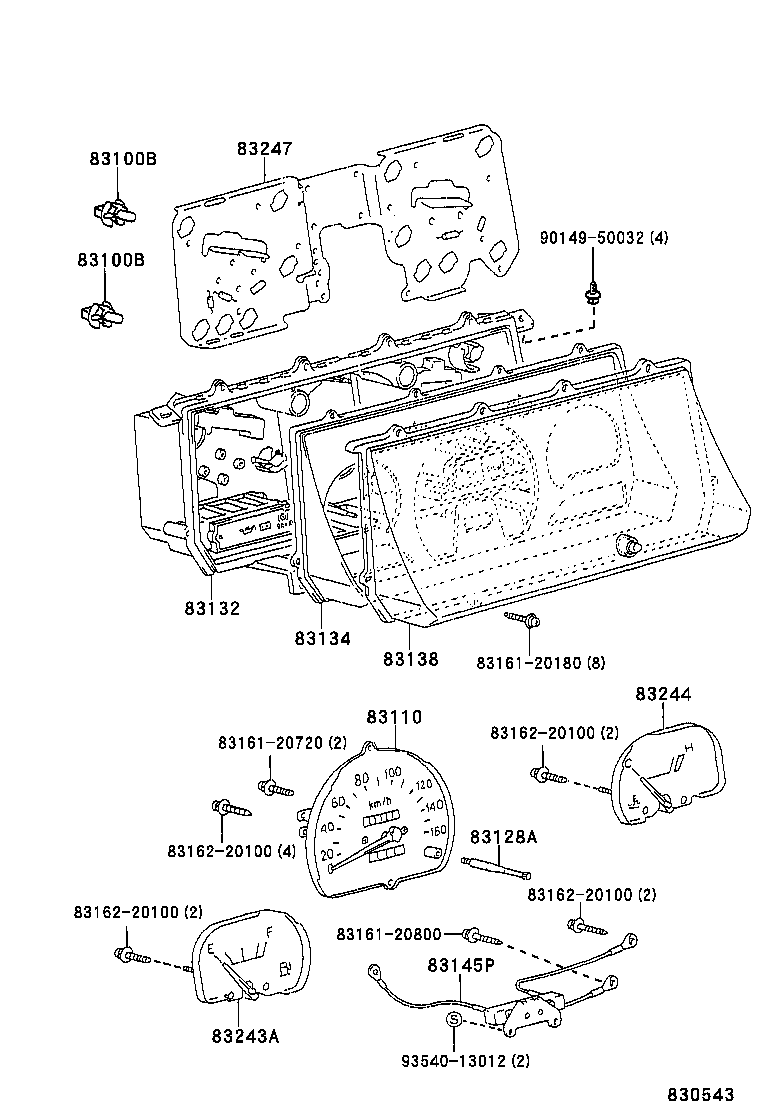

| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83145P | Dropper, Meter |

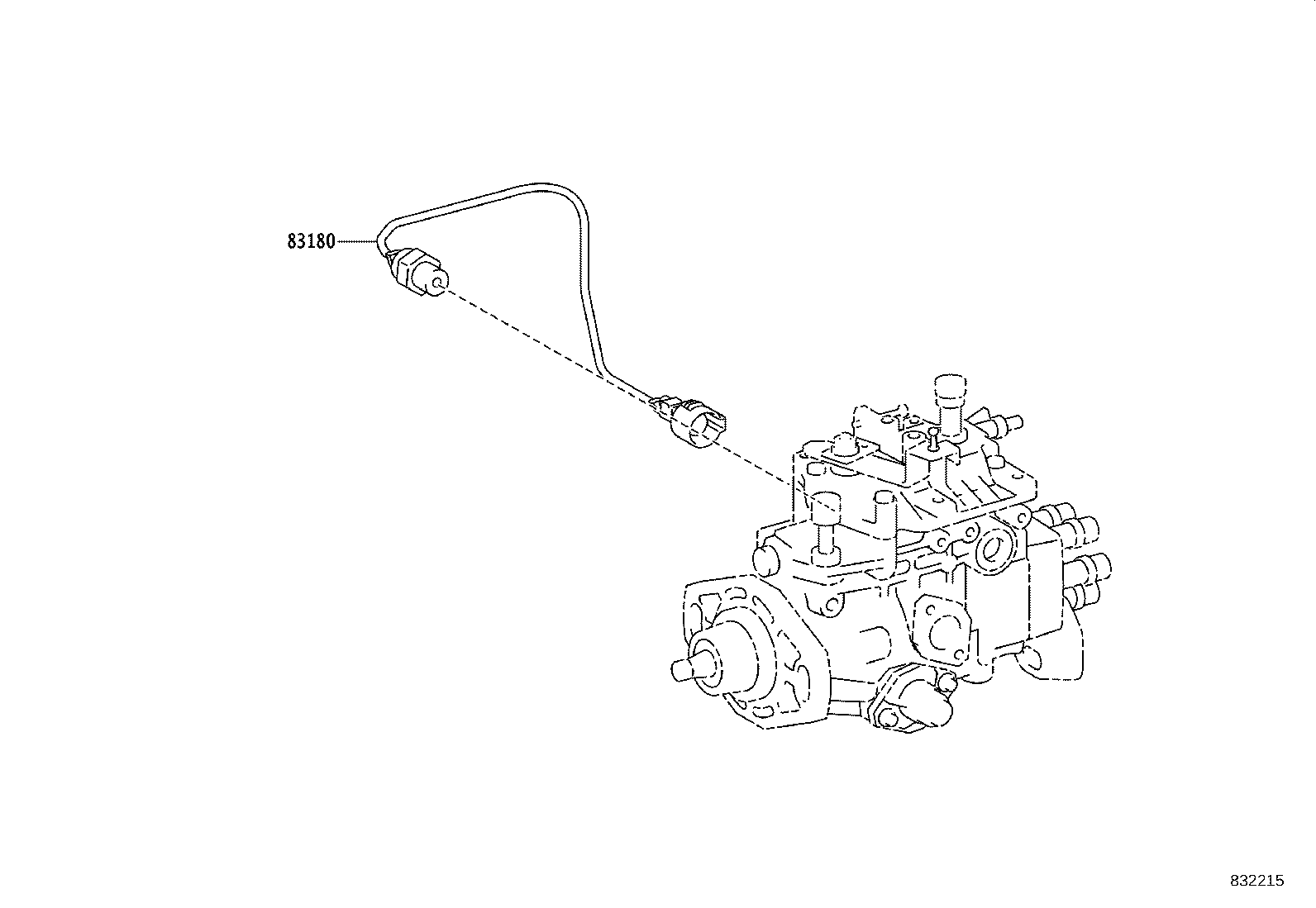

| 83180 | Detector Assy, Revolution |

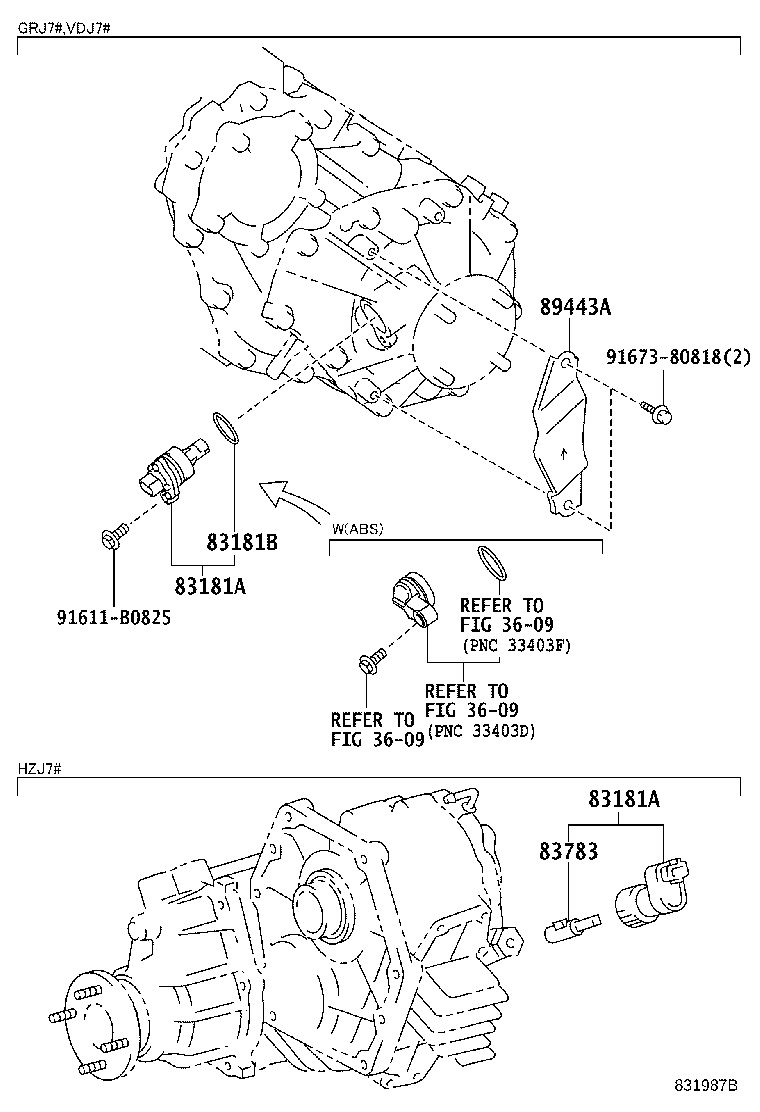

| 83181A | Sensor, Speedometer |
| 83181B | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83293 | Computer, Total Counter Module |

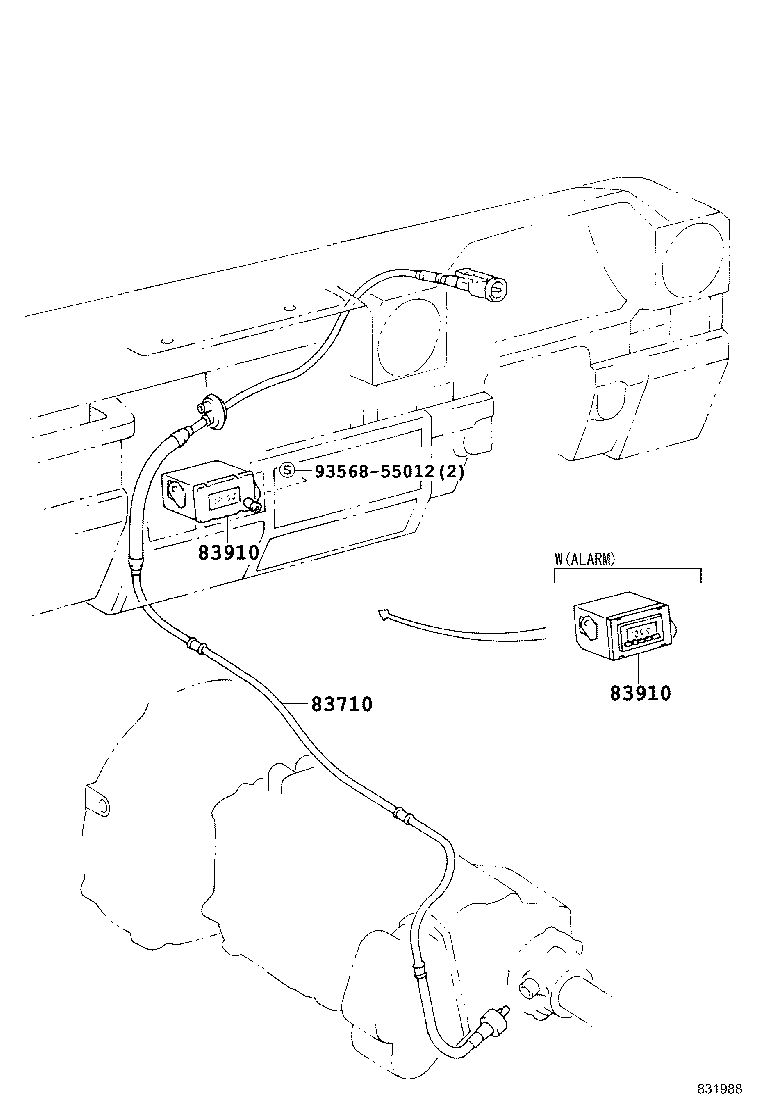

| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83783 | Key, Speedmeter Sensor |
| 83821A | Cover, Combination Meter, NO.1 |
| 83847 | Cushion, Combination Speedometer, NO.1 |

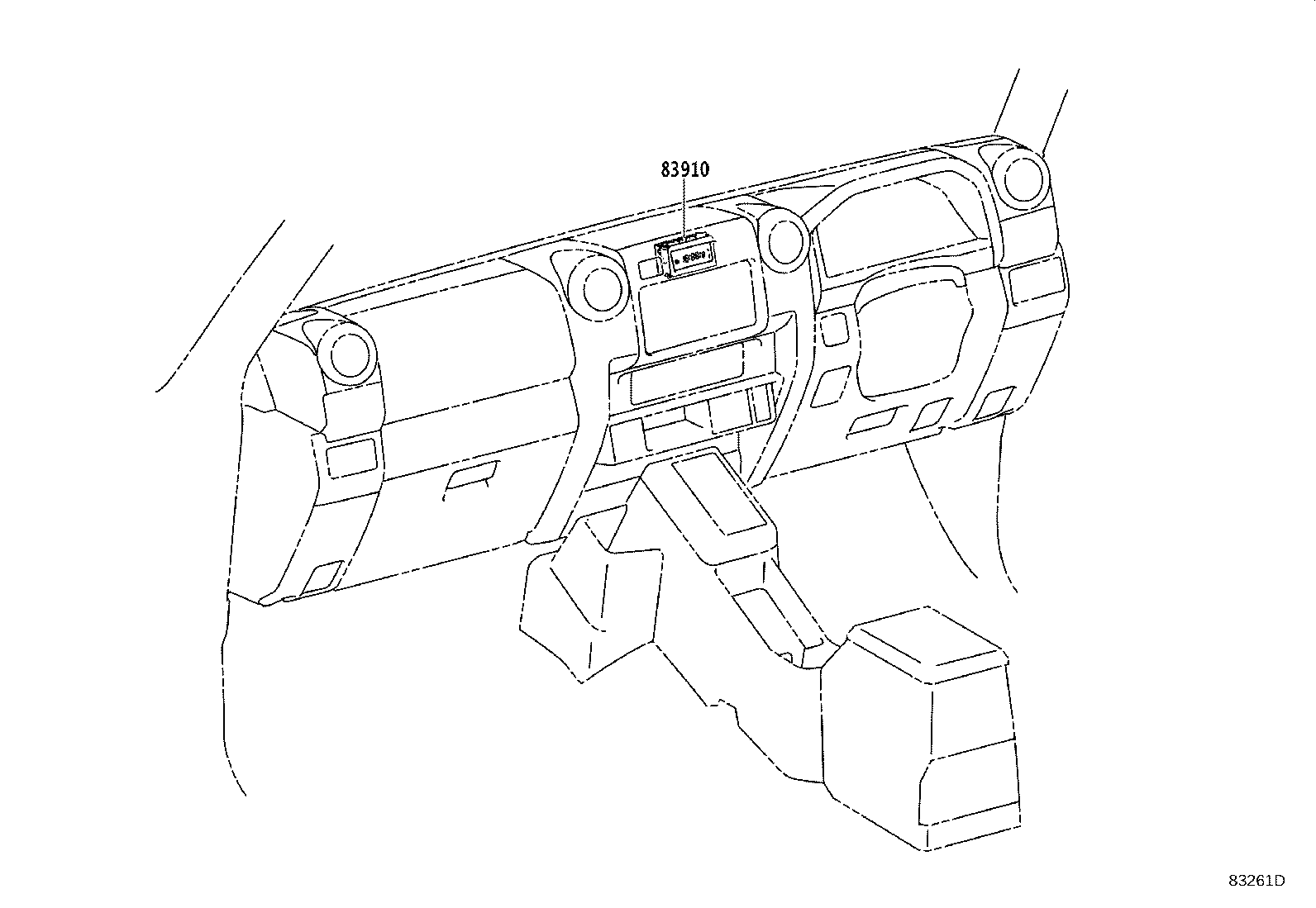

| 83910 | Clock Assy |
| 89443A | Insulator, Thermal Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
