Toyota Land Cruiser
2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States
Supported model
Data version 2024-10
Indicator

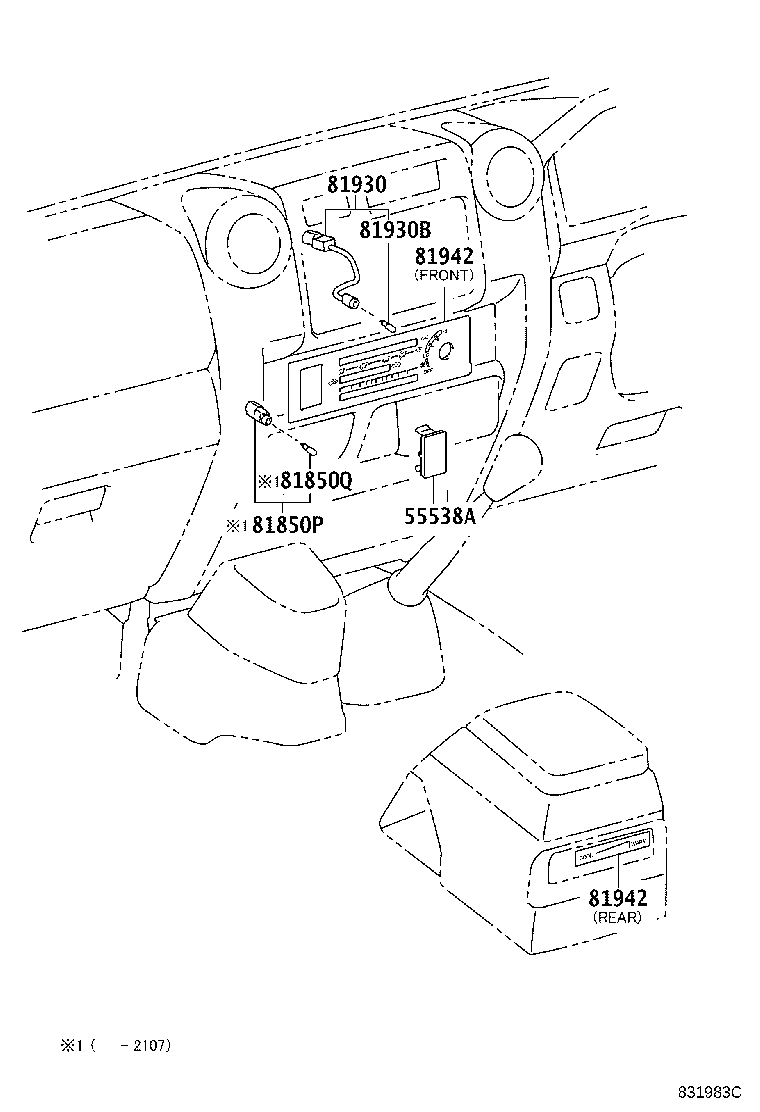

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55538A | Cover, Cooler Switch Hole |
| 81850 | Lamp Assy, Indicator |
| 81850B | Bulb, Indicator Lamp |
| 81850K | Lamp Assy, Security Indicator |
| 81850P | Ashtray Receptacle Lamp |
| 81850Q | Ashtray Receptacle Lamp Bulb |
| 81930 | Lamp Assy, Heater Control Indicator, NO.1 |
| 81930B | Bulb, Heater Control Indicator Lamp |
| 81942 | Sheet, Heater Control Name |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
