Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

8 part groups · 5 illustrations

Illustrations

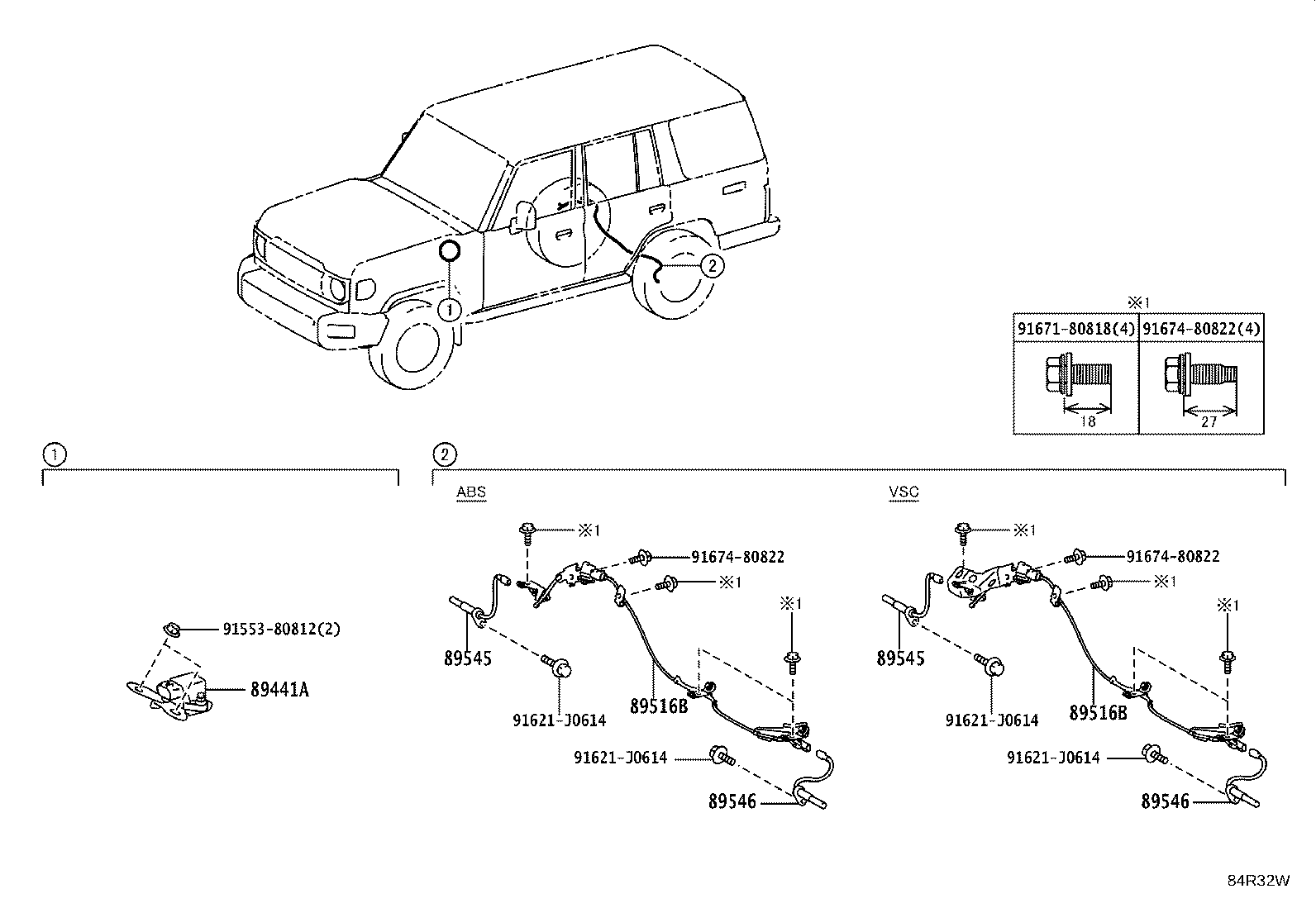

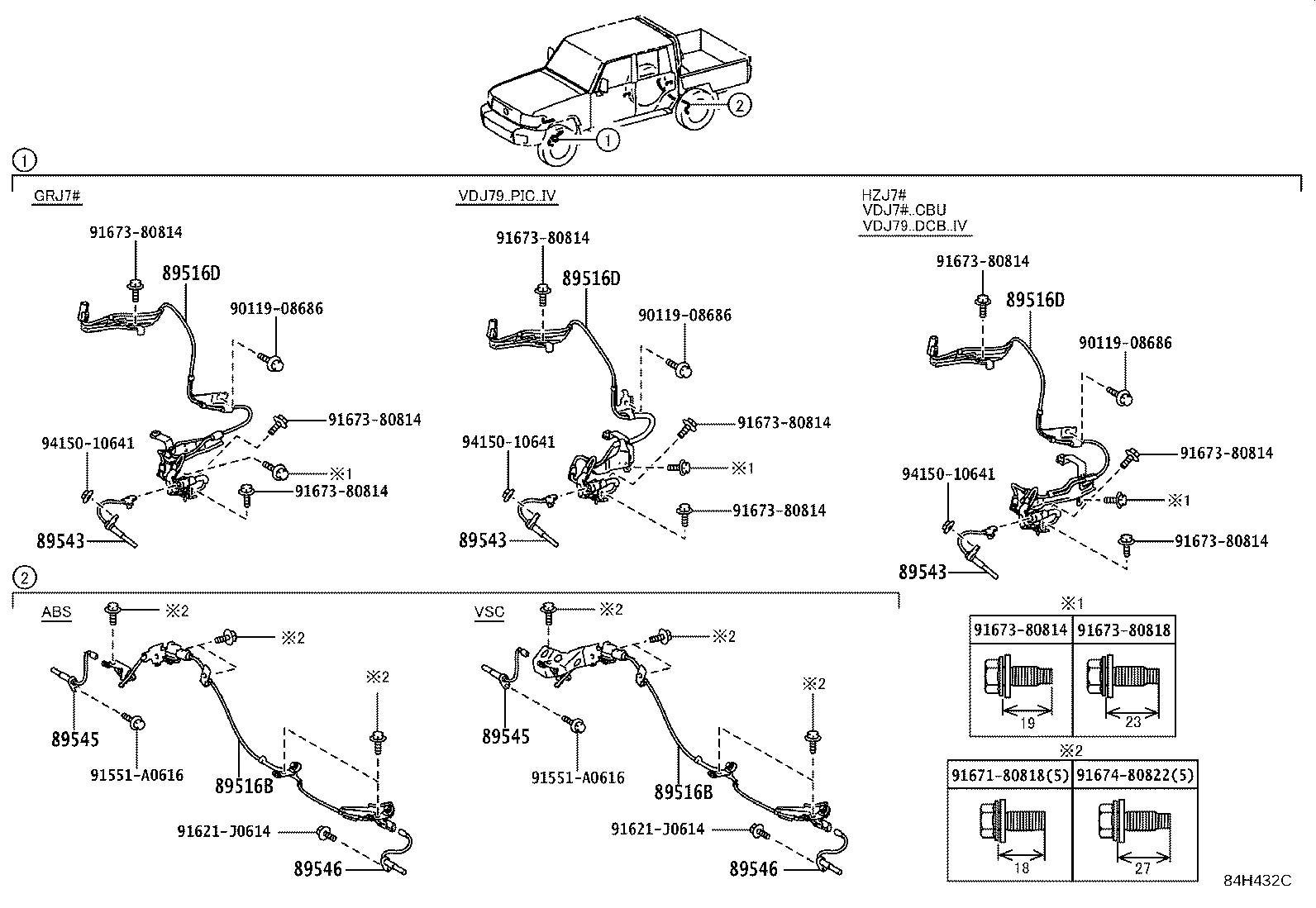

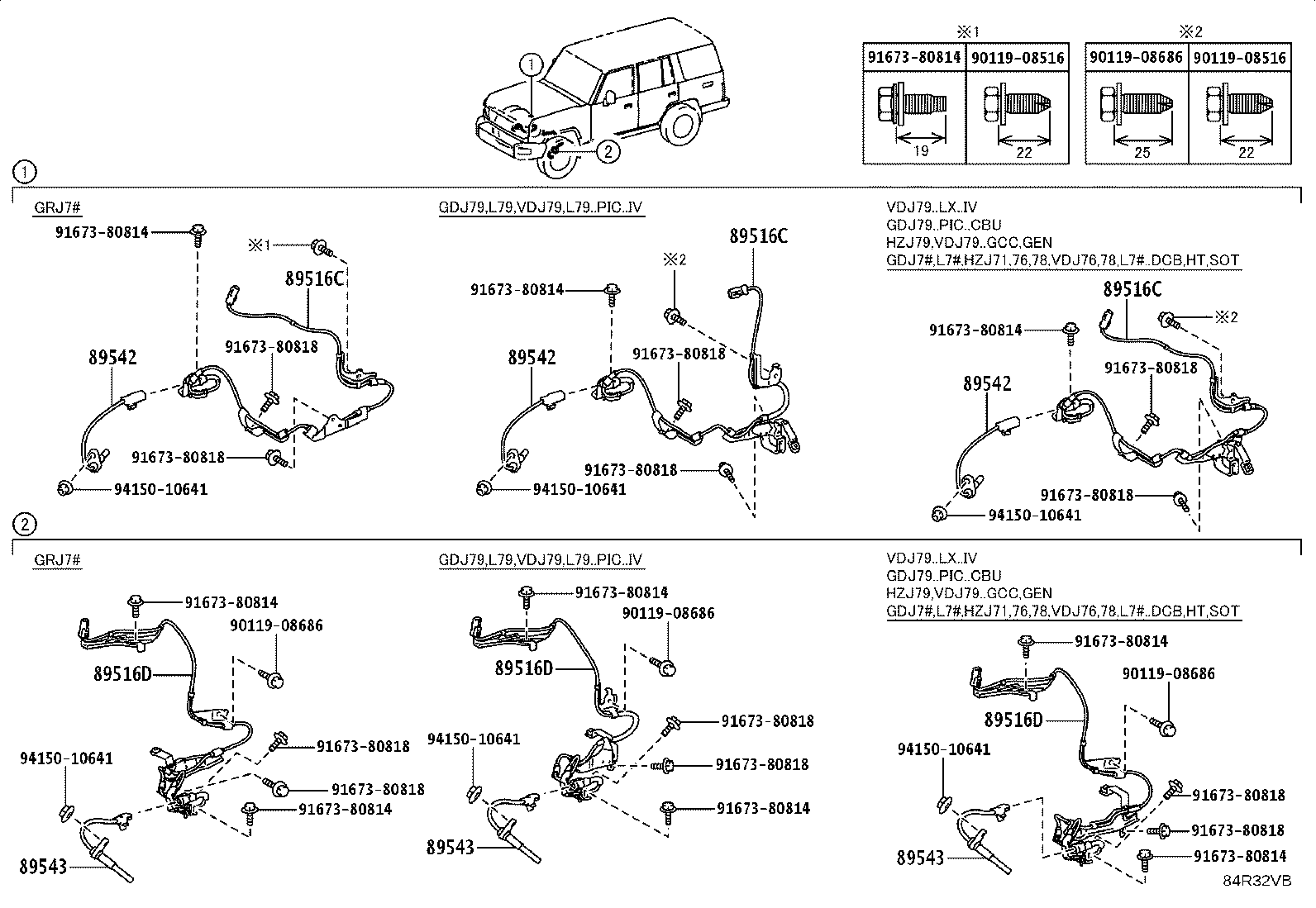

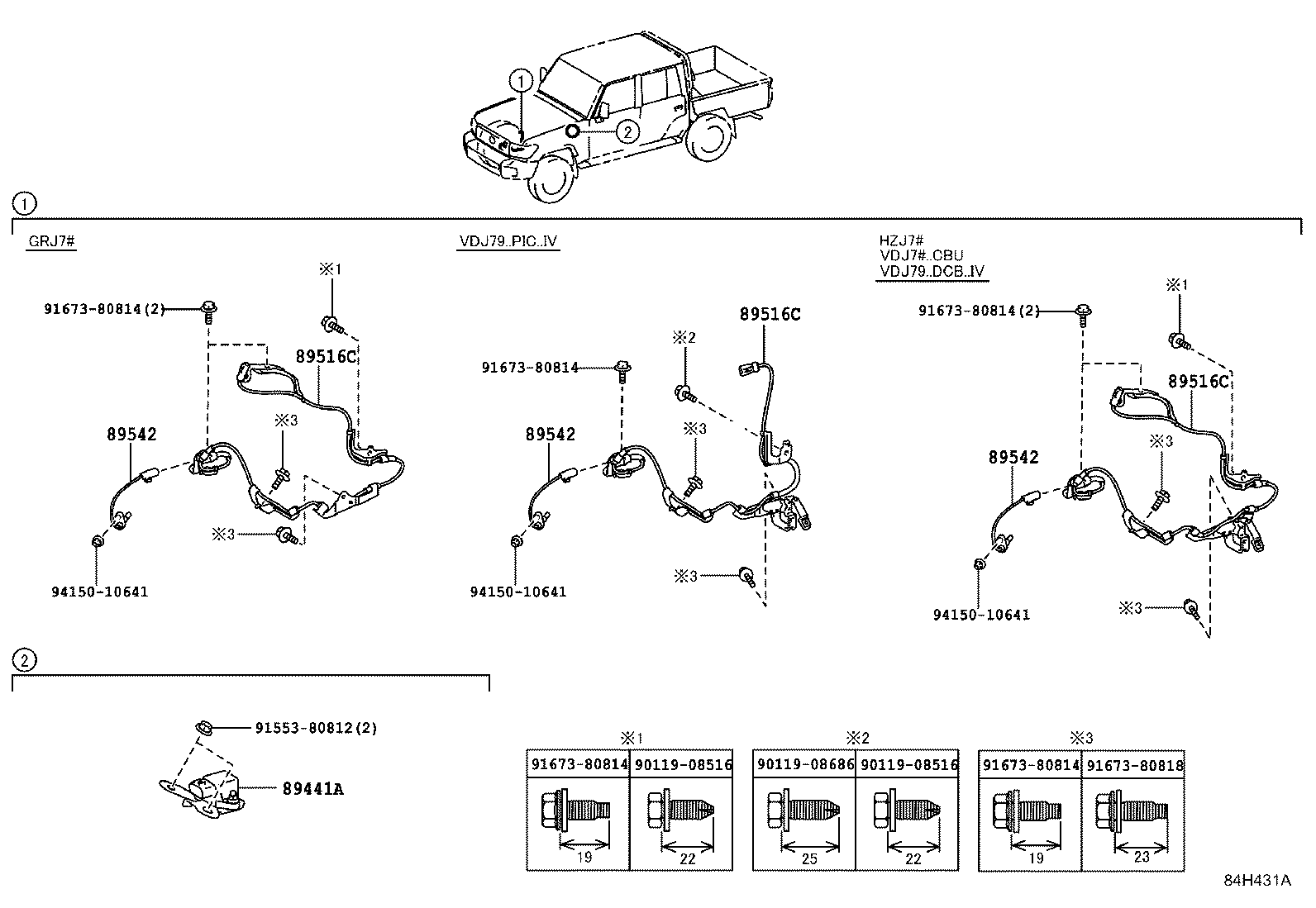

Figure 84F203B 84F203B 2012-05 → 2016-08 Figure 84H431A 84H431A 2016-08 → 2023-09 Figure 84H432C 84H432C 2016-08 → 2023-09 Figure 84R32VB 84R32VB 2023-09 → — Figure 84R32W 84R32W 2023-09 → —

Part groups

PNCDescription
89441A Sensor, Deceleration
89516B Wire, Skid Control Sensor
89516C Wire, Skid Control Sensor, RH
89516D Wire, Skid Control Sensor, LH
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
