Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

3 part groups · 4 illustrations

Illustrations

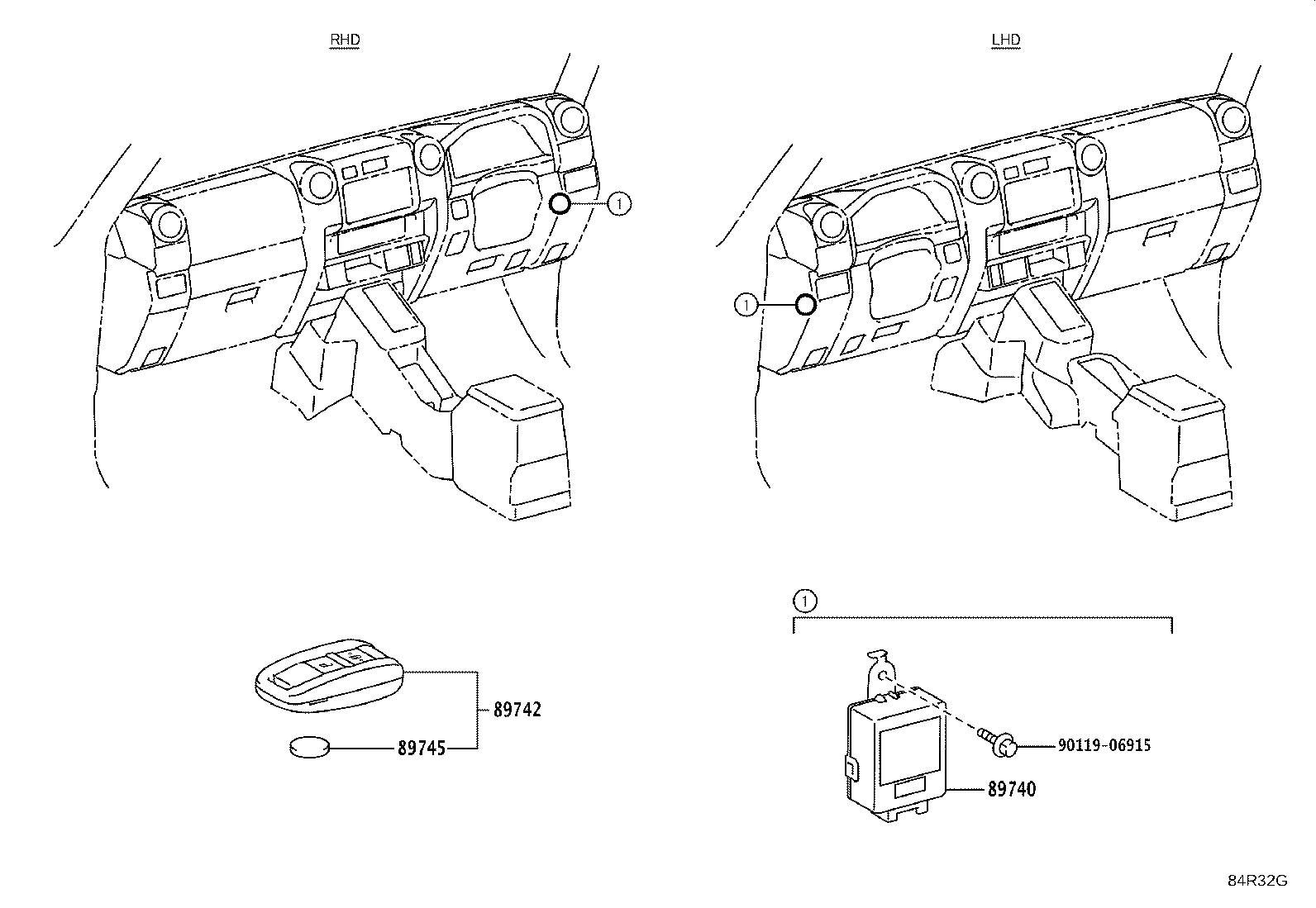

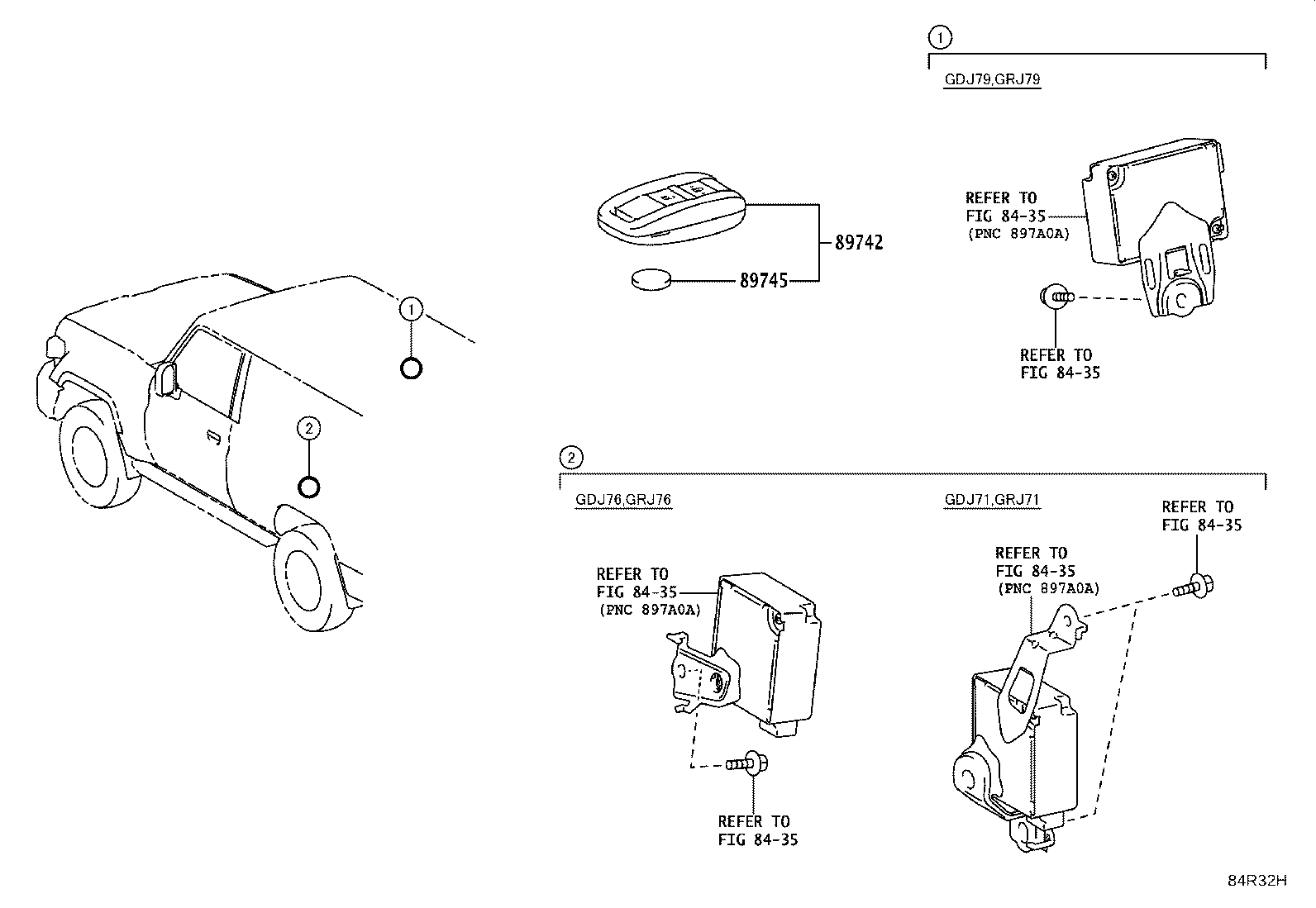

Figure 84F208A 84F208A 2012-08 → 2023-09 Figure 84R32G 84R32G 2023-09 → — Figure 84R32G 84R32G 2023-09 → — Figure 84R32H 84R32H 2023-09 → —

Part groups

PNCDescription
89740 Computer Assy, Door Control W/Receiver
89742 Transmitter, Door Control
89745 Battery, Transmitter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
