Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

7 part groups · 3 illustrations

Illustrations

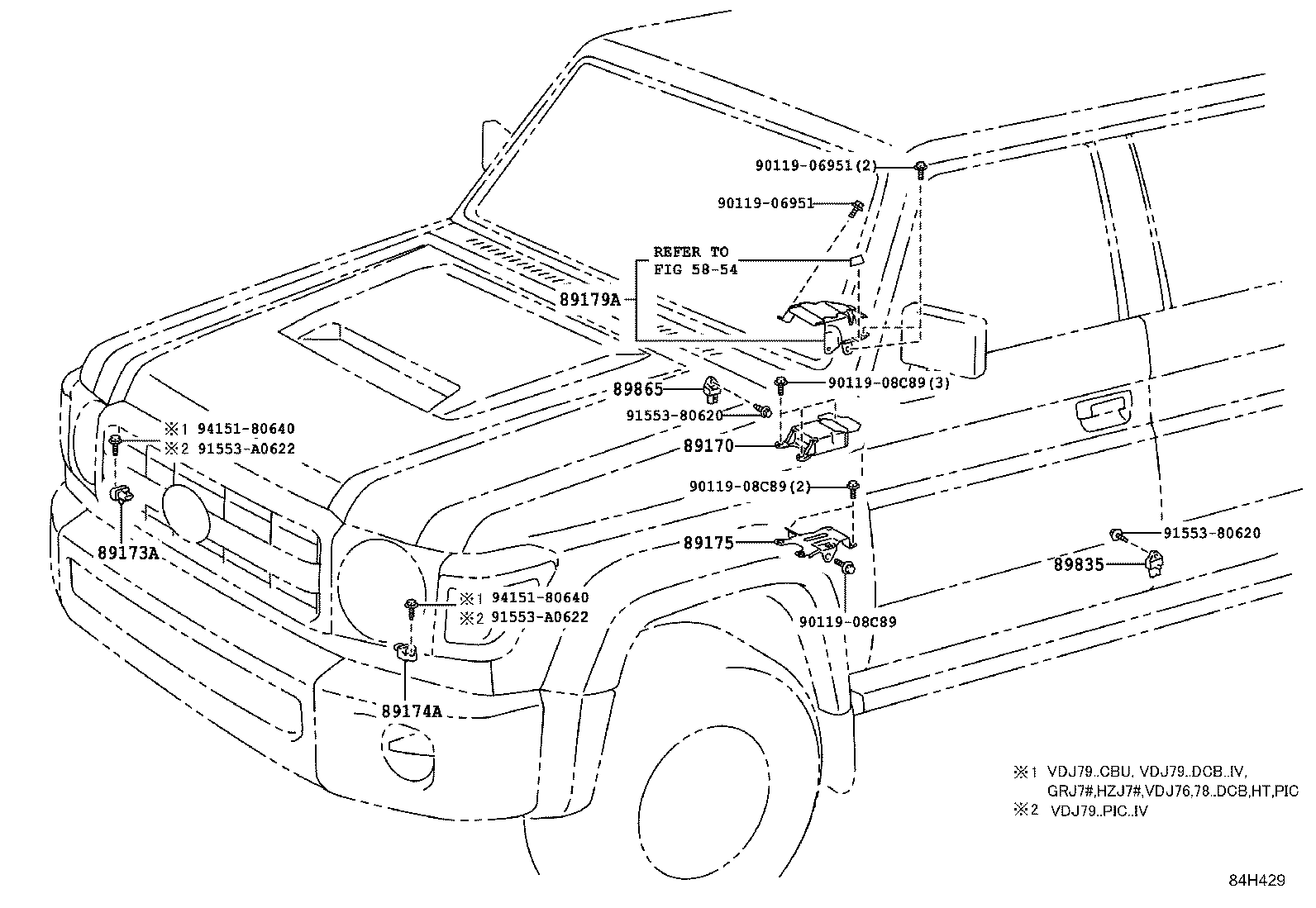

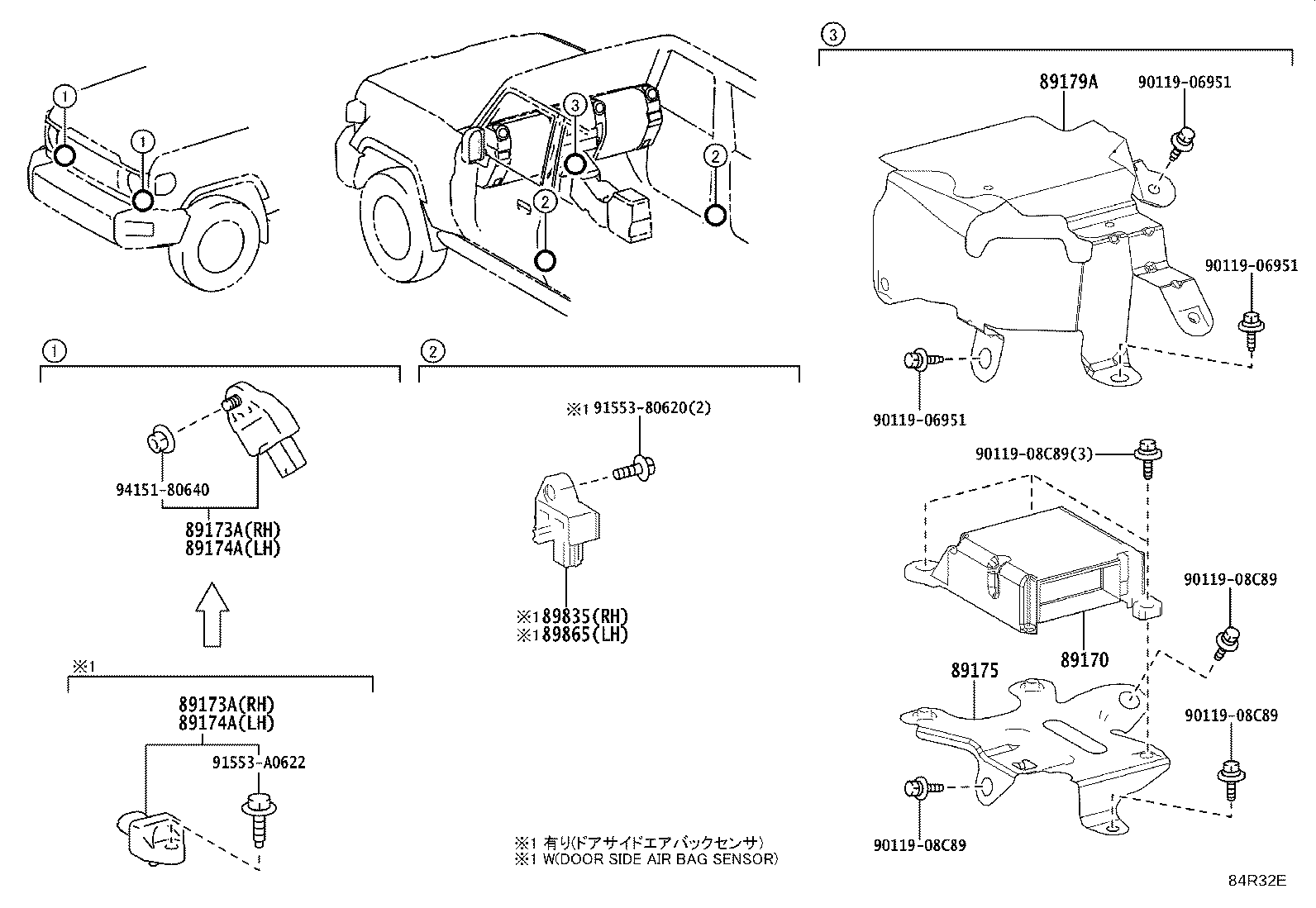

Figure 84F204A 84F204A 2009-07 → 2016-08 Figure 84H429 84H429 2016-08 → 2023-09 Figure 84R32E 84R32E 2023-09 → —

Part groups

PNCDescription
89170 Sensor Assy, Airbag
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
89175 Bracket, Airbag Sensor
89179A Cover, Airbag Sensor
89835 Sensor, Door Side Airbag, LH
89865 Sensor, Door Side Airbag, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
