Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

7 part groups · 5 illustrations

Illustrations

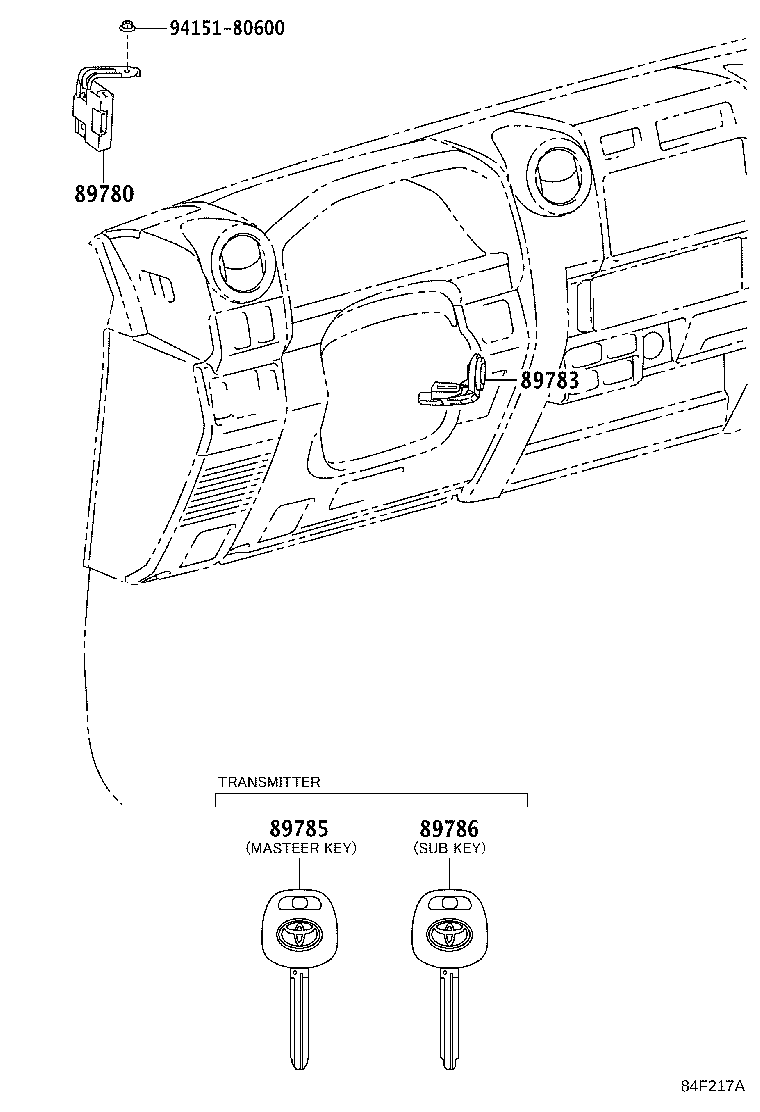

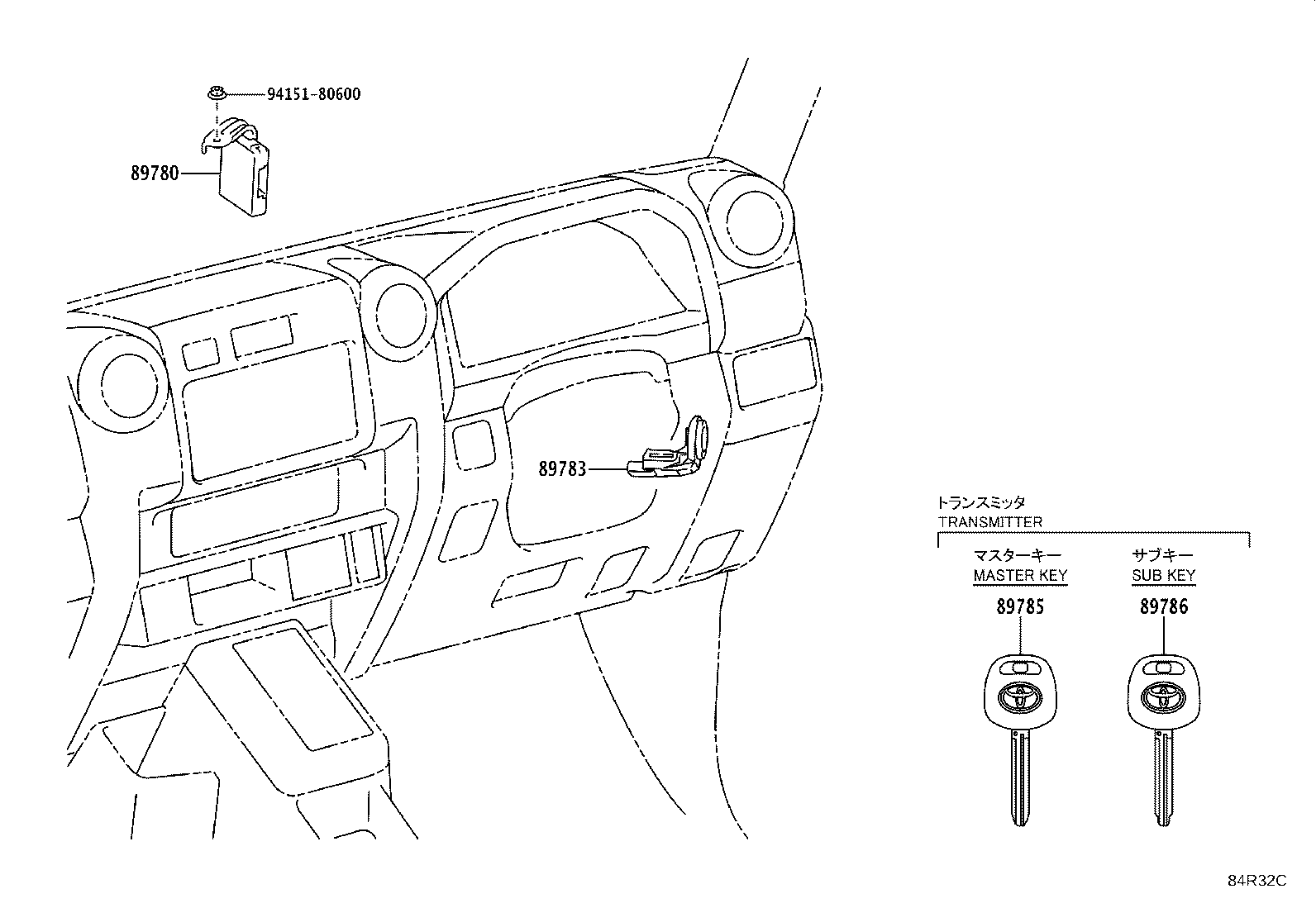

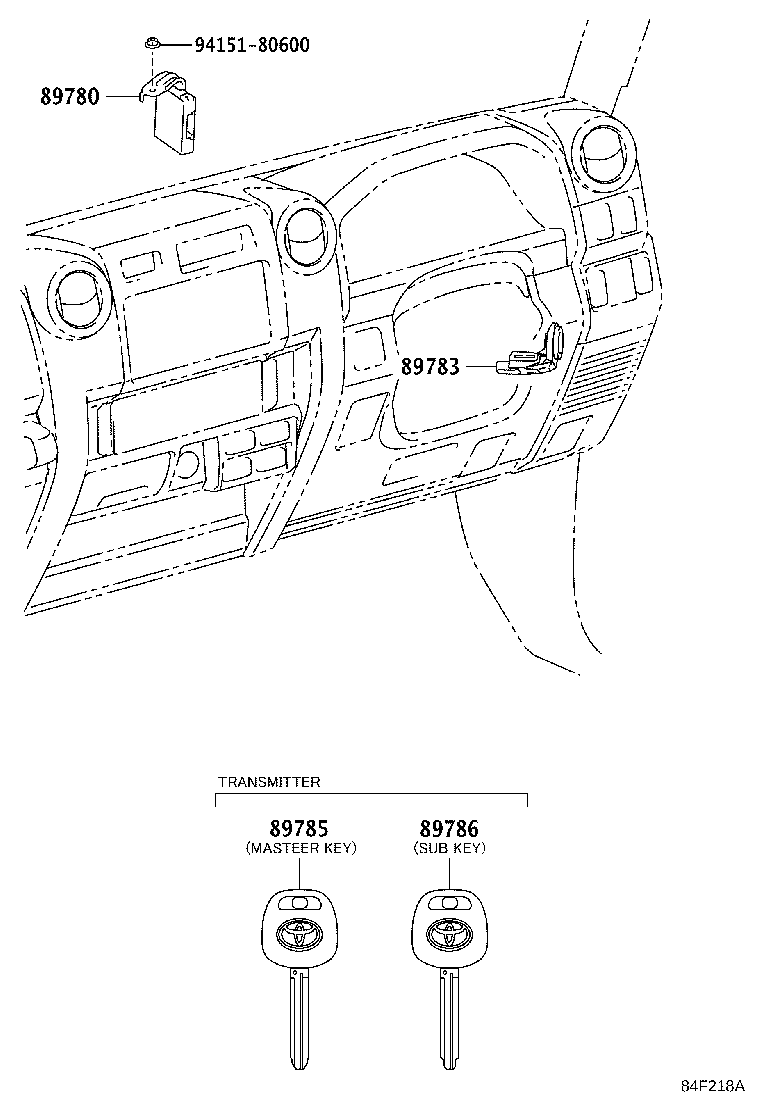

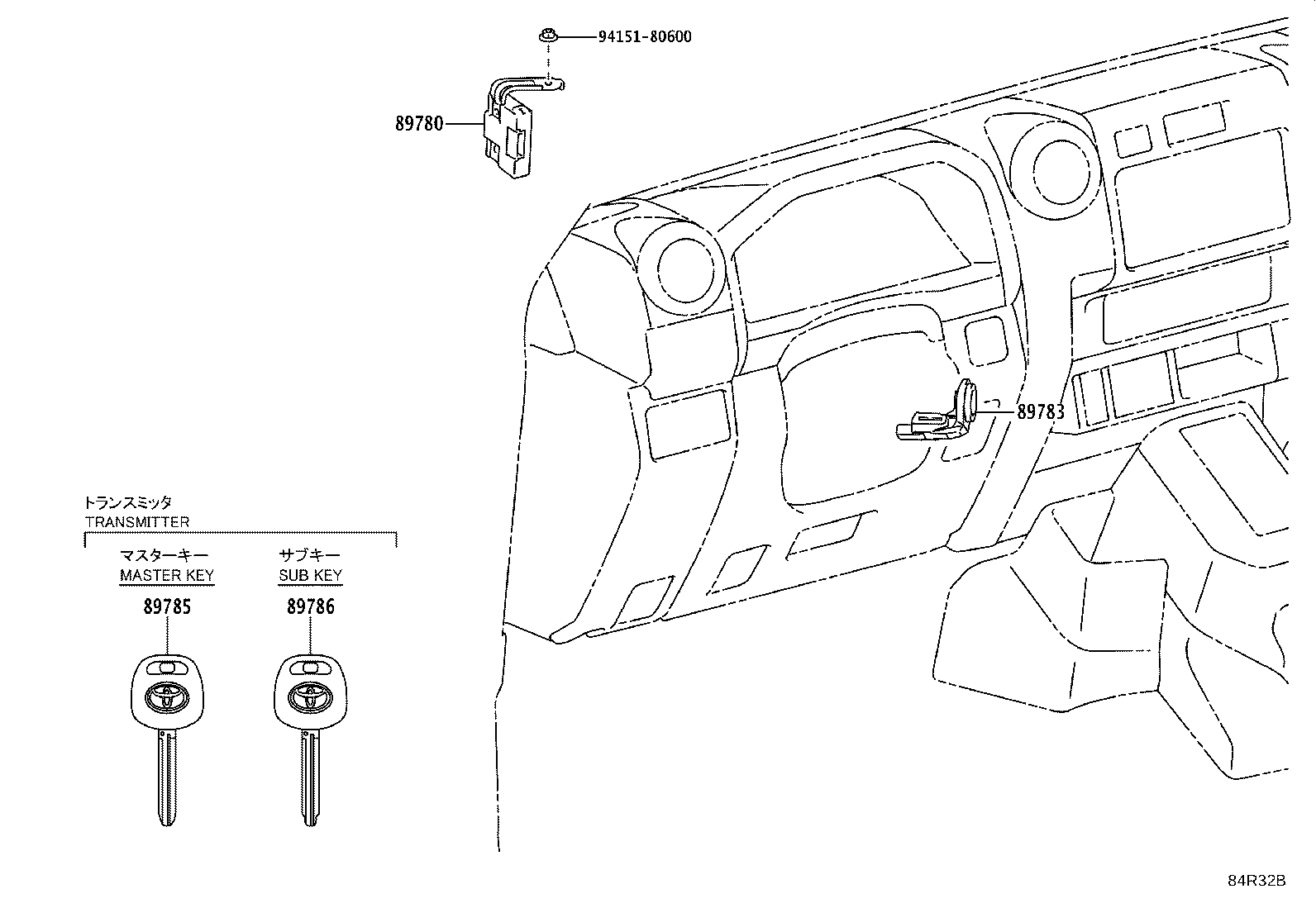

Figure 84F216A 84F216A 2007-01 → 2009-07 Figure 84F217A 84F217A 2009-07 → 2023-09 Figure 84R32B 84R32B 2023-09 → — Figure 84F218A 84F218A 2009-07 → 2023-09 Figure 84R32C 84R32C 2023-09 → —

Part groups

PNCDescription
89703 Cylinder & Key Set, Ignition W/Transponder
89709 Computer Set, Transponder Key
89780 Computer Assy, Transponder Key
89782 Coil, Transponder Key
89783 Amplifier, Transponder Key
89785 Transmitter, Transponder Key Master
89786 Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
