Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

13 part groups · 12 illustrations

Illustrations

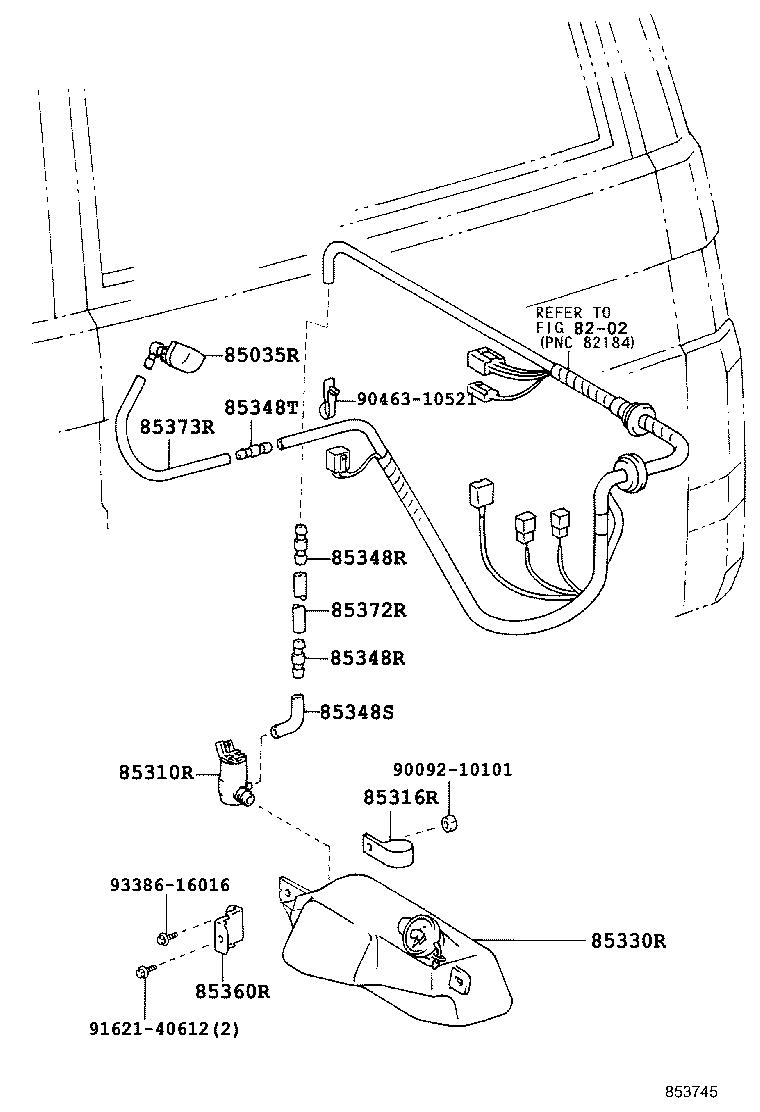

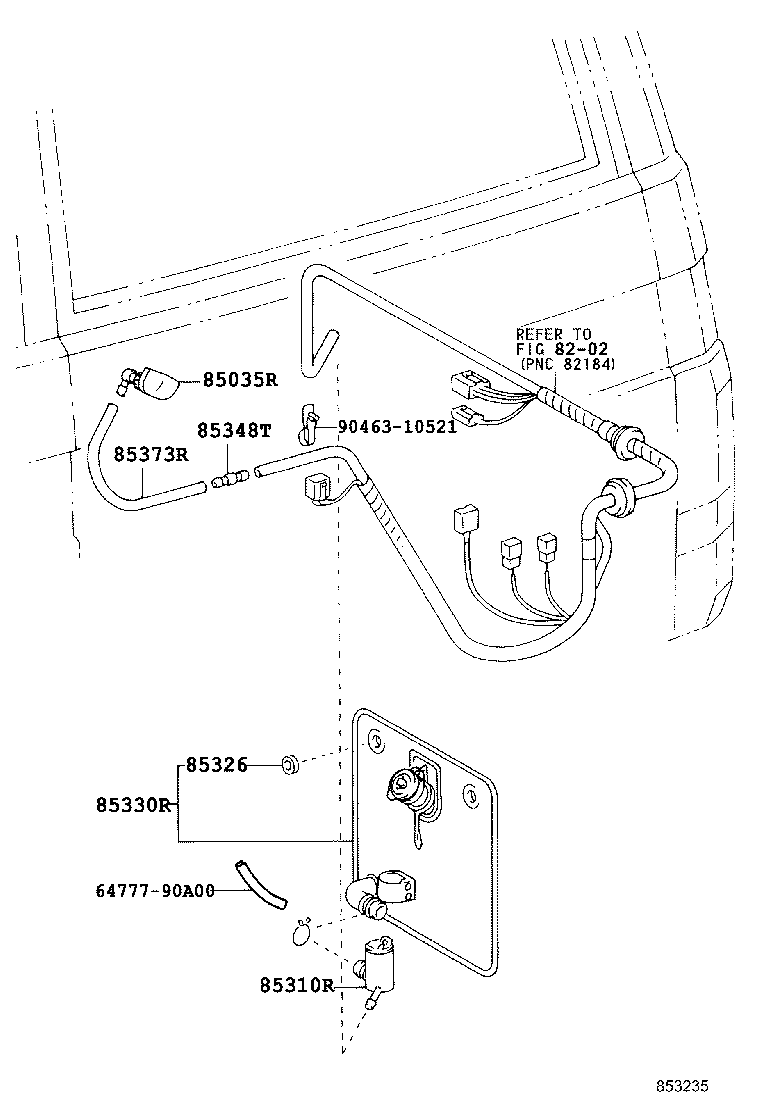

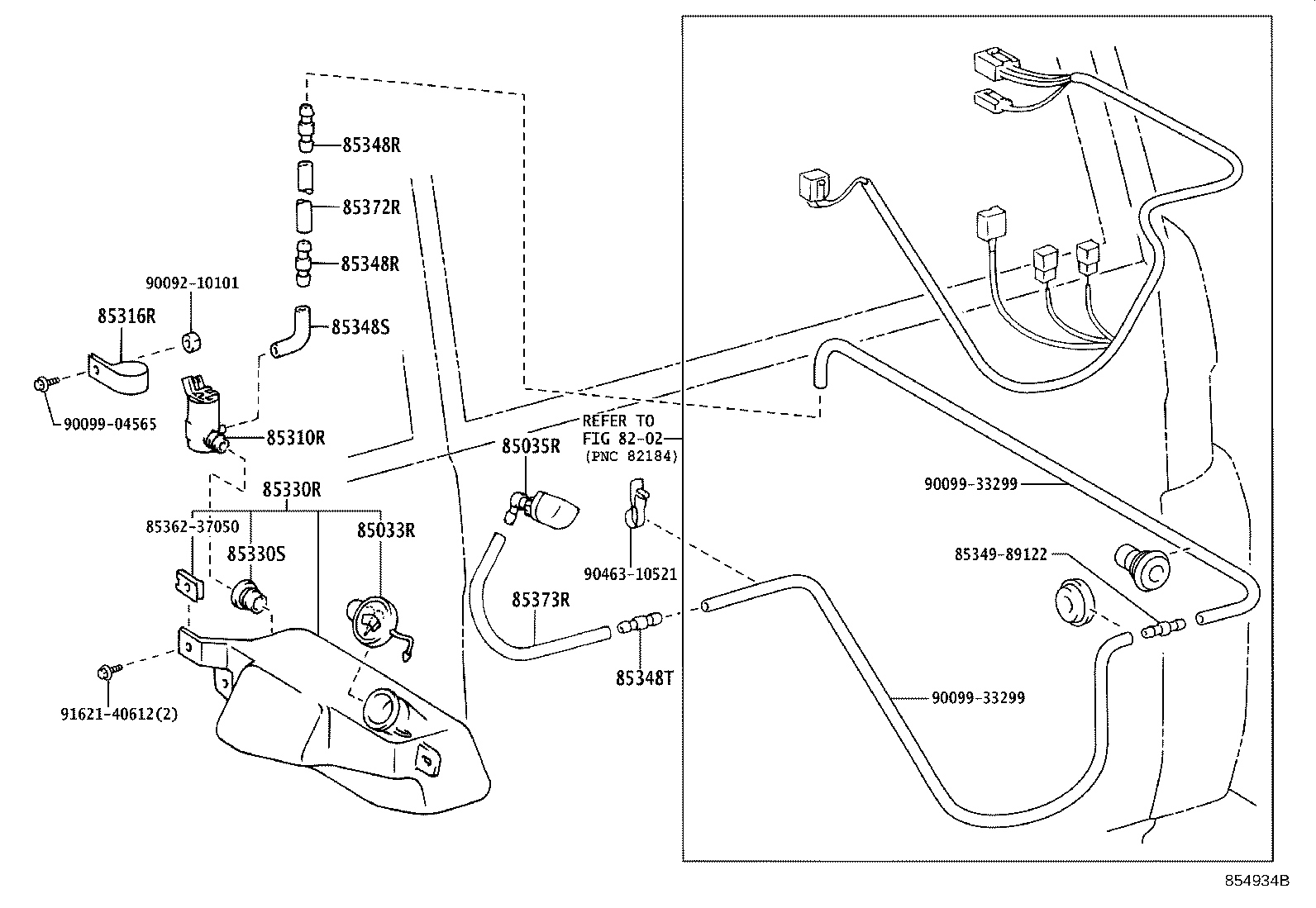

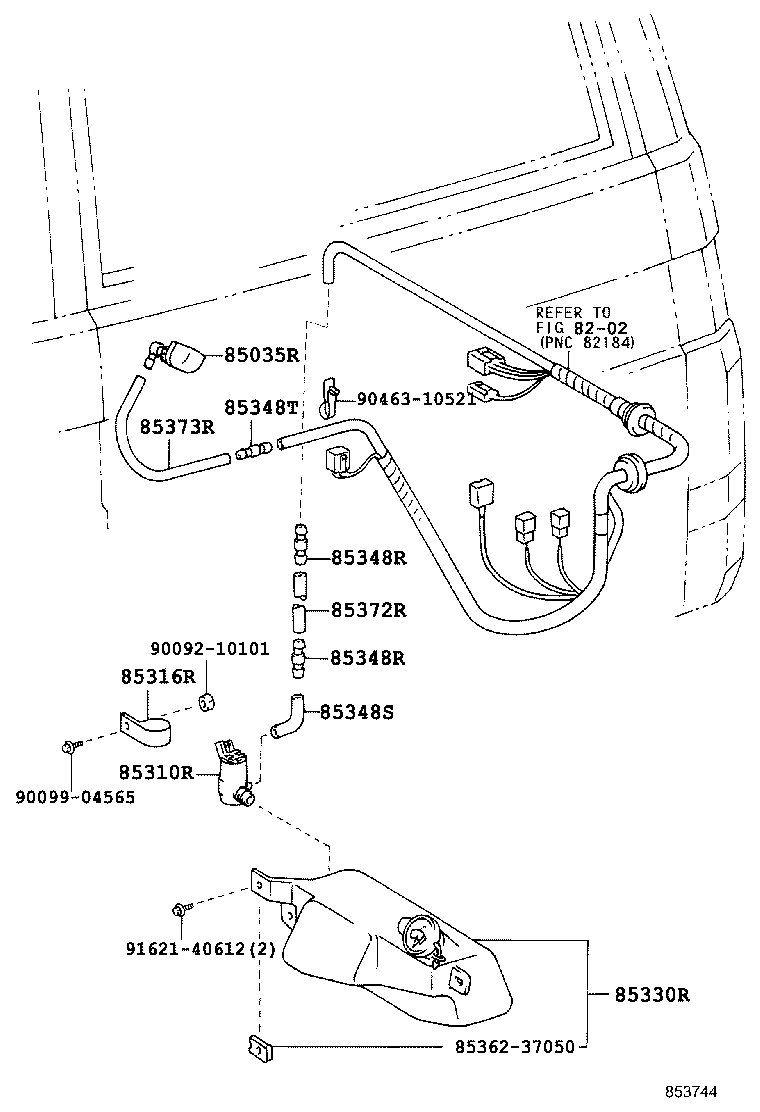

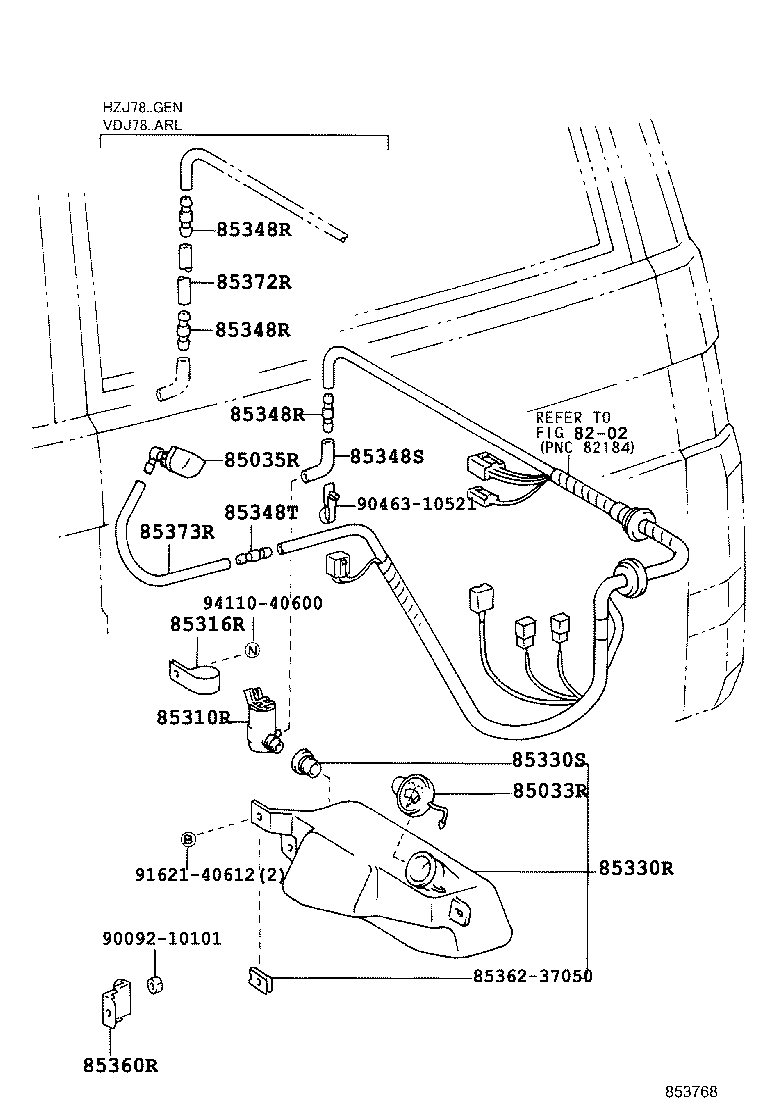

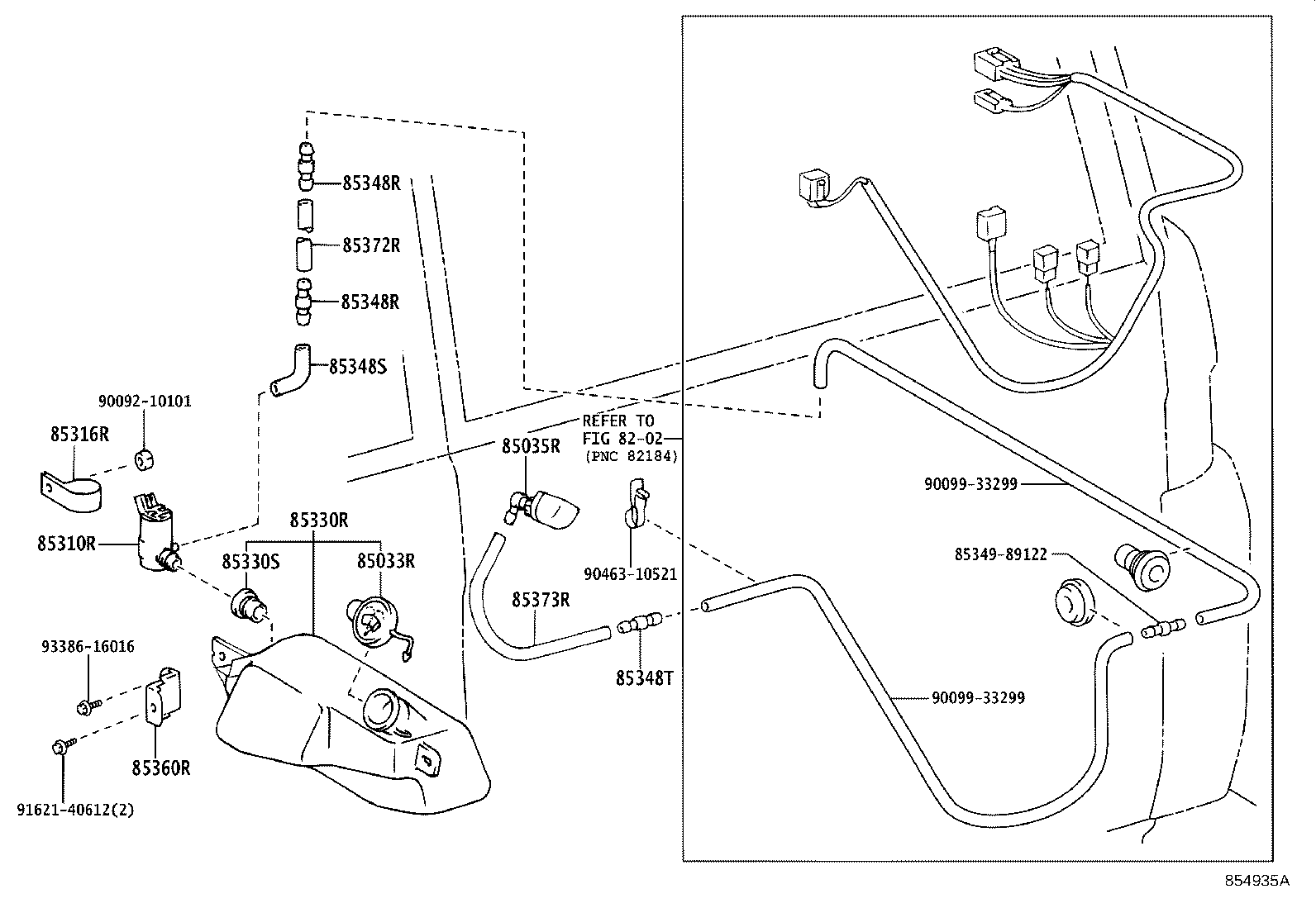

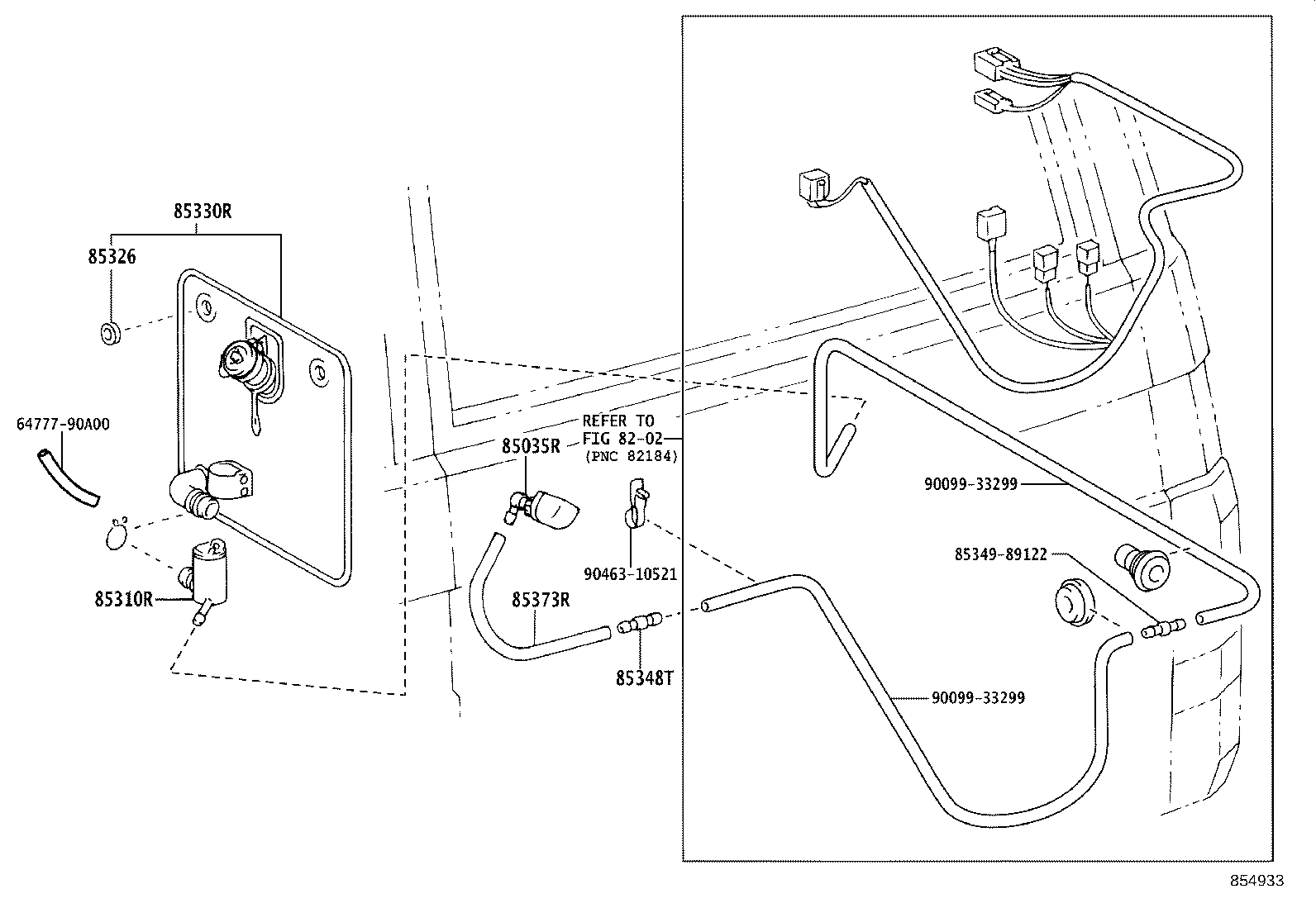

Figure 853234 853234 2007-01 → 2009-07 Figure 853234 853234 2007-01 → 2016-08 Figure 853234 853234 2009-07 → 2016-08 Figure 853235 853235 2007-01 → 2009-07 Figure 853235 853235 2007-01 → 2022-02 Figure 853235 853235 2009-07 → 2022-02 Figure 853768 853768 2016-08 → 2017-03 Figure 853744 853744 2017-03 → 2022-02 Figure 853745 853745 2017-03 → 2022-02 Figure 854933 854933 2022-02 → — Figure 854934B 854934B 2022-02 → — Figure 854935A 854935A 2022-02 → —

Part groups

PNCDescription
85033R Cap Assy, Rear Washer
85035R Nozzle Sub-assy, Rear Washer
85310R Motor Assy, Rear Washer
85316R Support, Rear Washer Motor
85326 Packing, Washer
85330R Jar Assy, Rear Washer
85330S Bush, Rear Washer Jar
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348T Joint, Rear Washer Hose, NO.2
85360R Bracket Assy, Rear Washer
85372R Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE)
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
