Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

7 part groups · 13 illustrations

Illustrations

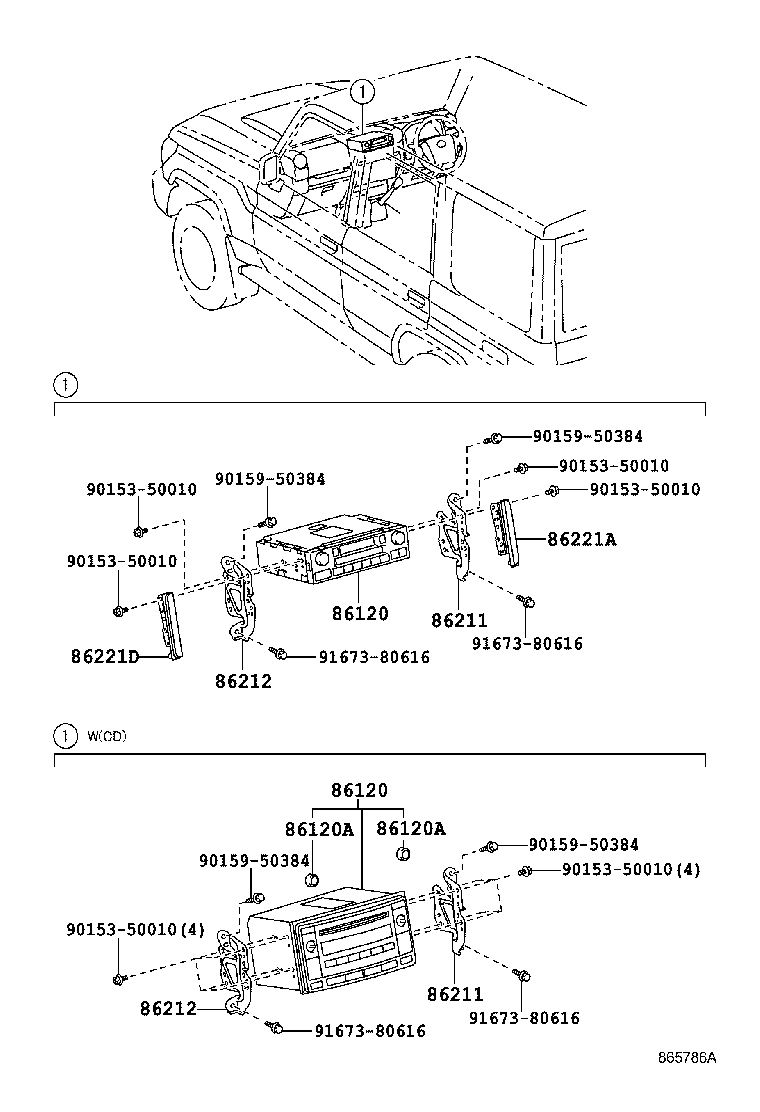

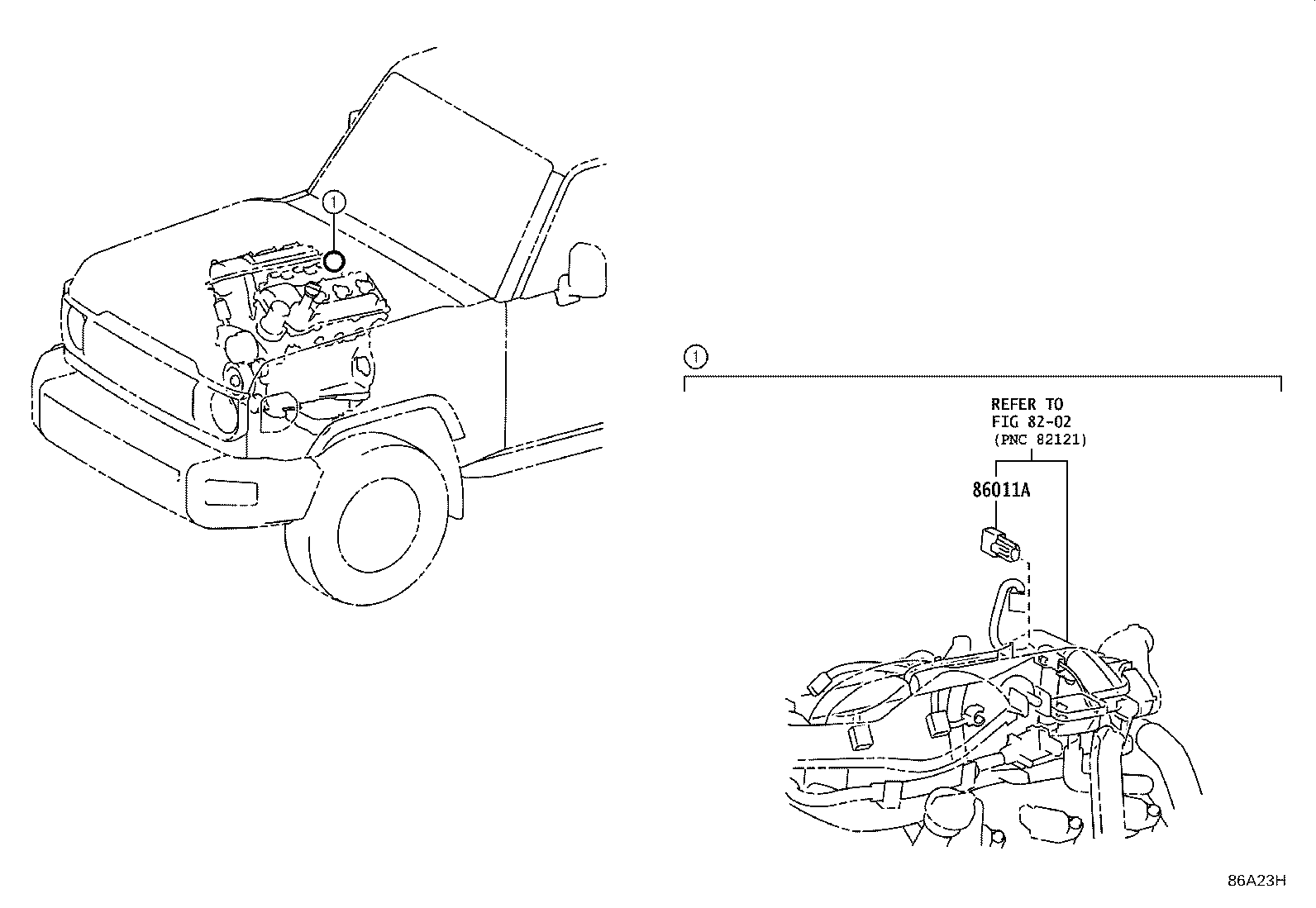

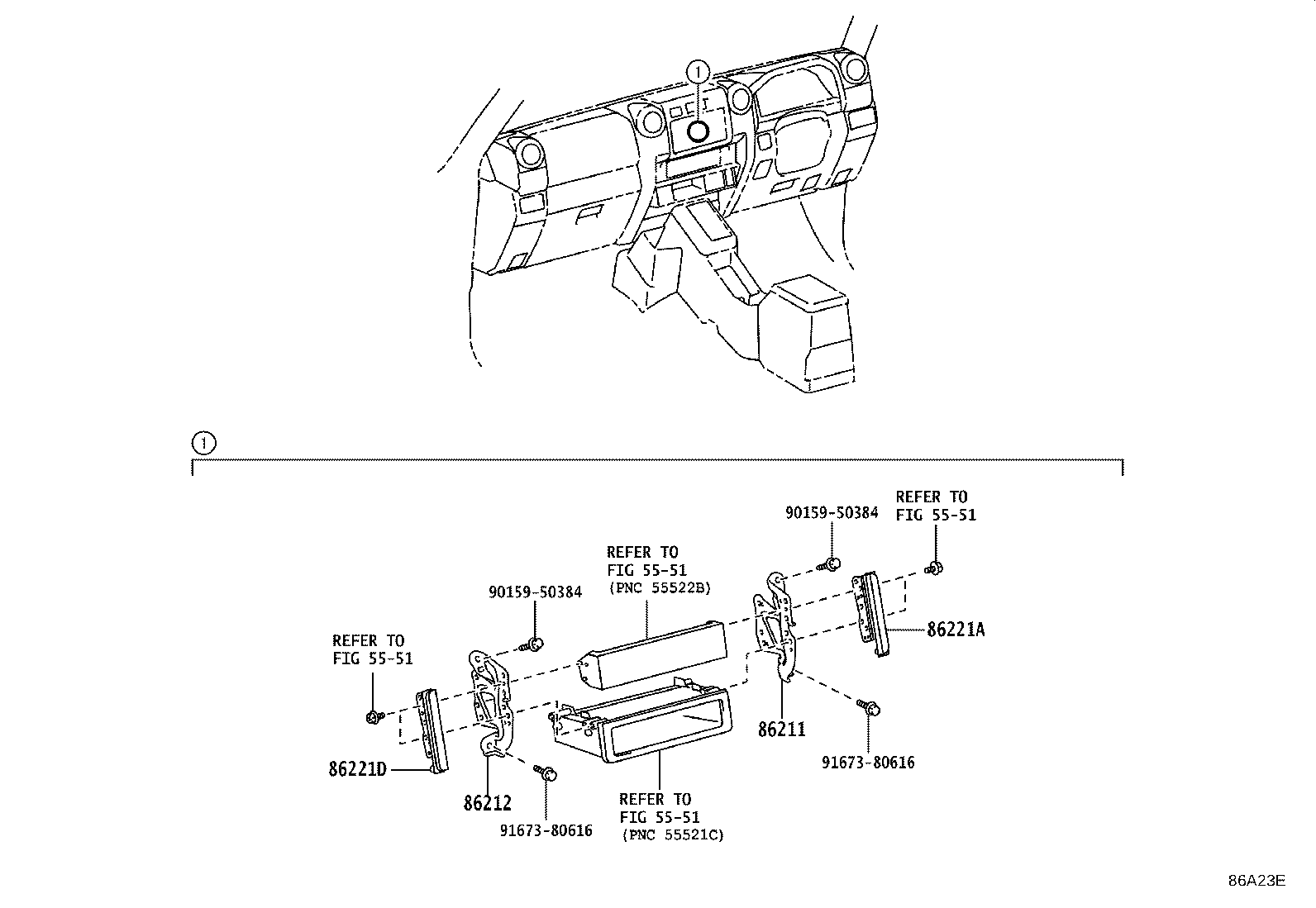

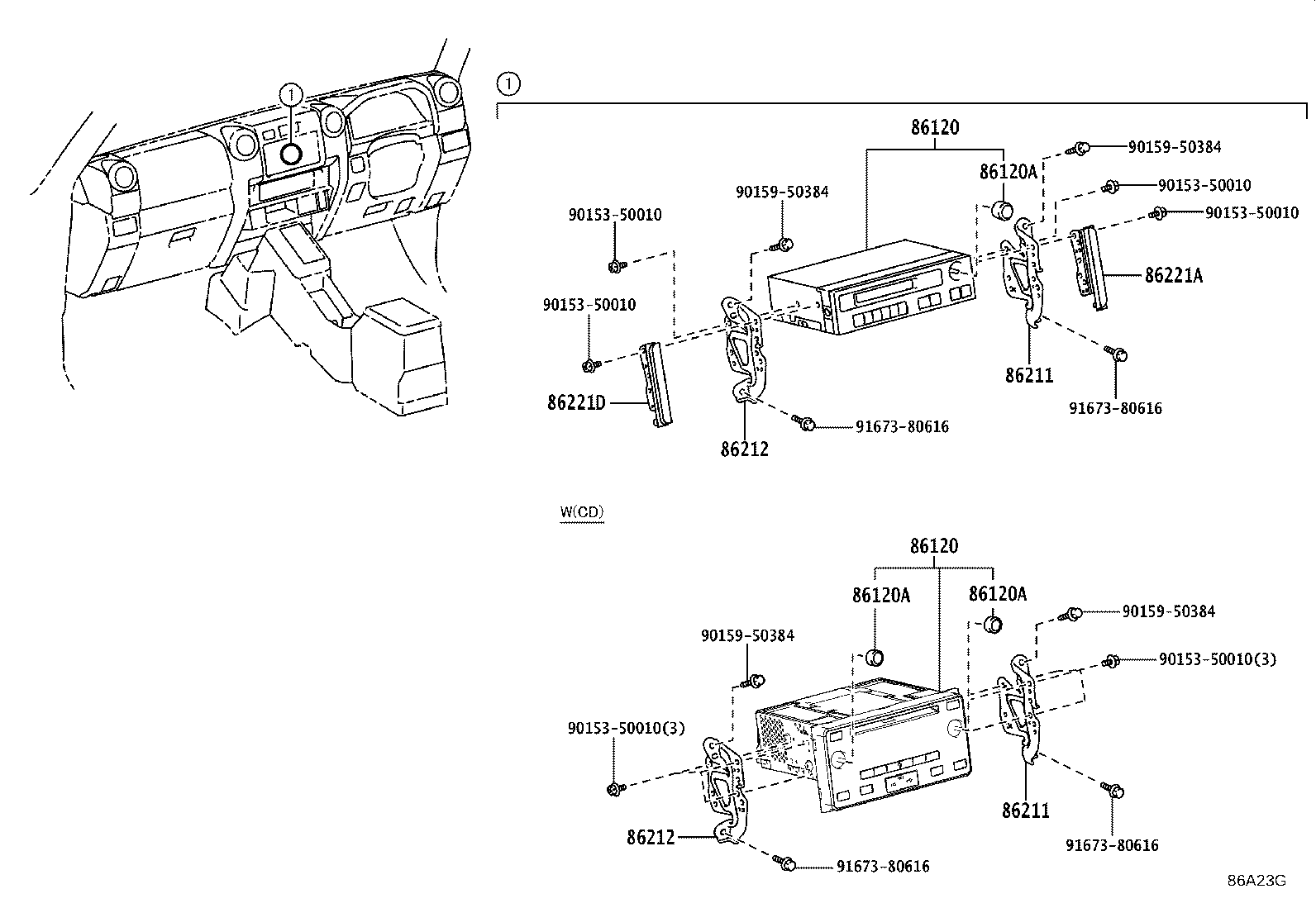

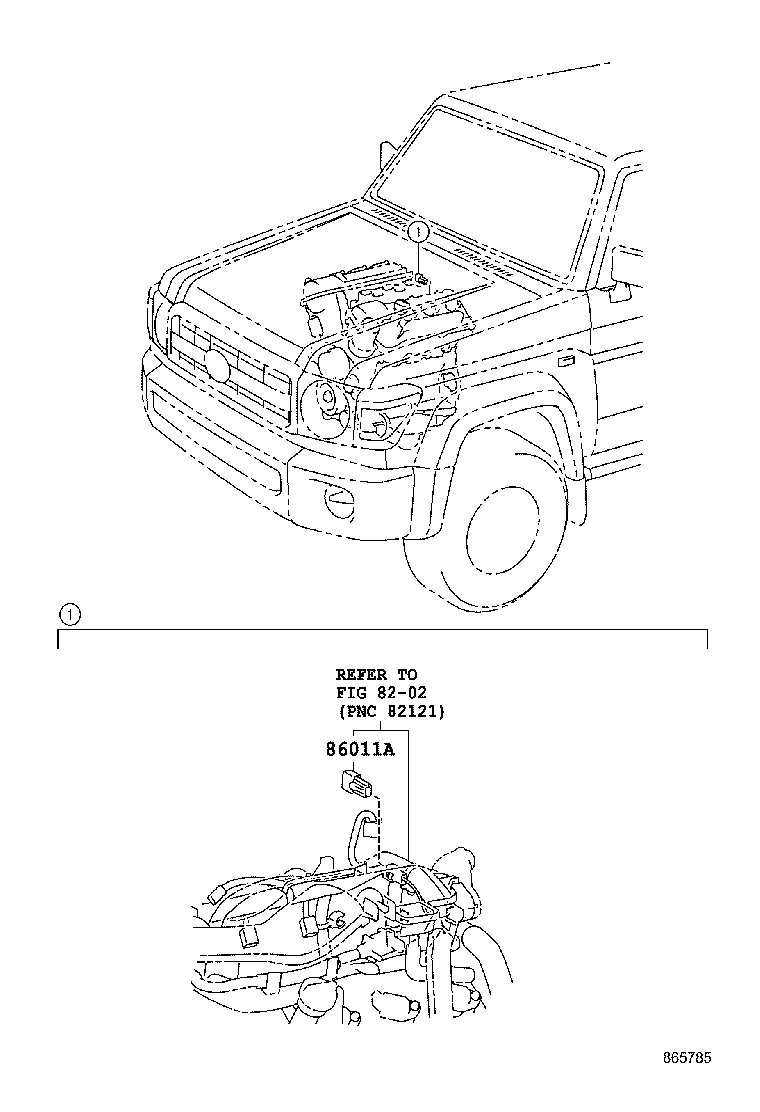

Figure 865783 865783 2007-01 → 2009-07 Figure 865786A 865786A 2009-07 → — Figure 865786A 865786A 2009-07 → — Figure 865786A 865786A 2009-07 → — Figure 86A23E 86A23E 2023-09 → — Figure 86A23G 86A23G 2023-09 → — Figure 865784 865784 2007-01 → 2009-07 Figure 865787D 865787D 2009-07 → — Figure 865787D 865787D 2009-07 → — Figure 865787D 865787D 2009-07 → — Figure 865785 865785 2007-01 → — Figure 865785 865785 2007-01 → — Figure 86A23H 86A23H 2023-09 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86221D Panel, Radio Receiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
