Toyota Land Cruiser
2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States
Supported model
Data version 2024-10
Speaker
9 part groups · 3 illustrations
Part groups

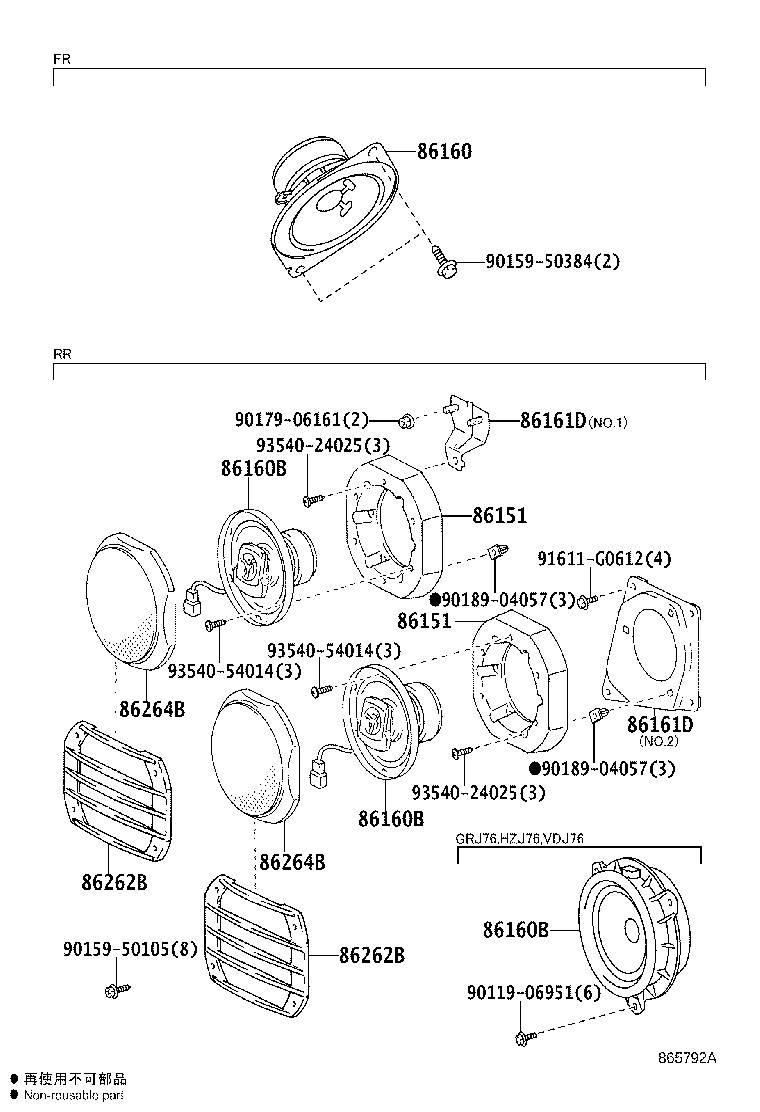

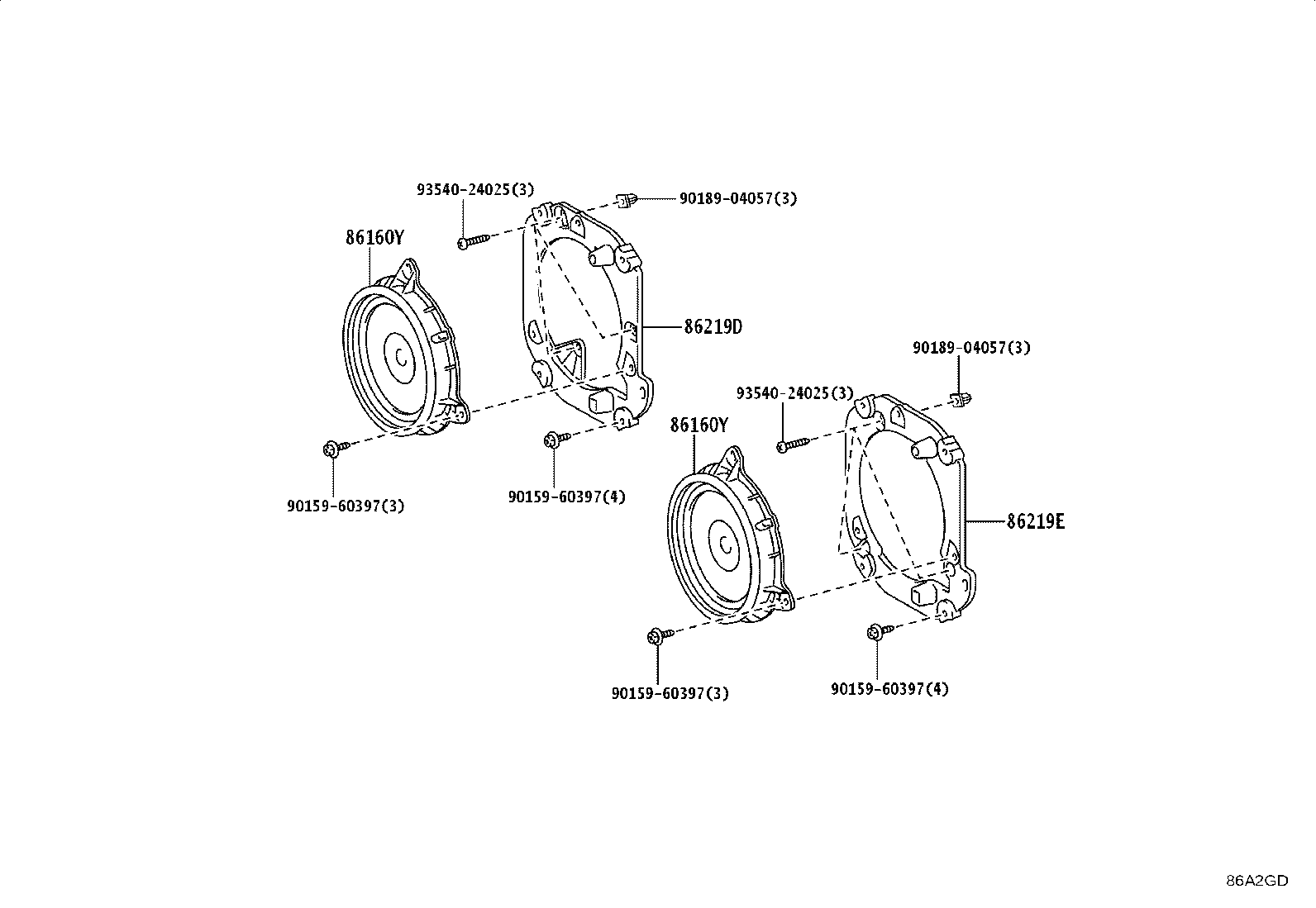

| PNC | Description |
|---|---|
| 86151 | Box, Speaker |
| 86160 | Speaker Assy, Front NO.1 |
| 86160B | Speaker Assy, Rear |
| 86160Y | Speaker Assy, Rear NO.2 |
| 86161D | Bracket, Speaker Mounting, NO.1 |
| 86219D | Bracket, Speaker, Rear NO.1 |
| 86219E | Bracket, Speaker, Rear NO.2 |
| 86262B | Cover, Speaker, Rear |
| 86264B | Grille, Speaker, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
