Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

9 part groups · 9 illustrations

Illustrations

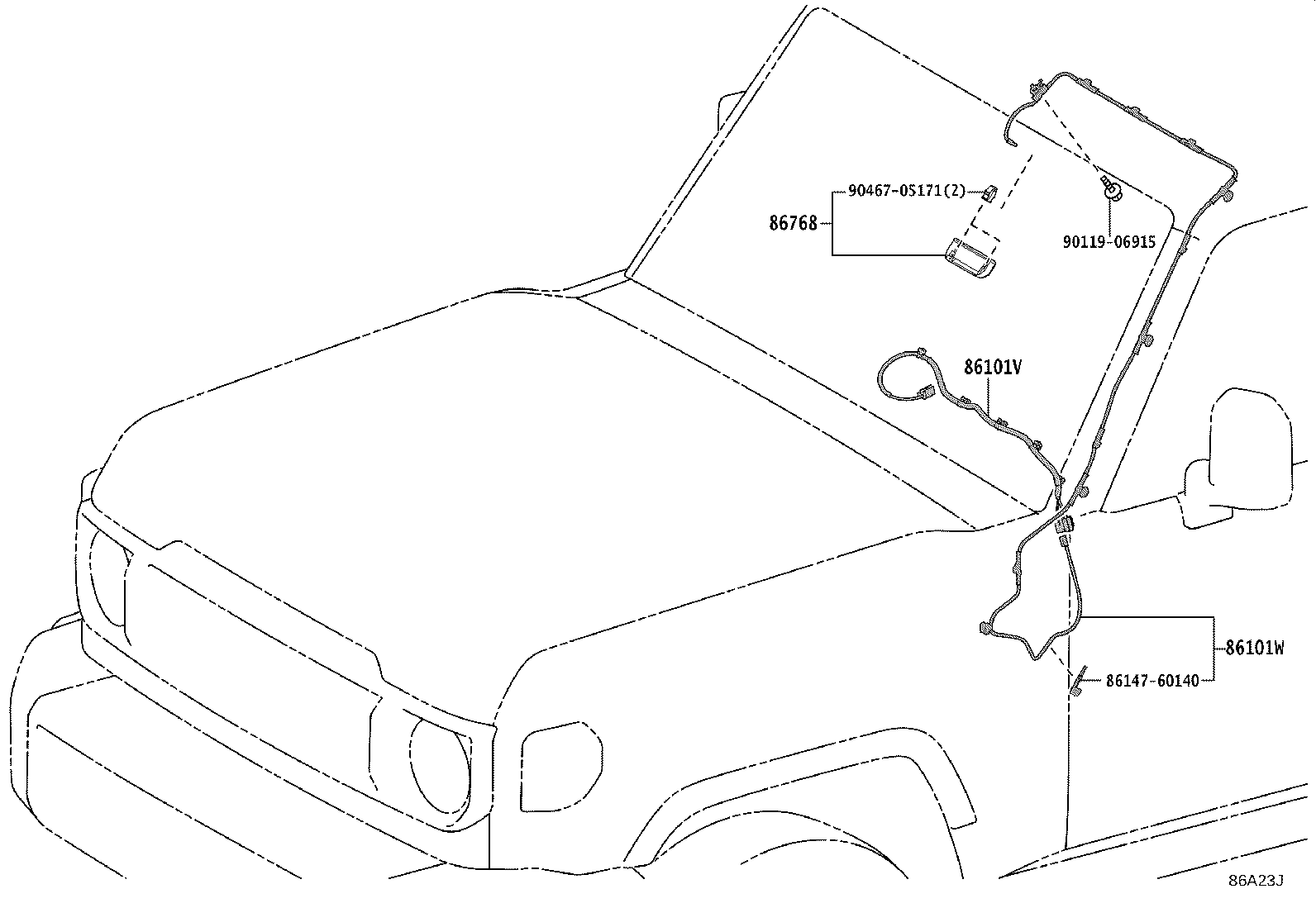

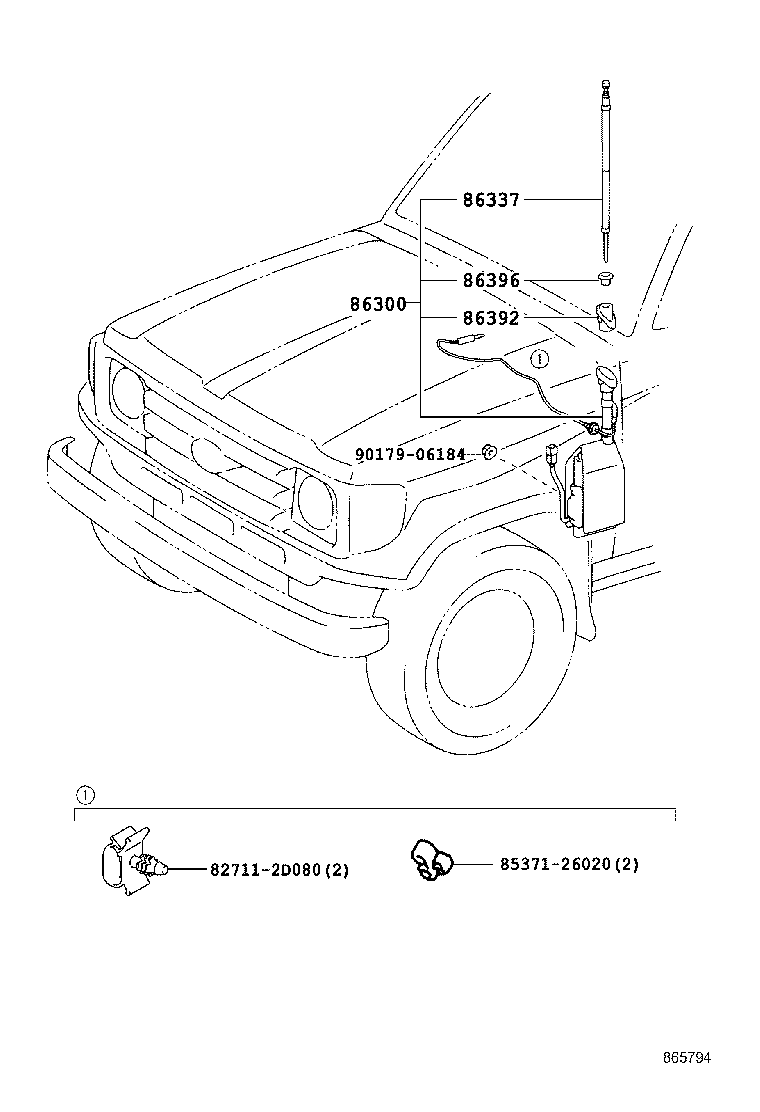

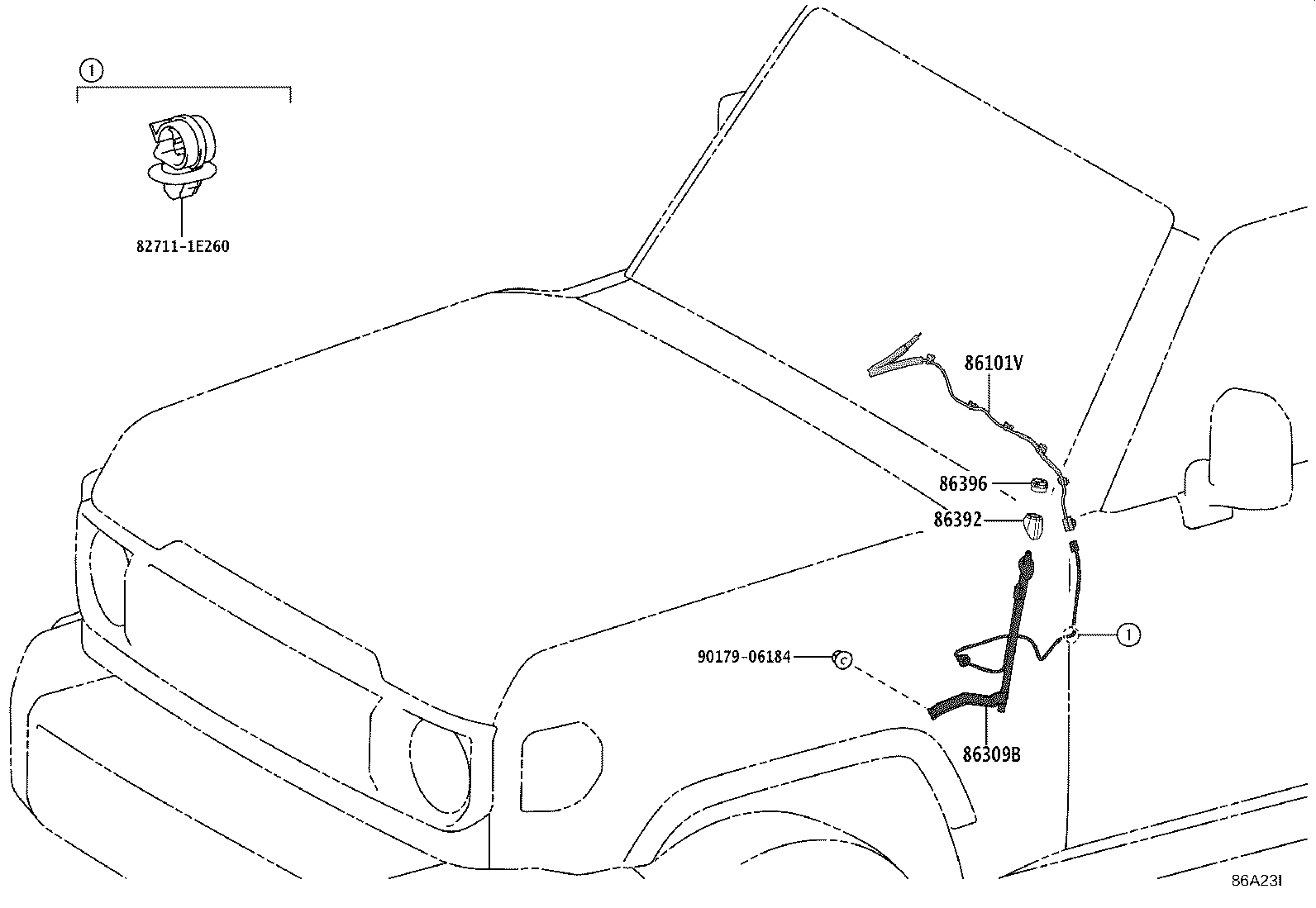

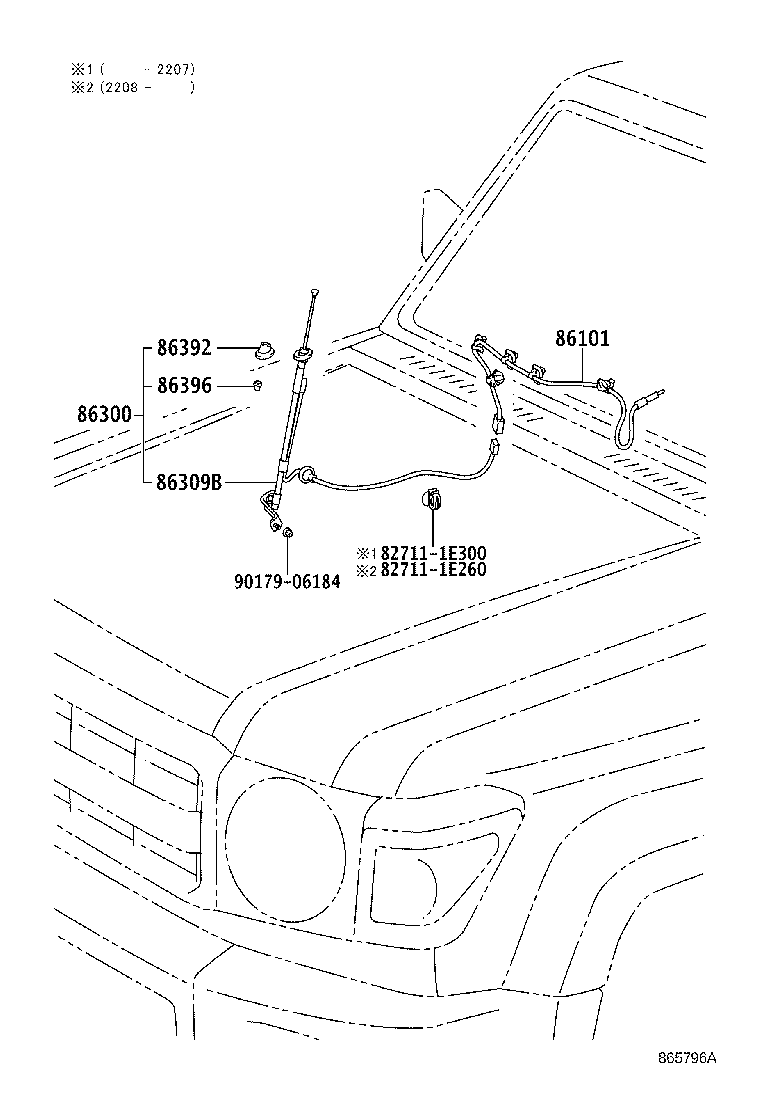

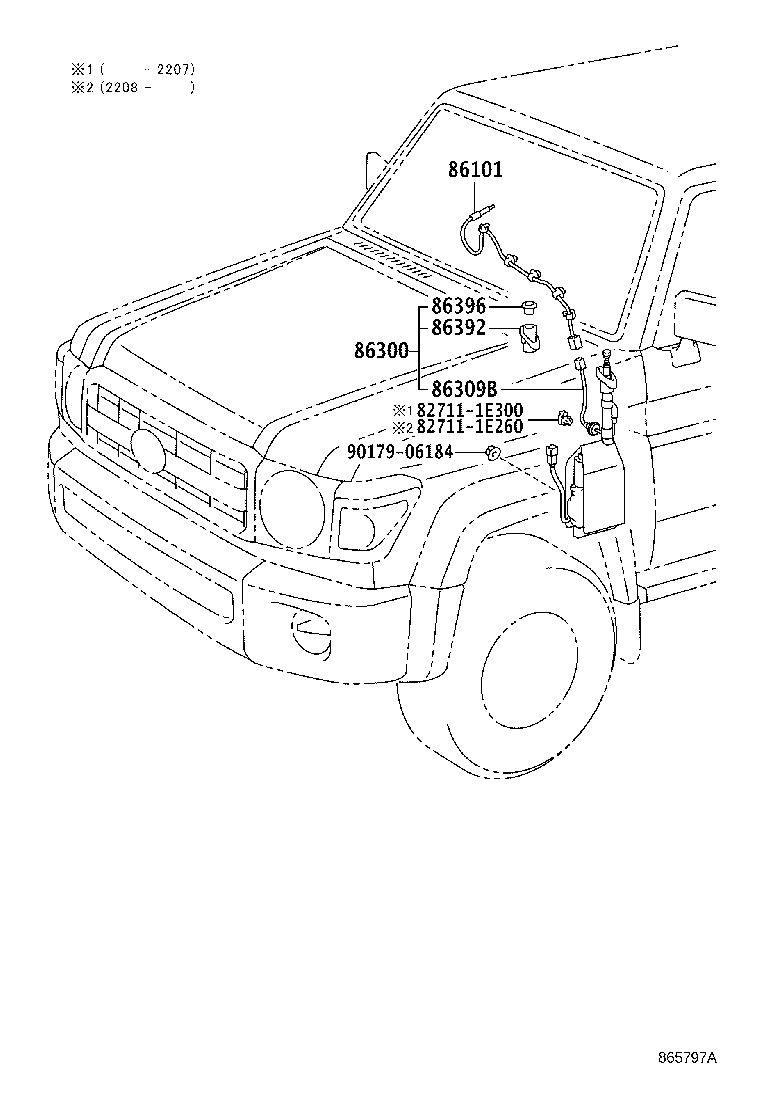

Figure 865793 865793 2007-01 → 2009-07 Figure 865794 865794 2007-01 → 2009-07 Figure 865796A 865796A 2009-07 → — Figure 865796A 865796A 2009-07 → — Figure 865796A 865796A 2009-07 → — Figure 865797A 865797A 2009-07 → — Figure 865797A 865797A 2009-07 → — Figure 86A23I 86A23I 2023-09 → — Figure 86A23J 86A23J 2023-09 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86101V Cord Sub-assy, Antenna, NO.6
86101W Cord Sub-assy, Antenna, NO.7
86300 Antenna Assy, W/Holder
86309B Pole Sub-assy, Pull Top Antenna
86337 Rod & Pipe, Sealed W/Cable
86392 Ornament, Antenna
86396 Nut, Antenna
86768 Cover, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
