Heating & Air Conditioning - Heater Unit & Blower

19 part groups · 22 illustrations

Illustrations

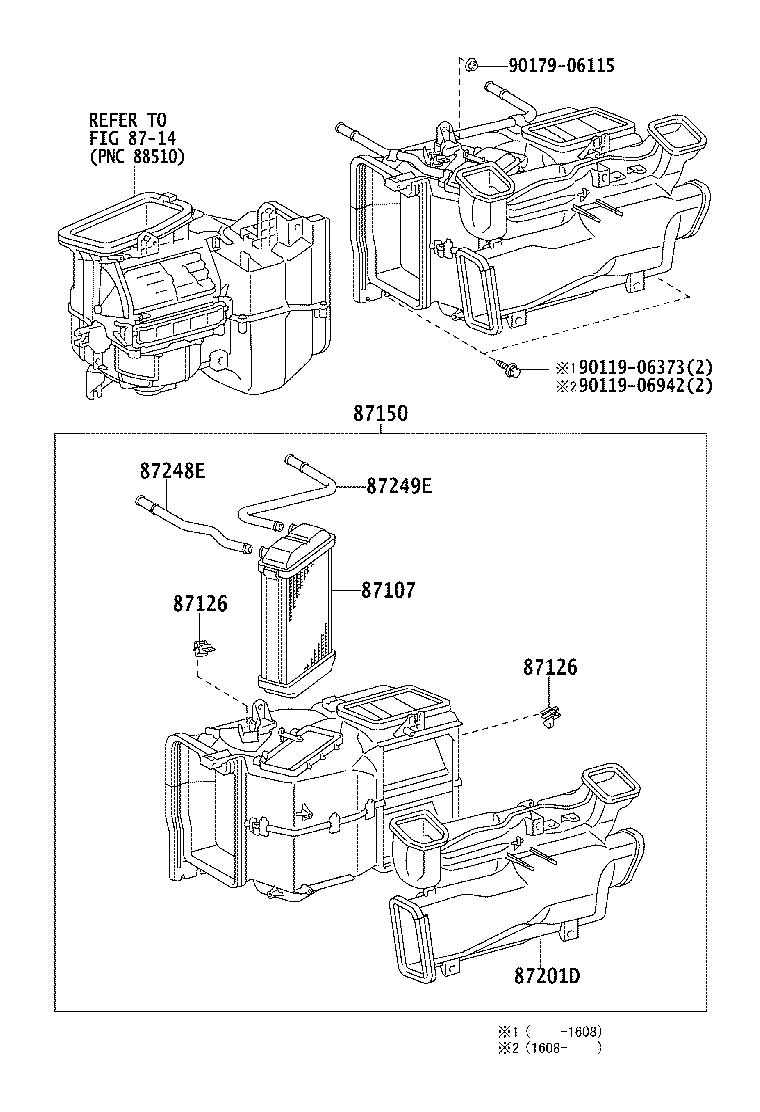

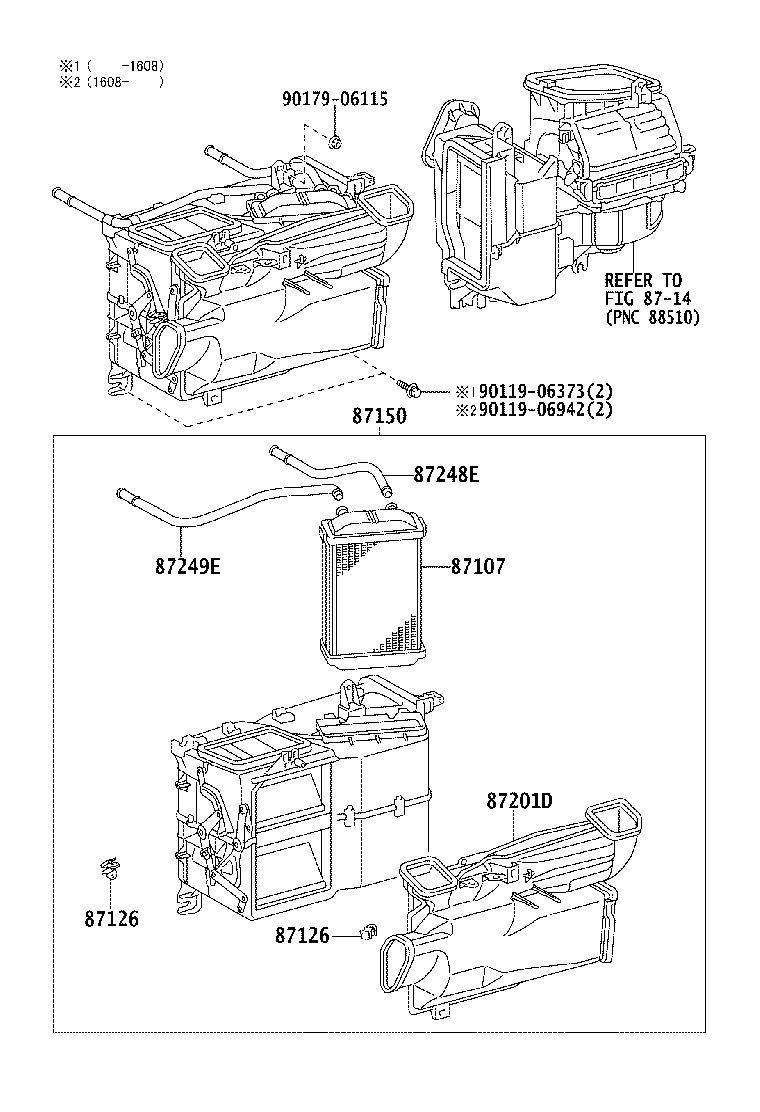

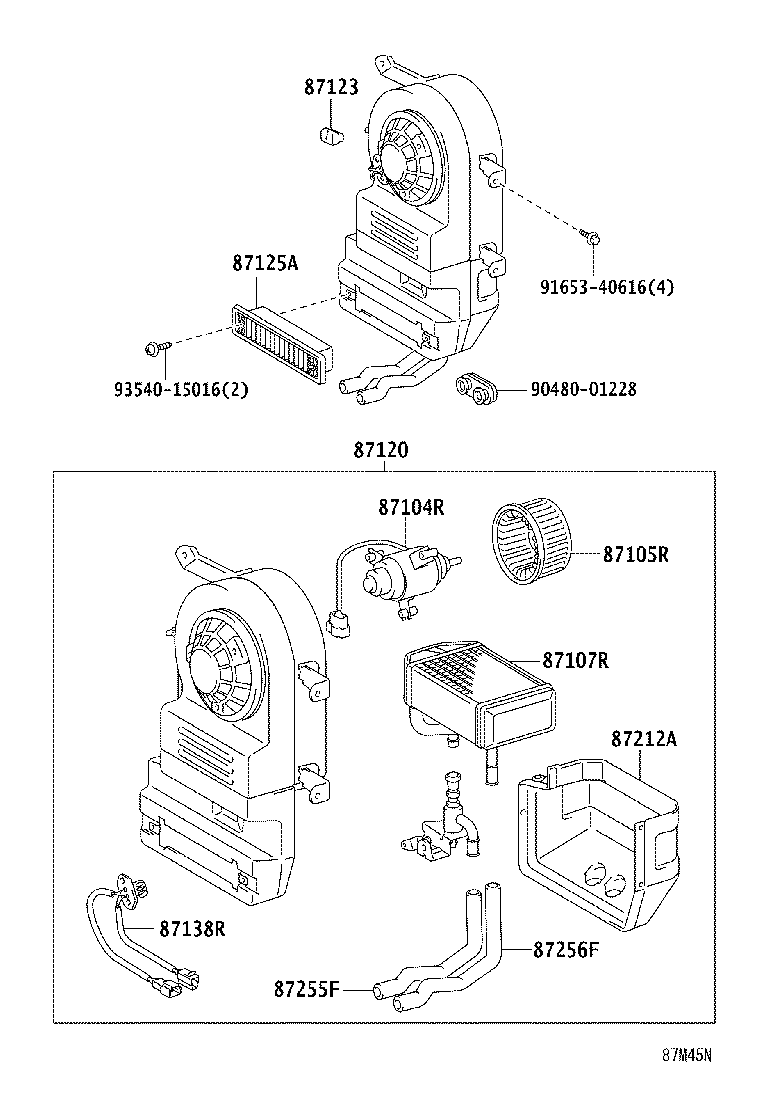

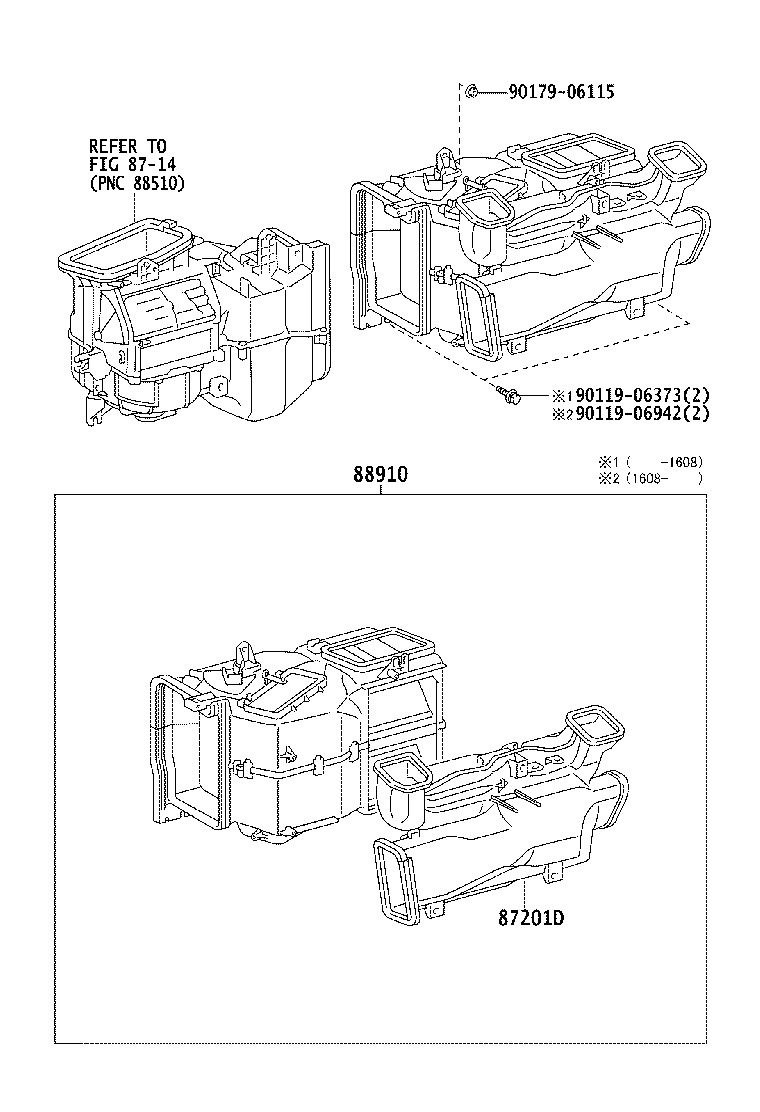

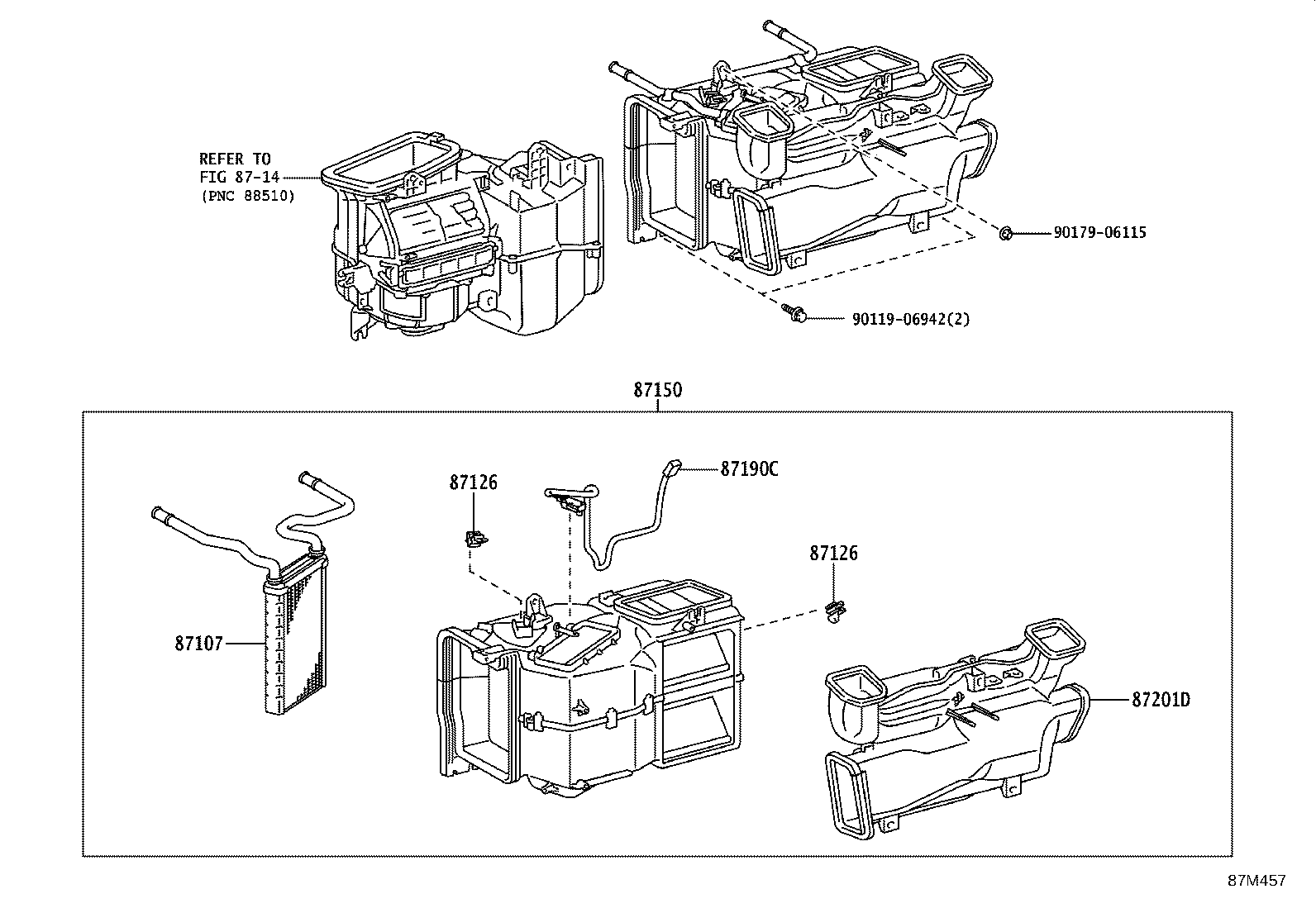

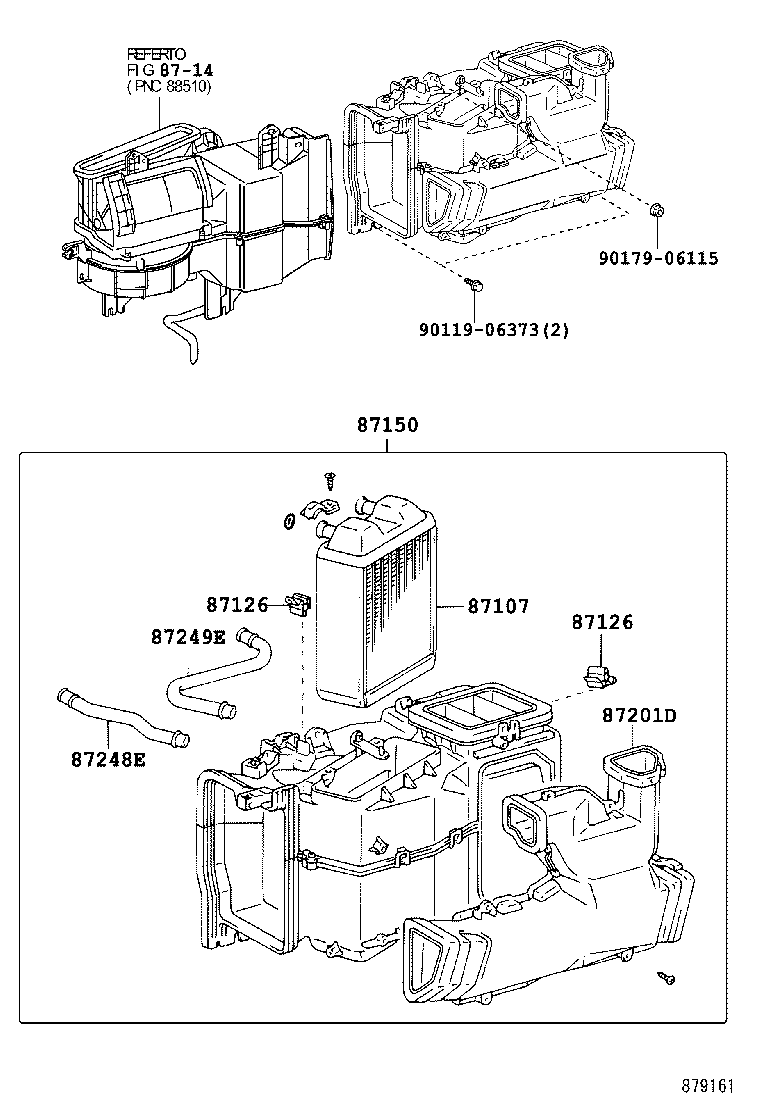

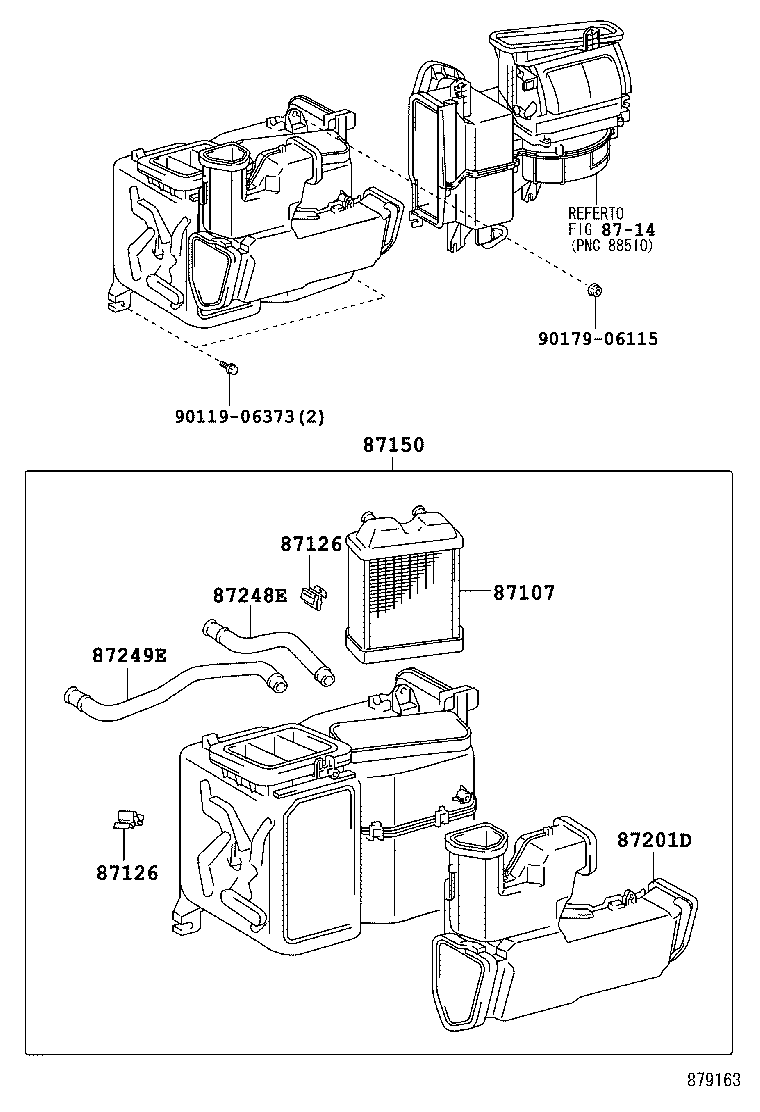

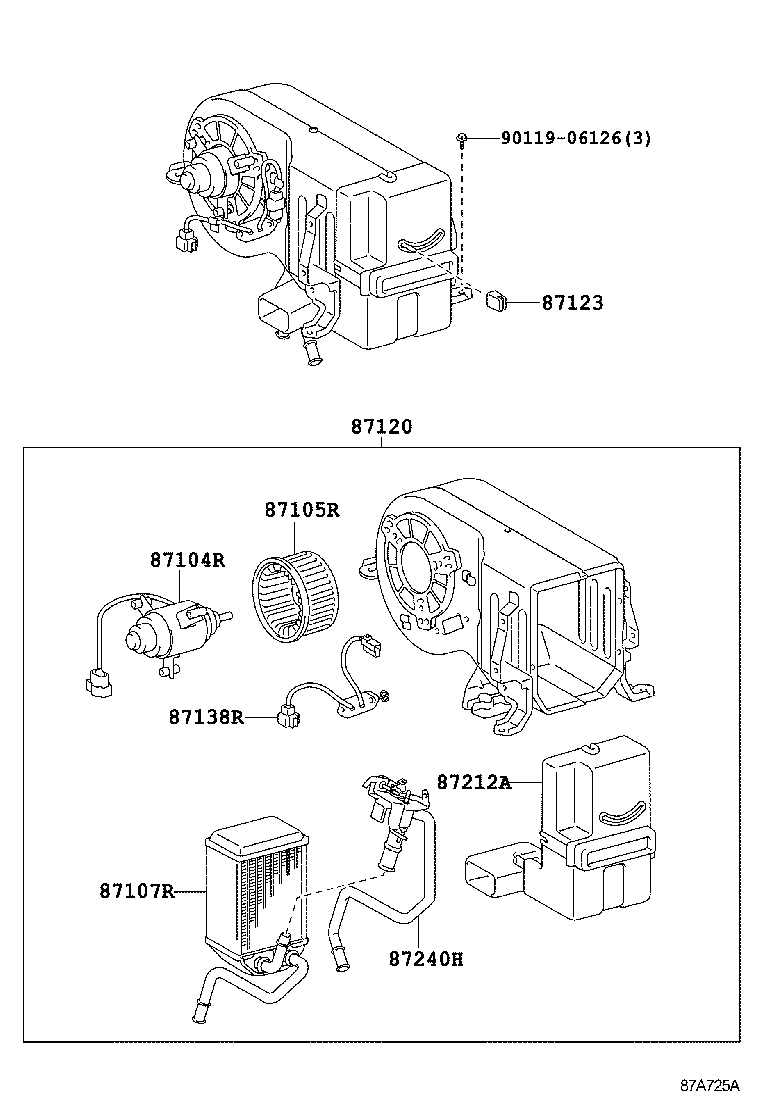

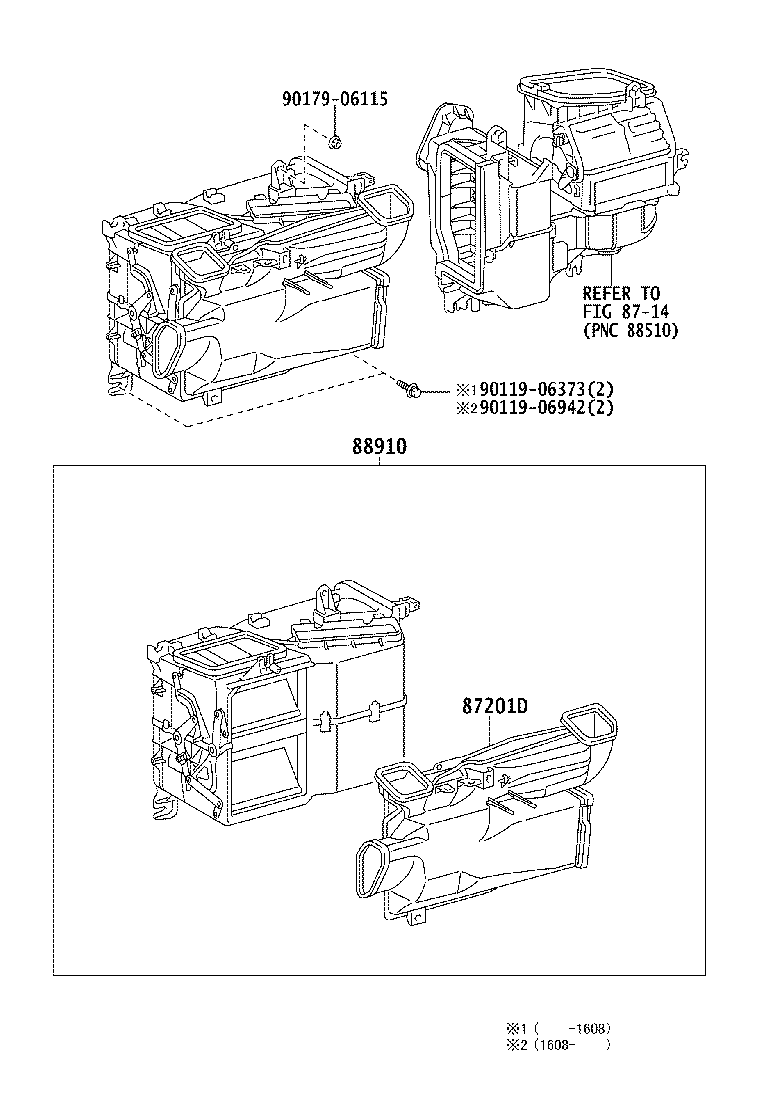

Figure 876043A 876043A 2007-01 → 2009-07 Figure 87A721A 87A721A 2009-07 → — Figure 87A721A 87A721A 2009-07 → — Figure 87A721A 87A721A 2023-09 → — Figure 87A721A 87A721A 2023-09 → — Figure 87A722A 87A722A 2009-07 → — Figure 87A722A 87A722A 2023-09 → — Figure 879163 879163 2007-01 → 2009-07 Figure 87A723A 87A723A 2009-07 → — Figure 87A723A 87A723A 2009-07 → — Figure 87A723A 87A723A 2023-09 → — Figure 87A723A 87A723A 2023-09 → — Figure 879161 879161 2007-01 → 2009-07 Figure 87A724B 87A724B 2009-07 → — Figure 87A724B 87A724B 2009-07 → — Figure 87A724B 87A724B 2023-09 → — Figure 87A724B 87A724B 2023-09 → — Figure 87M457 87M457 2023-09 → — Figure 87A725A 87A725A 2007-01 → — Figure 87A725A 87A725A 2023-09 → — Figure 87A726B 87A726B 2007-01 → — Figure 87M45N 87M45N 2023-09 → —

Part groups

PNCDescription
87104R Motor Sub-assy, Rear Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87120 Heater Assy, Rear
87123 Knob, Heater
87125A Grille, Air Outlet
87126 Clamp, Heater Control
87138R Resistor, Rear Heater Blower
87150 Radiator Assy, Heater
87190C Switch Assy, Temperature Control
87201D Duct Sub-assy, Air
87212A Duct, Air, Rear NO.1
87240H Valve Assy, Water Unit
87248E Pipe, Heater Water Inlet, E
87249E Pipe, Heater Water Outlet, E (FOR HEATER UNIT)
87255F Hose, Rear Heater Water Inlet, F(FOR HEATER UNIT)
87256F Hose, Rear Heater Water Outlet, F (FOR HEATER UNIT)
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
