Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

17 part groups · 24 illustrations

Illustrations

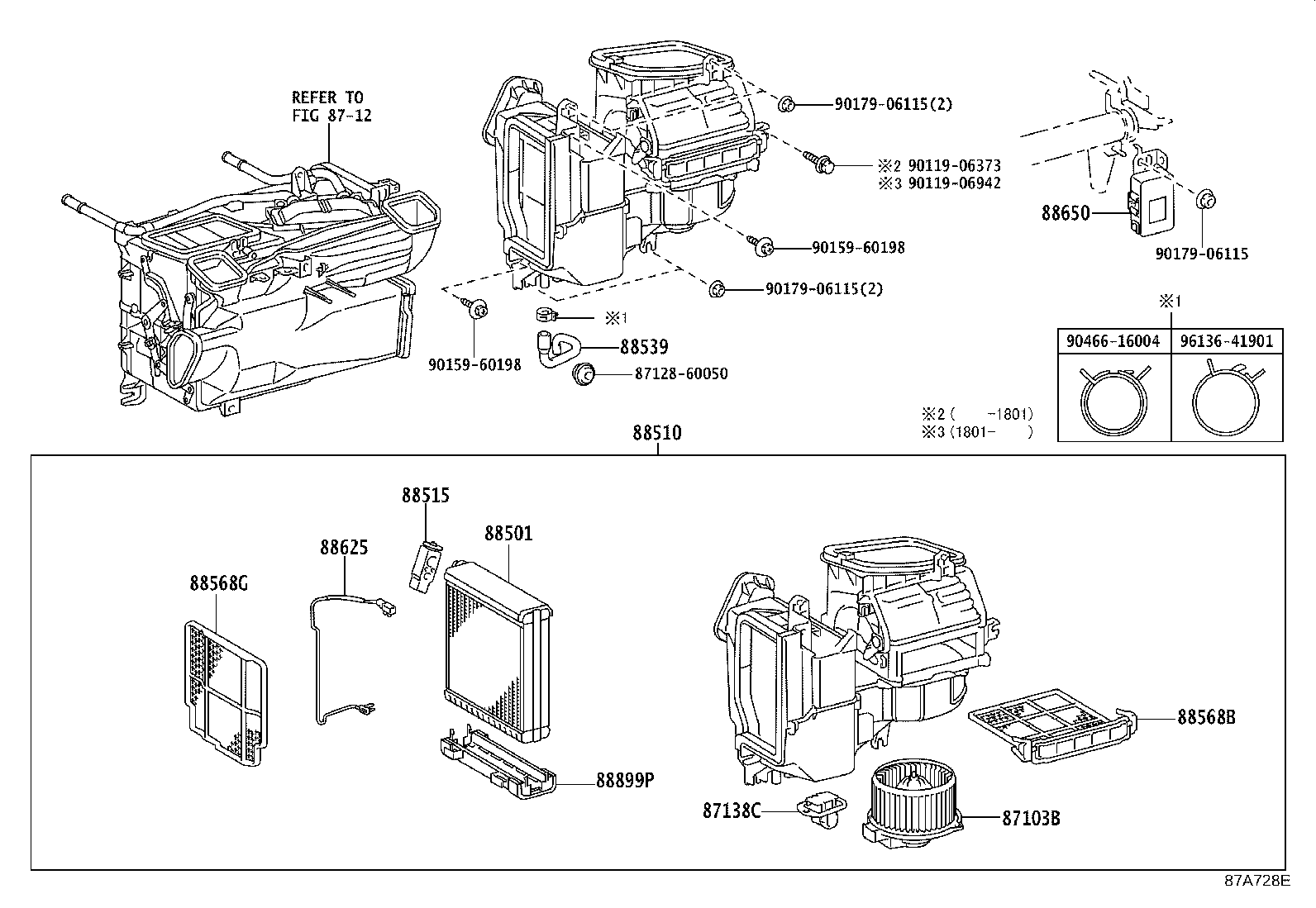

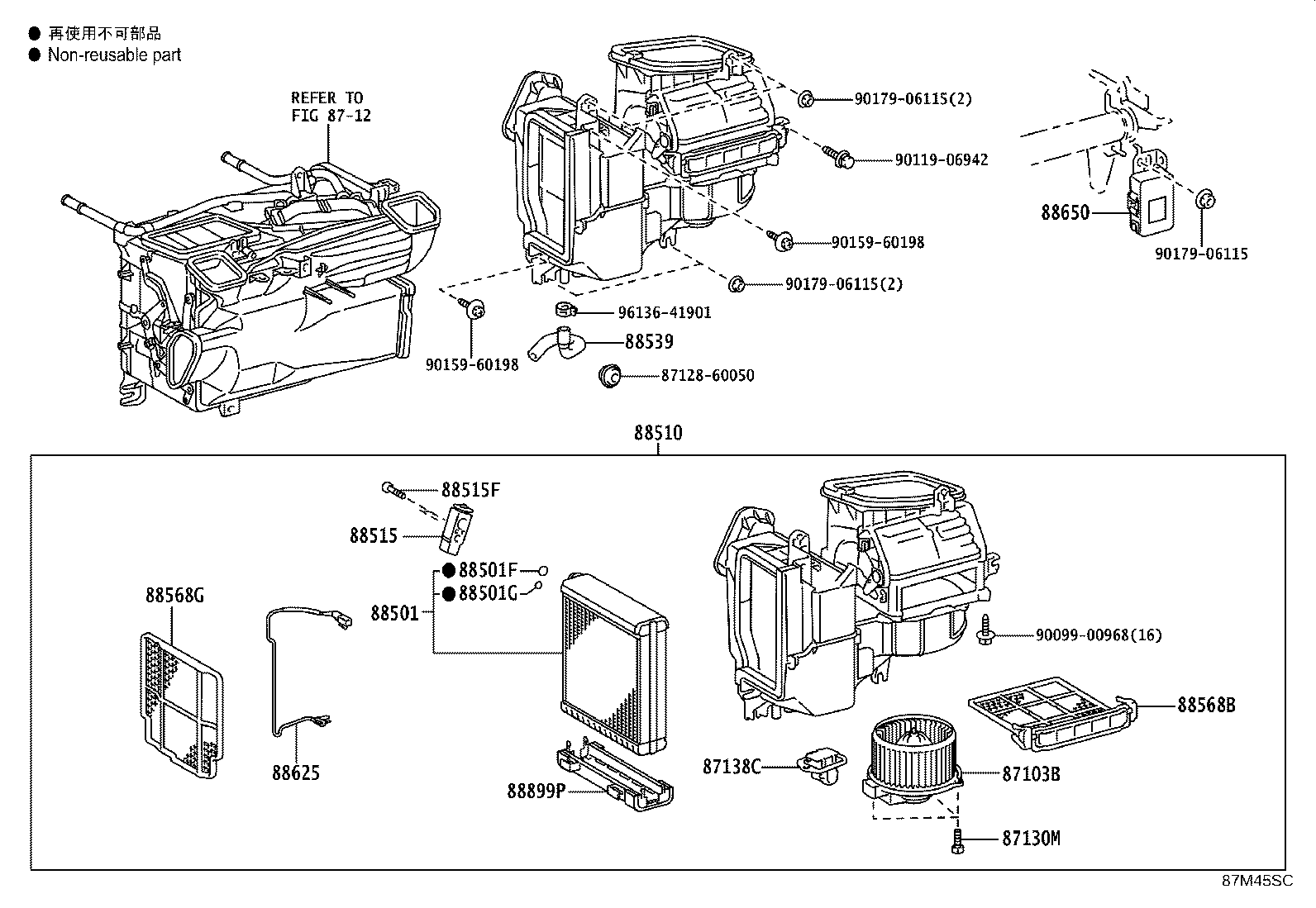

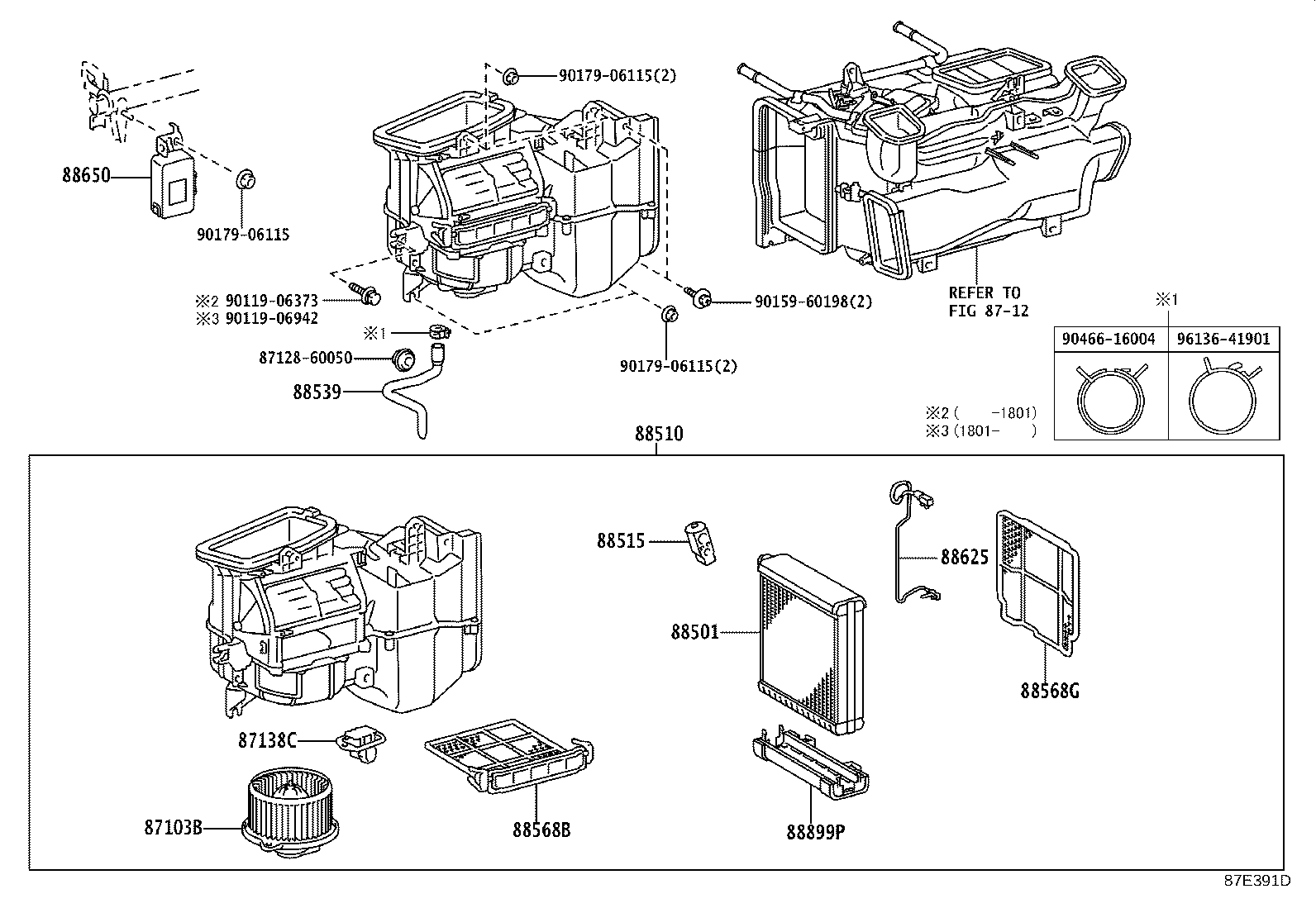

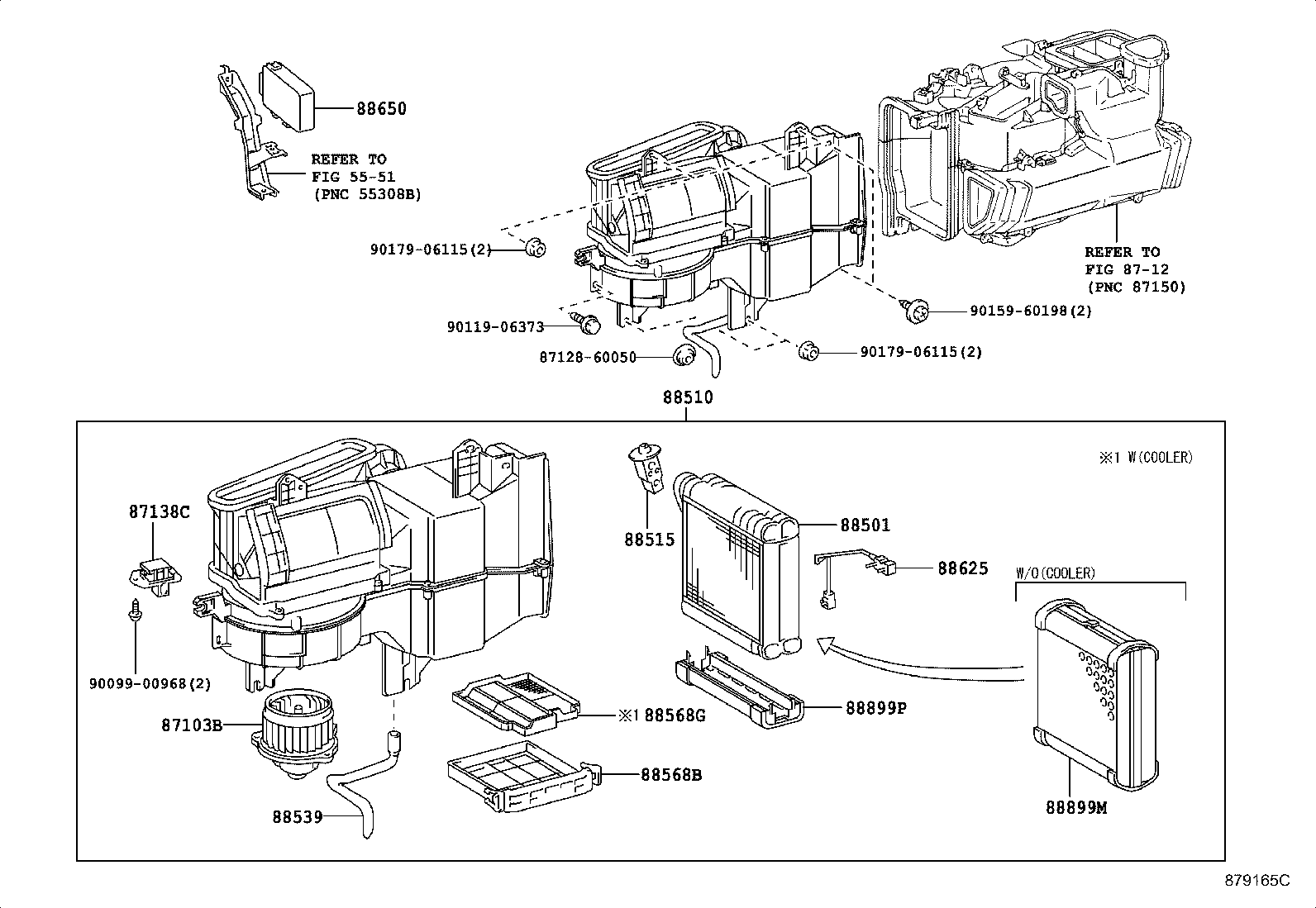

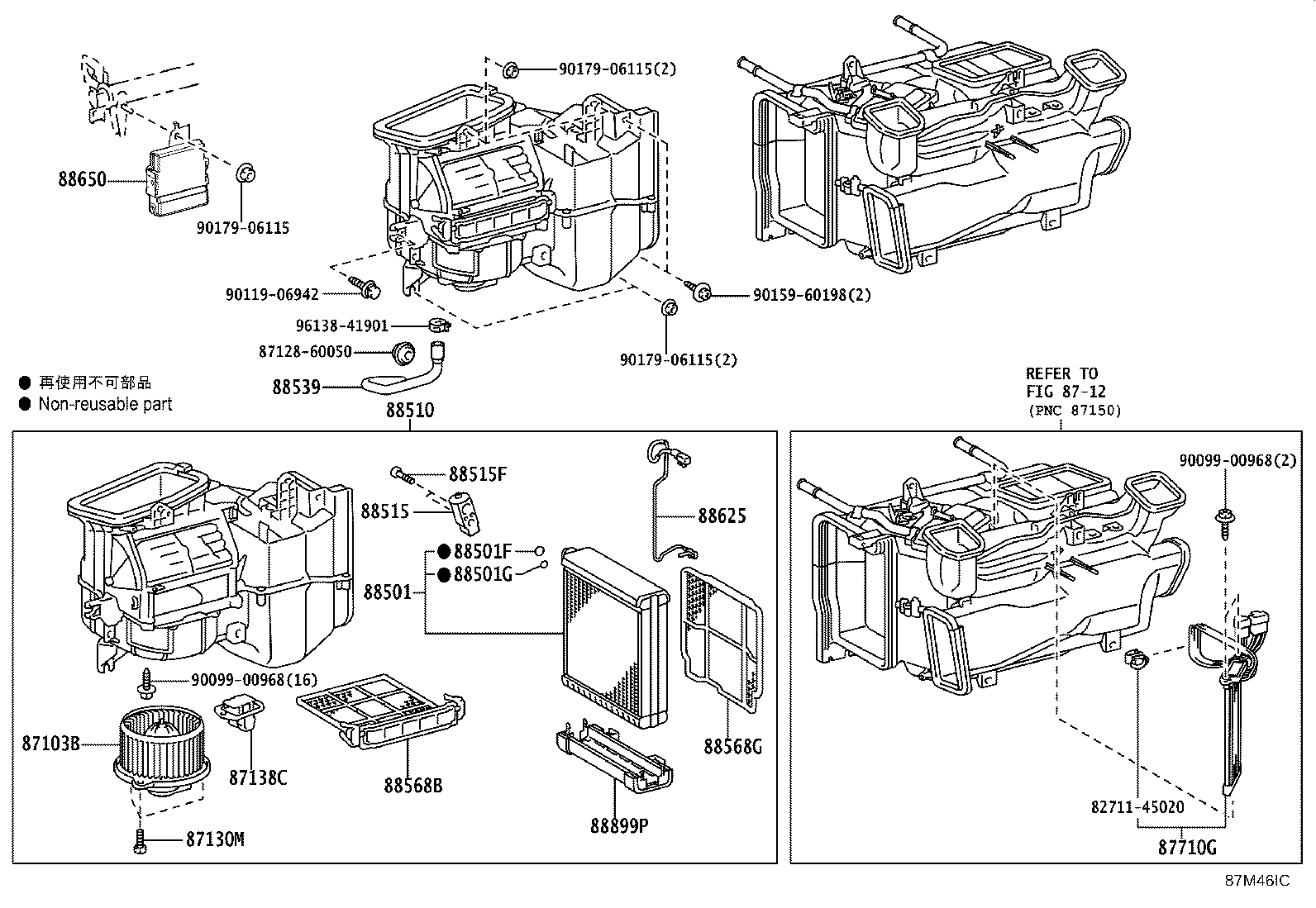

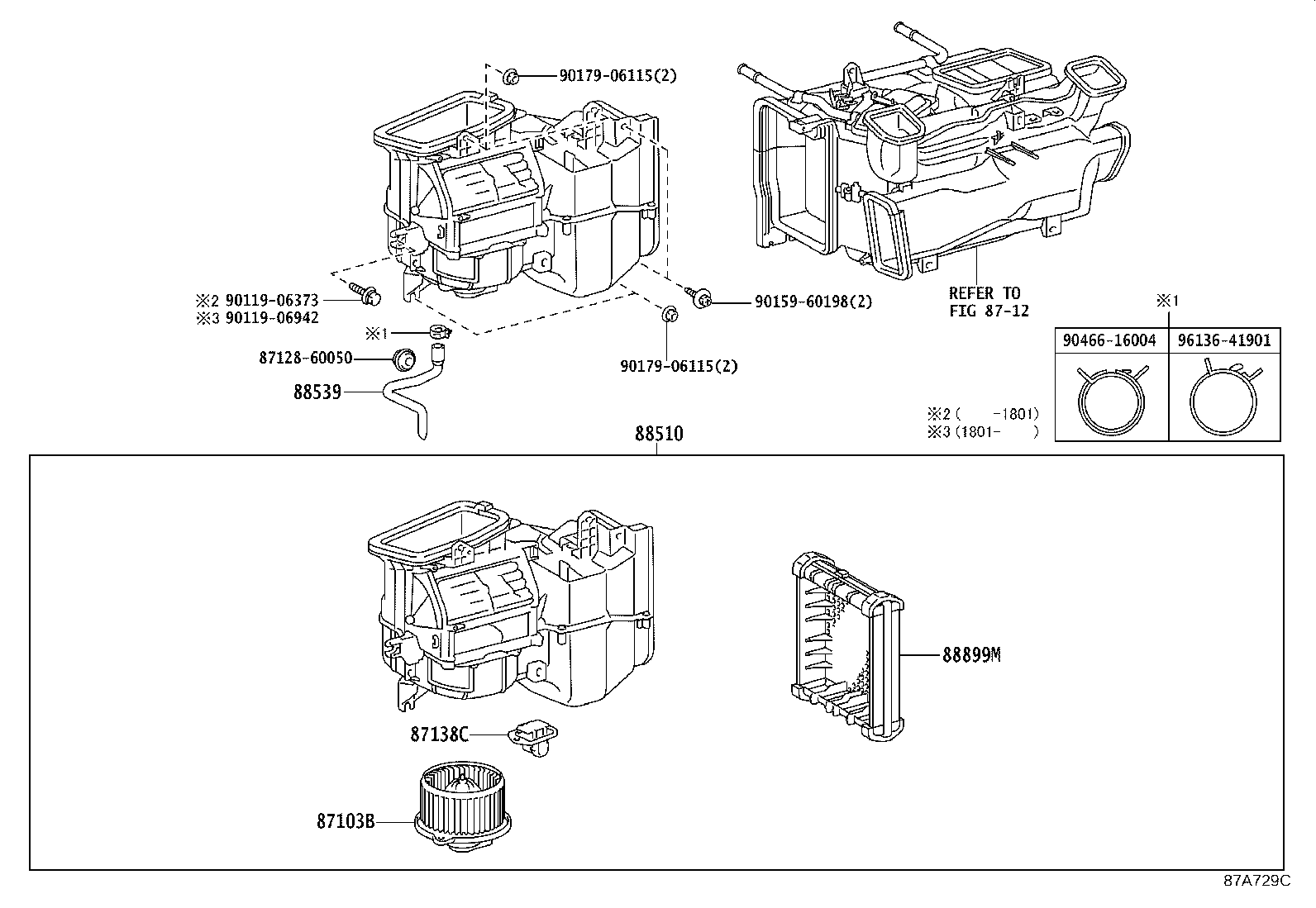

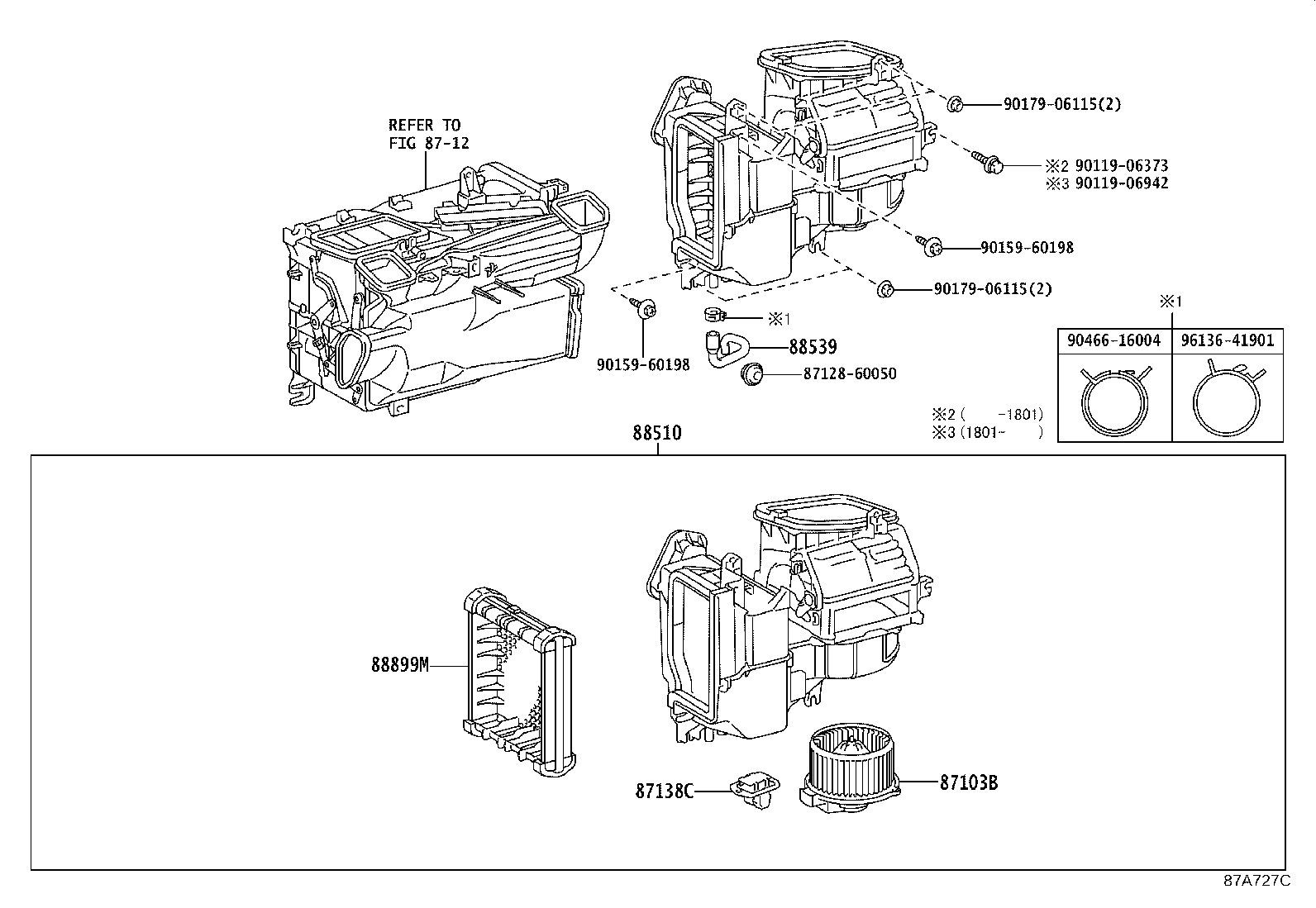

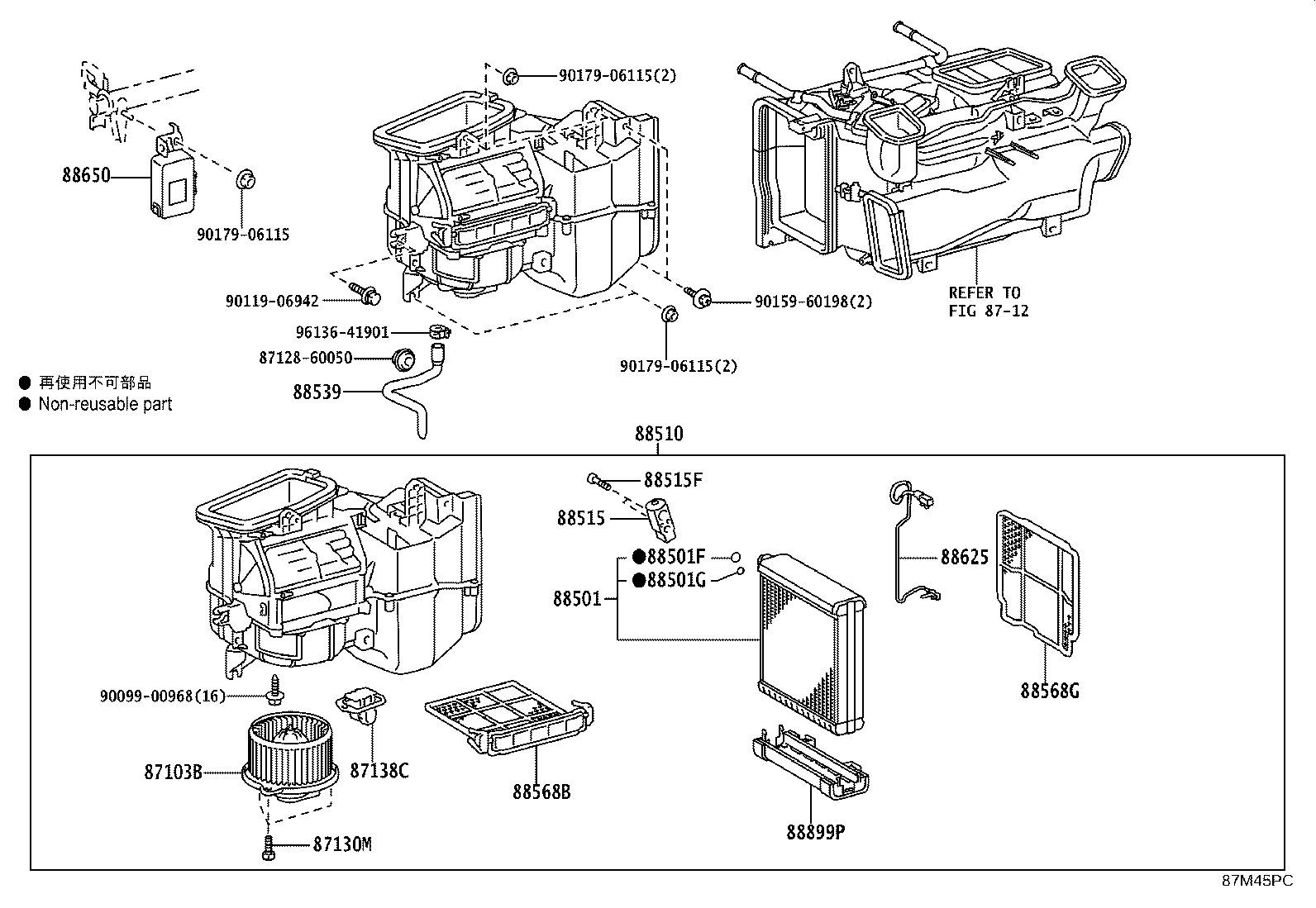

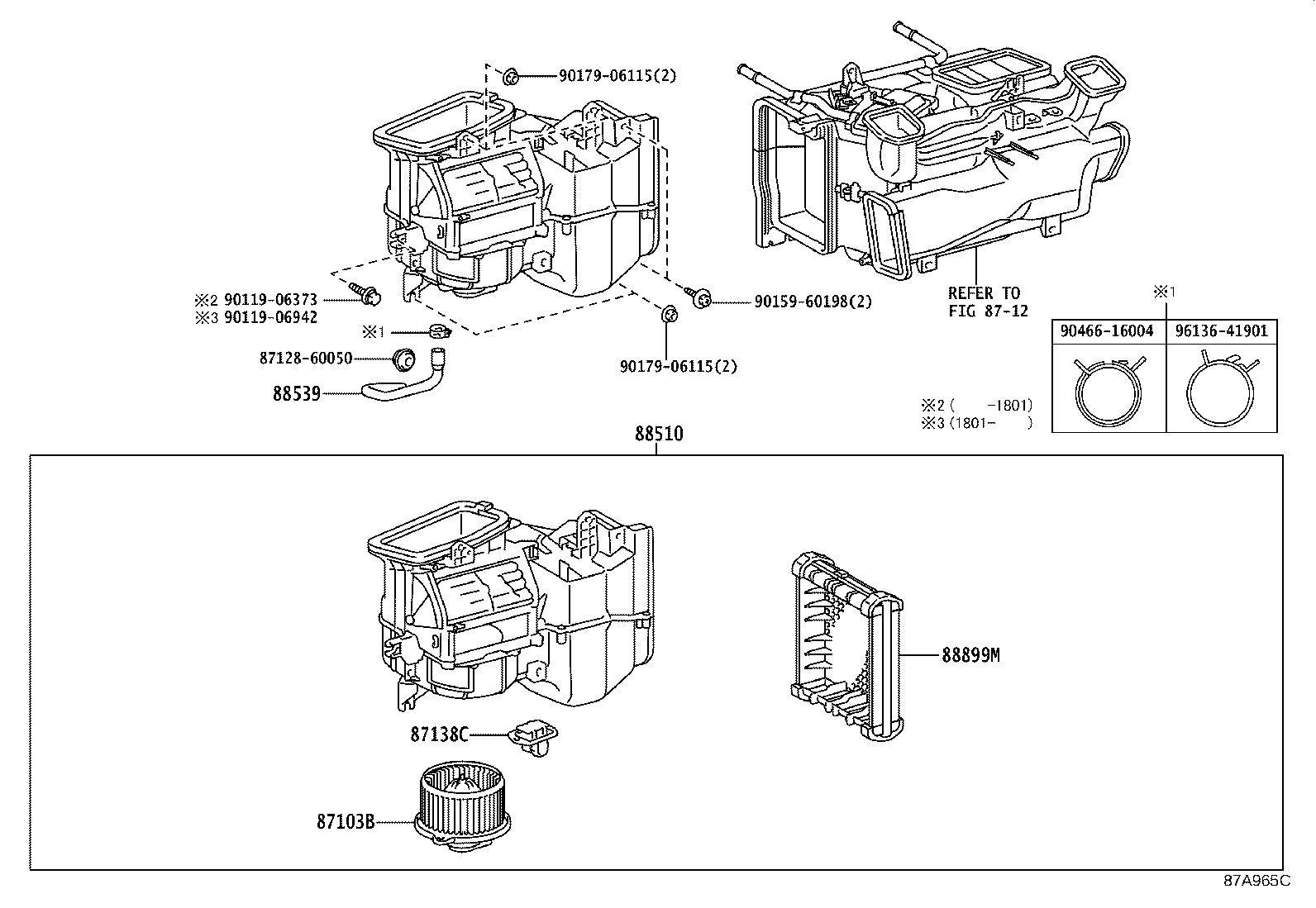

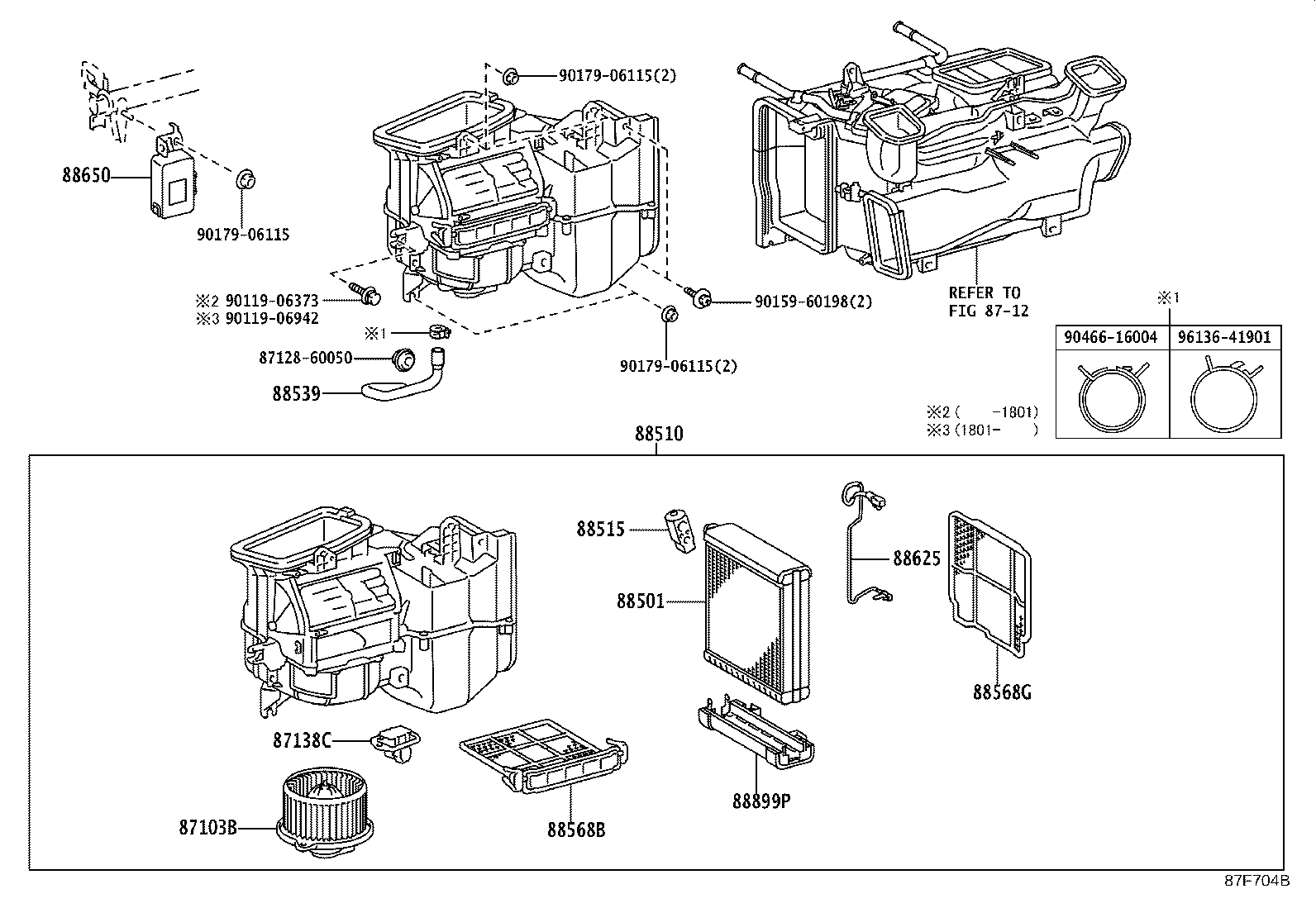

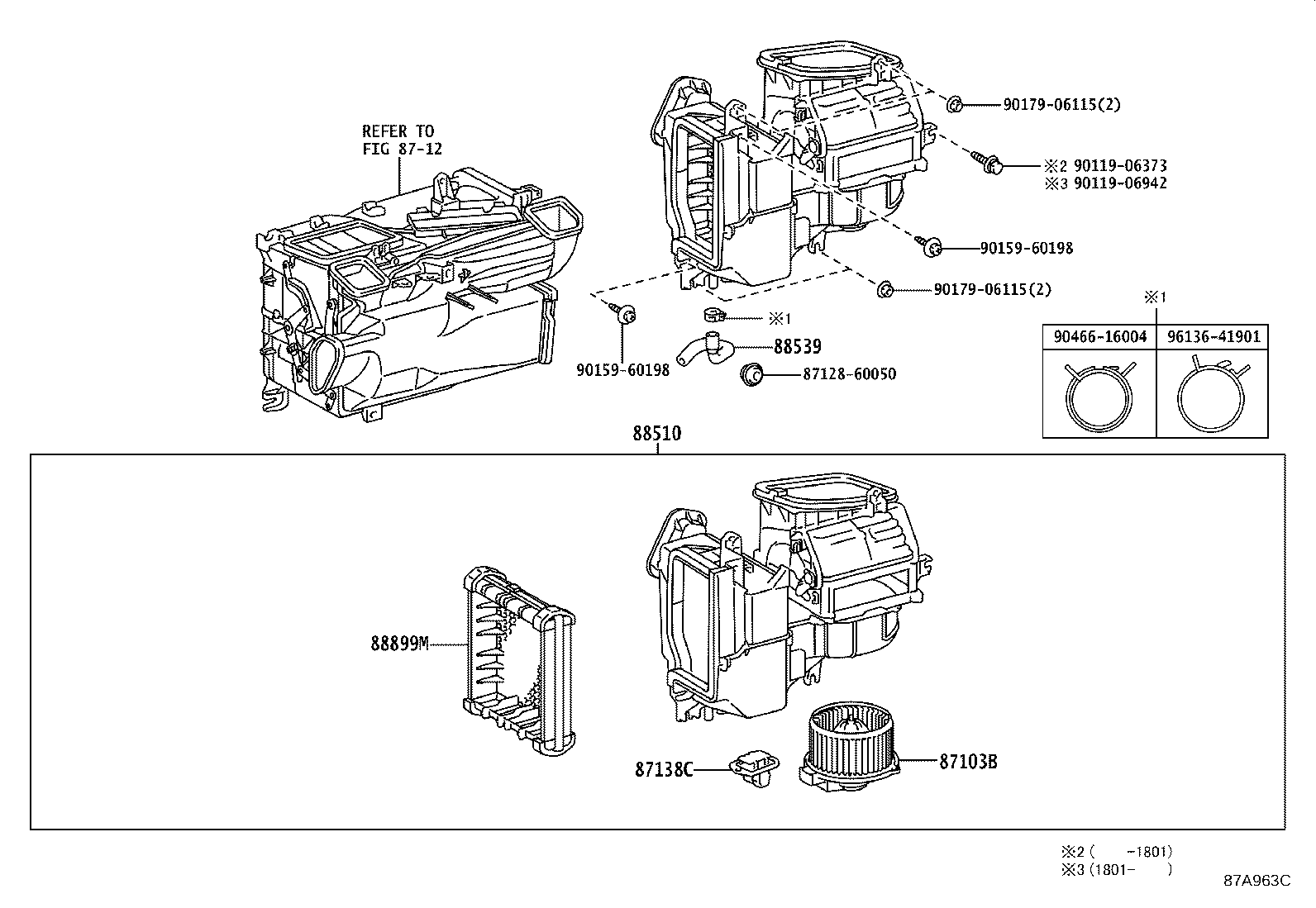

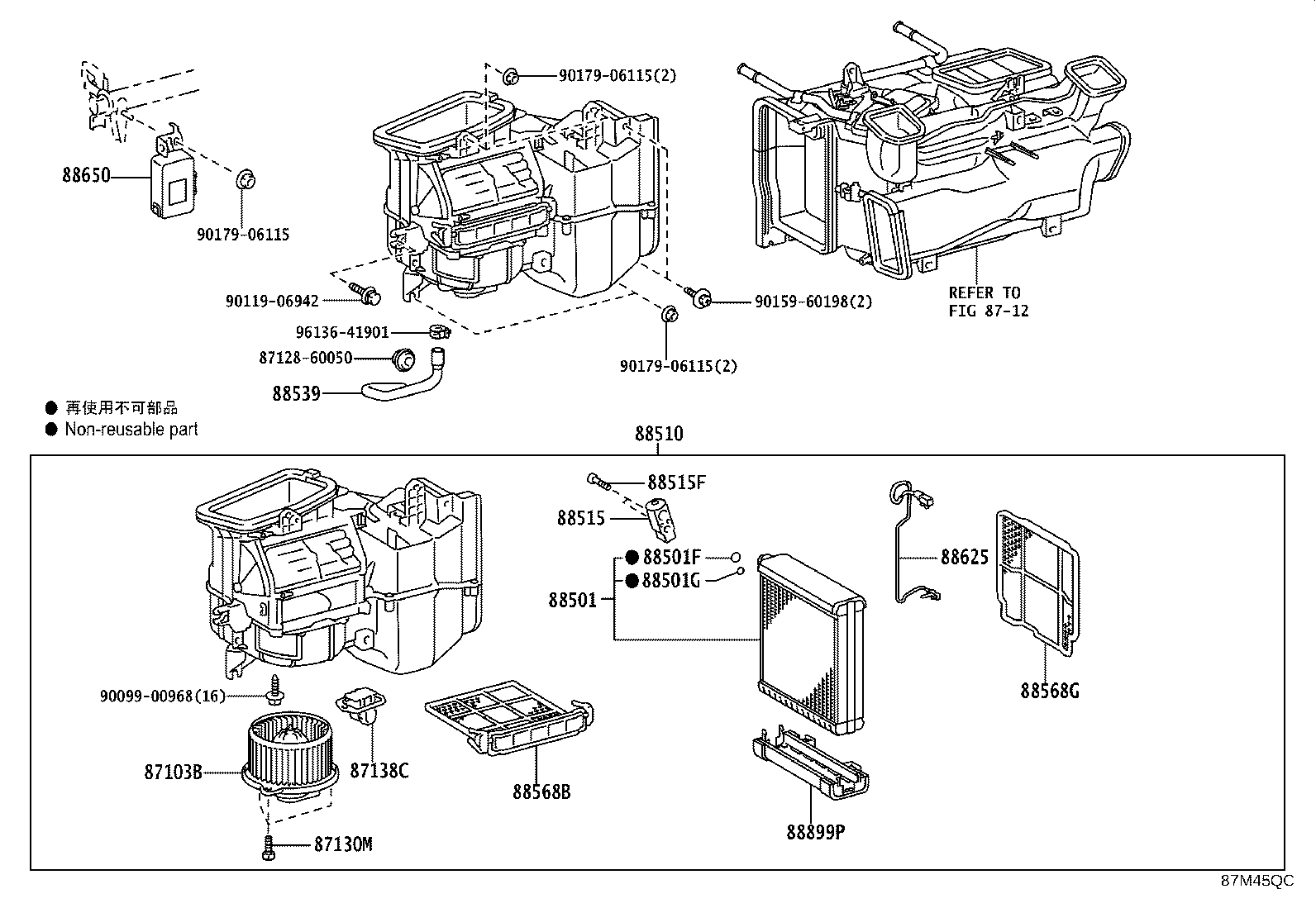

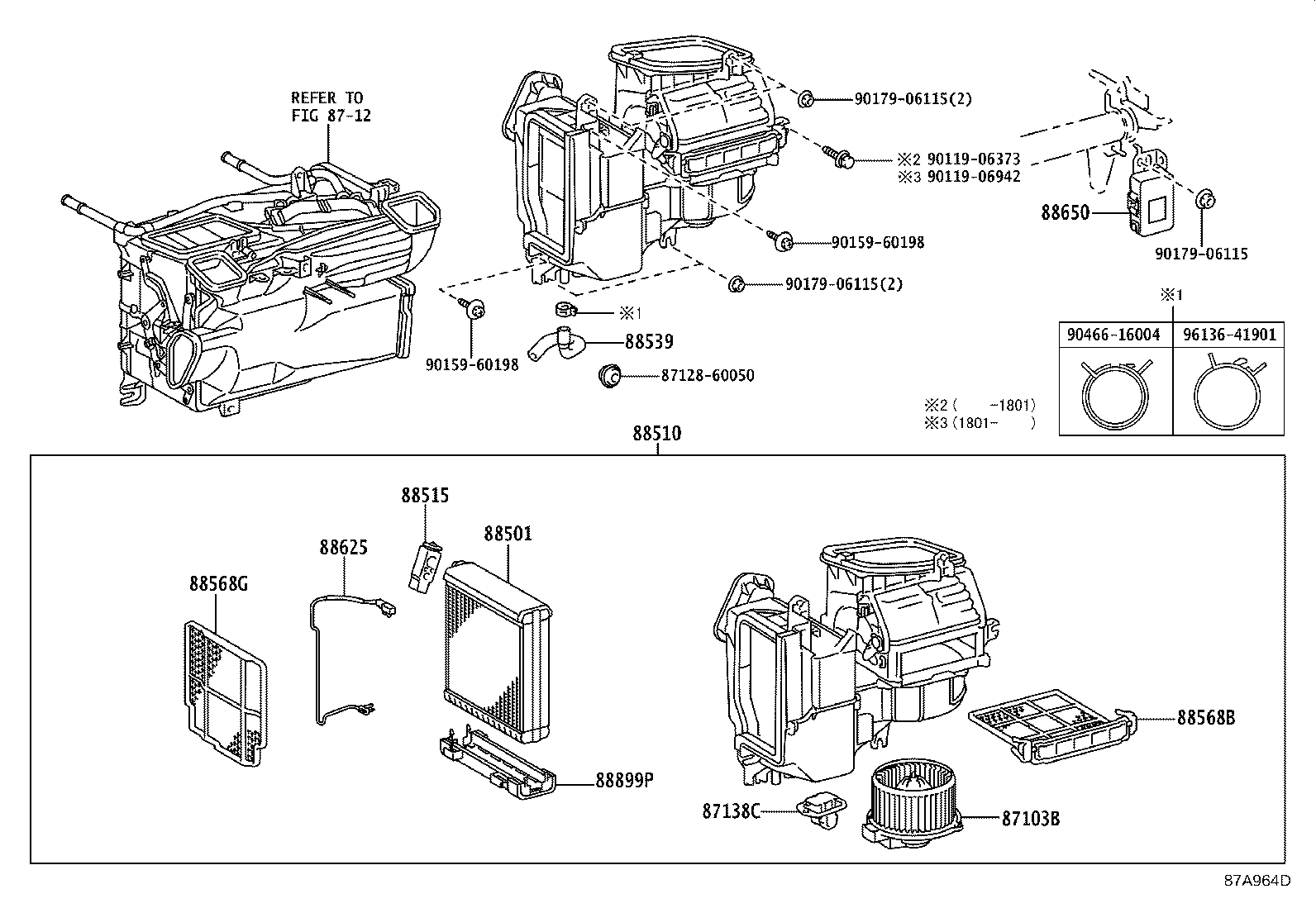

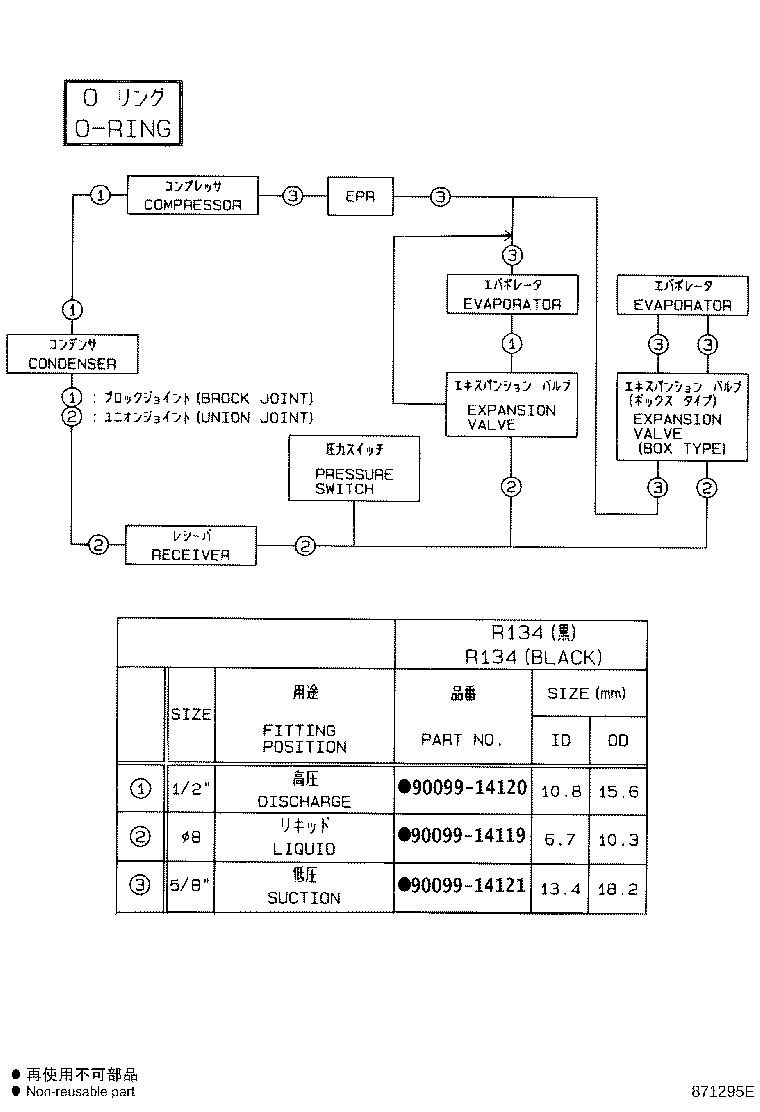

Figure 879164C 879164C 2007-01 → 2009-07 Figure 87A963C 87A963C 2009-07 → — Figure 87A963C 87A963C 2023-09 → — Figure 87A964D 87A964D 2009-07 → — Figure 87A964D 87A964D 2009-07 → — Figure 87A727C 87A727C 2009-07 → — Figure 87A727C 87A727C 2017-01 → — Figure 87A727C 87A727C 2023-09 → — Figure 87A728E 87A728E 2009-07 → — Figure 87A728E 87A728E 2017-01 → — Figure 879165C 879165C 2007-01 → 2009-07 Figure 87A965C 87A965C 2009-07 → — Figure 87A965C 87A965C 2023-09 → — Figure 87F704B 87F704B 2009-07 → — Figure 87A729C 87A729C 2009-07 → — Figure 87A729C 87A729C 2023-09 → — Figure 87E391D 87E391D 2009-07 → — Figure 87E391D 87E391D 2009-07 → — Figure 87M46IC 87M46IC 2023-09 → — Figure 87M45PC 87M45PC 2023-09 → — Figure 87M45QC 87M45QC 2023-09 → — Figure 87M45RC 87M45RC 2023-09 → — Figure 87M45SC 87M45SC 2023-09 → — Figure 871295E 871295E 2007-01 → —

Part groups

PNCDescription
87103B Motor Sub-assy, Blower W/Fan
87130M Screw(FOR BLOWER)
87138C Resistor, Blower
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88501F O-ring, Cooler Evaporator NO.1(DISCHARGE)
88501G O-ring, Cooler Evaporator NO.1(SUCTION)
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88539 Hose, Cooler Unit Drain, NO.1
88568B Filter, Air
88568G Filter, Air
88625 Thermistor, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88899M Plate, Cover(FOR AIR FILTER)
88899P Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
