Heating & Air Conditioning - Control & Air Duct

31 part groups · 40 illustrations

Illustrations

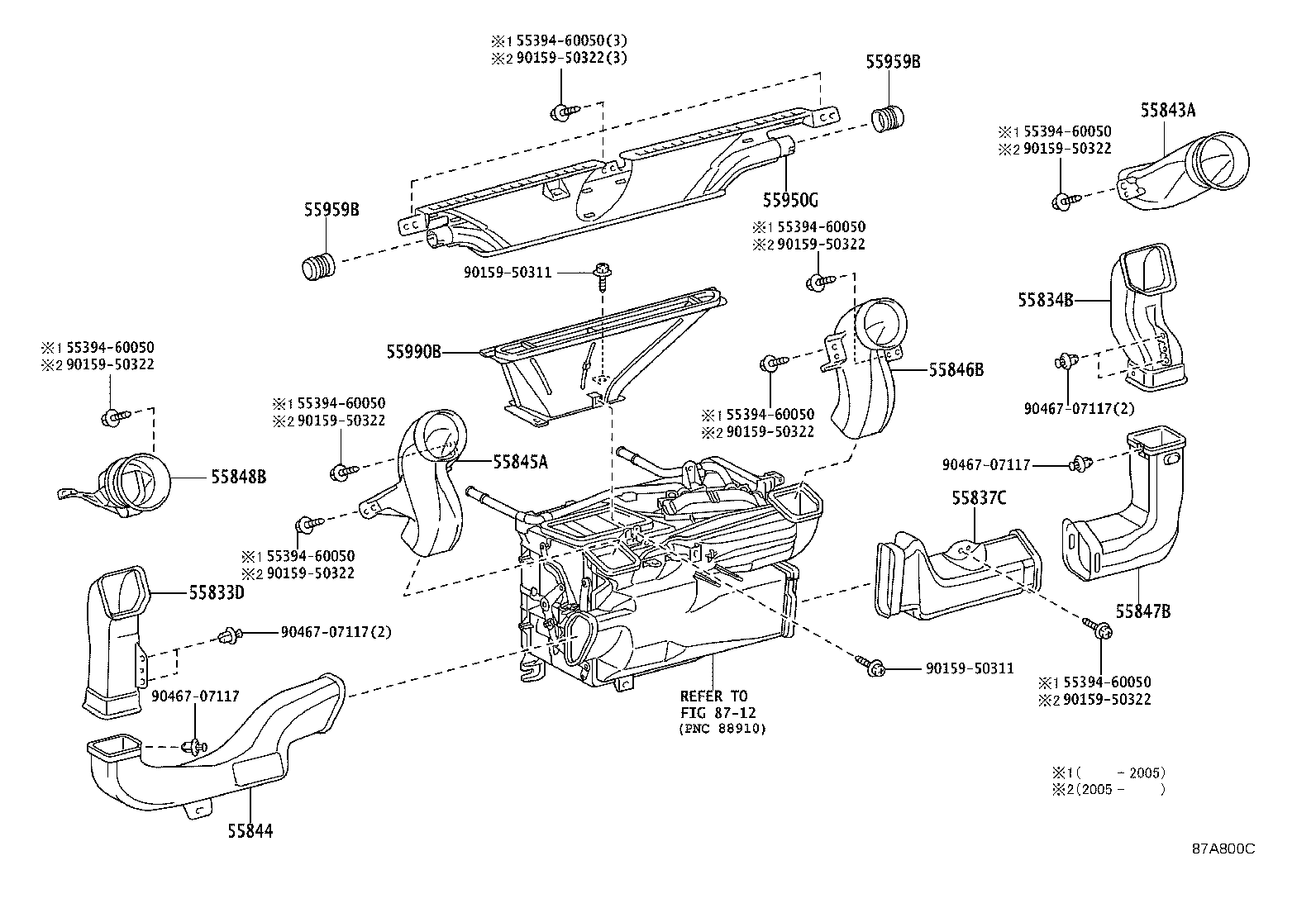

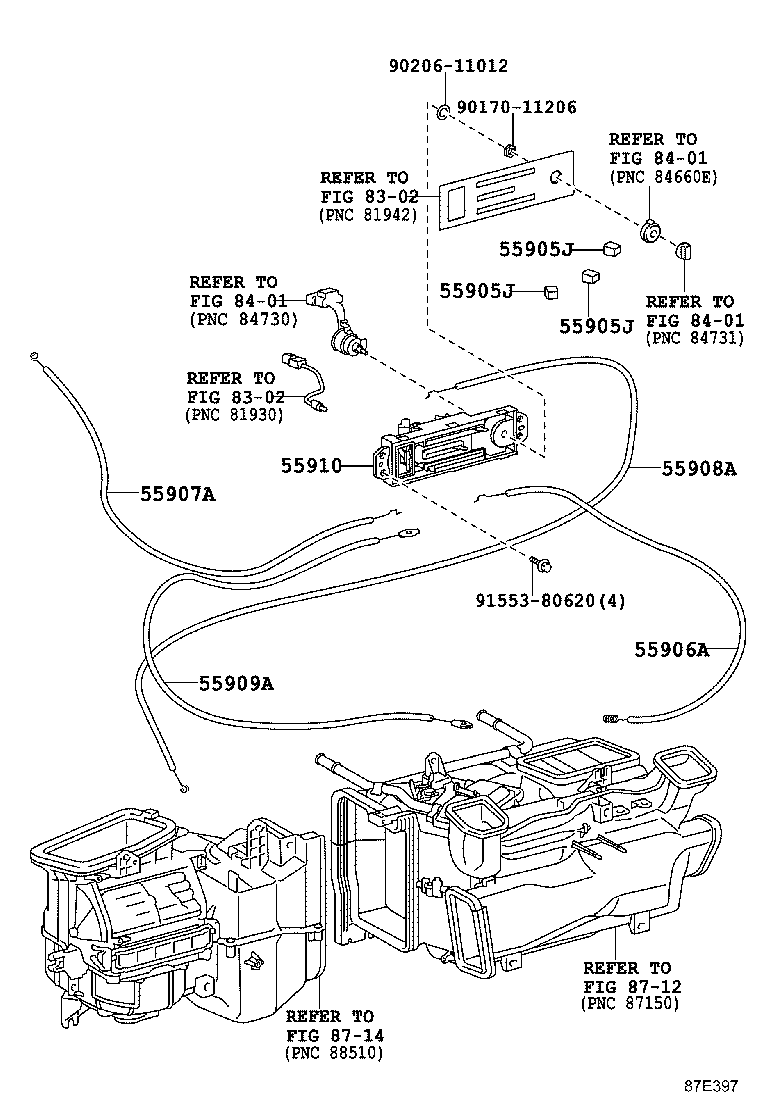

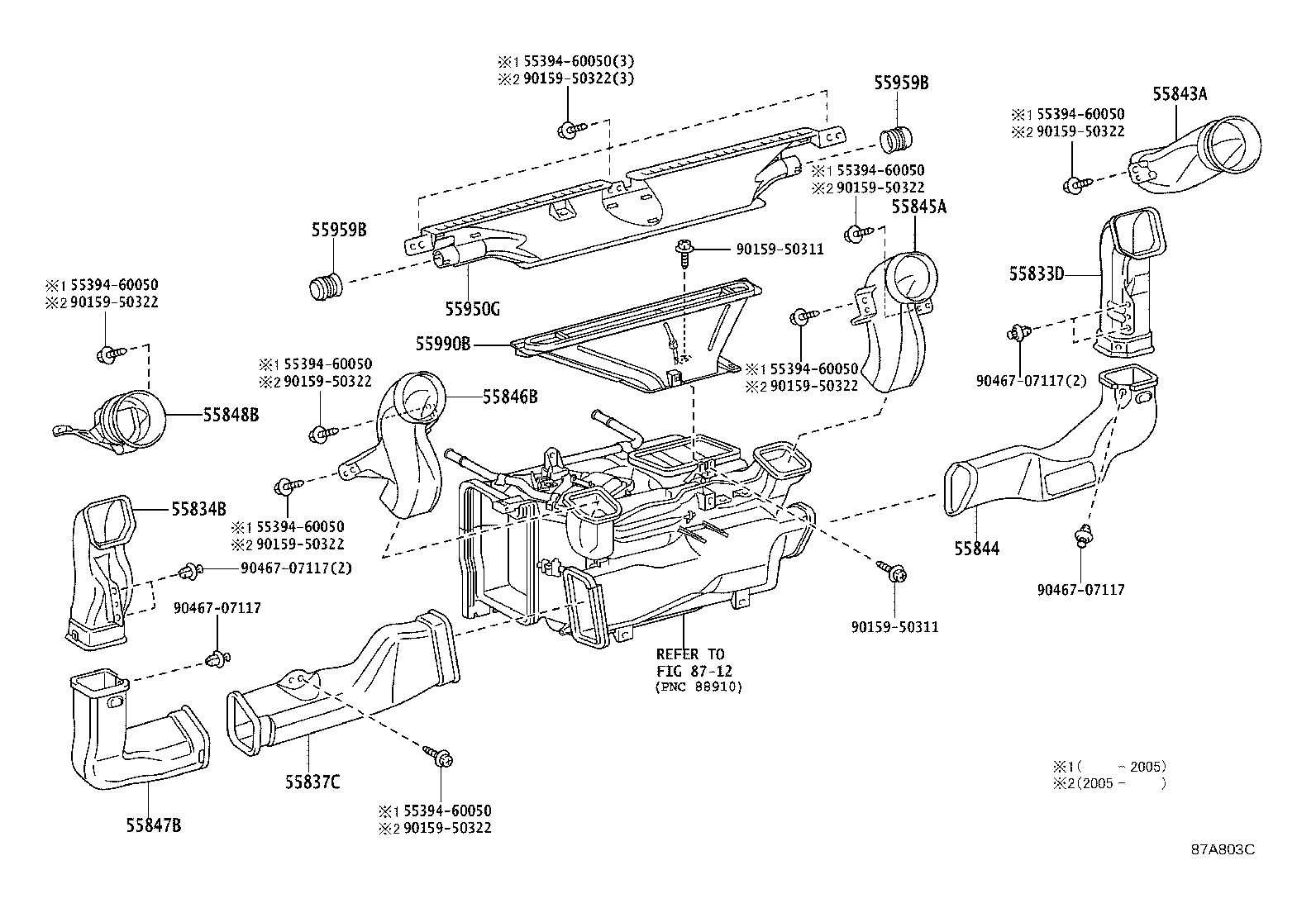

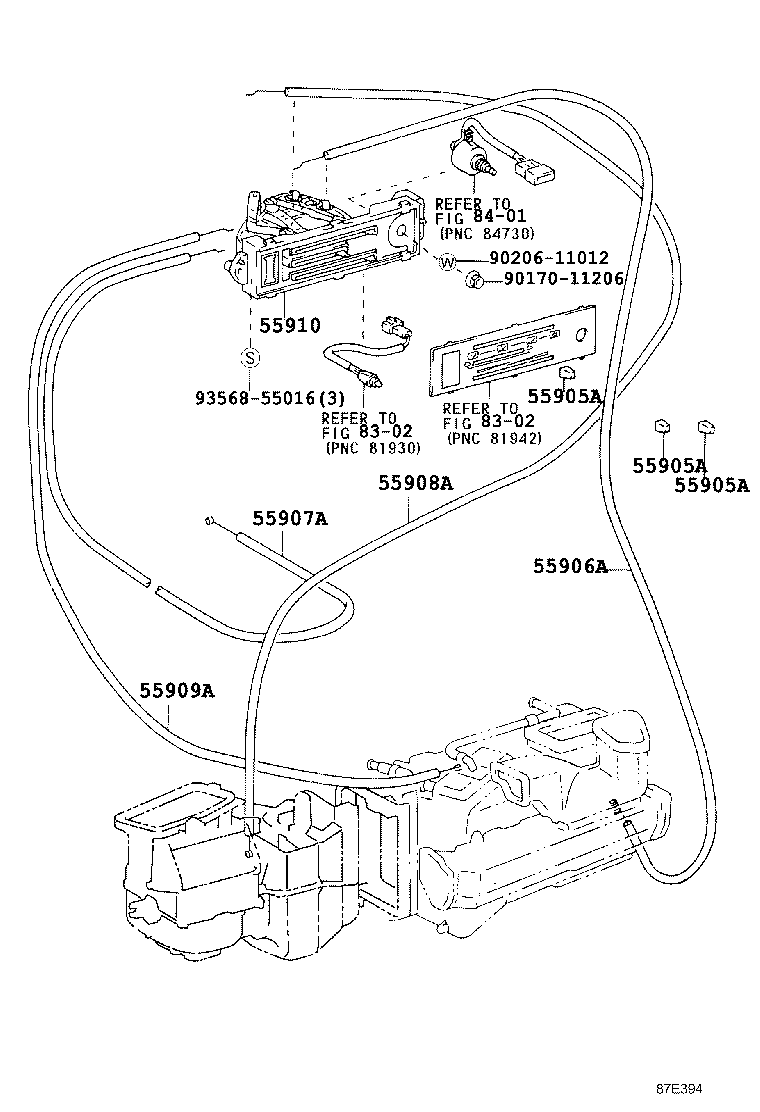

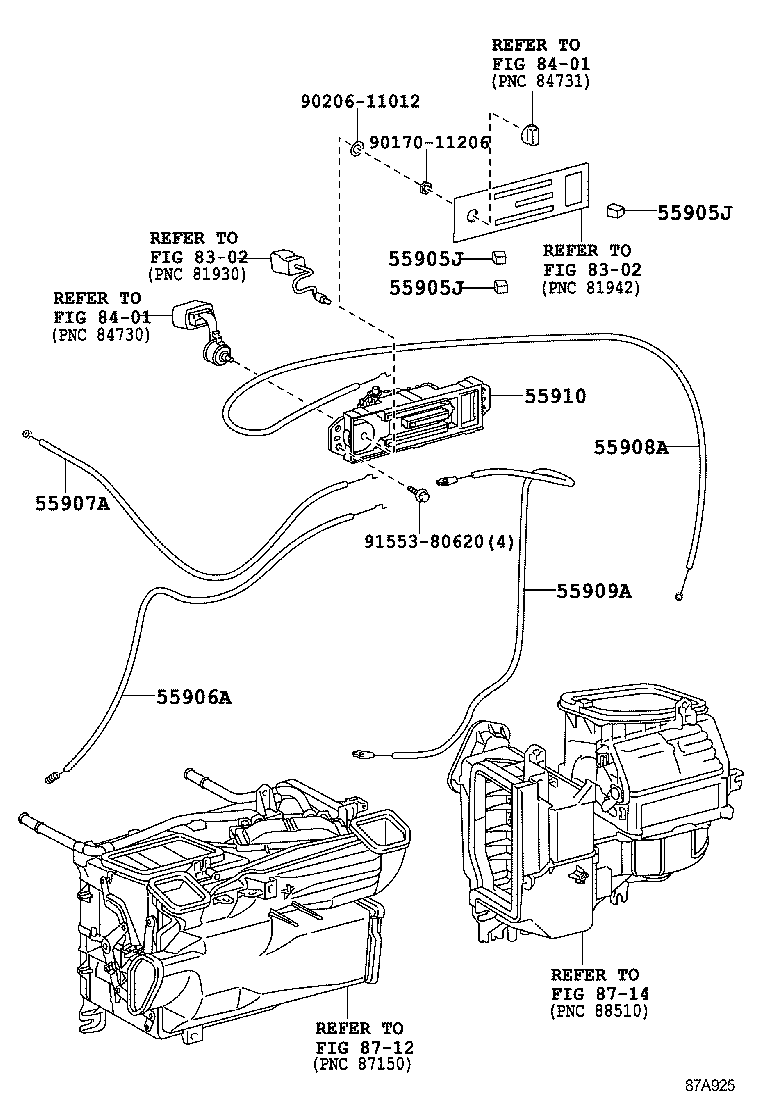

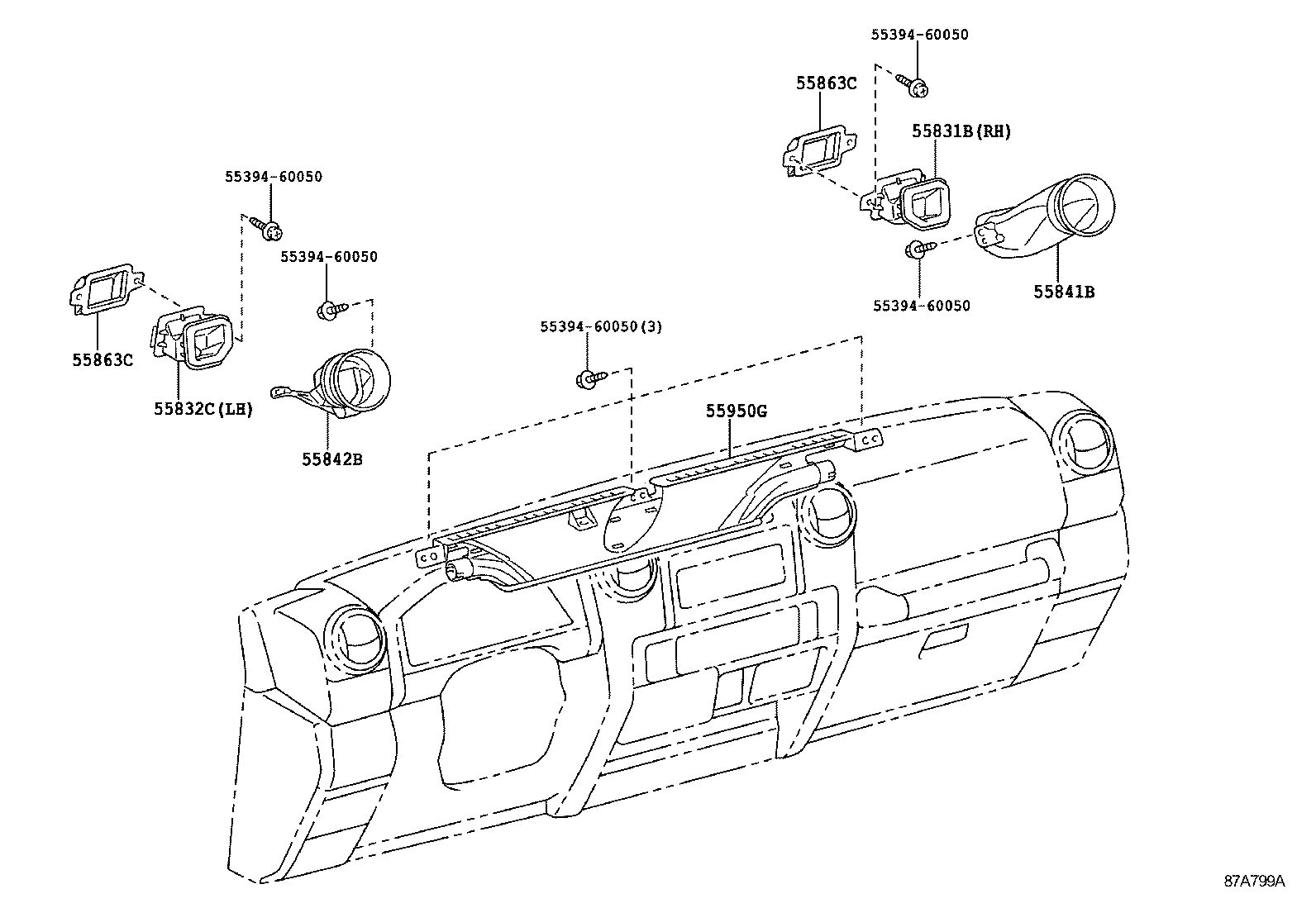

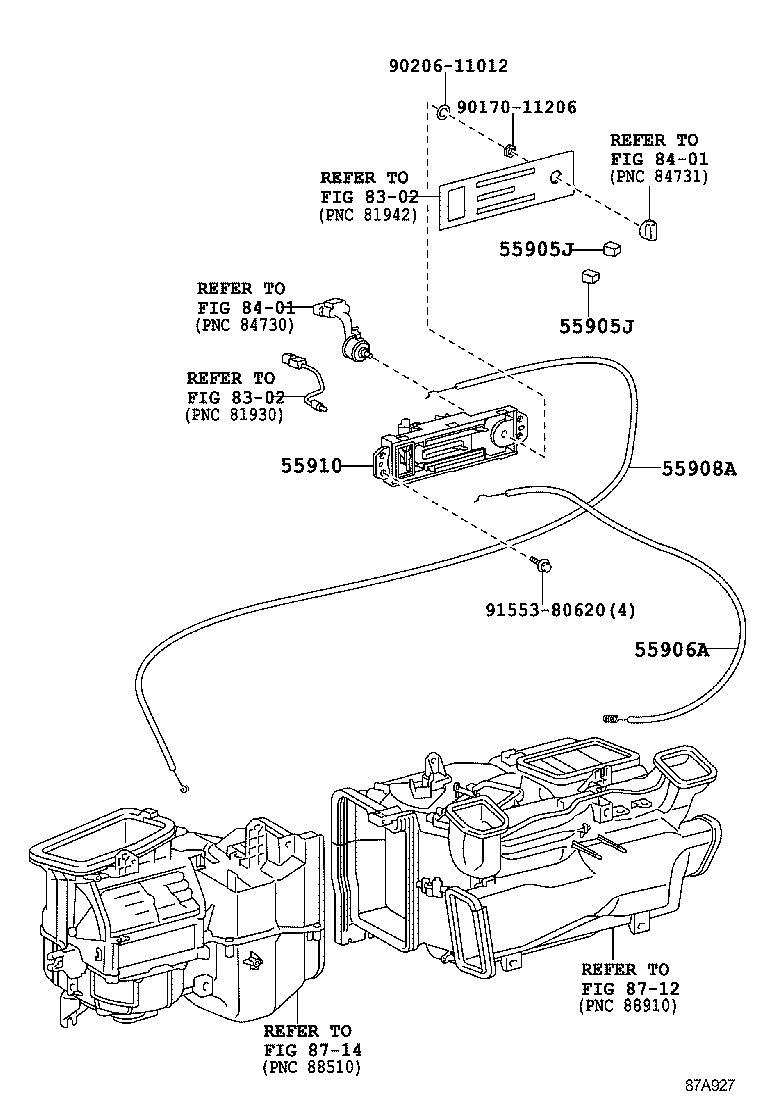

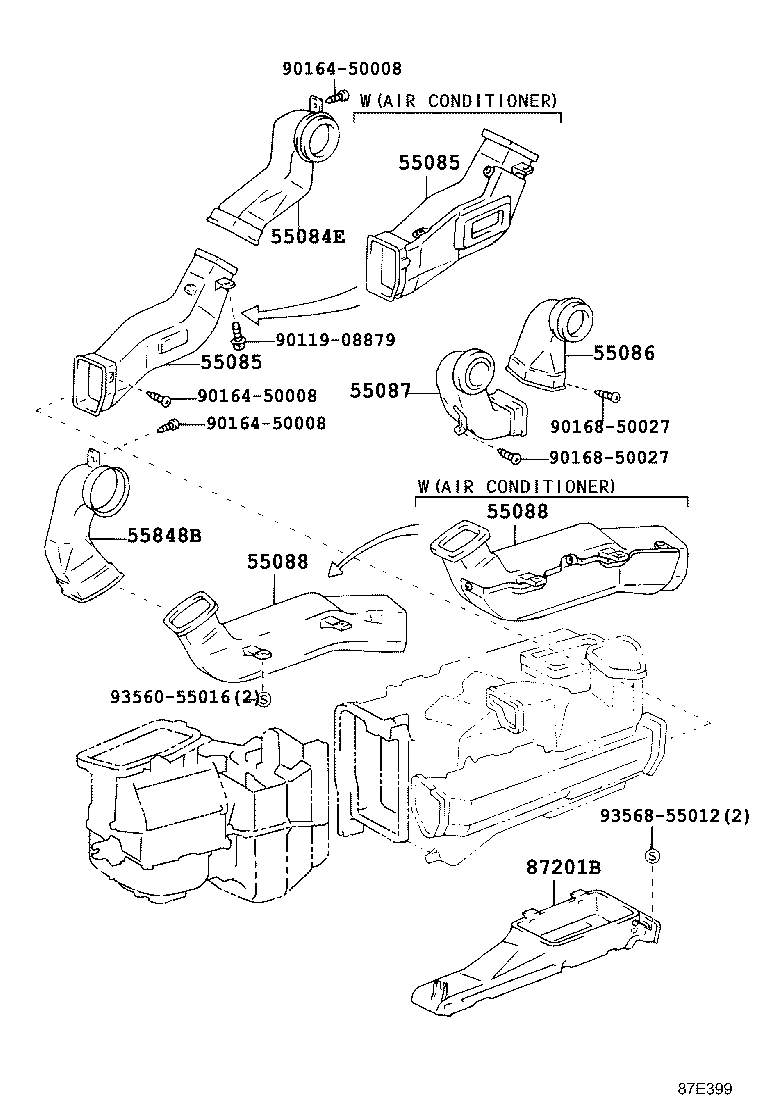

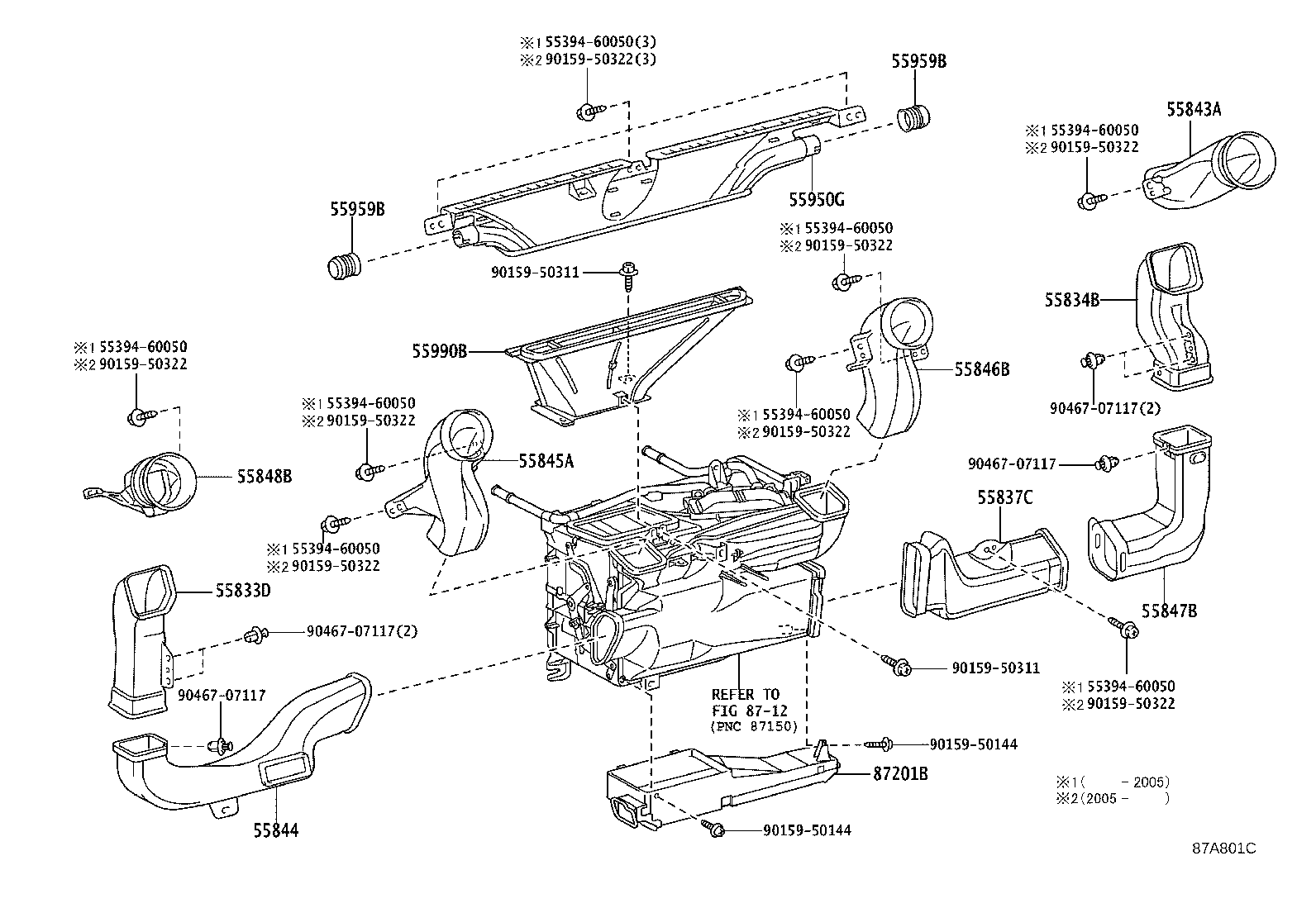

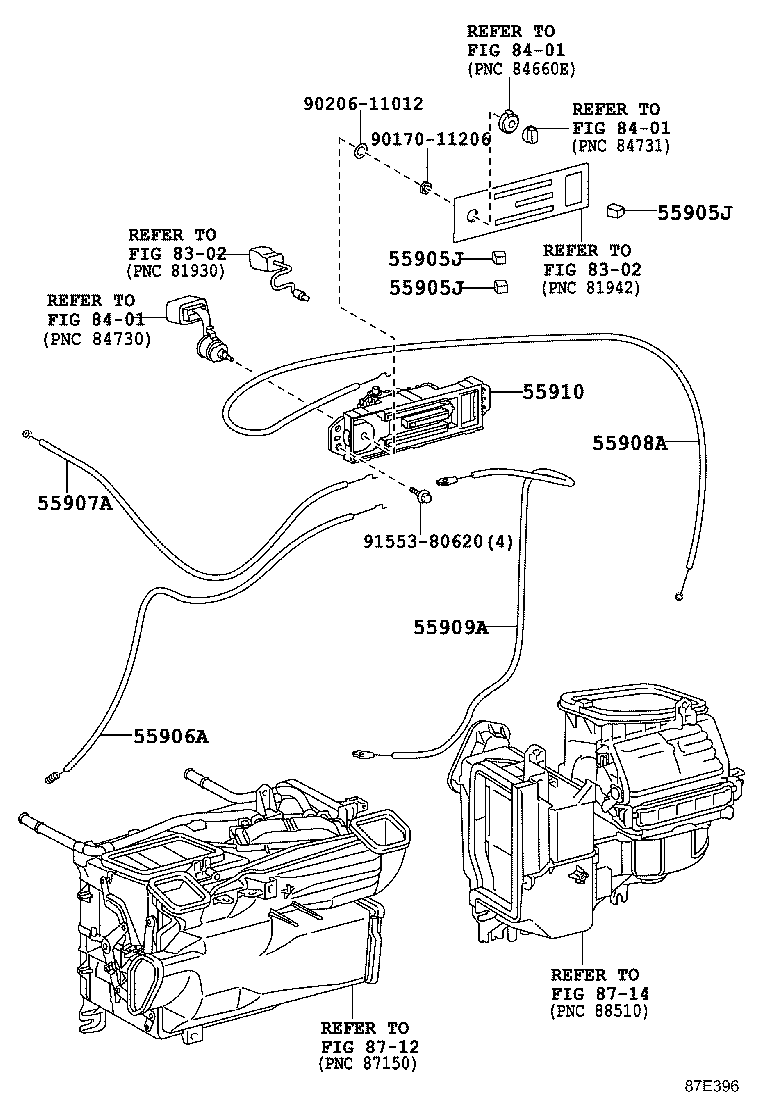

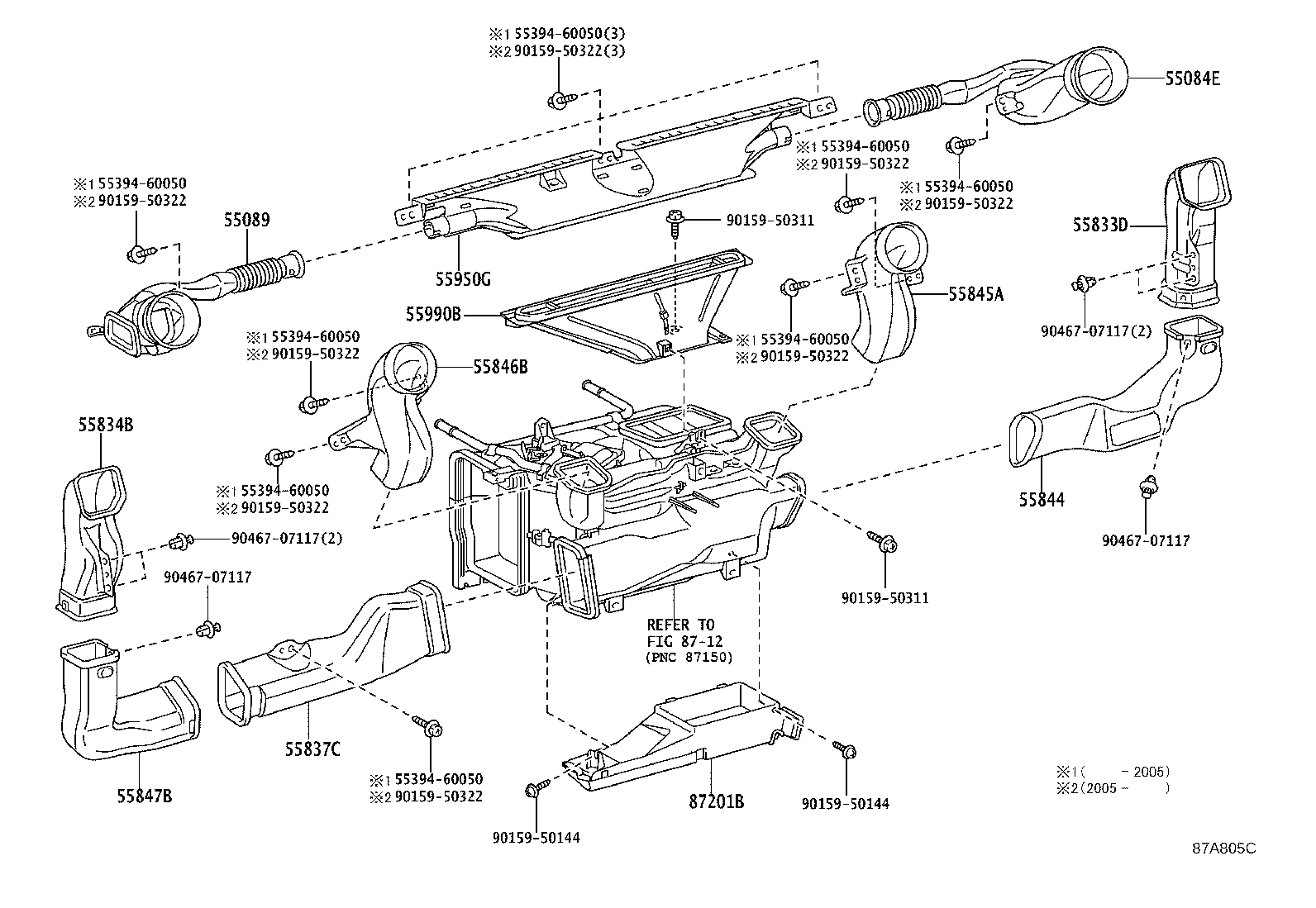

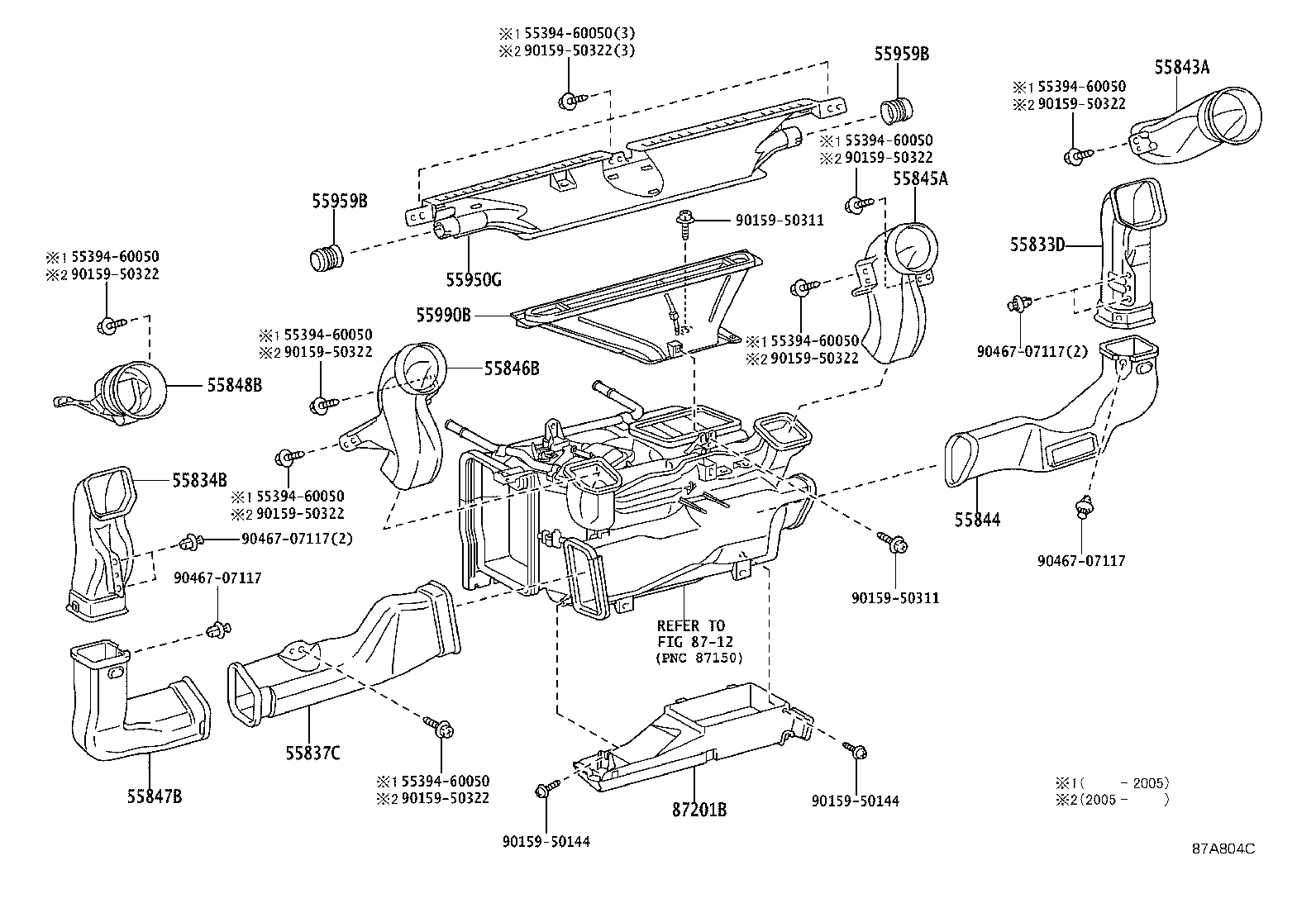

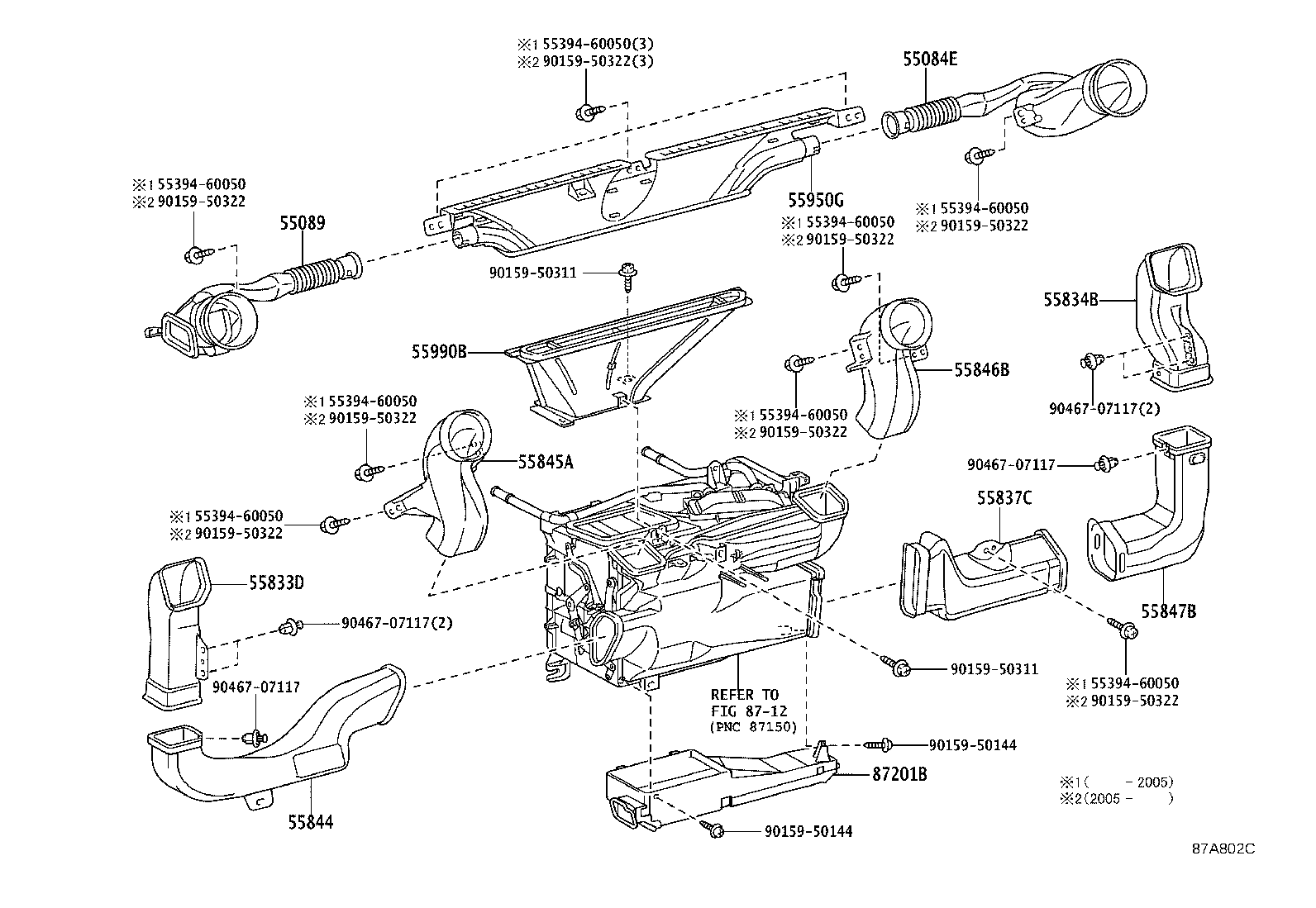

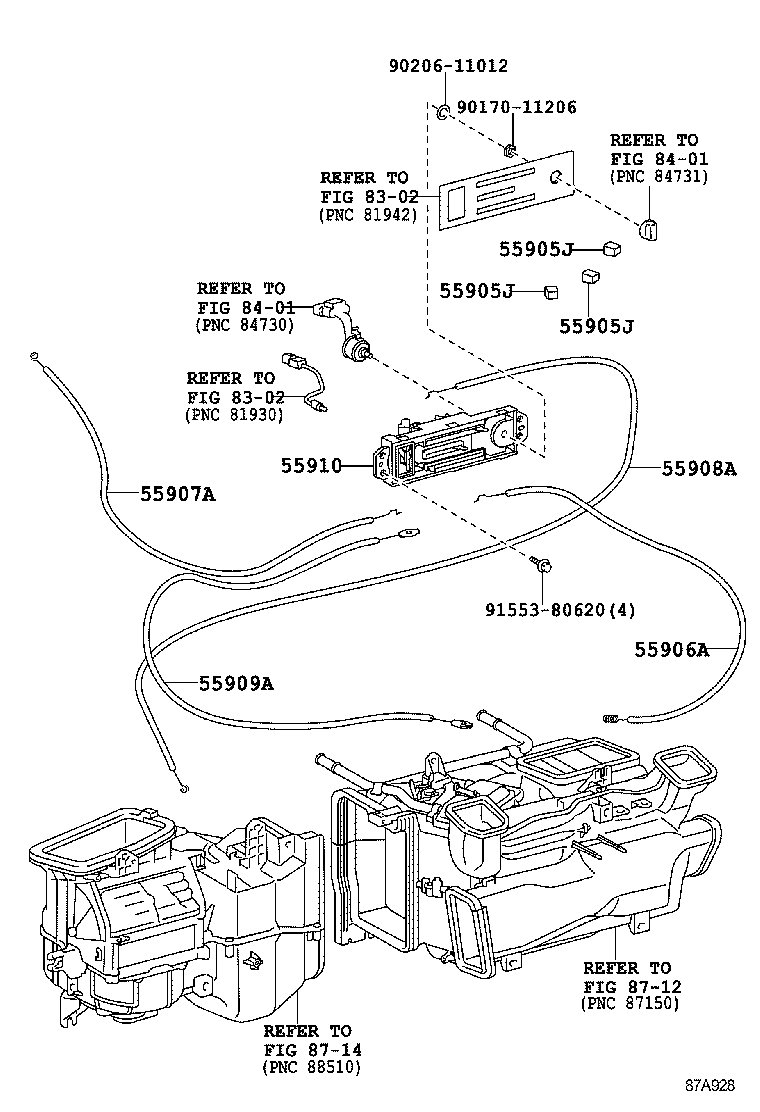

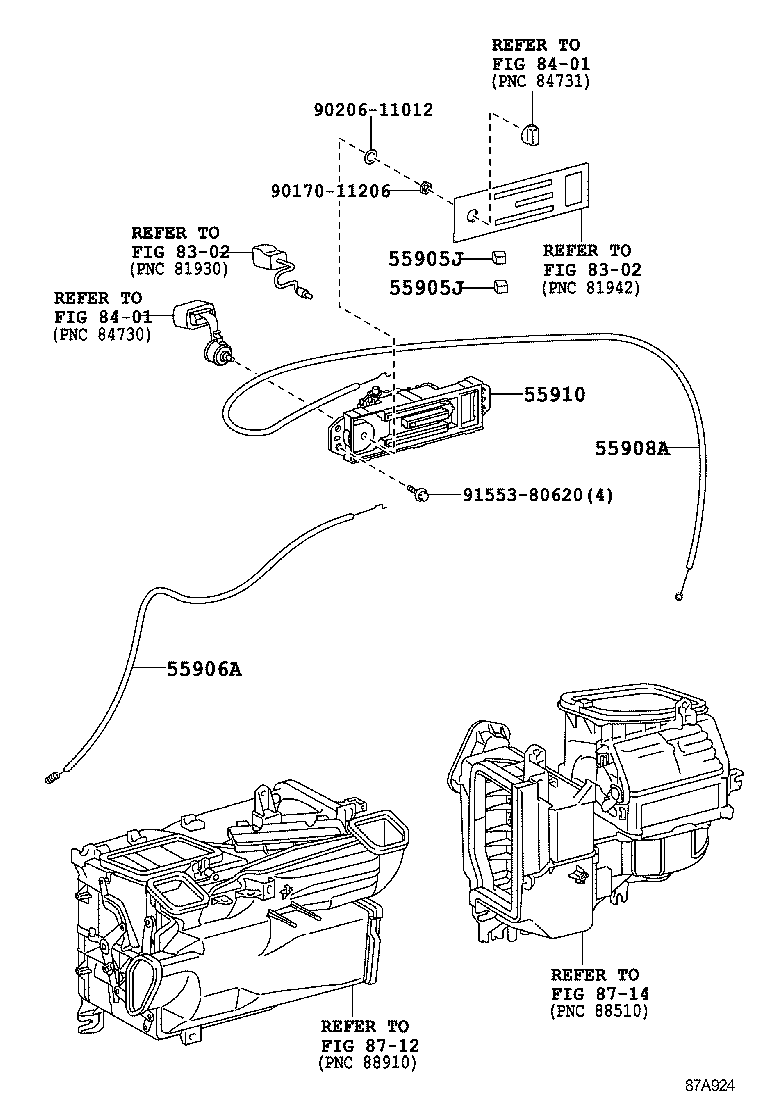

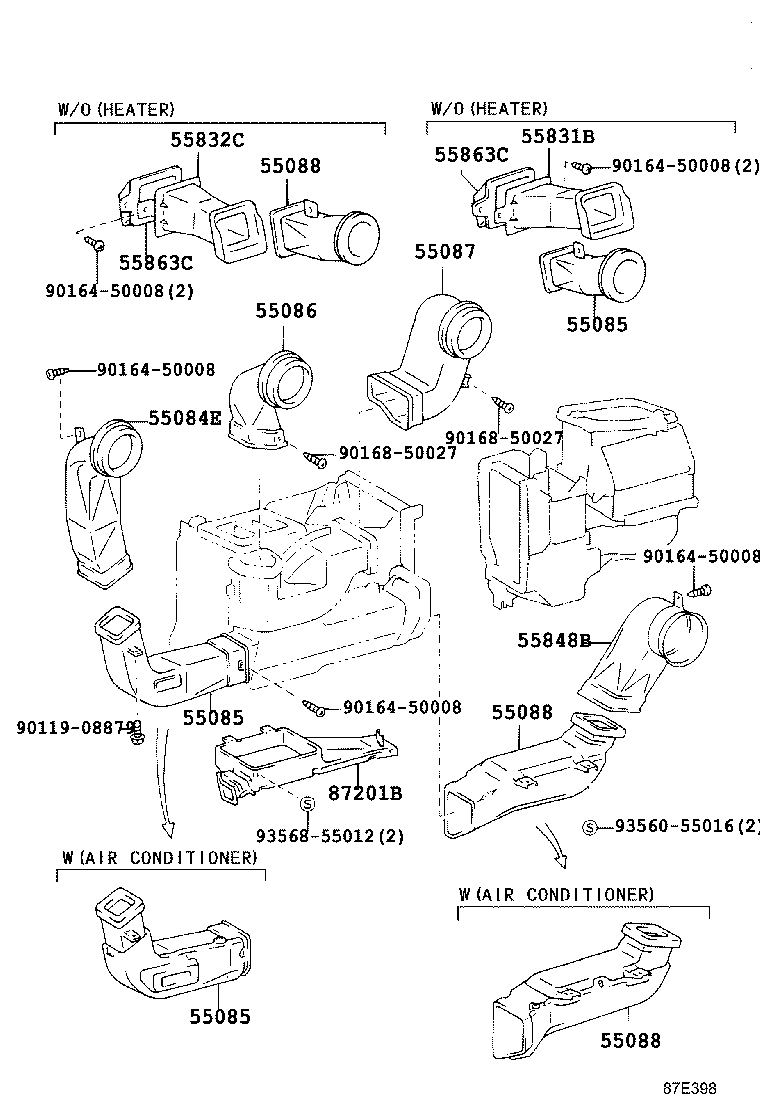

Figure 87E393 87E393 2007-01 → 2009-07 Figure 87E394 87E394 2007-01 → 2009-07 Figure 87A924 87A924 2009-07 → — Figure 87A924 87A924 2009-07 → — Figure 87A924 87A924 2023-09 → — Figure 87A925 87A925 2009-07 → — Figure 87A925 87A925 2009-07 → — Figure 87A925 87A925 2023-09 → — Figure 87E396 87E396 2009-07 → — Figure 87E396 87E396 2009-07 → — Figure 87E396 87E396 2023-09 → — Figure 87A927 87A927 2009-07 → — Figure 87A927 87A927 2023-09 → — Figure 87A928 87A928 2009-07 → — Figure 87A928 87A928 2009-07 → — Figure 87A928 87A928 2023-09 → — Figure 87E397 87E397 2009-07 → — Figure 87E397 87E397 2009-07 → — Figure 87E397 87E397 2023-09 → — Figure 87E398 87E398 2007-01 → 2009-07 Figure 87E399 87E399 2007-01 → 2009-07 Figure 87A799A 87A799A 2009-07 → — Figure 87A800C 87A800C 2009-07 → — Figure 87A800C 87A800C 2009-07 → — Figure 87A800C 87A800C 2023-09 → — Figure 87A801C 87A801C 2009-07 → — Figure 87A801C 87A801C 2009-07 → — Figure 87A801C 87A801C 2023-09 → — Figure 87A802C 87A802C 2009-07 → — Figure 87A802C 87A802C 2009-07 → — Figure 87A802C 87A802C 2023-09 → — Figure 87A802C 87A802C 2023-09 → — Figure 87A803C 87A803C 2009-07 → — Figure 87A803C 87A803C 2009-07 → — Figure 87A804C 87A804C 2009-07 → — Figure 87A804C 87A804C 2009-07 → — Figure 87A804C 87A804C 2023-09 → — Figure 87A805C 87A805C 2009-07 → — Figure 87A805C 87A805C 2009-07 → — Figure 87A805C 87A805C 2023-09 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55087 Duct Sub-assy, Heater TO Register, NO.4
55088 Duct Sub-assy, Heater TO Register, NO.5
55089 Duct Sub-assy, Heater TO Register, NO.6
55831B Connector, Instrument Panel Register, RH
55832C Connector, Instrument Panel Register, LH
55833D Connector, Instrument Panel Register, NO.1
55834B Connector, Instrument Panel Register, NO.2
55837C Duct, Heater TO Register Center Sub
55841B Duct, Cowl TO Register, NO.1
55842B Duct, Cowl TO Register, NO.2
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846B Duct, Heater TO Register, NO.4
55847B Duct, Heater TO Register, NO.5
55848B Duct, Heater TO Register, NO.6
55863C Boot, Side Ventilator Duct
55905A Knob, Heater Control
55905J Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55950G Nozzle Assy, Defroster
55959B Cover, Defroster Nozzle Opening
55990B Nozzle Assy, Defroster, Lower
87201B Duct Sub-assy, Air, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
