Heating & Air Conditioning - Water Piping

22 part groups · 24 illustrations

Illustrations

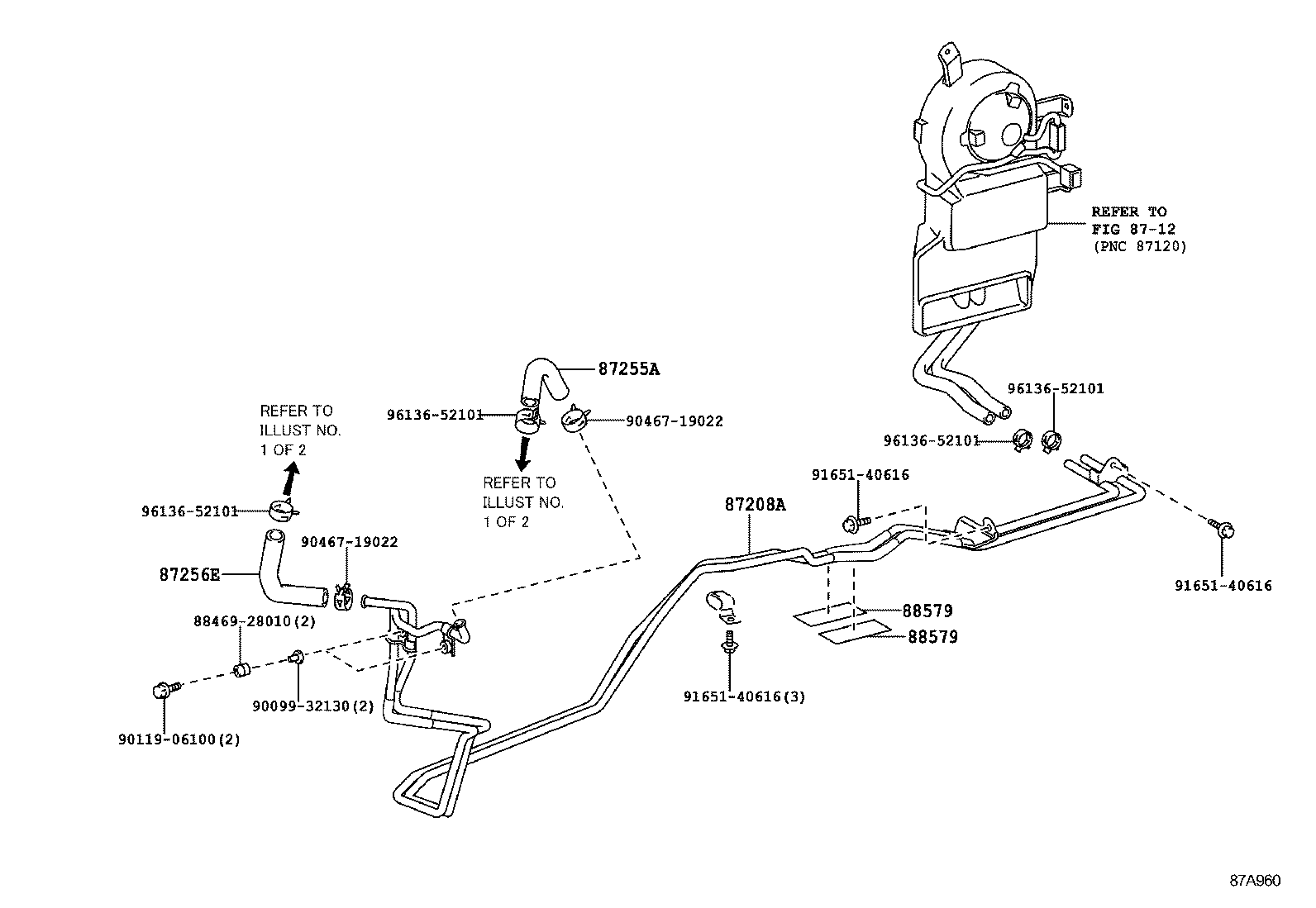

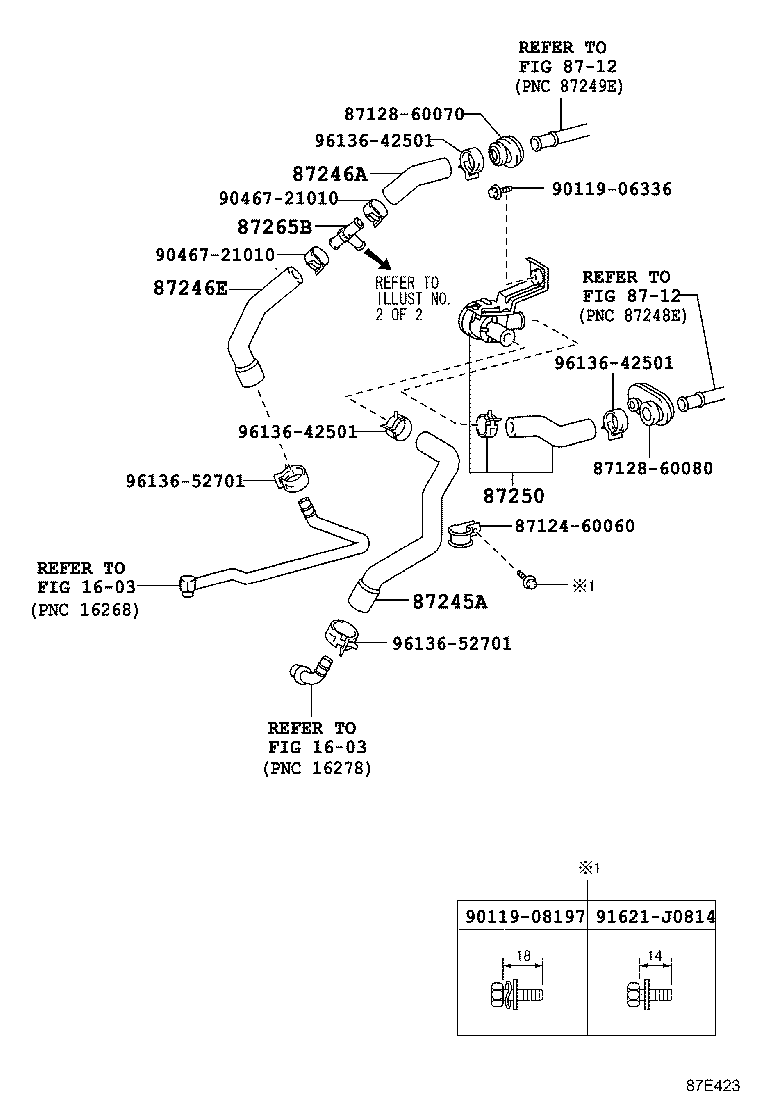

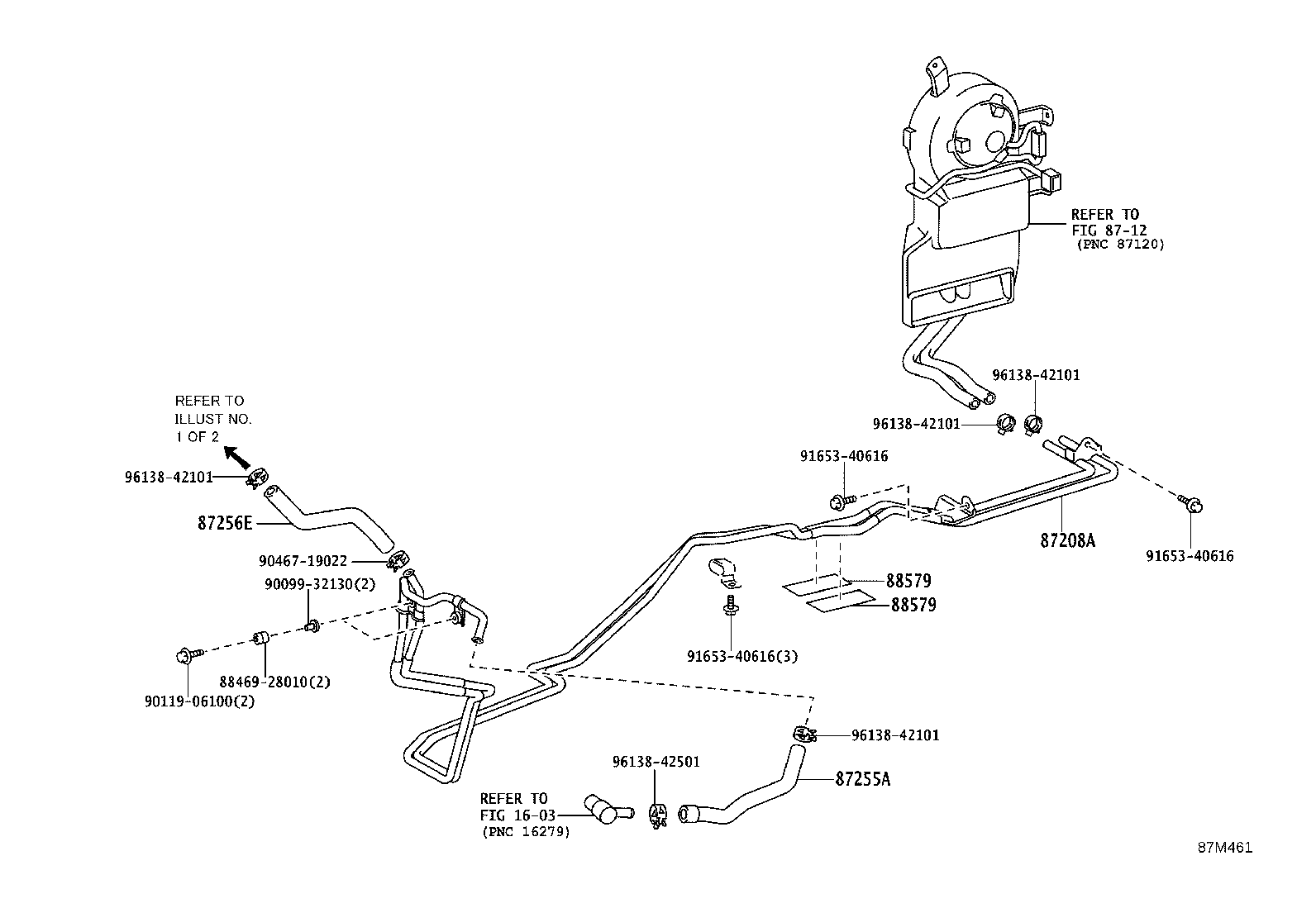

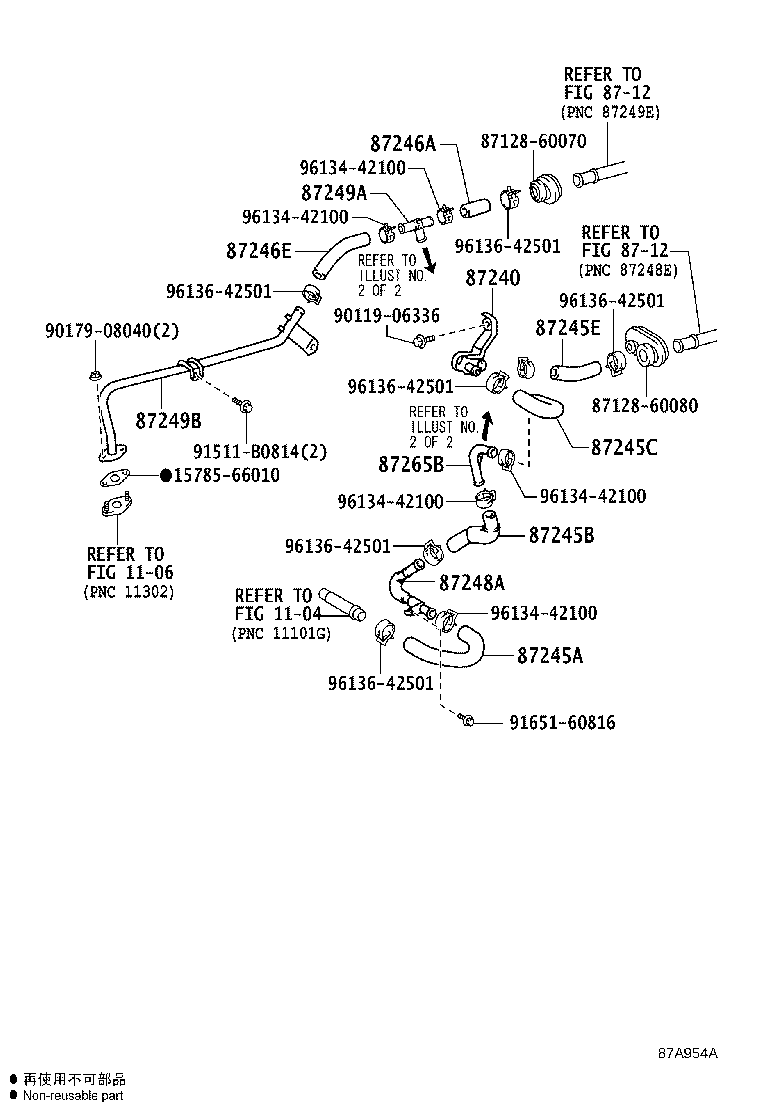

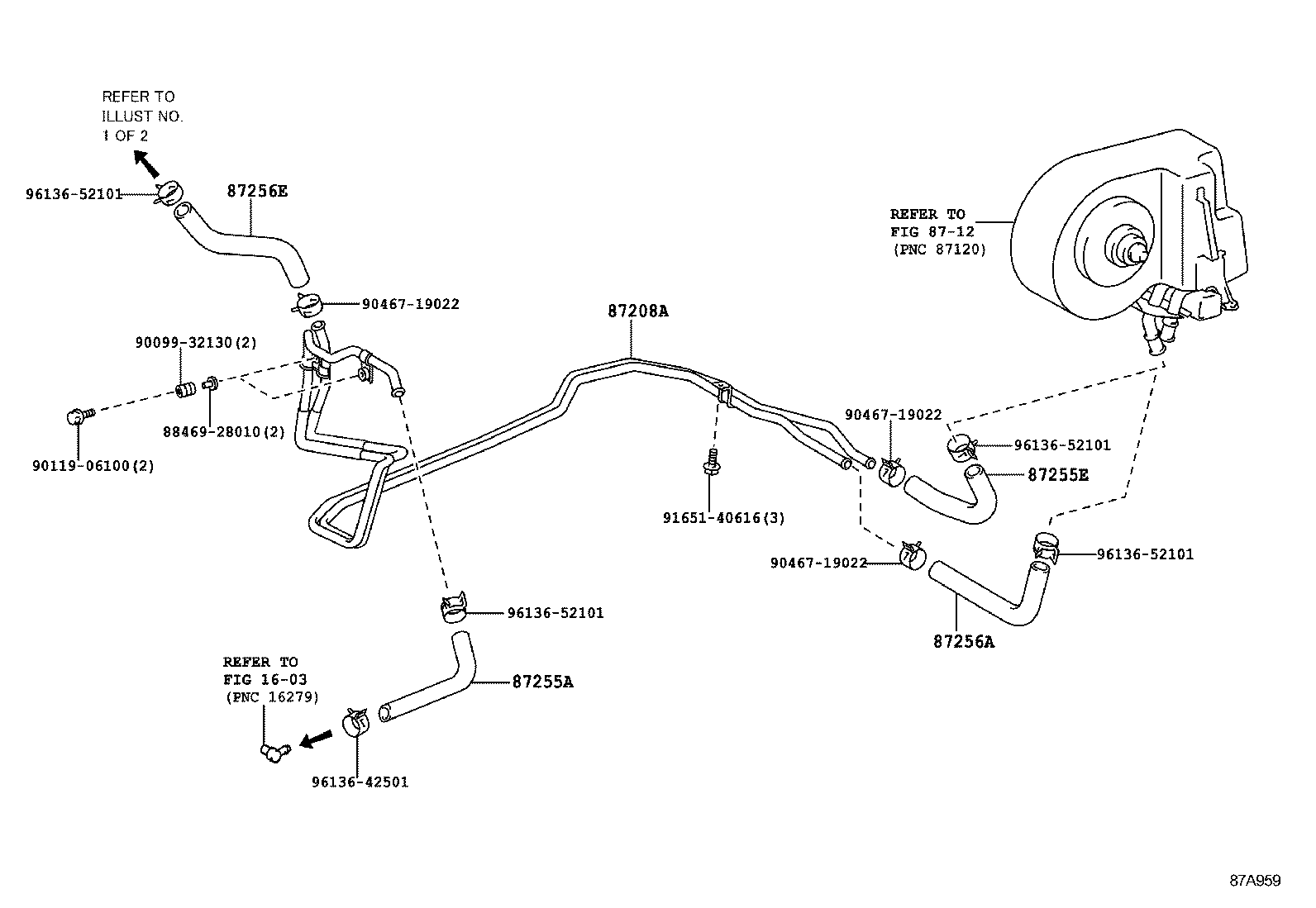

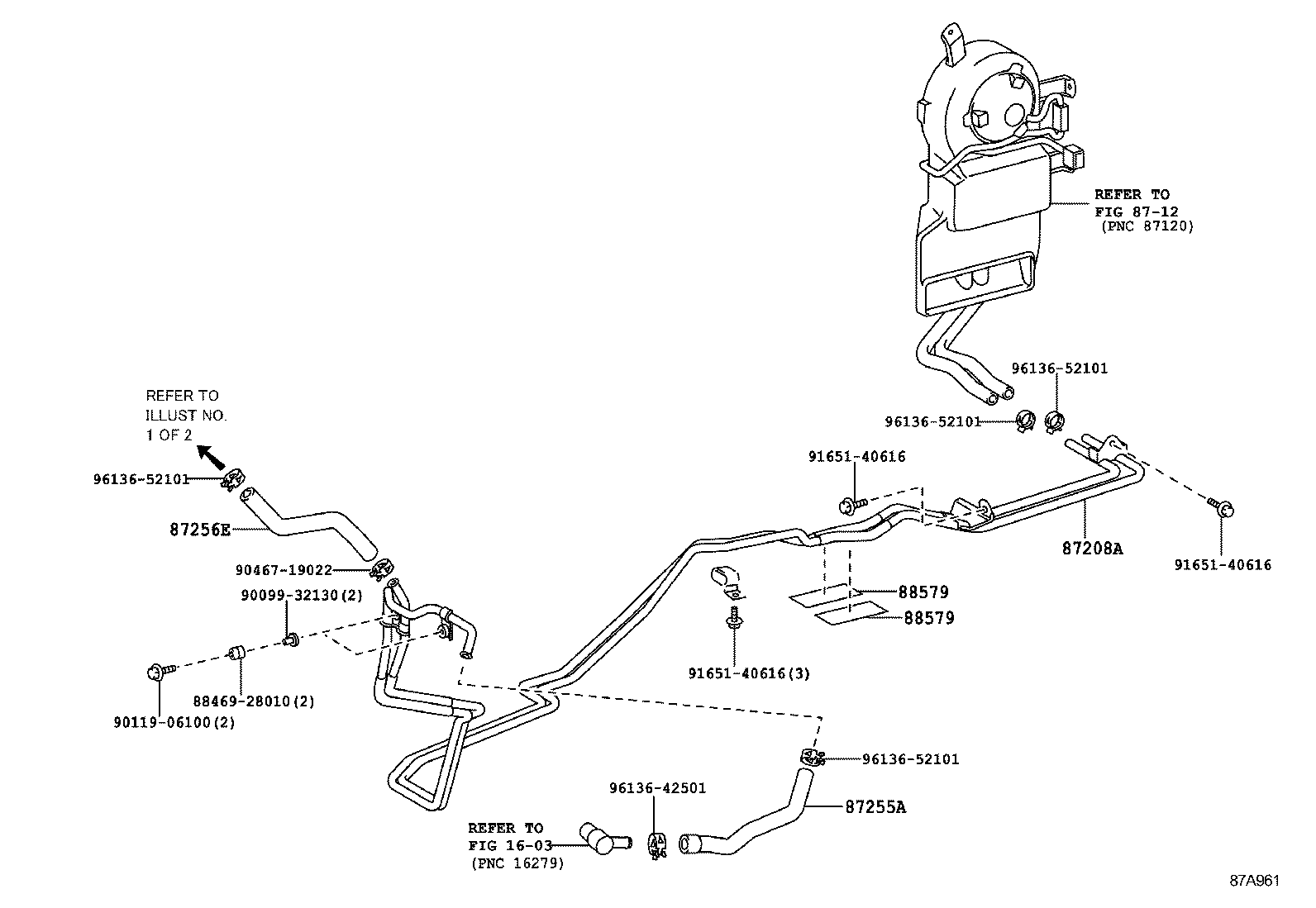

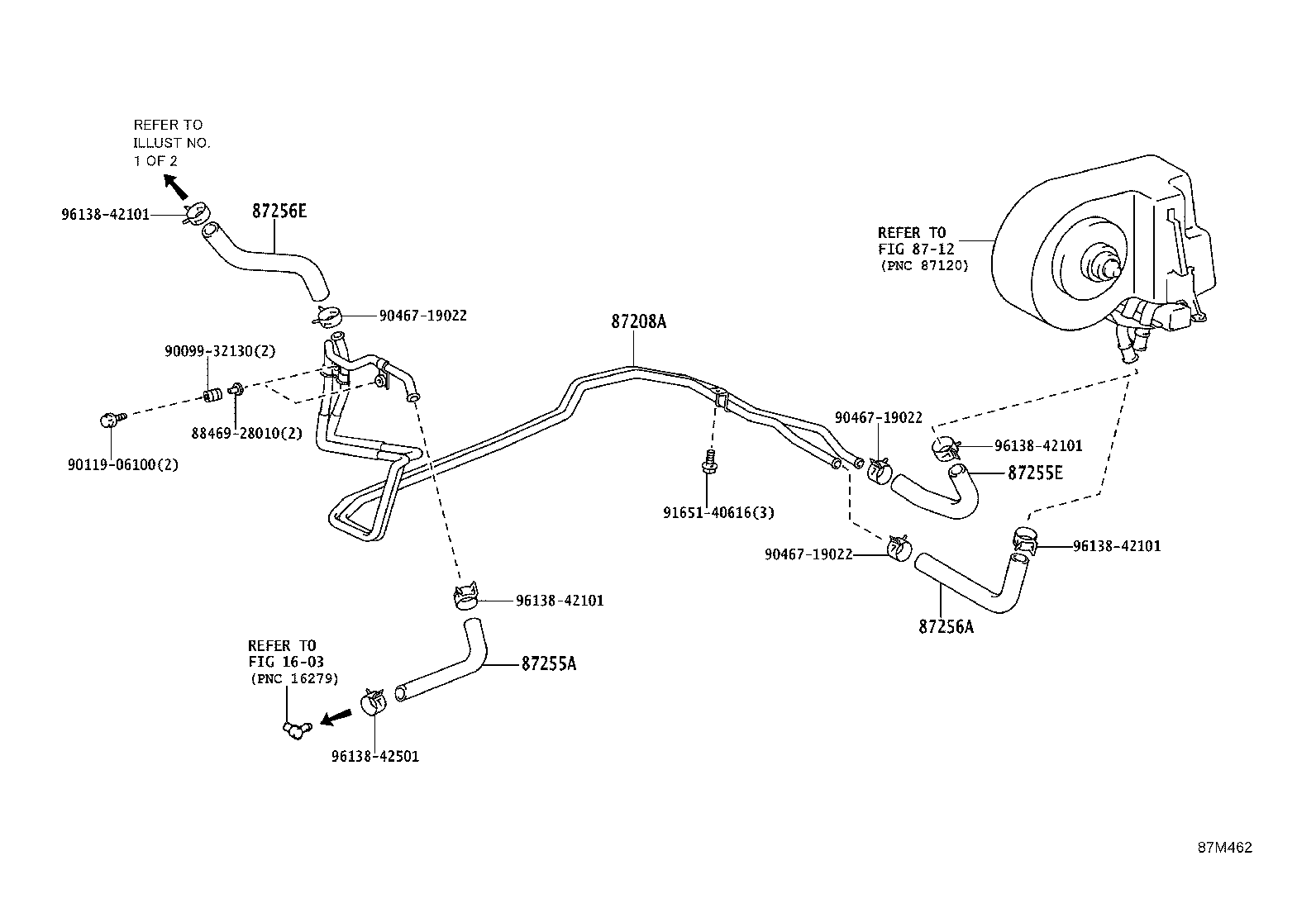

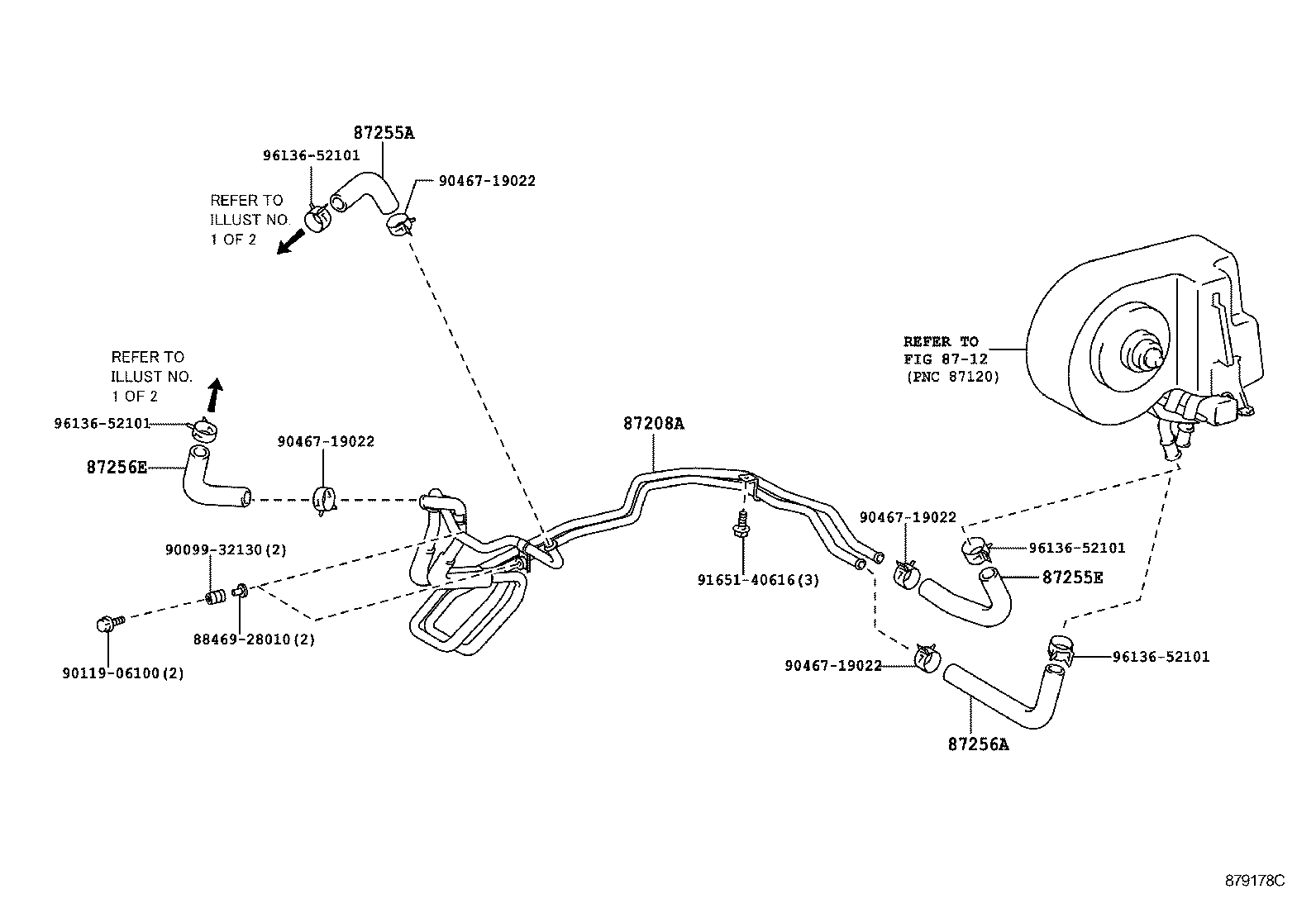

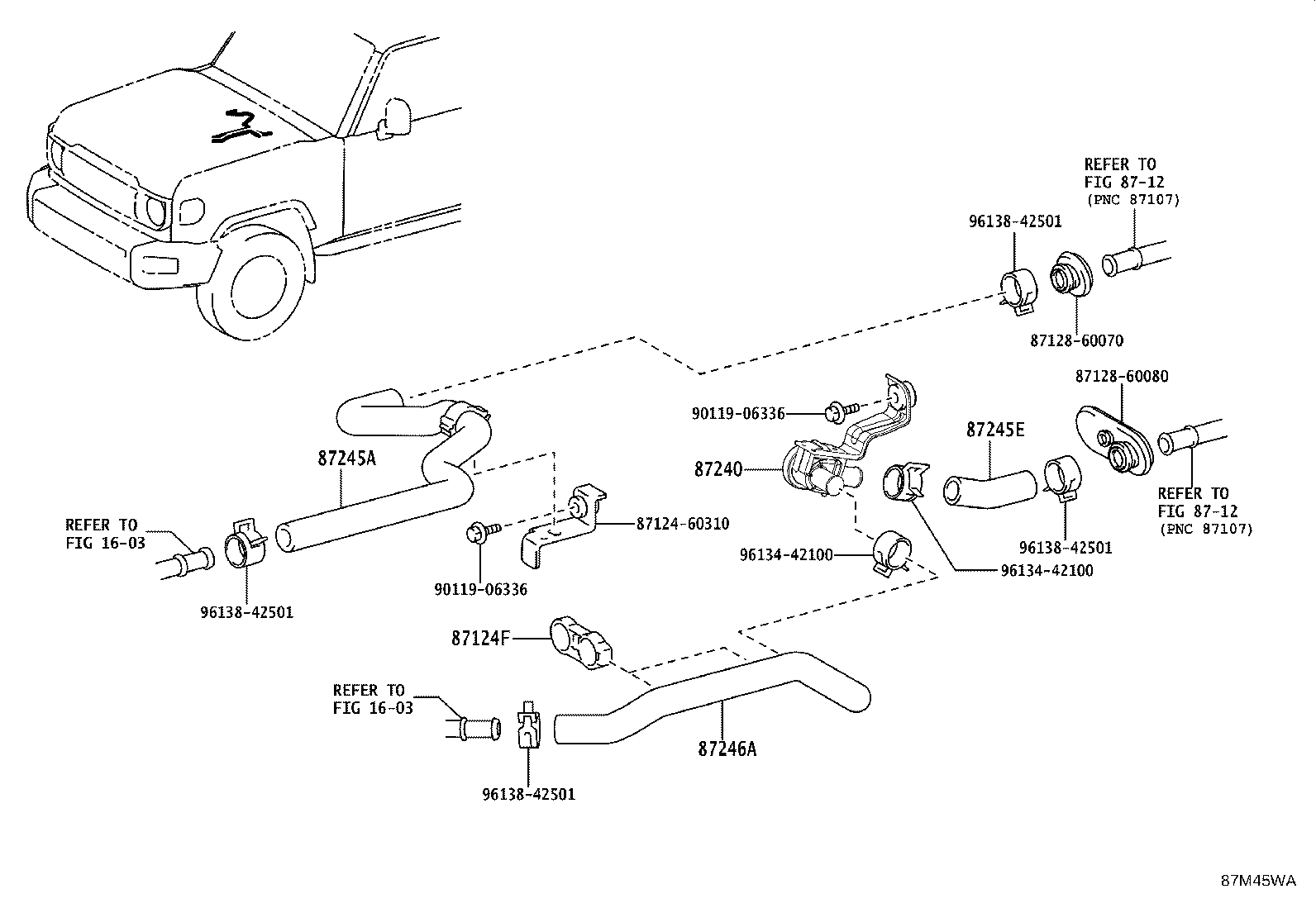

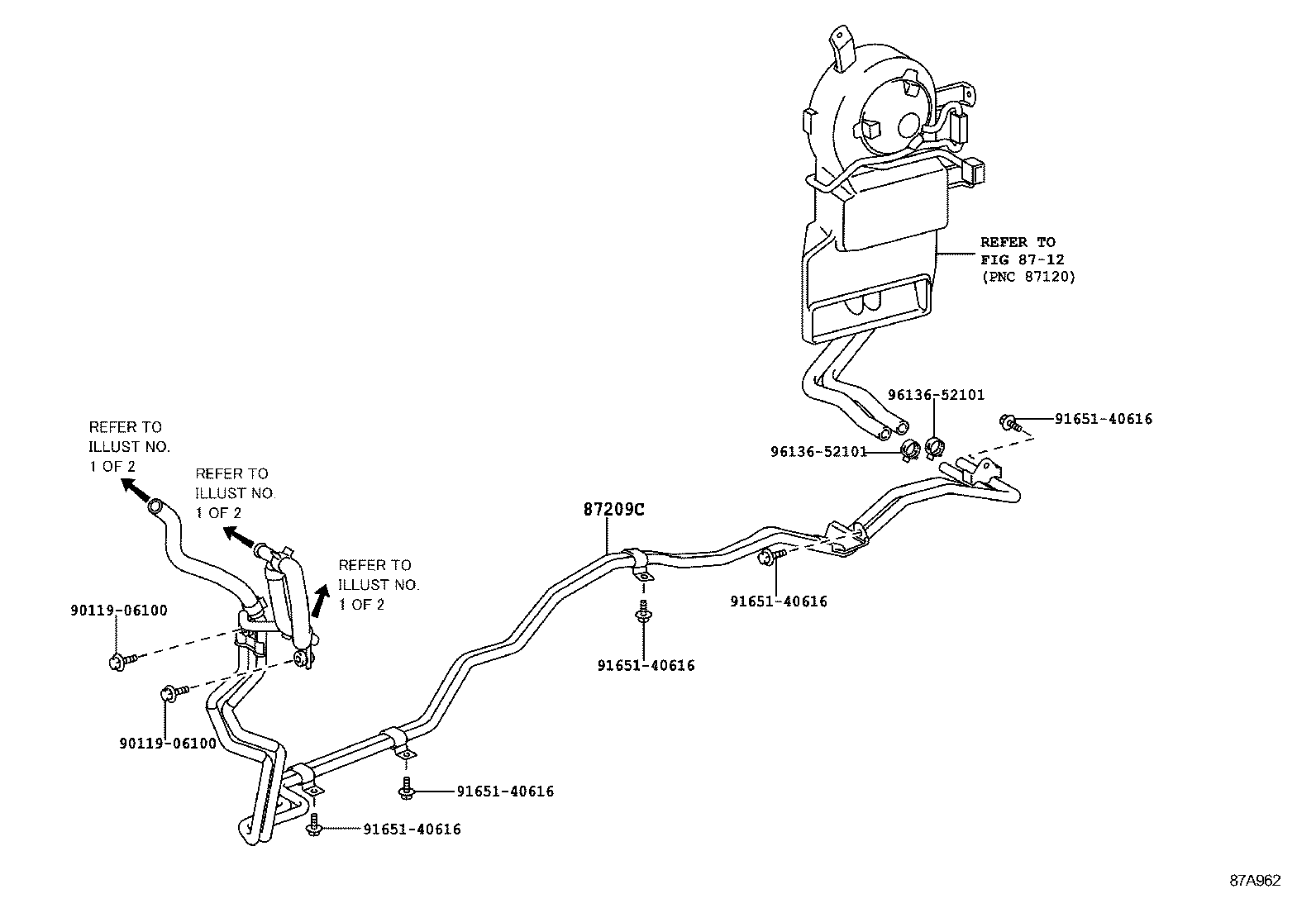

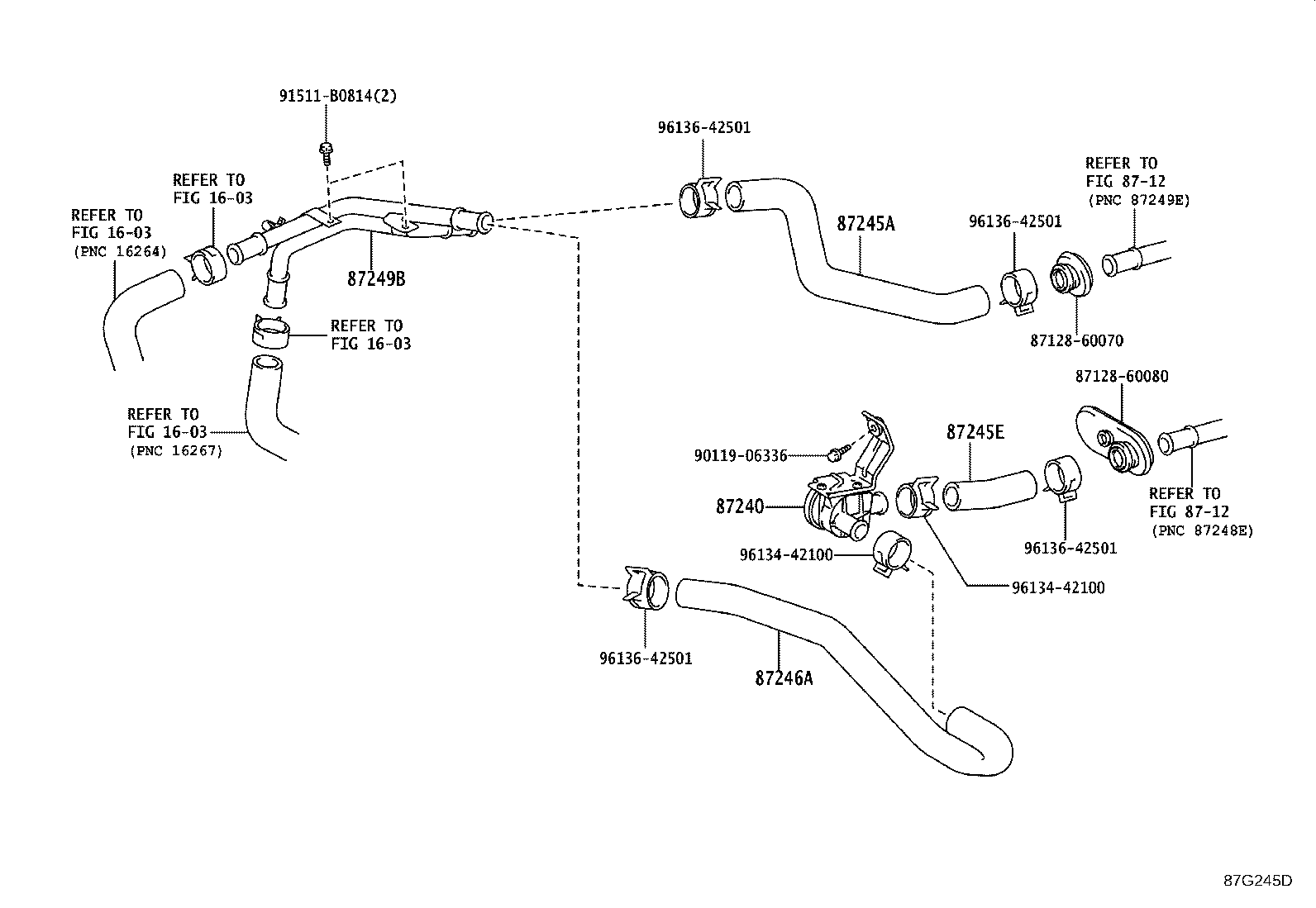

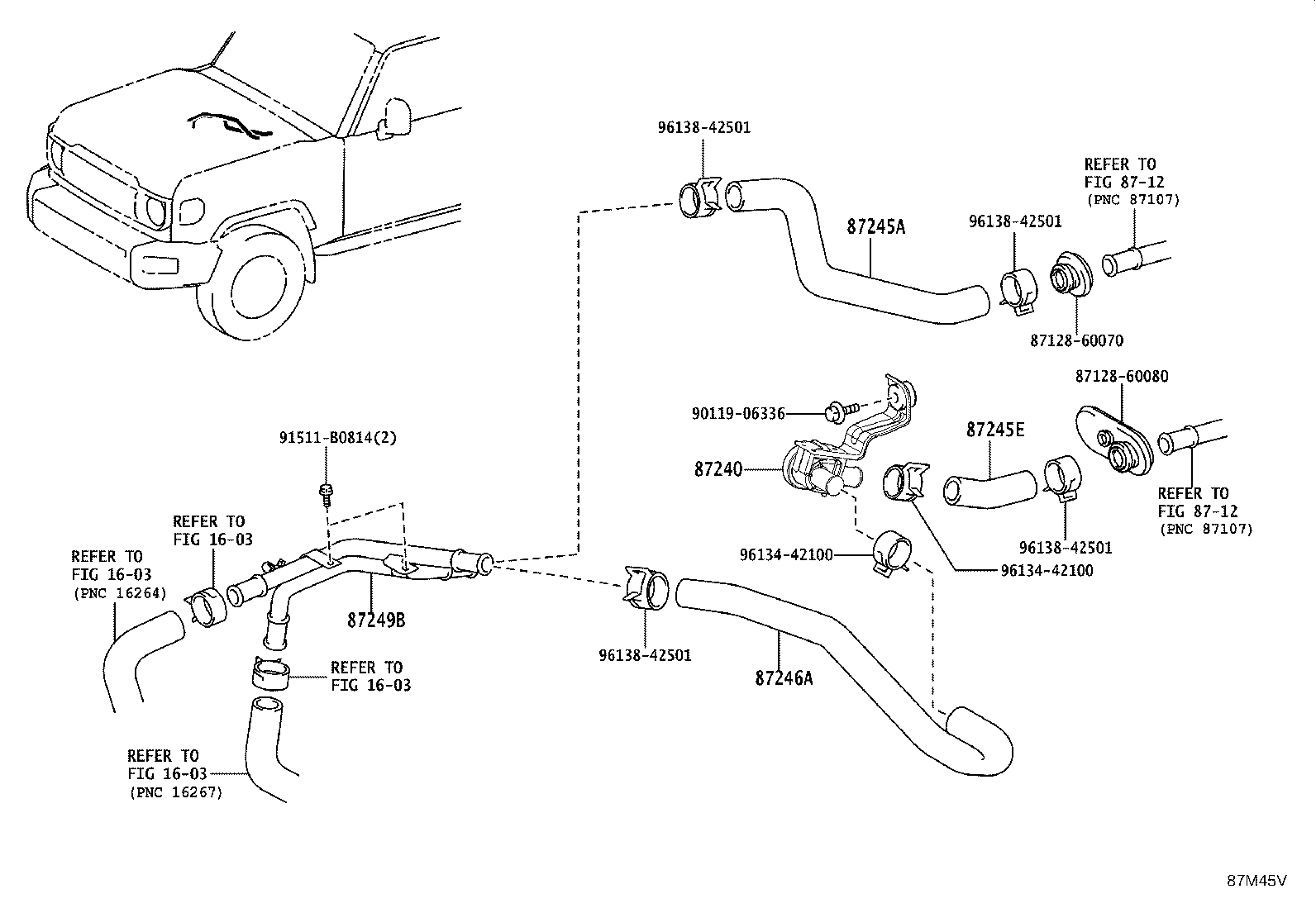

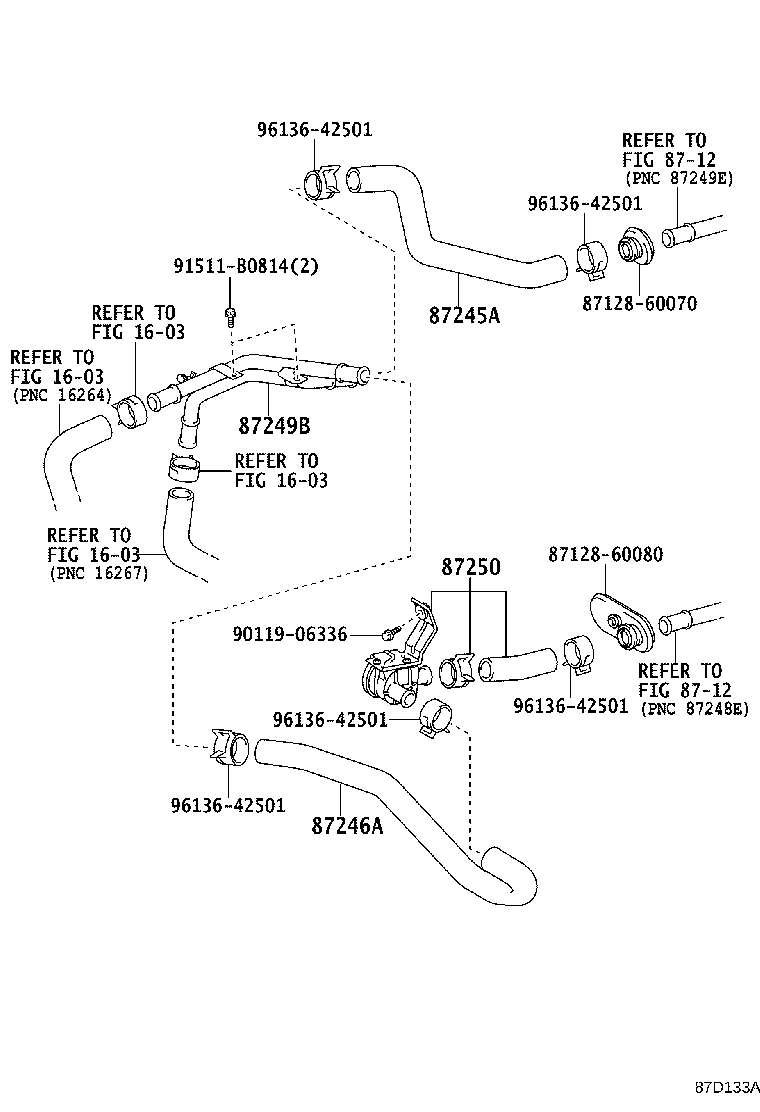

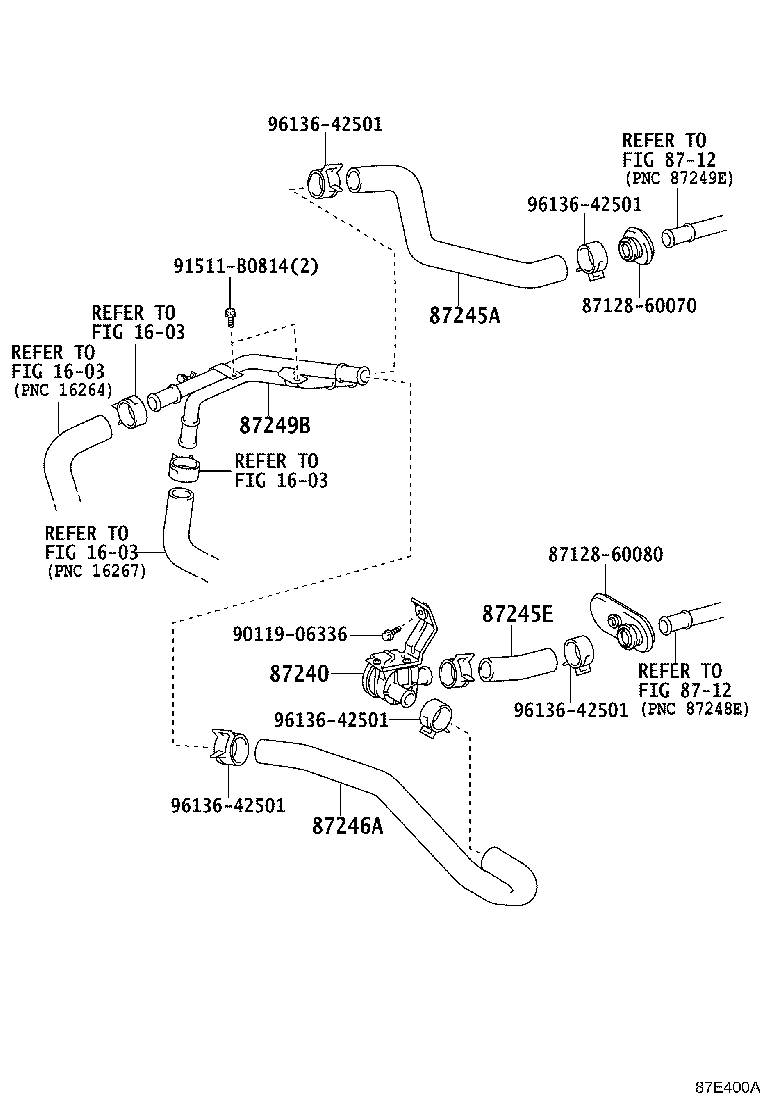

Figure 87A953A 87A953A 2007-01 → 2009-07 Figure 87A954A 87A954A 2007-01 → 2009-07 Figure 87A955 87A955 2007-01 → 2012-08 Figure 87E422 87E422 2012-08 → — Figure 87E422 87E422 2023-09 → — Figure 87E401 87E401 2007-01 → 2012-08 Figure 87E423 87E423 2012-08 → — Figure 87E400A 87E400A 2007-01 → 2012-08 Figure 87D133A 87D133A 2012-08 → 2017-01 Figure 87G245D 87G245D 2017-01 → — Figure 87G245D 87G245D 2017-01 → — Figure 87A957A 87A957A 2009-07 → — Figure 87A958A 87A958A 2009-07 → 2012-08 Figure 87M460 87M460 2023-09 → — Figure 87M45T 87M45T 2023-09 → — Figure 87M45V 87M45V 2023-09 → — Figure 87M45WA 87M45WA 2023-09 → — Figure 879178C 879178C 2007-01 → 2009-07 Figure 87A959 87A959 2007-01 → — Figure 87A960 87A960 2007-01 → 2009-07 Figure 87A961 87A961 2007-01 → — Figure 87A962 87A962 2009-07 → 2012-08 Figure 87M462 87M462 2023-09 → — Figure 87M461 87M461 2023-09 → —

Part groups

PNCDescription
87124F Clamp, Heater Hose, NO.1
87208A Pipe Sub-assy, Heater Water, A
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87209C Hose Sub-assy, Water, C
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87250 Hose And Valve Assy
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87265B Connector, Heater Water Hose, NO.2
88579 Packing, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
