Heating & Air Conditioning - Cooler Piping

30 part groups · 35 illustrations

Illustrations

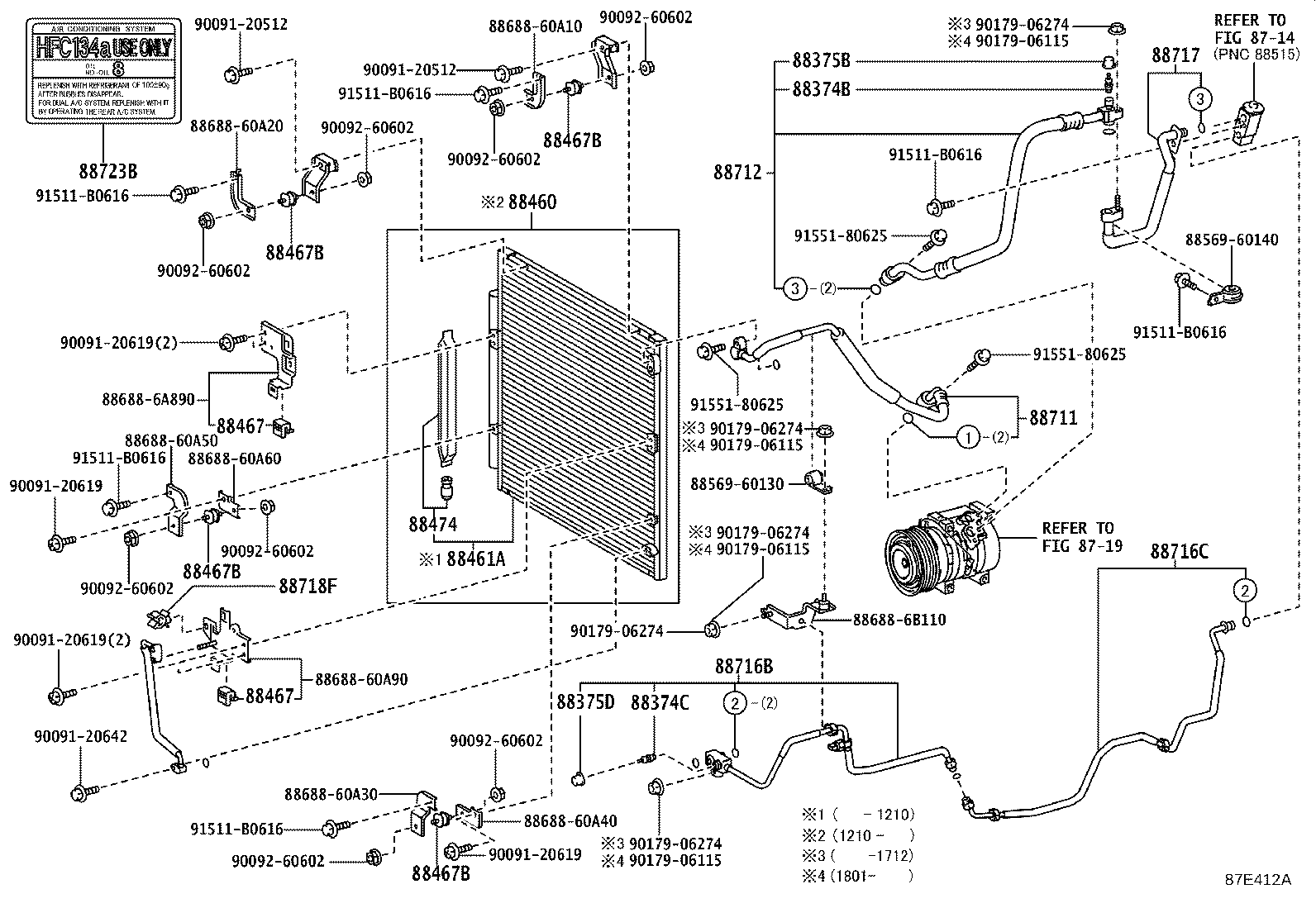

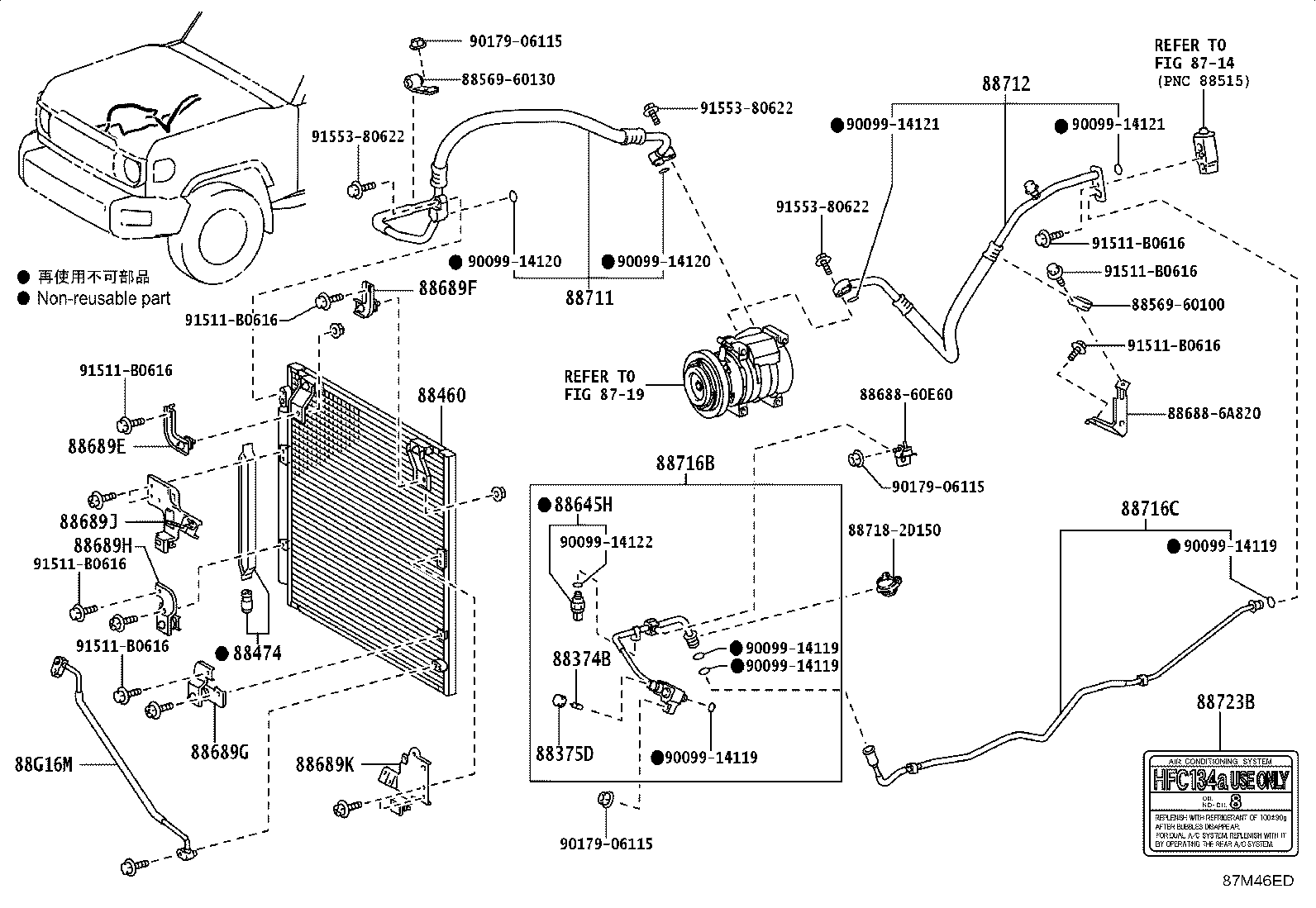

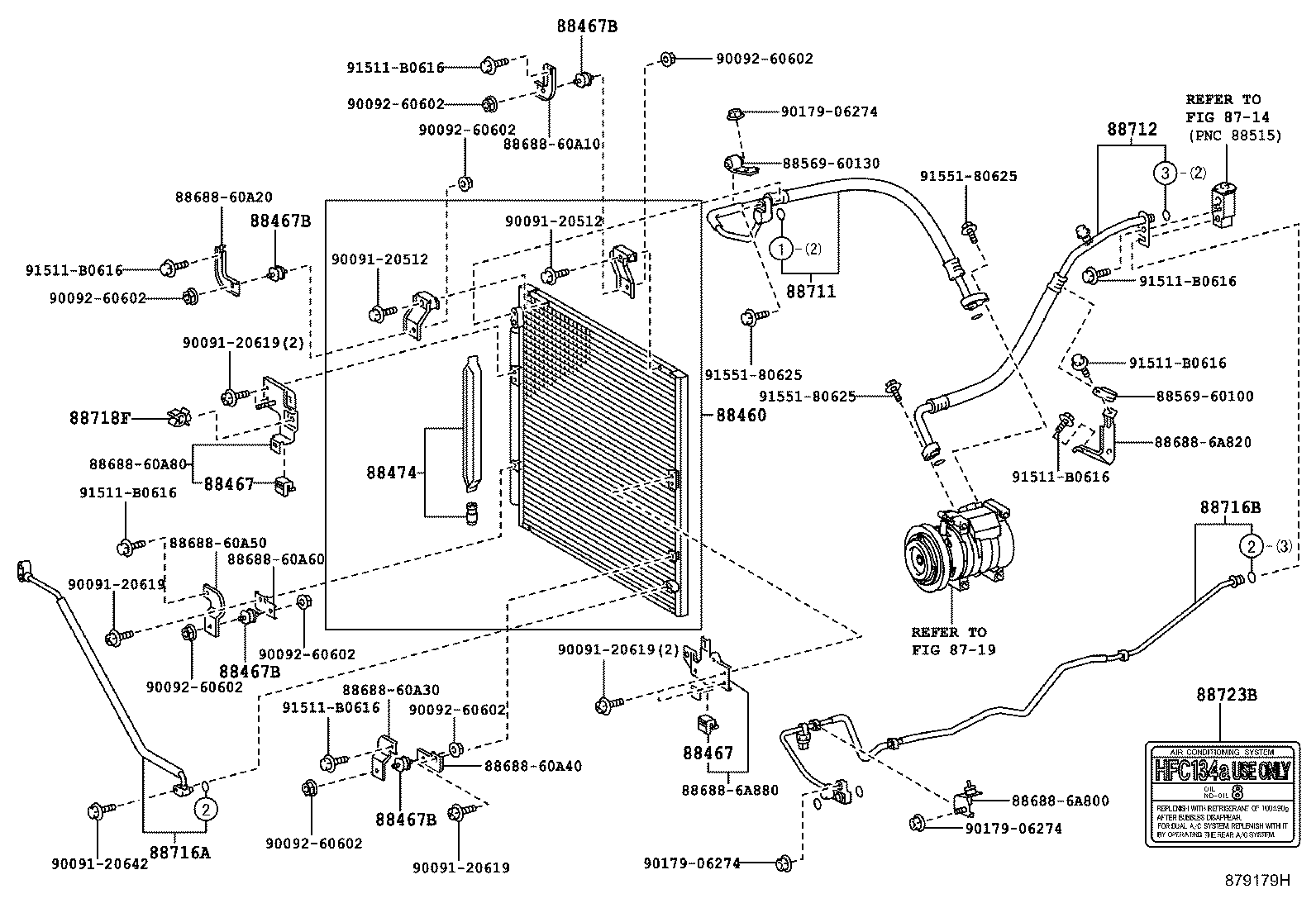

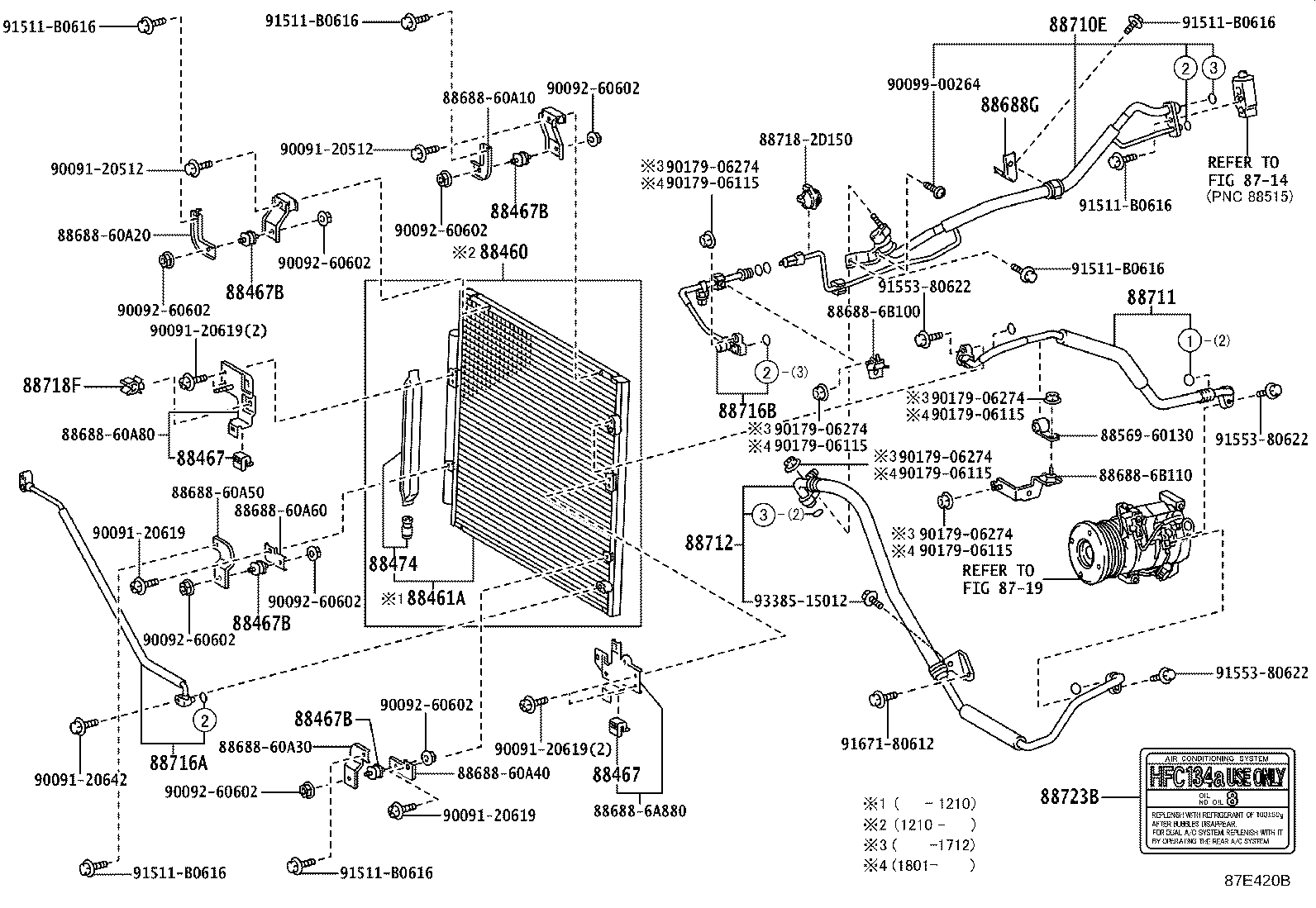

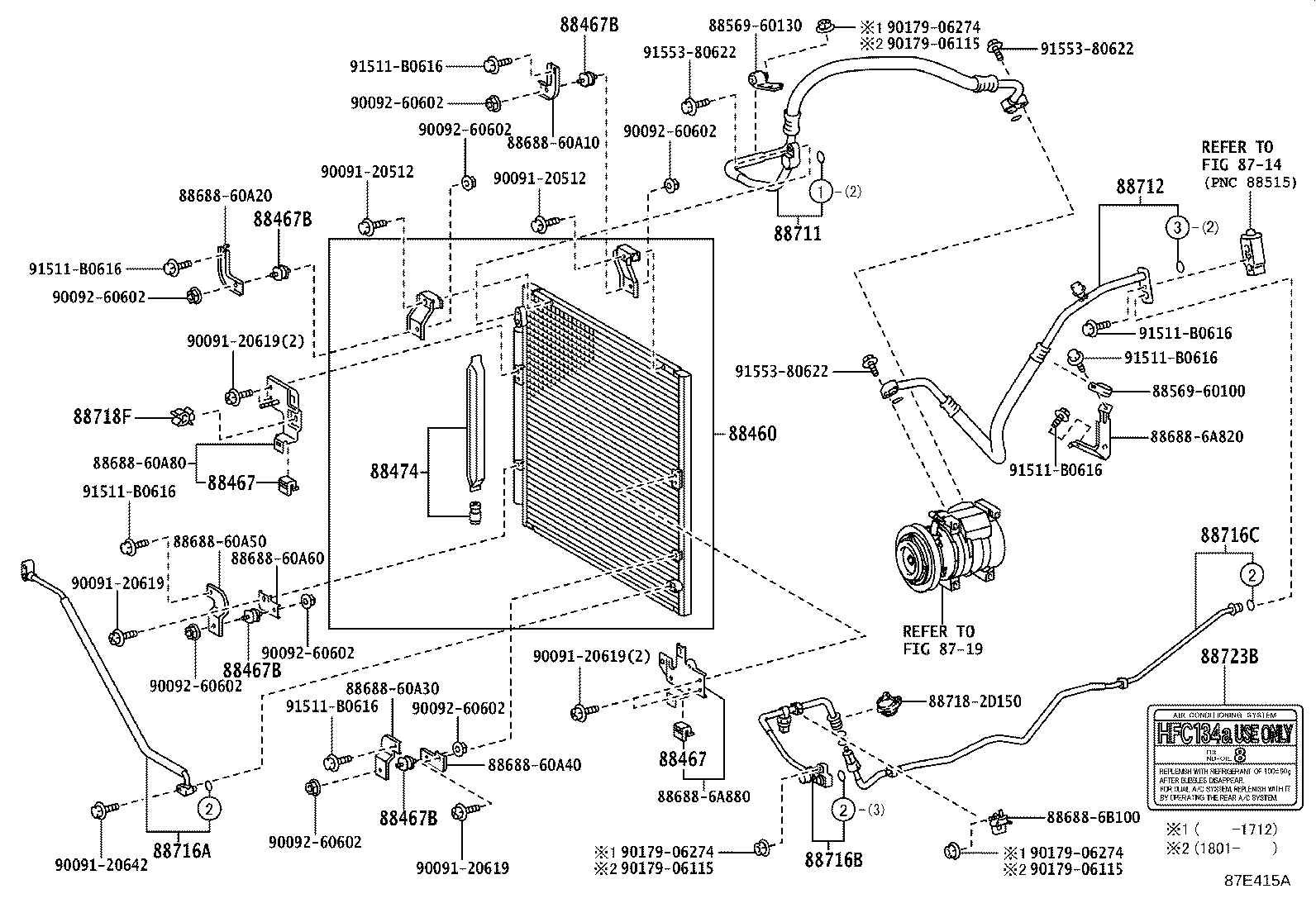

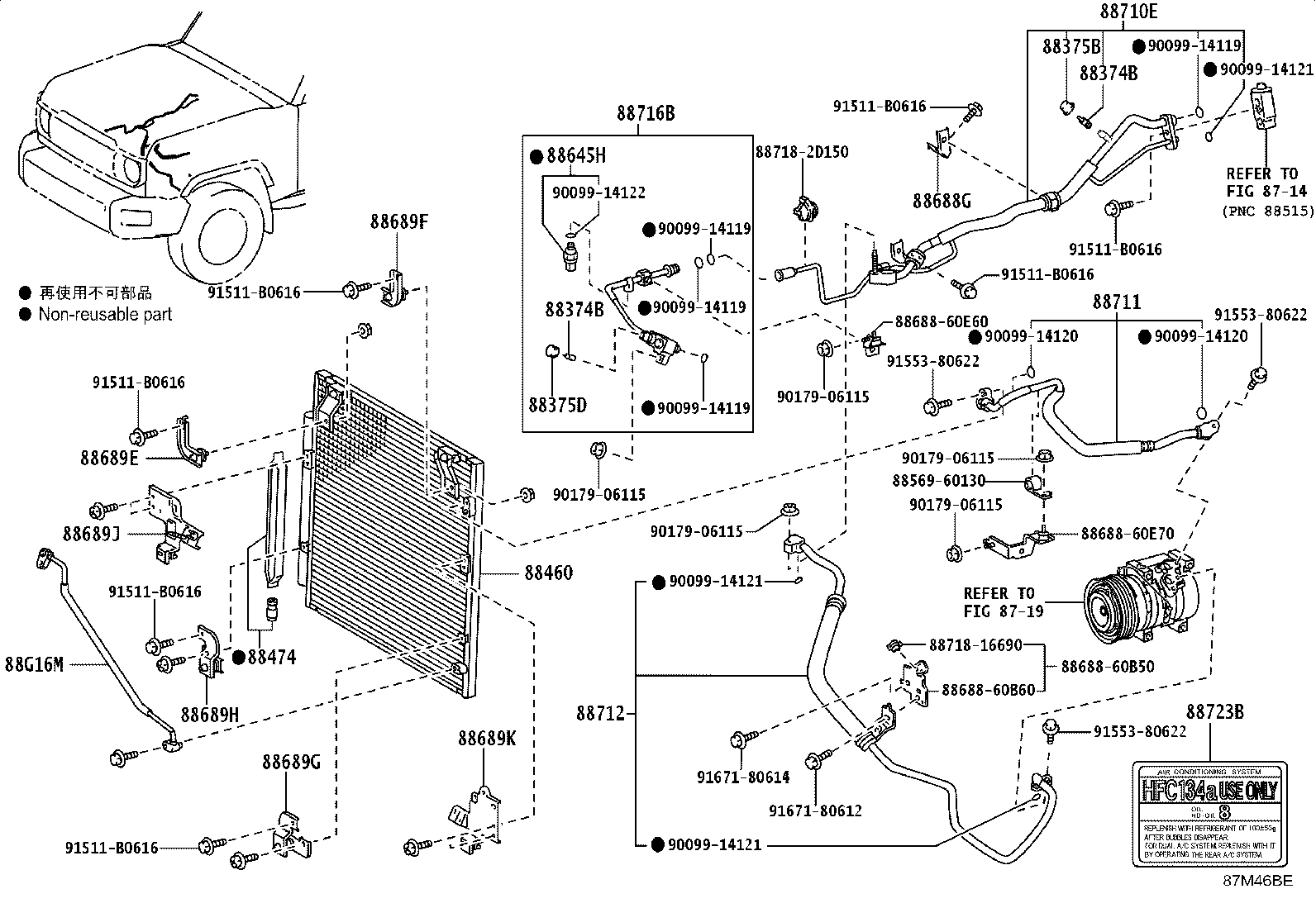

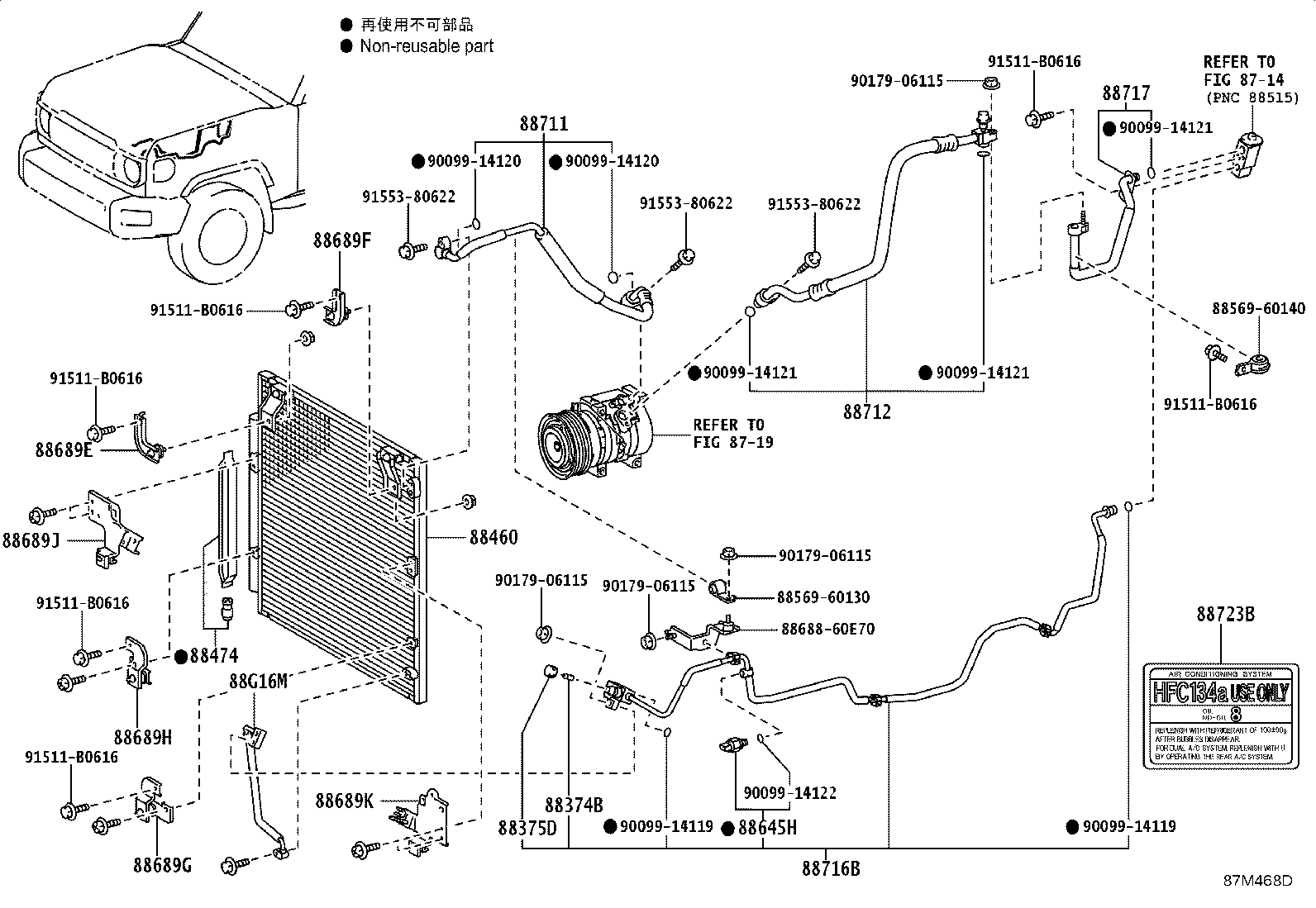

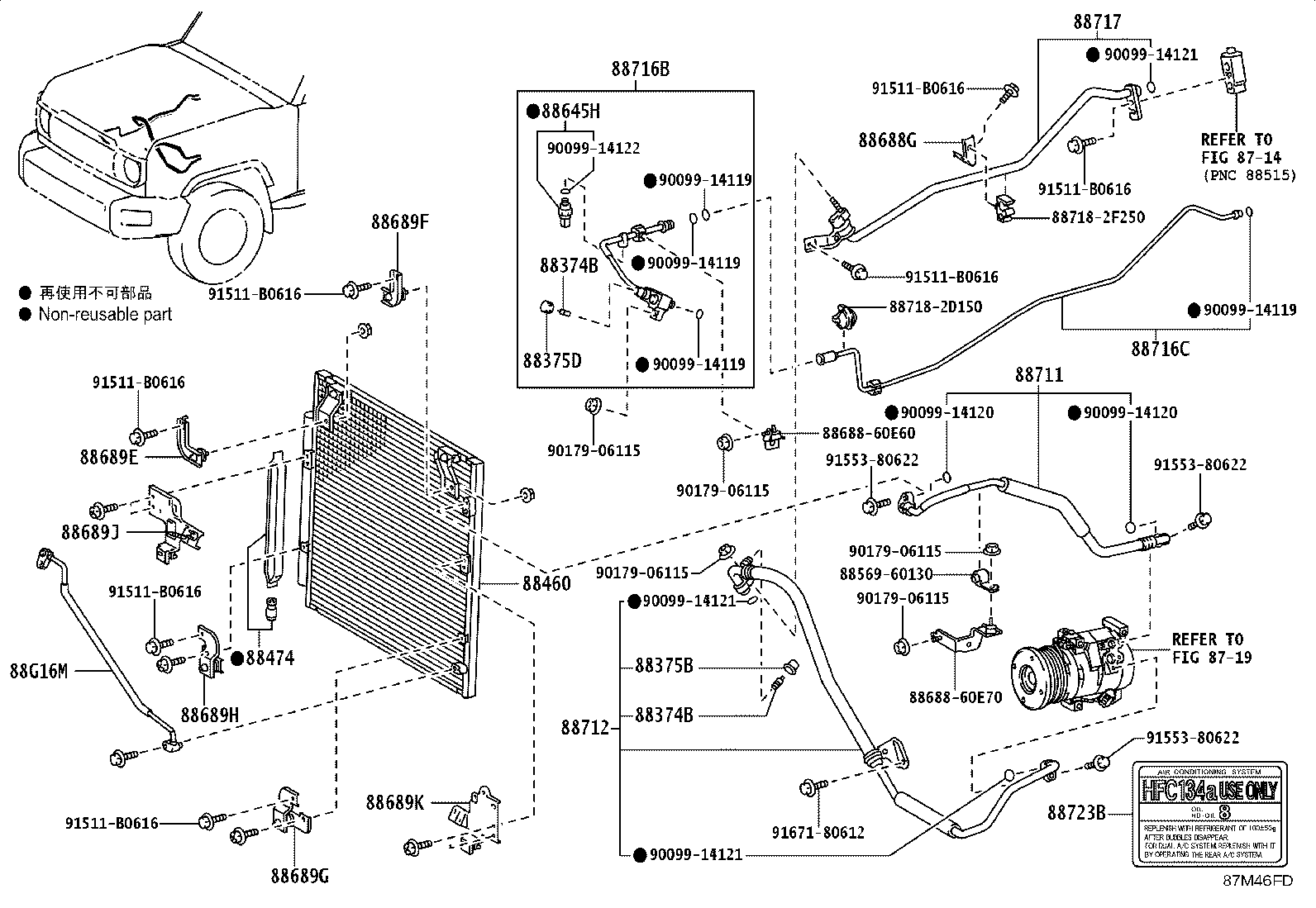

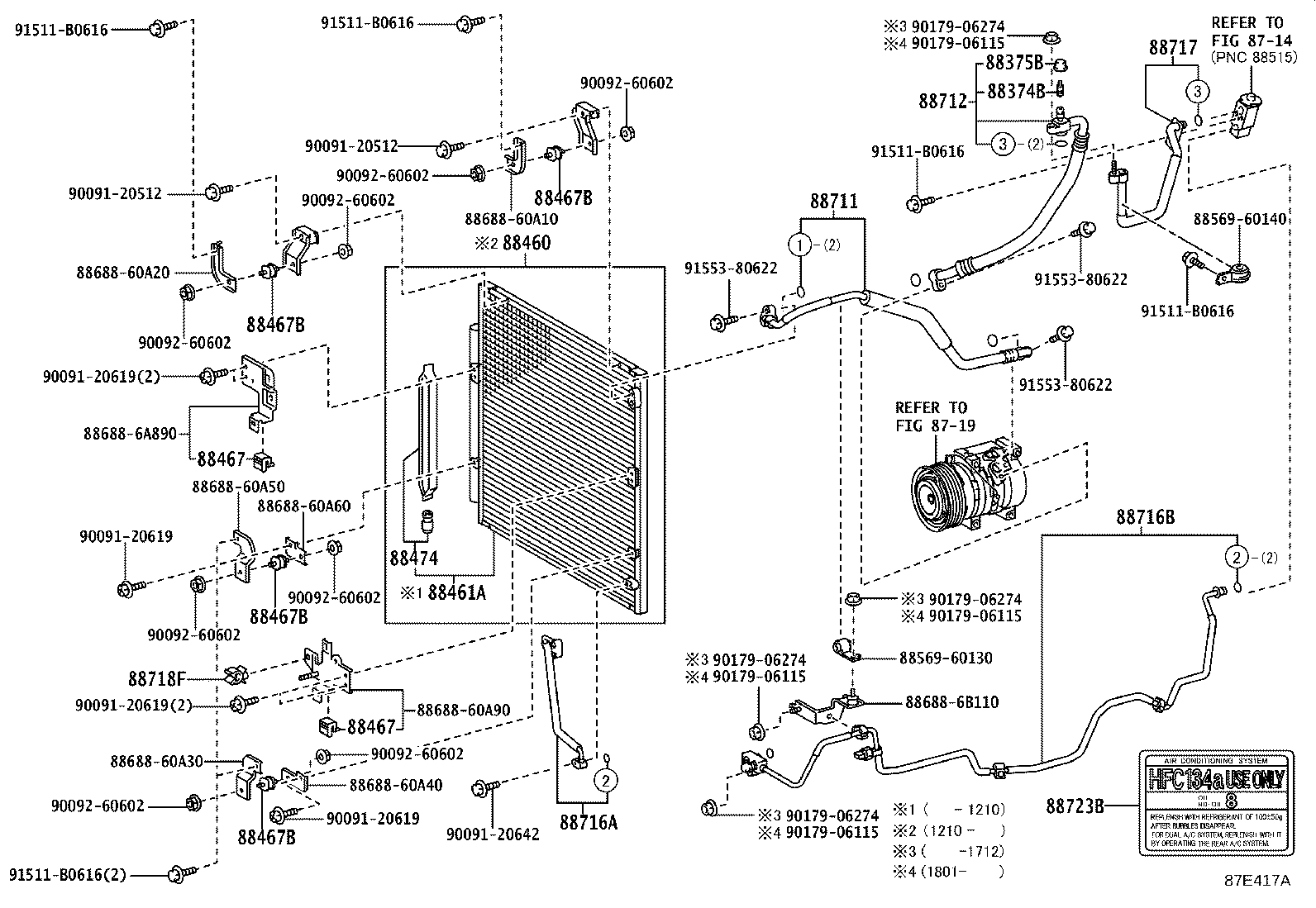

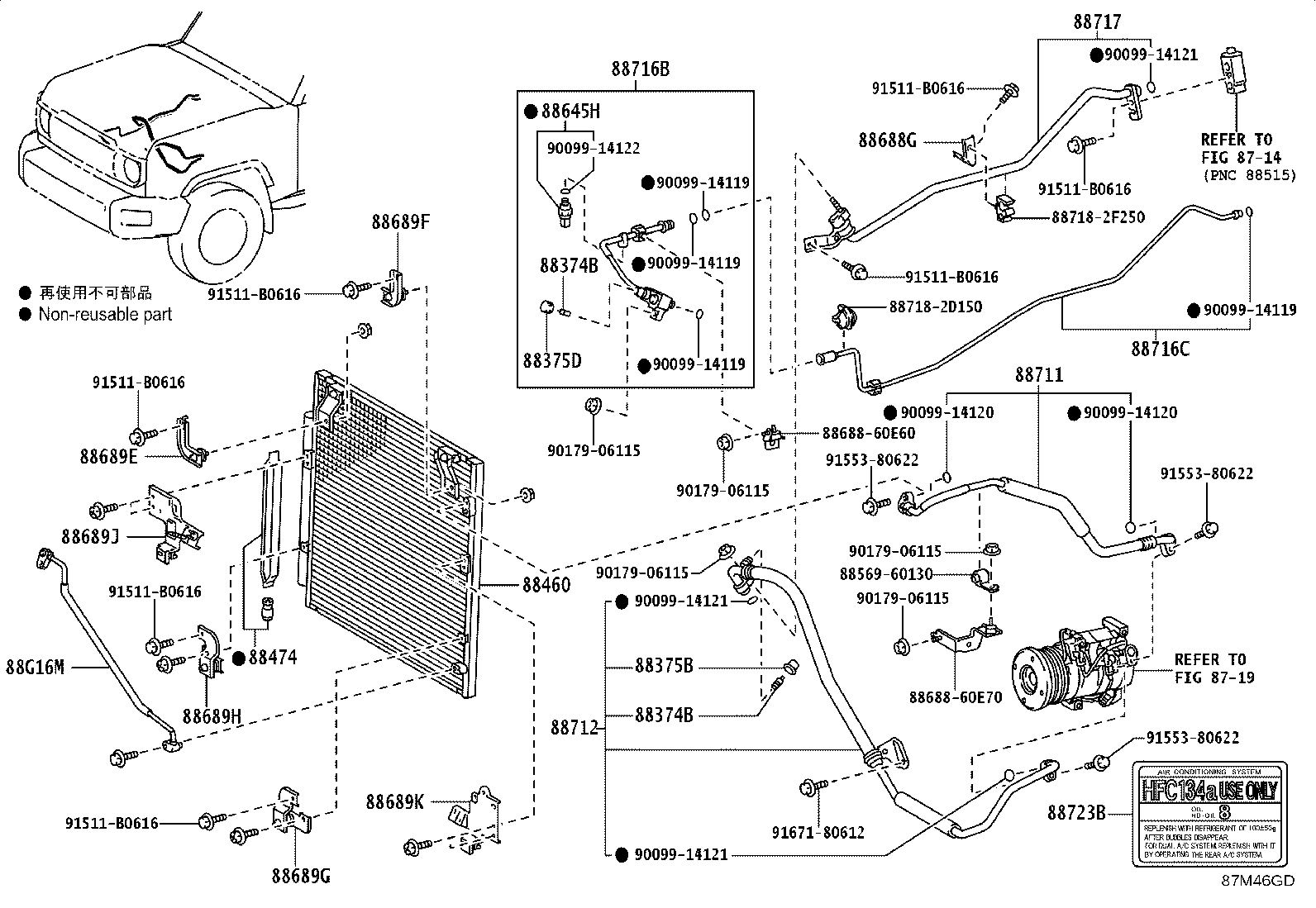

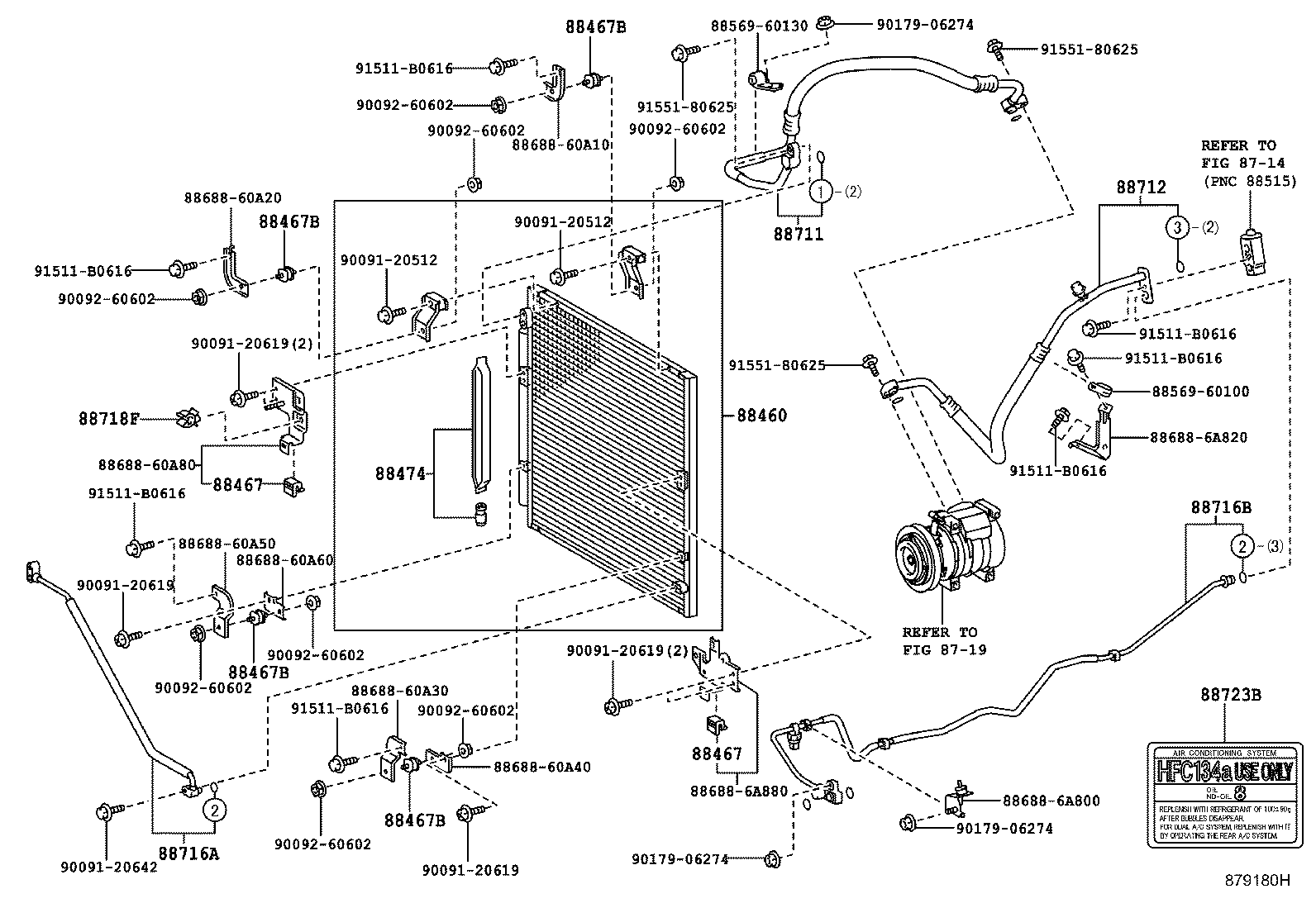

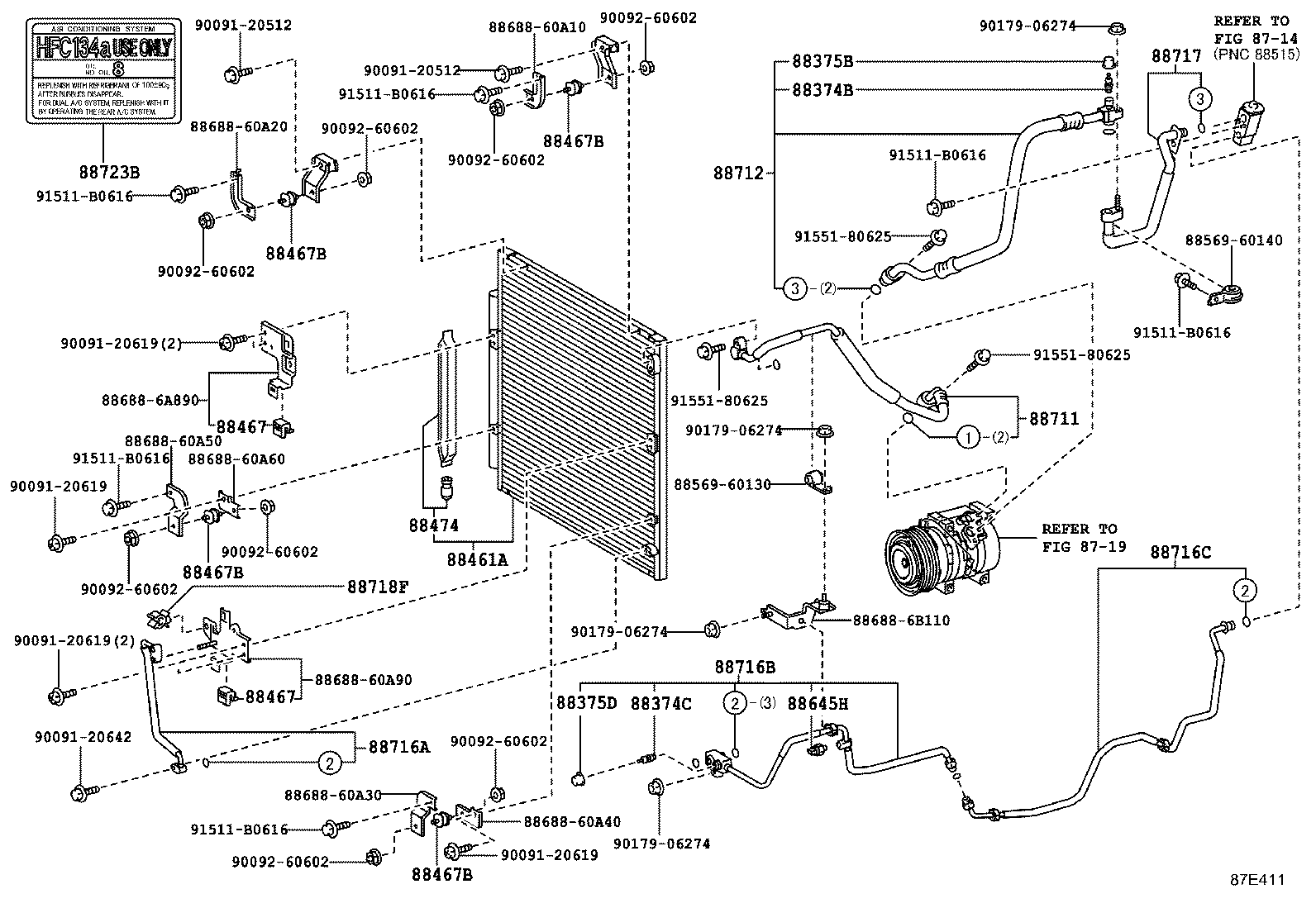

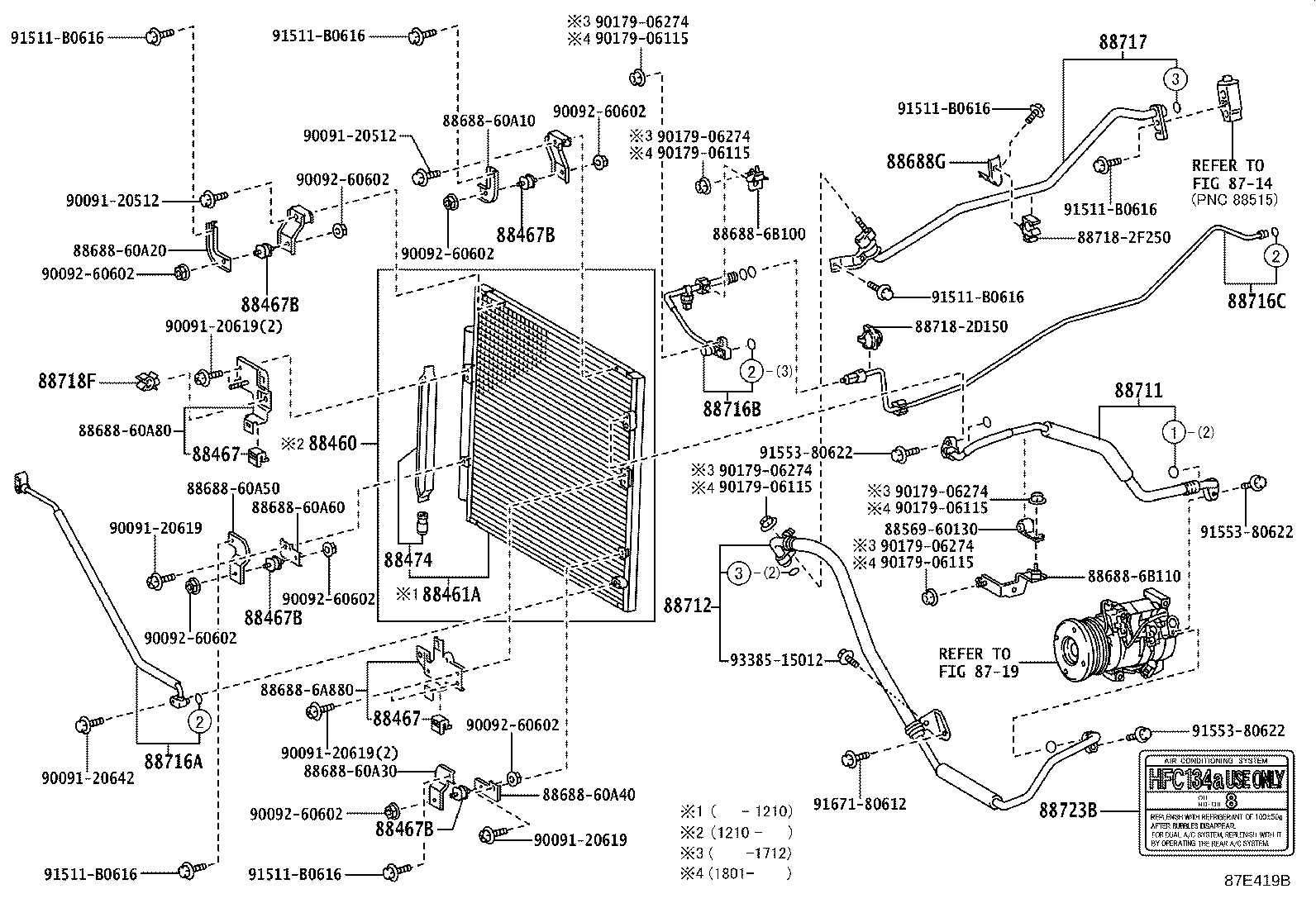

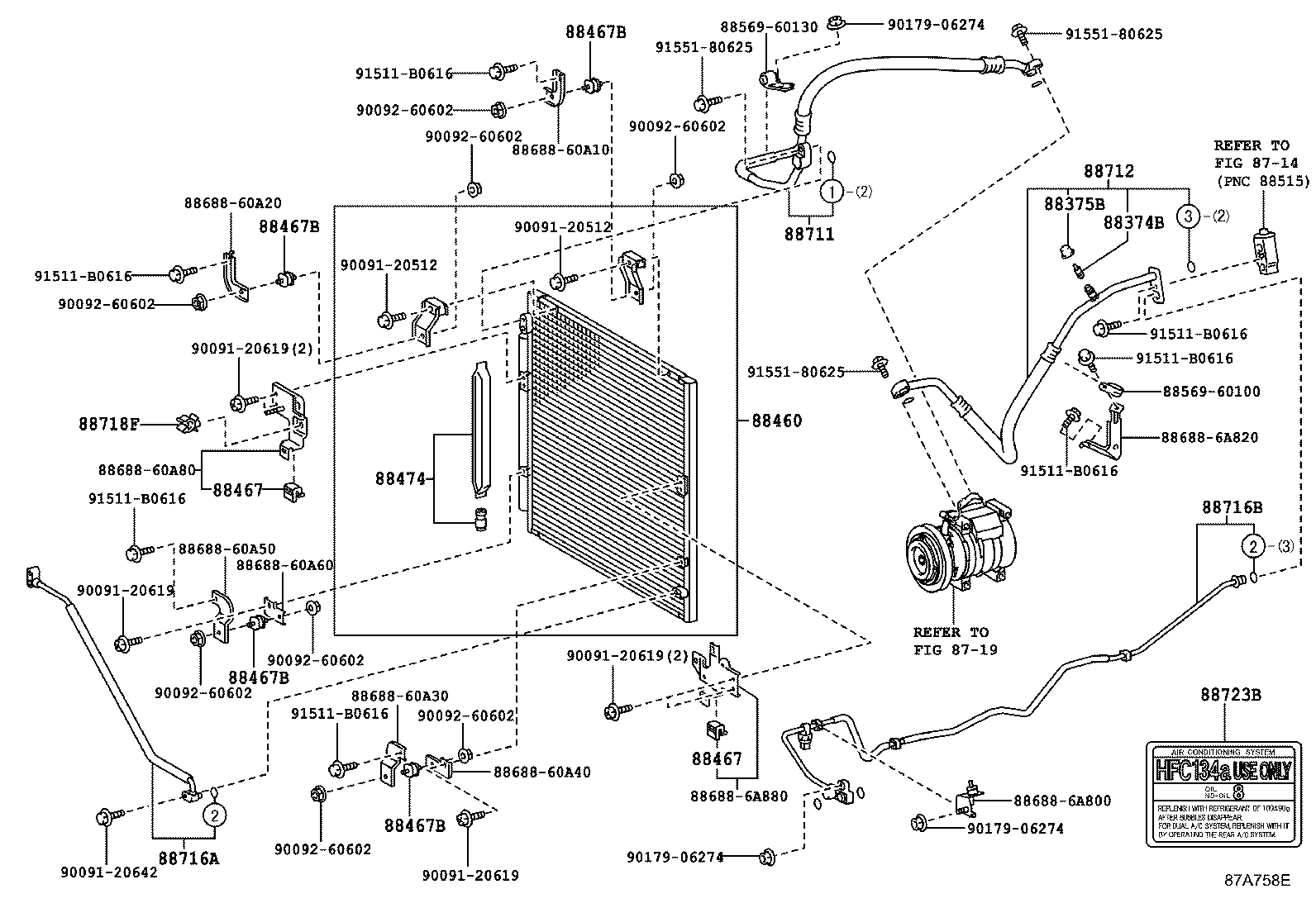

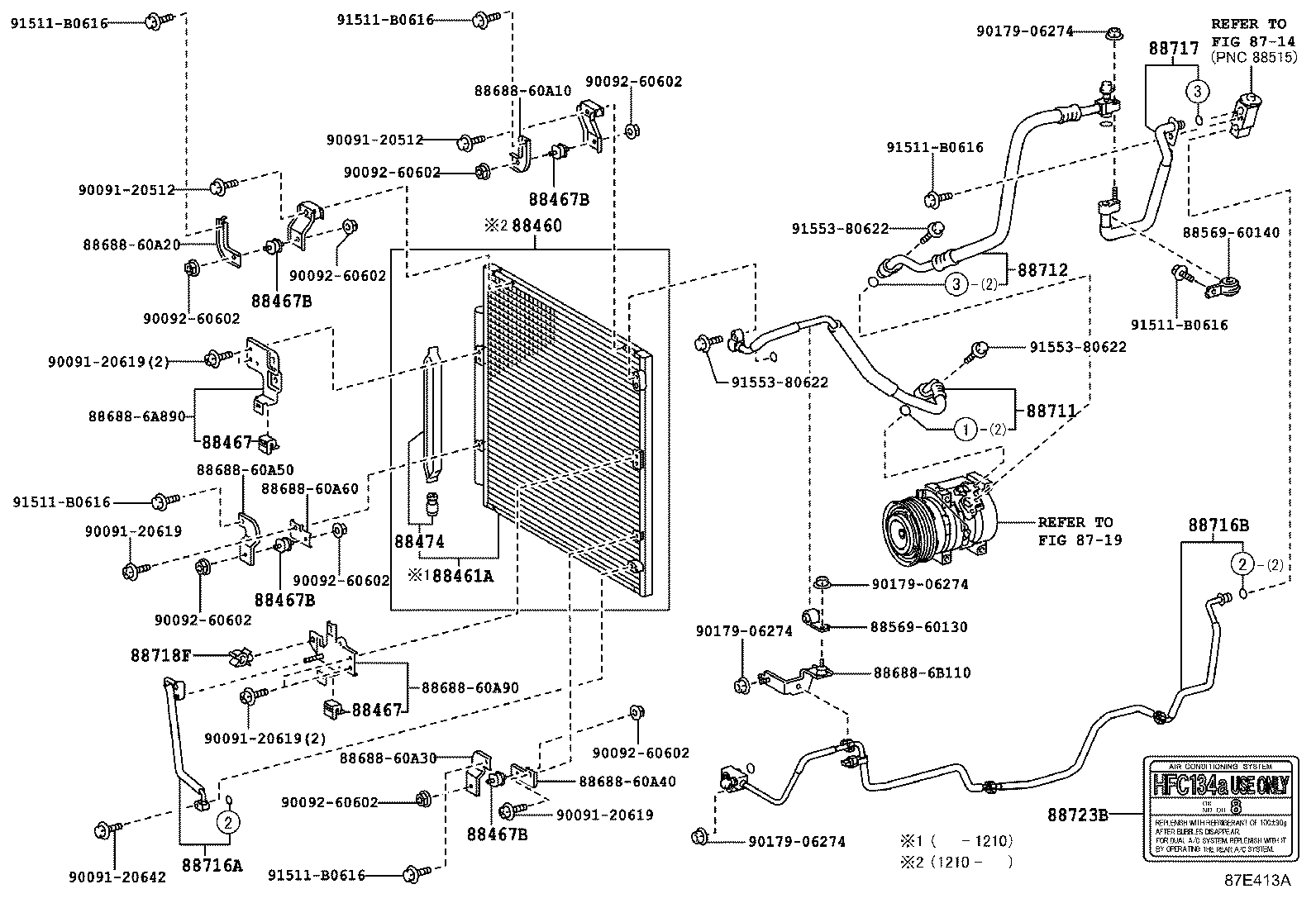

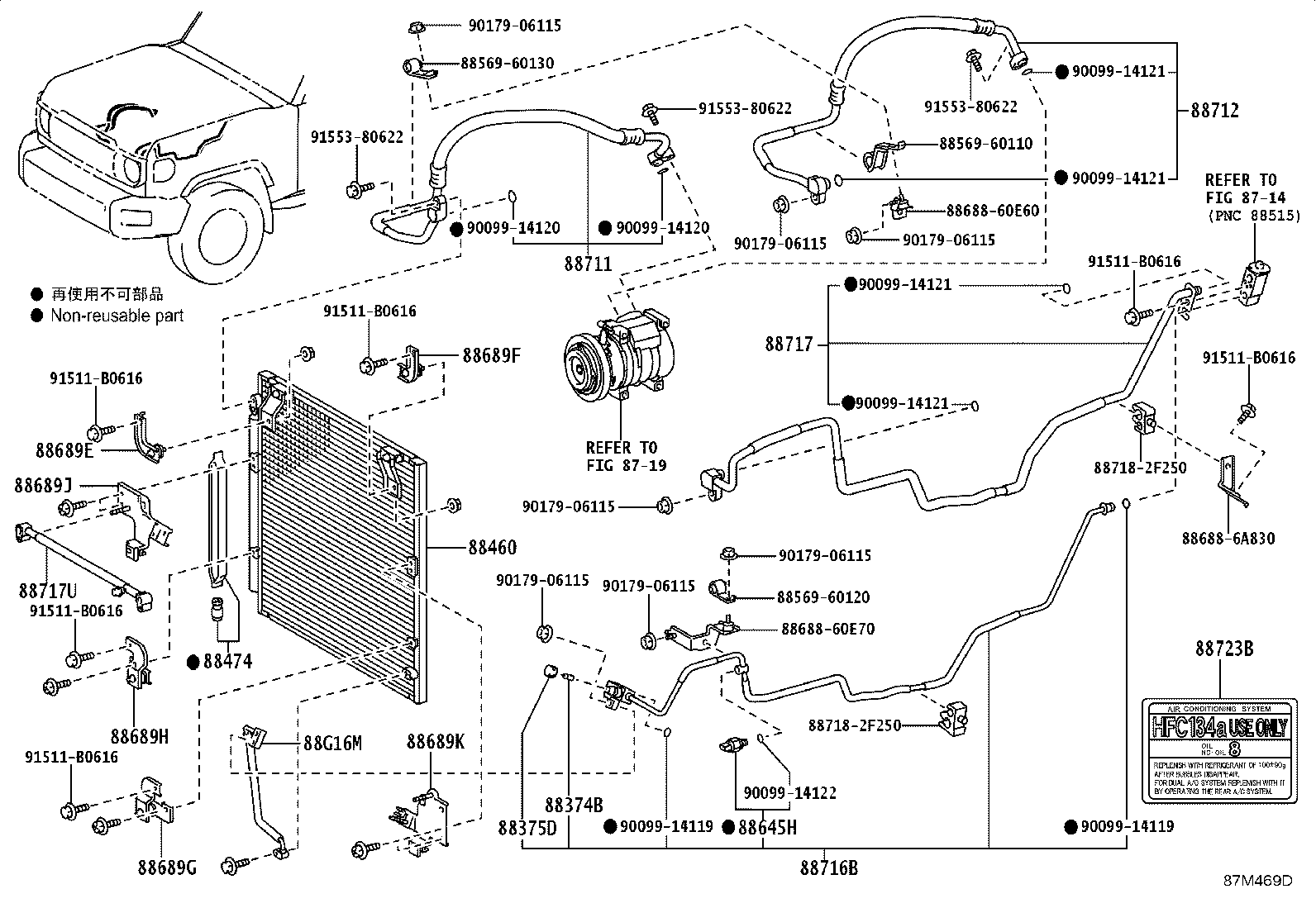

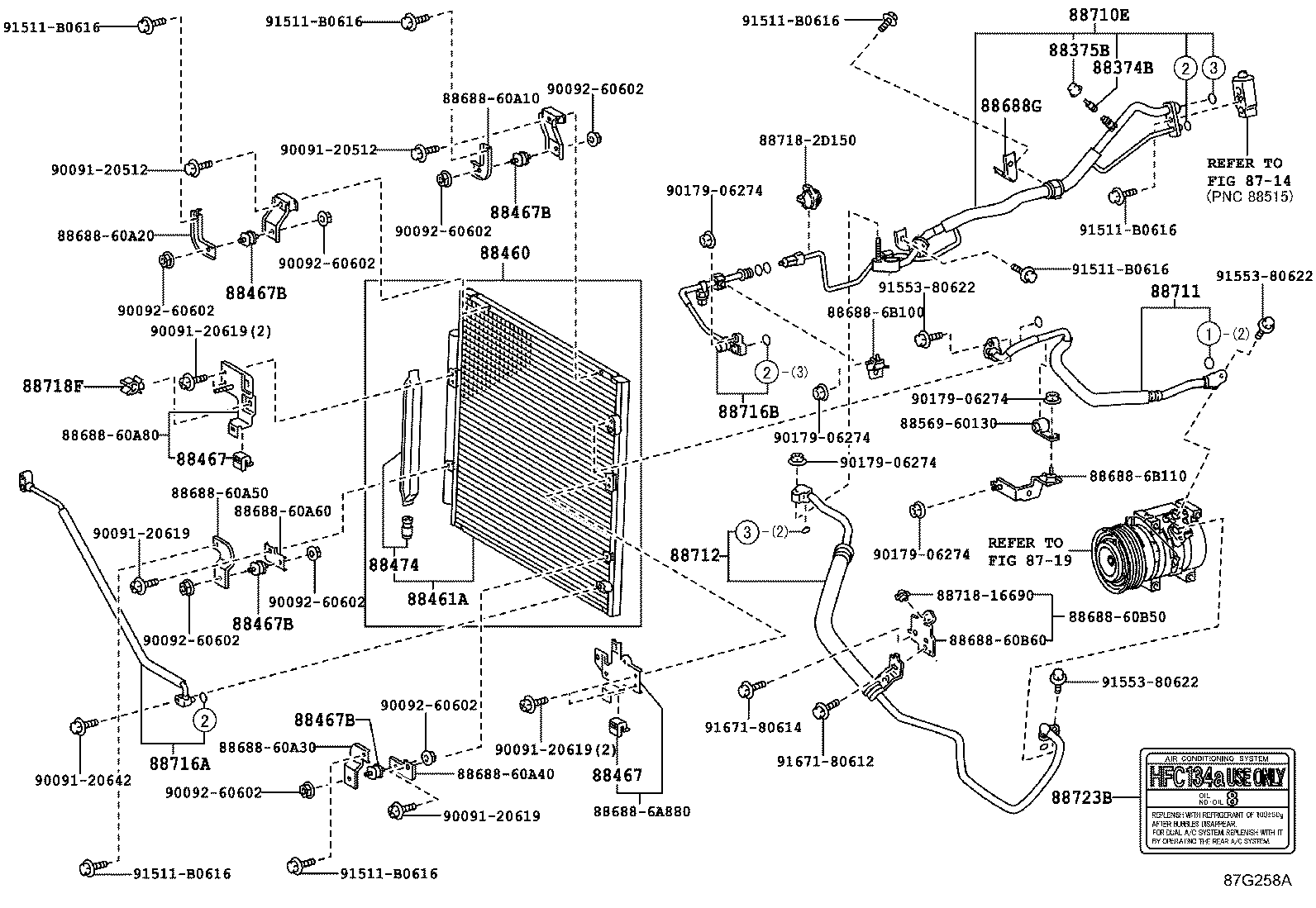

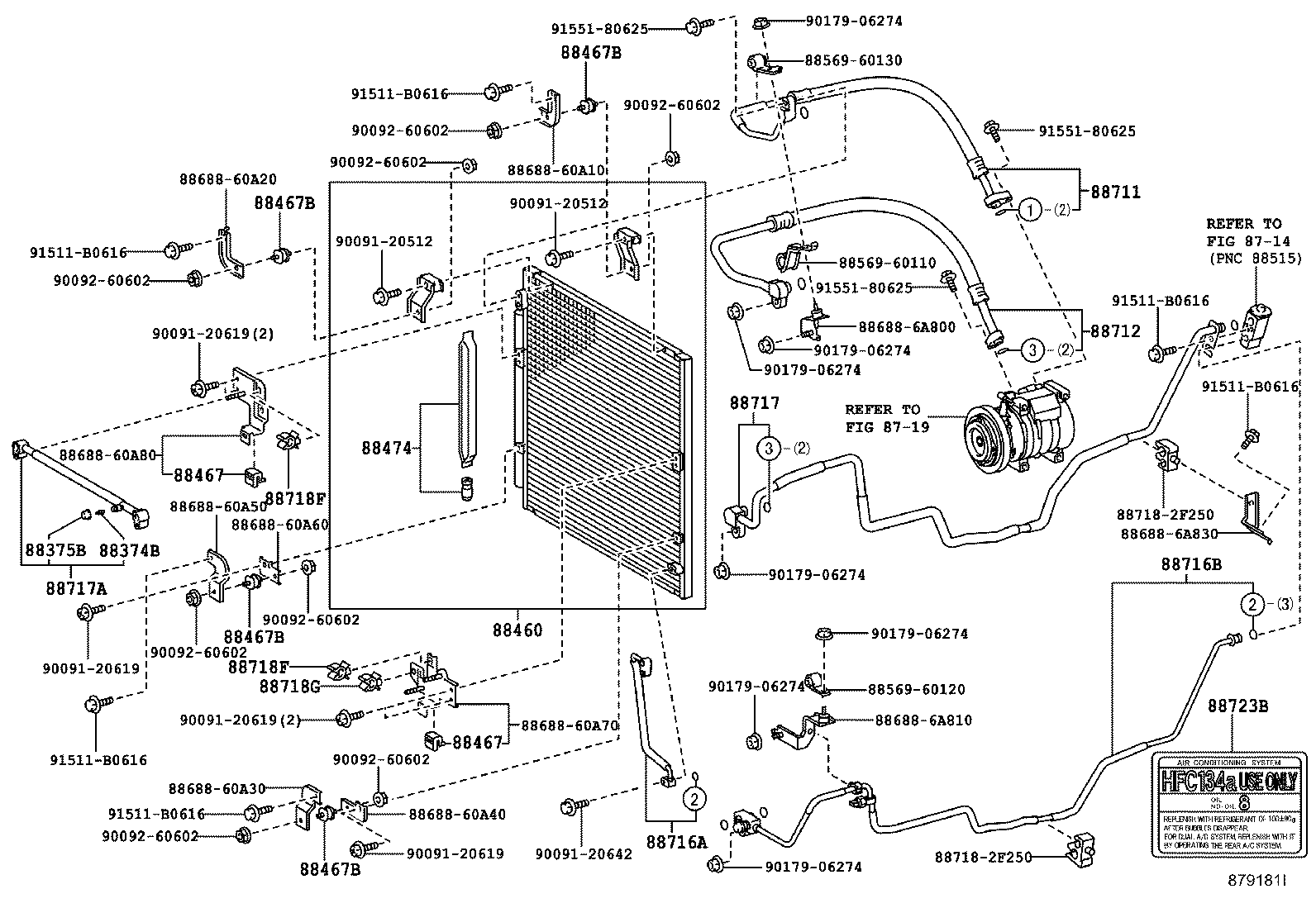

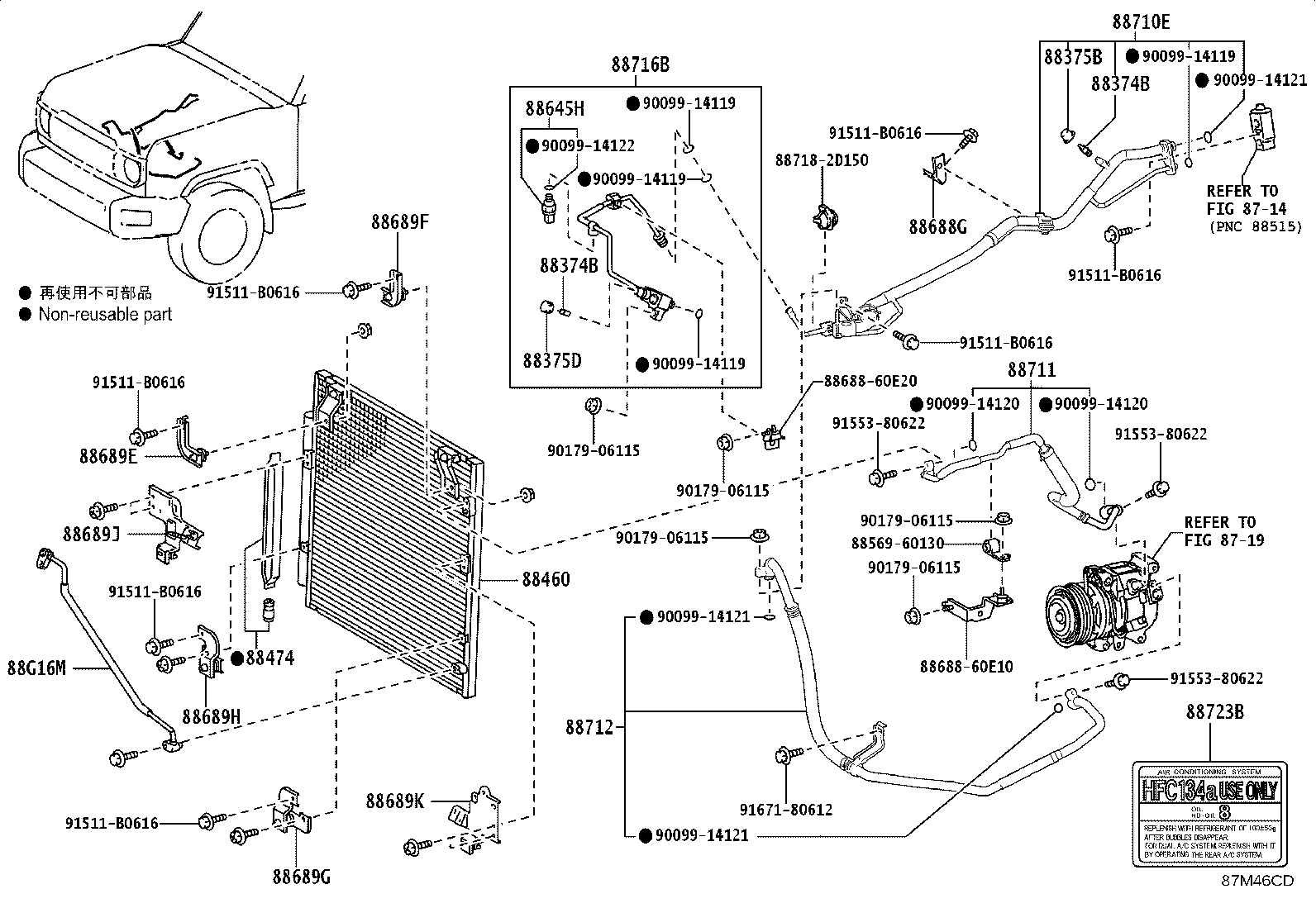

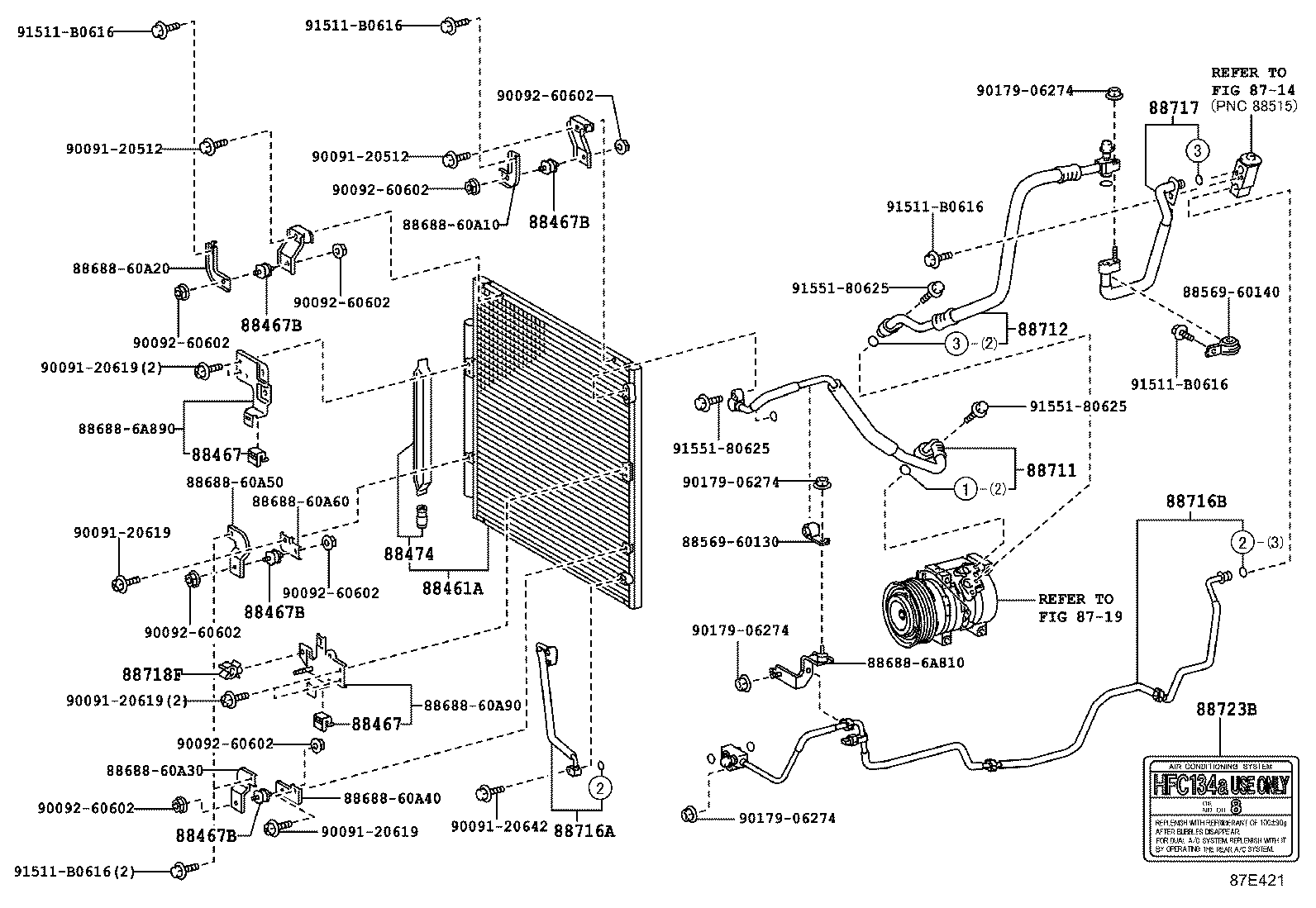

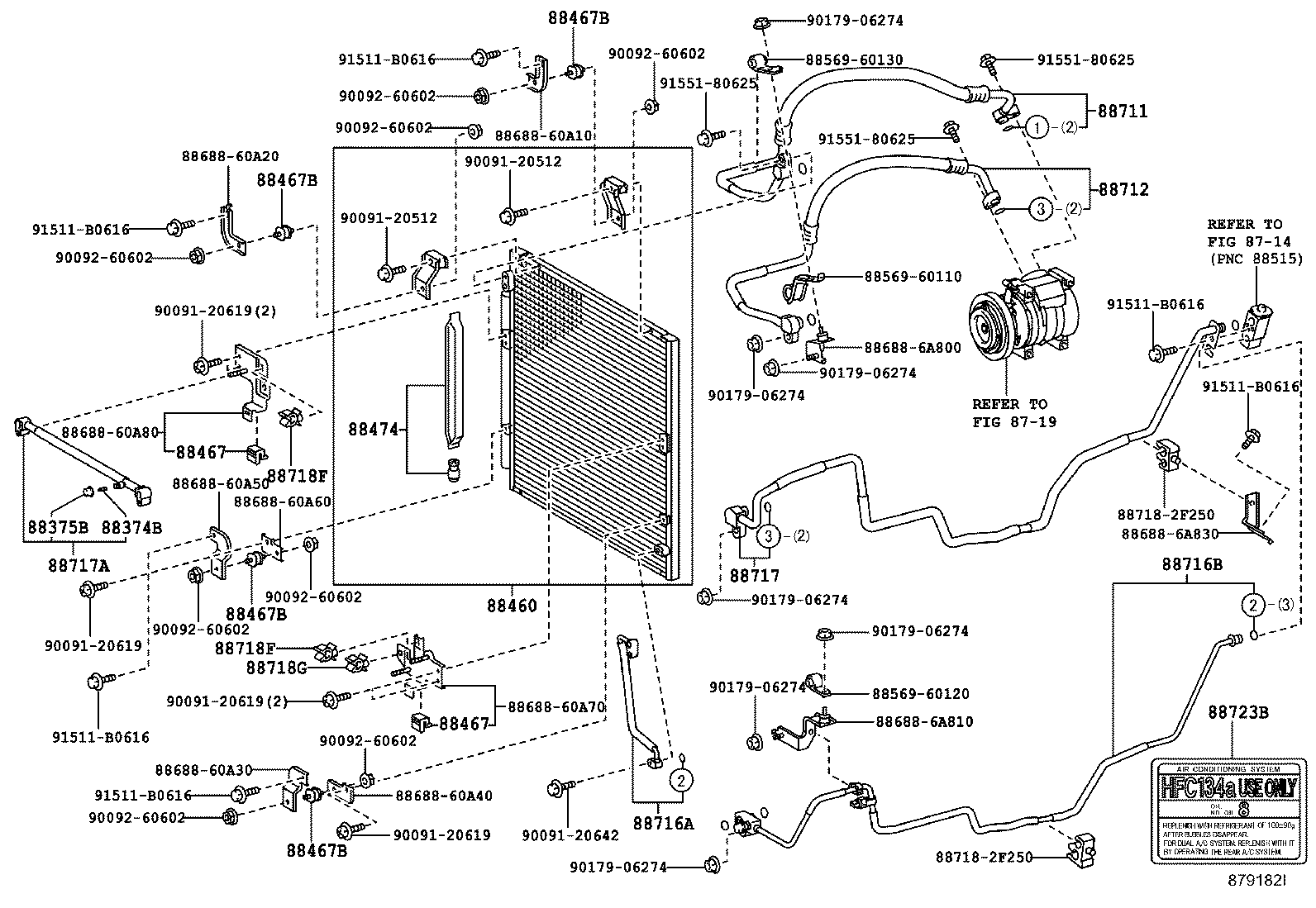

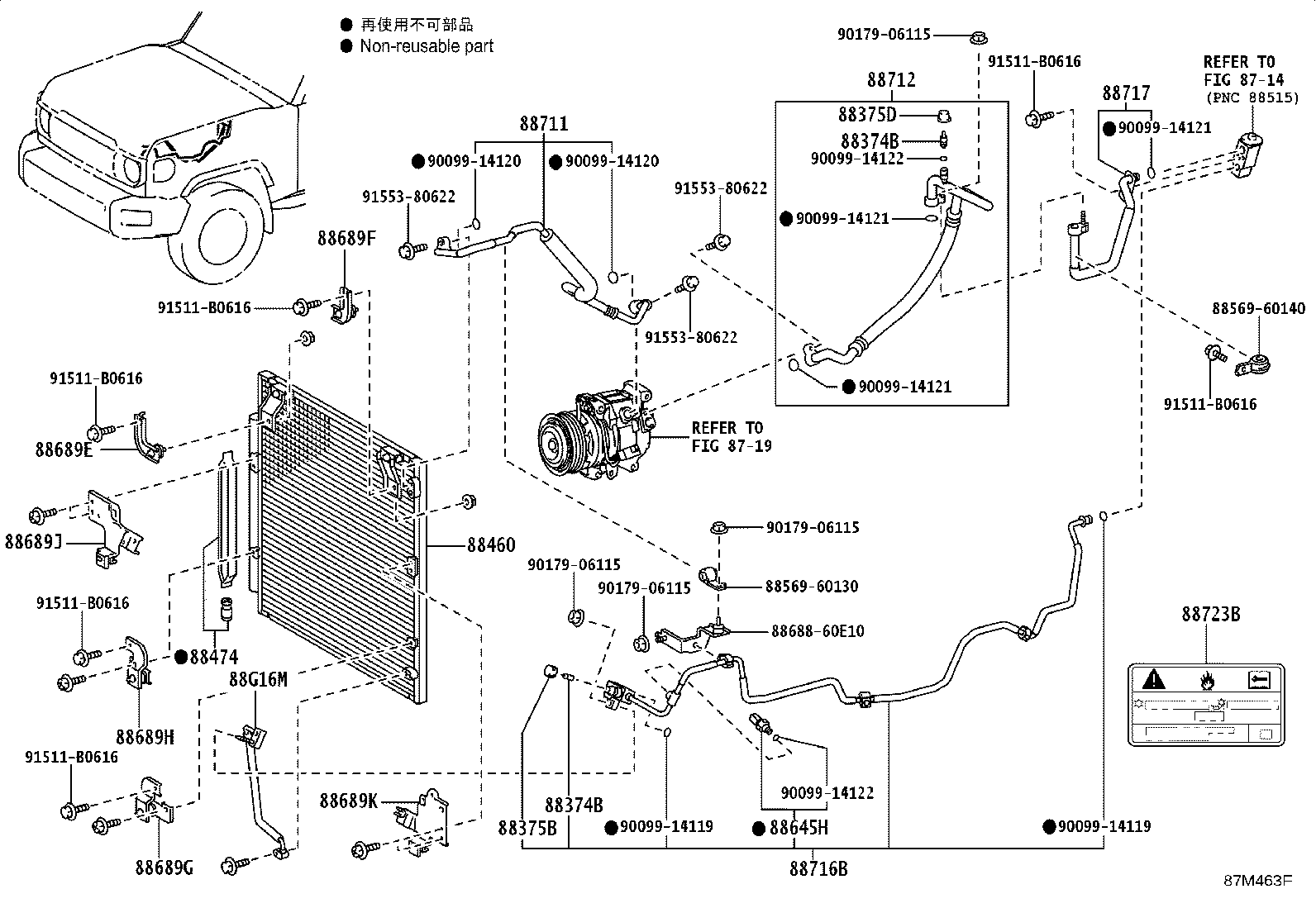

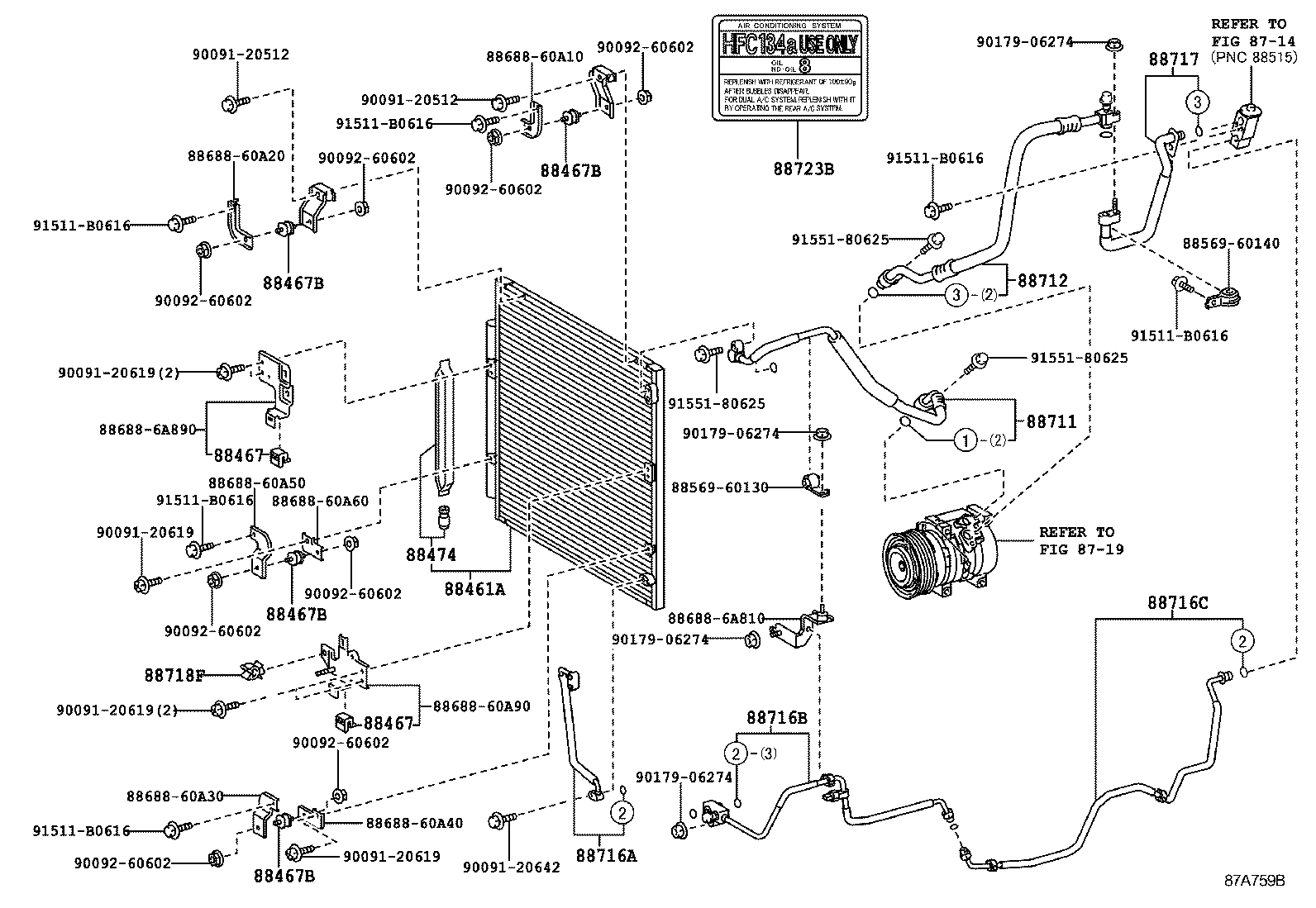

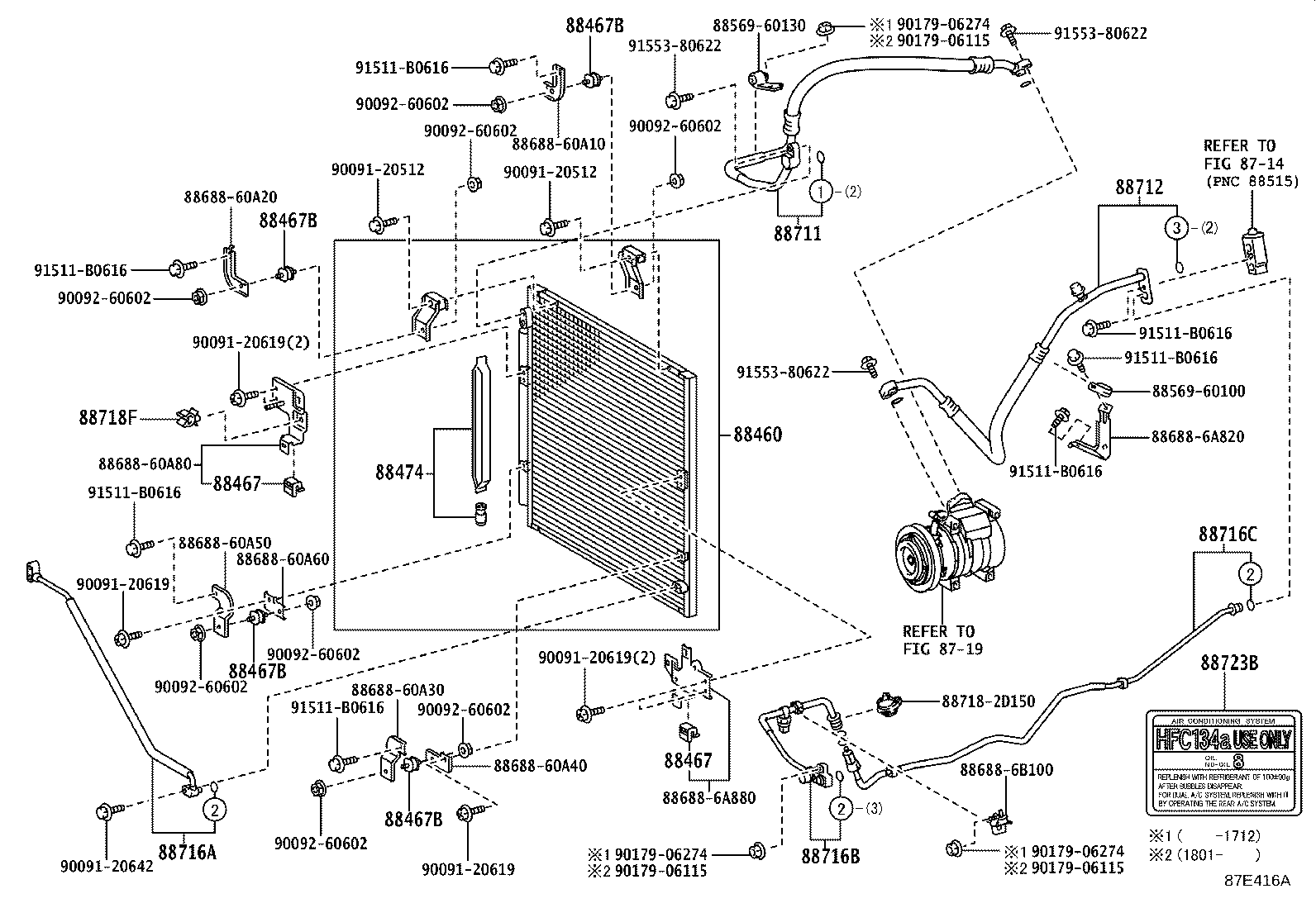

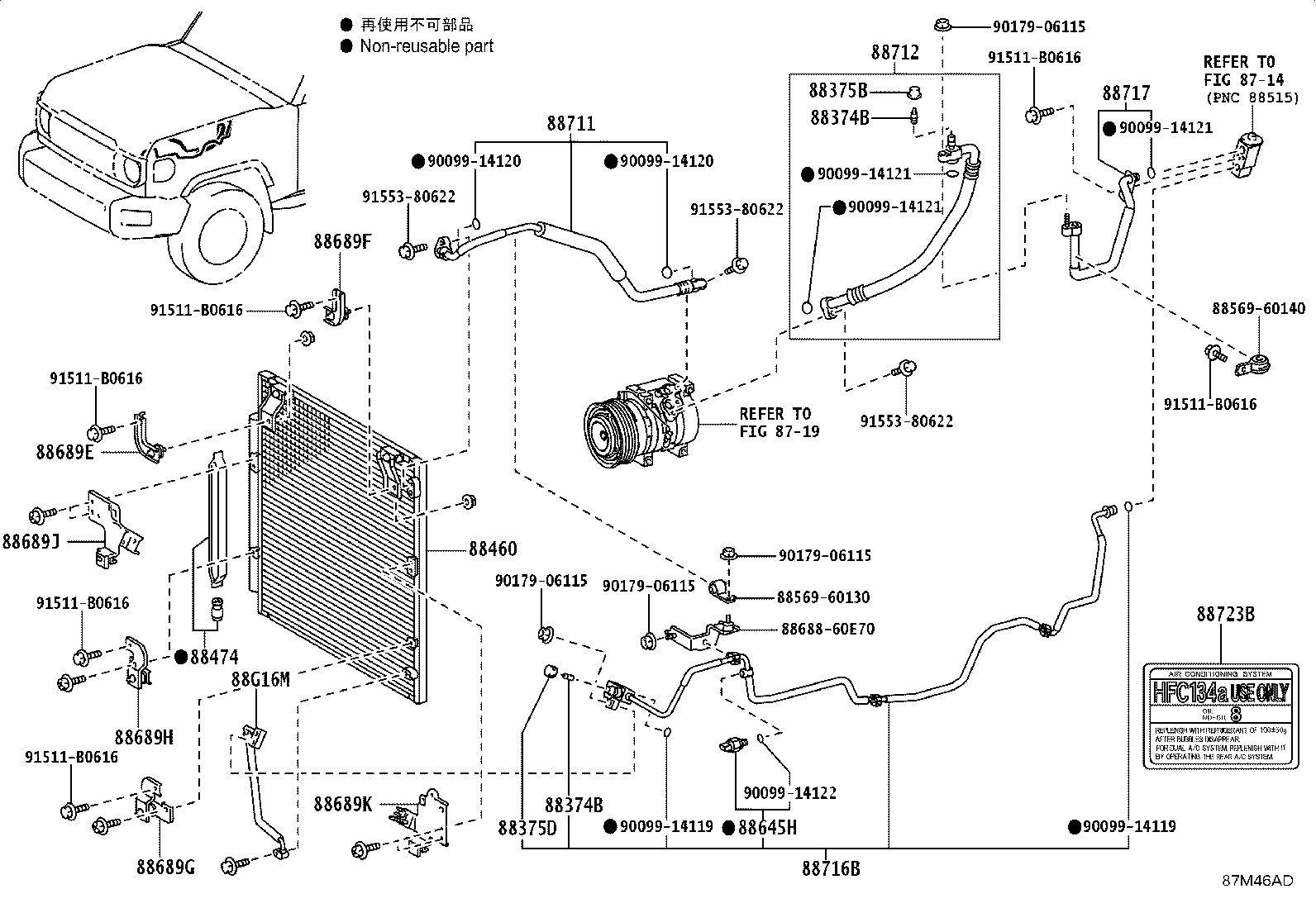

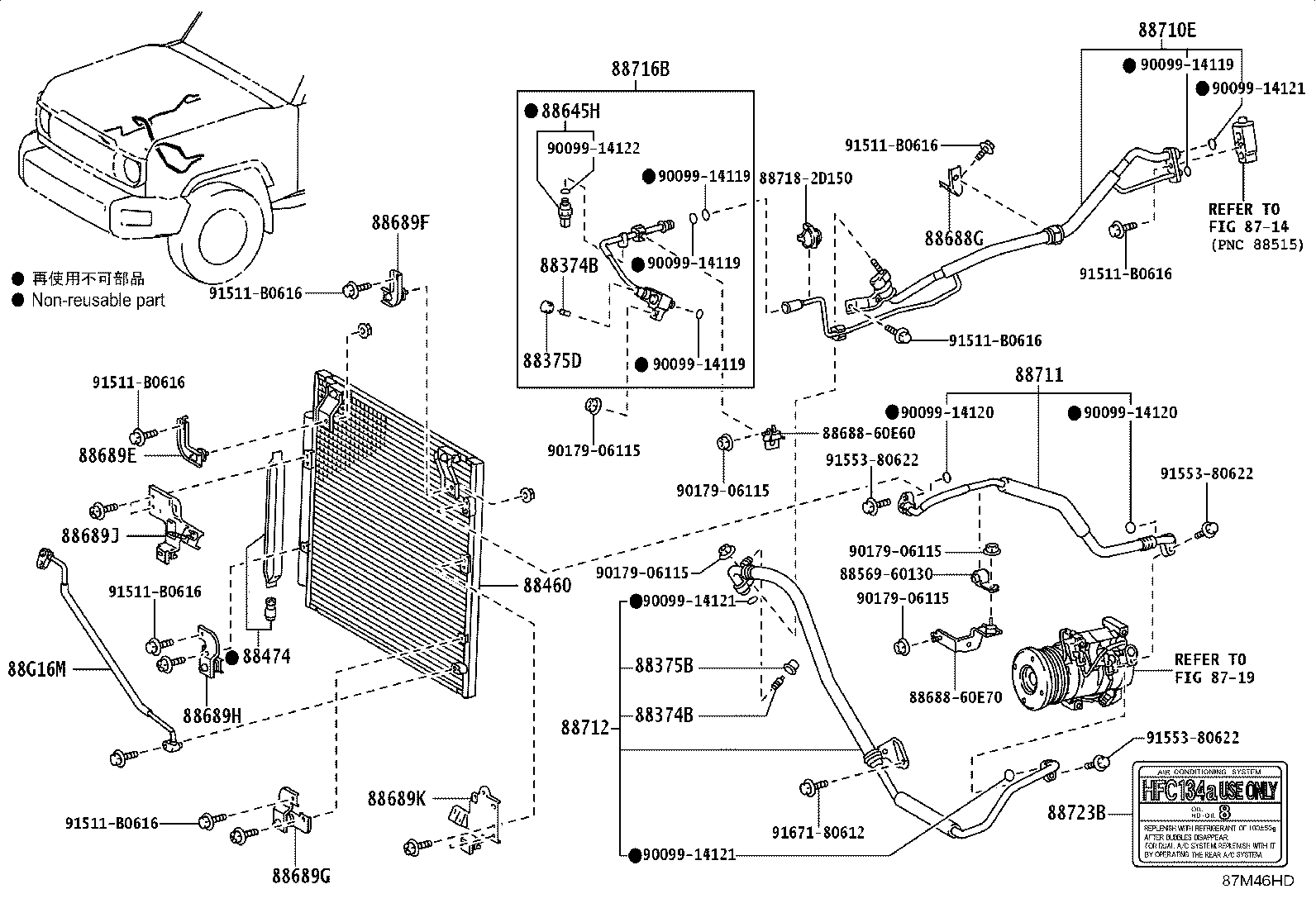

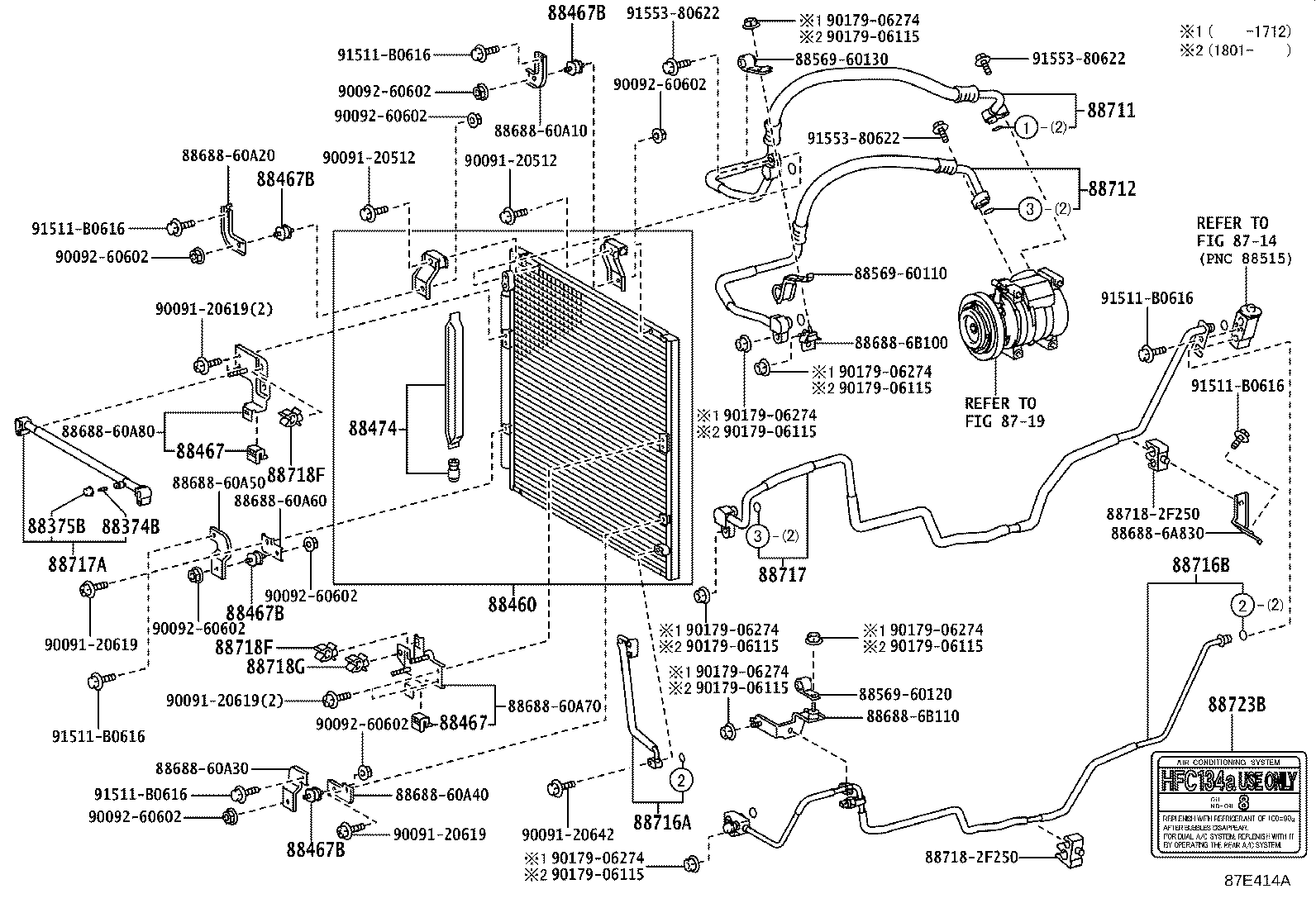

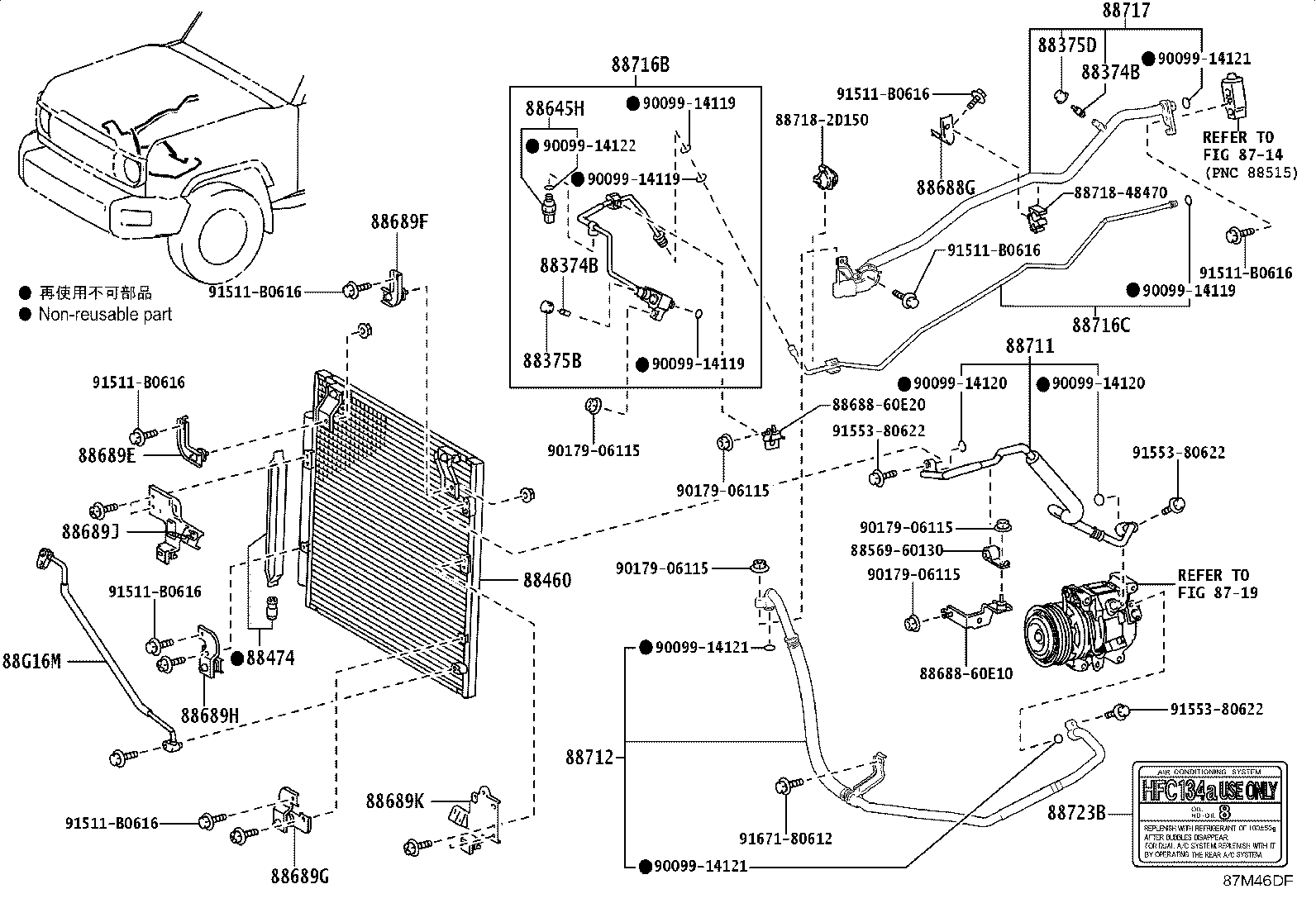

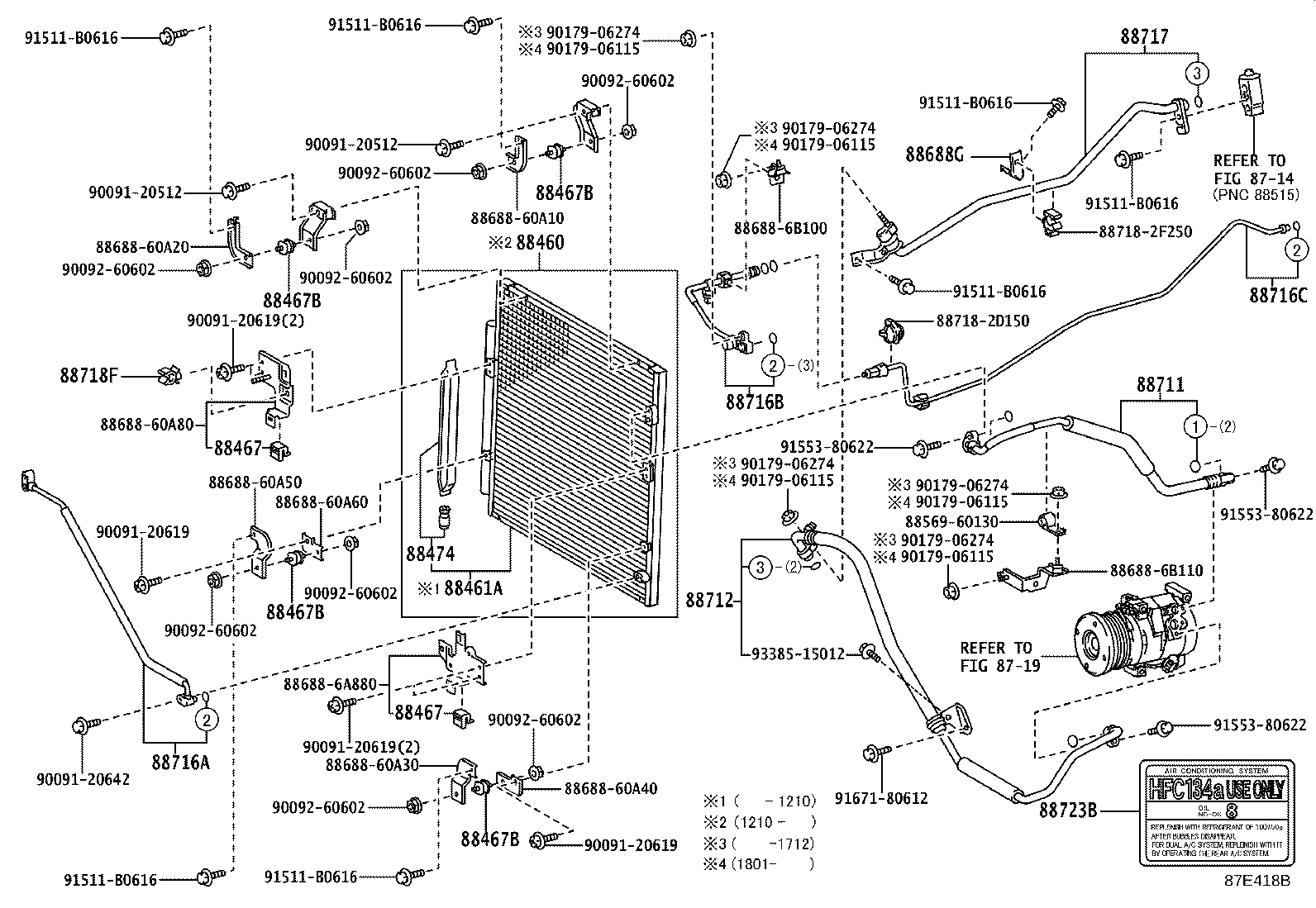

Figure 87A757F 87A757F 2007-01 → 2009-07 Figure 879179H 879179H 2007-01 → 2009-07 Figure 879181I 879181I 2007-01 → 2009-07 Figure 87A758E 87A758E 2007-01 → 2009-07 Figure 879180H 879180H 2007-01 → 2009-07 Figure 879182I 879182I 2007-01 → 2009-07 Figure 87E421 87E421 2007-01 → 2009-07 Figure 87A759B 87A759B 2007-01 → 2009-07 Figure 87E420B 87E420B 2009-07 → — Figure 87E419B 87E419B 2009-07 → — Figure 87E418B 87E418B 2009-07 → — Figure 87E417A 87E417A 2009-07 → — Figure 87E416A 87E416A 2009-07 → — Figure 87E415A 87E415A 2009-07 → — Figure 87E414A 87E414A 2009-07 → — Figure 87E413A 87E413A 2009-07 → — Figure 87E413A 87E413A 2009-07 → — Figure 87E411 87E411 2009-07 → 2012-08 Figure 87E412A 87E412A 2012-08 → — Figure 87G258A 87G258A 2017-01 → — Figure 87M463F 87M463F 2023-08 → — Figure 87M463F 87M463F 2023-09 → — Figure 87M468D 87M468D 2023-09 → — Figure 87M469D 87M469D 2023-09 → — Figure 87M46AD 87M46AD 2023-09 → — Figure 87M46BE 87M46BE 2023-09 → — Figure 87M46CD 87M46CD 2023-09 → — Figure 87M46DF 87M46DF 2023-09 → — Figure 87M46ED 87M46ED 2023-09 → — Figure 87M46FD 87M46FD 2023-09 → — Figure 87M46GD 87M46GD 2023-09 → — Figure 87M46HD 87M46HD 2023-09 → — Figure 871295E 871295E 2007-01 → — Figure 871295E 871295E 2007-01 → — Figure 871295E 871295E 2023-09 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88467 Cushion, Cooler Condenser, NO.1
88467B Insulator, Cooler Condenser Mounting
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88688G Bracket, Cooler Refrigerant Pipe
88689E Bracket, Cooler, NO.1
88689F Bracket, Cooler, NO.2
88689G Bracket, Cooler, NO.3
88689H Bracket, Cooler, NO.4
88689J Bracket, Cooler, NO.5
88689K Bracket, Cooler, NO.6
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717U Tube, Suction, NO.1
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88718G Clamp, NO.2(FOR COOLER REFRIGERANT HOSE)
88723B Label, Cooler Service Caution
88G16M Tube, Liquid, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
