Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

10 part groups · 14 illustrations

Illustrations

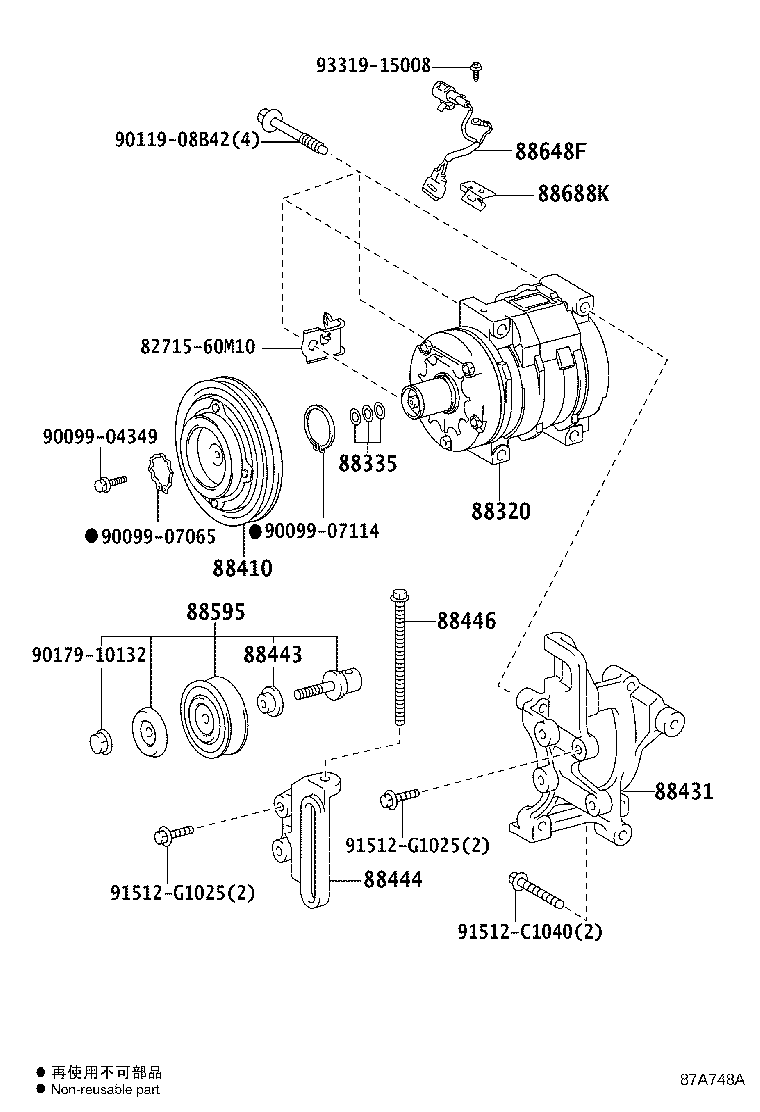

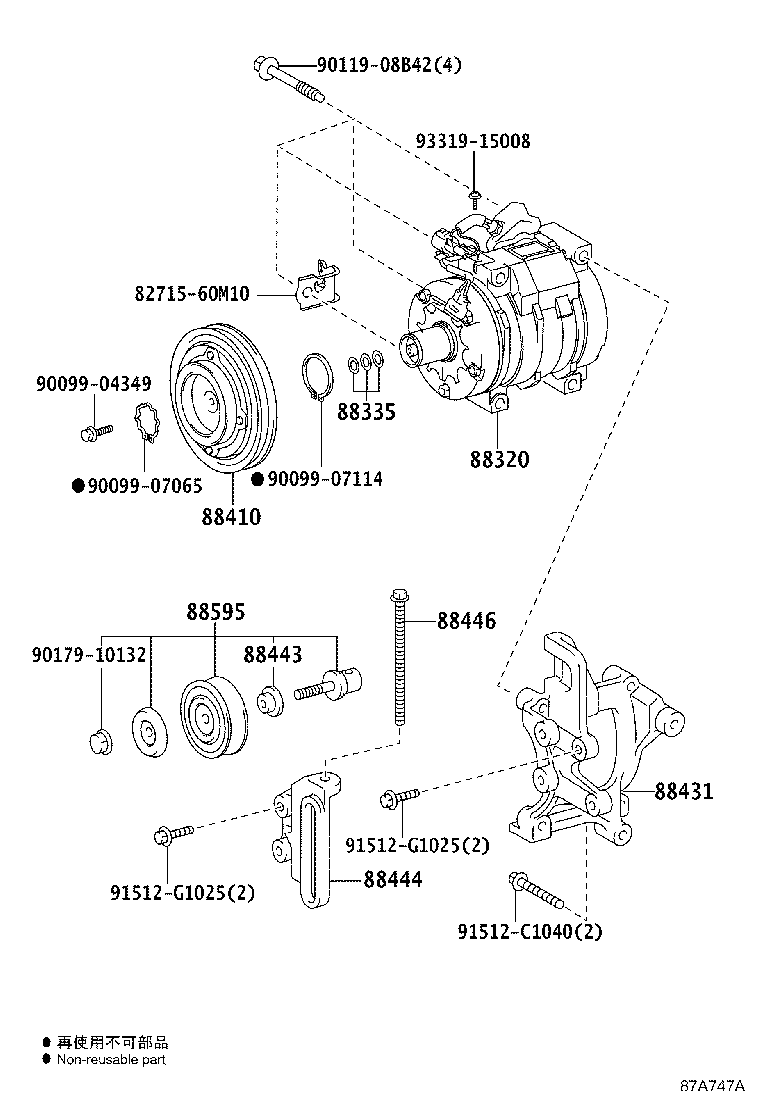

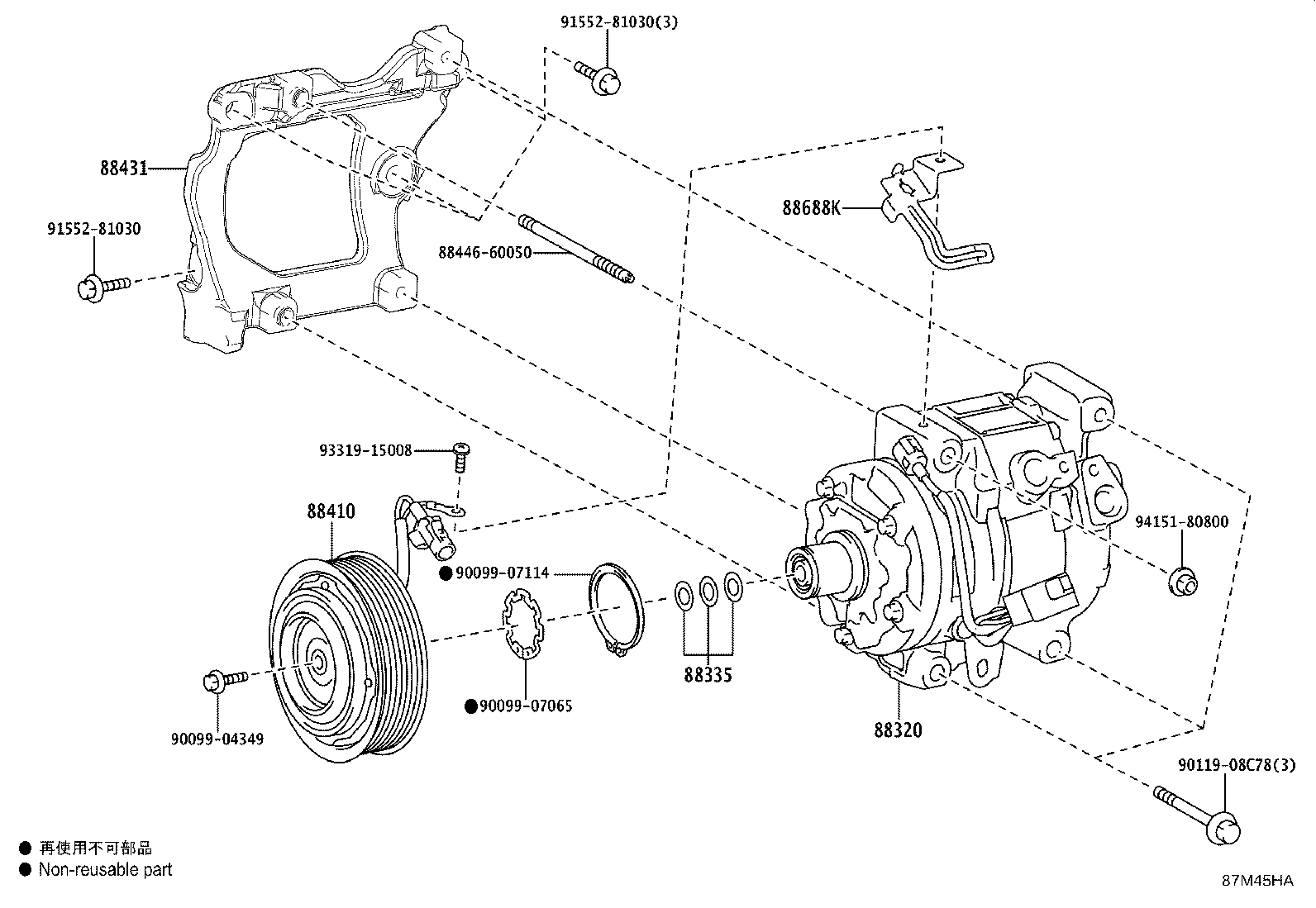

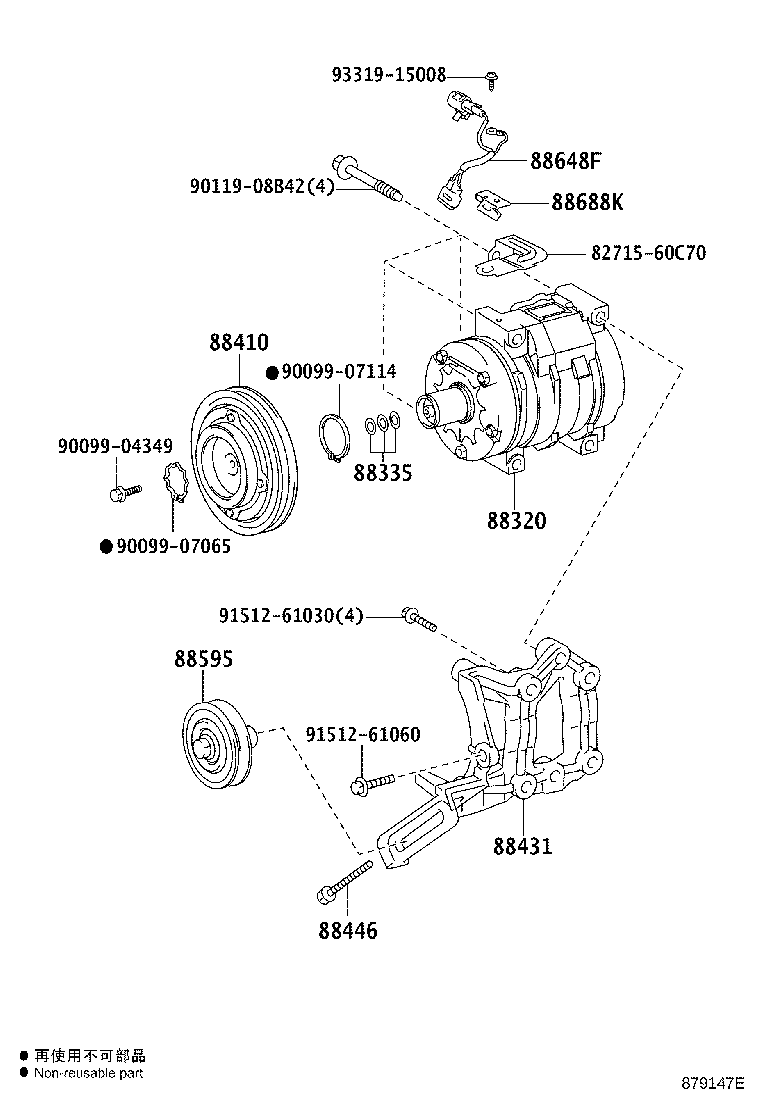

Figure 879148D 879148D 2007-01 → 2009-07 Figure 879147E 879147E 2007-01 → 2009-07 Figure 87A747A 87A747A 2007-01 → — Figure 87A748A 87A748A 2007-01 → — Figure 87A748A 87A748A 2023-09 → — Figure 879149A 879149A 2007-01 → — Figure 879149A 879149A 2007-01 → — Figure 87A950A 87A950A 2009-07 → — Figure 87A950A 87A950A 2023-09 → — Figure 87A951A 87A951A 2009-07 → — Figure 87A951A 87A951A 2023-09 → — Figure 87G300A 87G300A 2017-01 → — Figure 87G300A 87G300A 2023-09 → — Figure 87M45HA 87M45HA 2023-09 → —

Part groups

PNCDescription
88320 Compressor Assy, Cooler
88335 Gasket Kit, Overhaul
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88443 Collar, Idle Pulley
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88595 Pulley, Cooler Compressor Idle
88648F Wire, Magnet Clutch
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
