Toyota Land Cruiser

1980-08 → 1984-10 · chassis BJ42,FJ40 · catalogue 781410 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

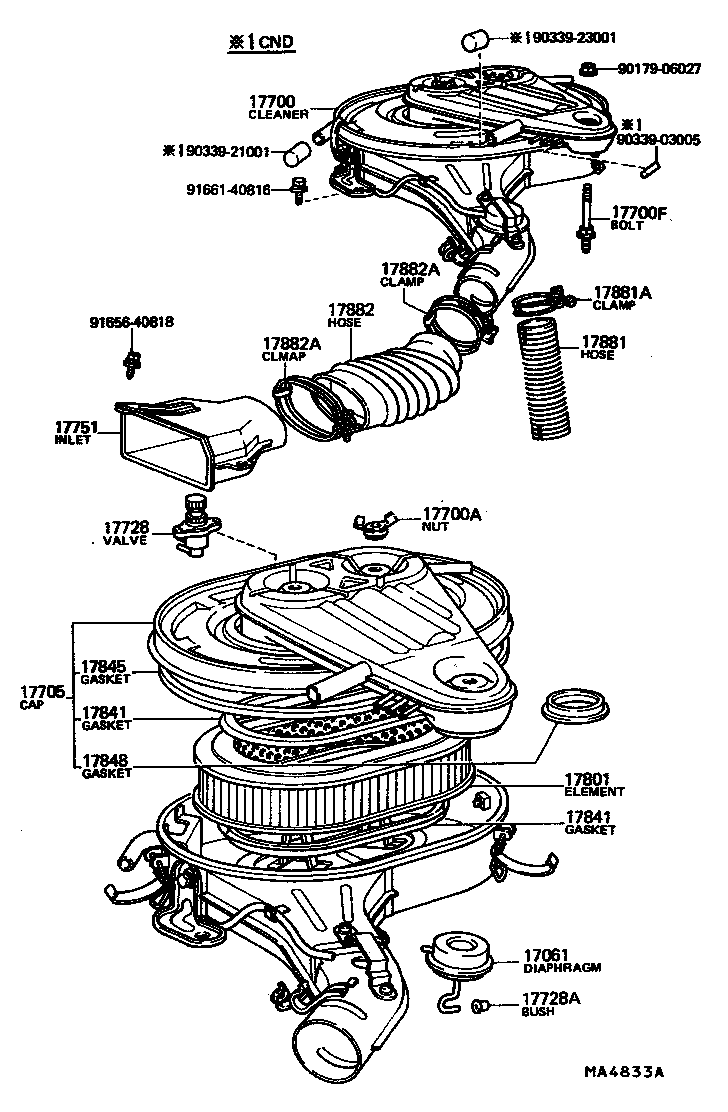

Exploded illustration MA4833A 9033923001 — not listed in this catalogue 9017906027 — not listed in this catalogue 17700 — CLEANER ASSY, AIR (7 parts) 9033903005 — not listed in this catalogue 9033921001 — not listed in this catalogue 9166140816 — not listed in this catalogue 17700F — BOLT, STUD(FOR AIR CLEANER SETTING) (1 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (4 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (2 parts) 17882 — HOSE, AIR CLEANER, NO.2 (2 parts) 9165140818 — not listed in this catalogue 17881 — HOSE, AIR CLEANER, NO.1 (2 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (4 parts) 17751 — INLET, AIR CLEANER, NO.1 (1 parts) 17700A — NUT, WING(FOR AIR CLEANER) (3 parts) 17728 — VALVE, THERMOSTATIC (1 parts) 17845 — GASKET, AIR CLEANER CAP (3 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (3 parts) 17841 — GASKET, FILTER ELEMENT (2 parts) 17848 — GASKET, AIR CLEANER TO CARBURETOR (1 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (3 parts) 17841 — GASKET, FILTER ELEMENT (2 parts) 17061 — DIAPHRAGM SUB-ASSY (1 parts) 17728A — BUSH (1 parts)
MA4833A · 18 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
17061 — Diaphragm Sub-assy
17061-61020 Diaphragm Sub-assy
1980-08 → 1983-09 ended
2F FJ40 —
17700 — Cleaner Assy, Air
17700-58010 note Cleaner Assy, Air
1980-08 → 1981-10 ended
3B BJ42 —
17700-58011 note Cleaner Assy, Air
1981-10 → 1982-10 ended
3B BJ42 —
17700-58012 note Cleaner Assy, Air
1982-10 → 1984-10 ended
3B BJ42 —
17700-58030 note Cleaner Assy, Air
1980-08 → 1981-10 ended
3B BJ42 —
17700-58031 note Cleaner Assy, Air
1981-10 → 1982-10 ended
3B BJ42 —
17700-58032 note Cleaner Assy, Air
1982-10 → 1984-10 ended
3B BJ42 —
17700-61023 Cleaner Assy, Air
1980-08 → 1983-09 ended
2F FJ40 —
17700A — Nut, Wing(FOR AIR CLEANER)
90175-06003 Nut, Wing(FOR AIR CLEANER)
1980-08 → 1983-09 ended
2F FJ40 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1981-10 → 1984-10 ended
3B BJ42 —
94271-00800 Nut, Wing(FOR AIR CLEANER)
1980-08 → 1981-10 ended
3B BJ42 —
17700F — Bolt, Stud(FOR AIR CLEANER SETTING)
90116-06018 Bolt, Stud(FOR AIR CLEANER SETTING)
1980-08 → 1983-09 ended
2F FJ40 —
17705 — Cap Sub-assy, Air Cleaner
17705-56071 note Cap Sub-assy, Air Cleaner
1980-08 → 1981-10 ended
3B BJ42 —
17705-56290 note Cap Sub-assy, Air Cleaner
1981-10 → 1984-10 ended
3B BJ42 —
17705-61023 Cap Sub-assy, Air Cleaner
1980-08 → 1983-09 ended
2F FJ40 —
17728 — Valve, Thermostatic
17728-24030 Valve, Thermostatic
1980-08 → 1983-09 ended
2F FJ40 —
17728A — Bush
90386-03001 Bush
1980-08 → 1983-09 ended
2F FJ40 —
17751 — Inlet, Air Cleaner, NO.1
17751-61021 Inlet, Air Cleaner, NO.1
1980-08 → 1983-09 ended
2F FJ40 —
17801 — Element Sub-assy, Air Cleaner Filter
17801-61010 Element Sub-assy, Air Cleaner Filter
1980-08 → 1983-09 ended
2F FJ40 —
17801-66020 Element Sub-assy, Air Cleaner Filter
1980-08 → 1982-10 ended
3B BJ42 —
17801-68020 Element Sub-assy, Air Cleaner Filter
1982-10 → 1984-10 ended
3B BJ42 —
17841 — Gasket, Filter Element
17841-61011 Gasket, Filter Element
1980-08 → 1983-09 ended
2F FJ40 —
17841-68010 Gasket, Filter Element
1980-08 → 1984-10 ended
3B BJ42 —
17845 — Gasket, Air Cleaner Cap
17845-56040 Gasket, Air Cleaner Cap
1980-08 → 1982-10 ended
3B BJ42 —
17845-61011 Gasket, Air Cleaner Cap
1980-08 → 1983-09 ended
2F FJ40 —
17845-61011 note Gasket, Air Cleaner Cap
1982-10 → 1984-10 ended
3B BJ42 —
17848 — Gasket, Air Cleaner TO Carburetor
17848-61020 Gasket, Air Cleaner TO Carburetor
1980-08 → 1983-09 ended
2F FJ40 —
17881 — Hose, Air Cleaner, NO.1
17881-56030 Hose, Air Cleaner, NO.1
1980-08 → 1984-10 ended
3B BJ42 —
17881-61010 Hose, Air Cleaner, NO.1
1980-08 → 1983-09 ended
2F FJ40 —
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10650 Clamp(FOR AIR CLEANER HOSE, NO.1)
1980-08 → 1983-09 ended
2F FJ40 —
96111-10670 Clamp(FOR AIR CLEANER HOSE, NO.1)
1980-08 → 1984-10 ended
3B BJ42 —
17882 — Hose, Air Cleaner, NO.2
17882-56020 Hose, Air Cleaner, NO.2
1980-08 → 1984-10 ended
3B BJ42 —
17882-61011 Hose, Air Cleaner, NO.2
1980-08 → 1983-09 ended
2F FJ40 —
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
90460-01007 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1983-09 ended
2F FJ40 —
96111-10670 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1984-10 ended
3B BJ42 —
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1984-10 ended
3B BJ42 —
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1983-09 ended
2F FJ40 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
