Toyota Land Cruiser

1980-08 → 1984-10 · chassis BJ42,FJ40 · catalogue 781410 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

26 part groups · 2 illustrations

Illustrations

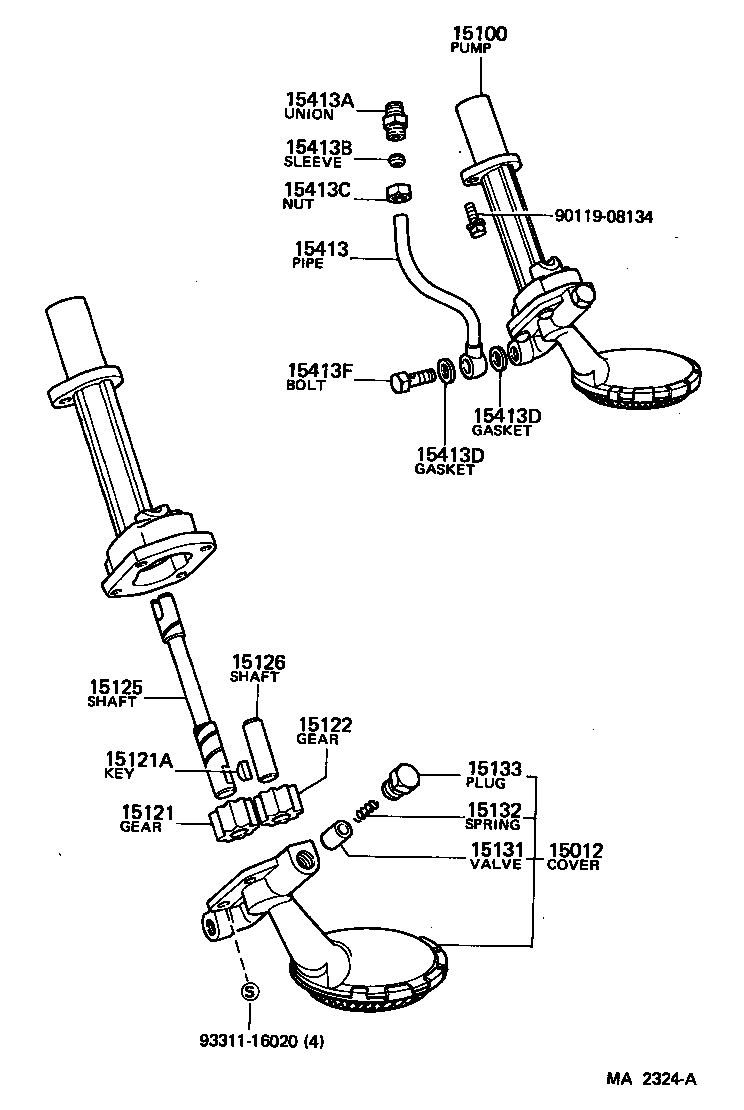

Figure MA4682D MA4682D 1980-08 → — Figure MA2324A MA2324A 1980-08 → 1983-09

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15104 Strainer Sub-assy, Oil
15104C Gasket(FOR OIL STRAINER)
15115 Cover, Oil Pump
15121 Gear, Oil Pump Drive
15121A Key, Oil Pump Drive Shaft
15122 Gear, Oil Pump Driven
15125 Shaft, Oil Pump
15126 Shaft, Oil Pump Driven
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15403 Pipe Sub-assy, Oil Pump Outlet
15403A Union(FOR OIL PUMP OUTLET PIPE)
15403B Gasket(FOR OIL PUMP OUTLET PIPE)
15413 Pipe, Oil Pump Outlet
15413A Union(FOR OIL PUMP OUTLET PIPE)
15413B Sleeve, Ball(FOR OIL PUMP OUTLET PIPE)
15413C Nut, Union(FOR OIL PUMP OUTLET PIPE)
15413D Gasket(FOR OIL PUMP OUTLET PIPE)
15413F Bolt, Union(FOR OIL PUMP OUTLET PIPE)
15706 Pipe Sub-assy, Oil, Injection Pump Outlet
15706A Union(FOR INJECTION PUMP OUTLET PIPE)
15706B Gasket(FOR INJECTION PUMP OUTLET PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
