Factory parts data · Europe

Toyota Land Cruiser

1980-08 → 1984-10 · chassis BJ42,FJ40 · catalogue 781410 · United States

Discontinued model Data version 1985-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

4 part groups · 2 illustrations

Illustrations

Figure MA4683D

MA4683D 1980-08 → —

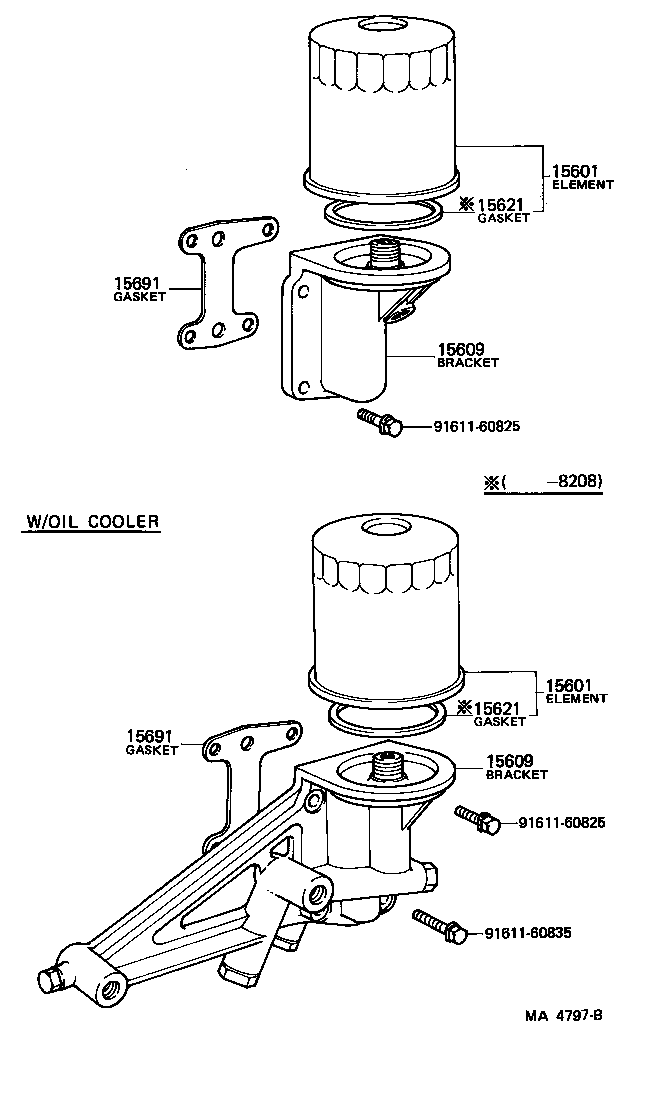

Figure MA4797B

MA4797B 1980-08 → 1983-09

Part groups

PNC	Description
15601	Filter Sub-assy, Oil
15609	Bracket Sub-assy, Oil Filter
15621	Gasket, Oil Filter Body
15691	Gasket, Oil Filter

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
