Toyota Land Cruiser

1980-08 → 1984-10 · chassis BJ42,FJ40 · catalogue 781410 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

22 part groups · 4 illustrations

Illustrations

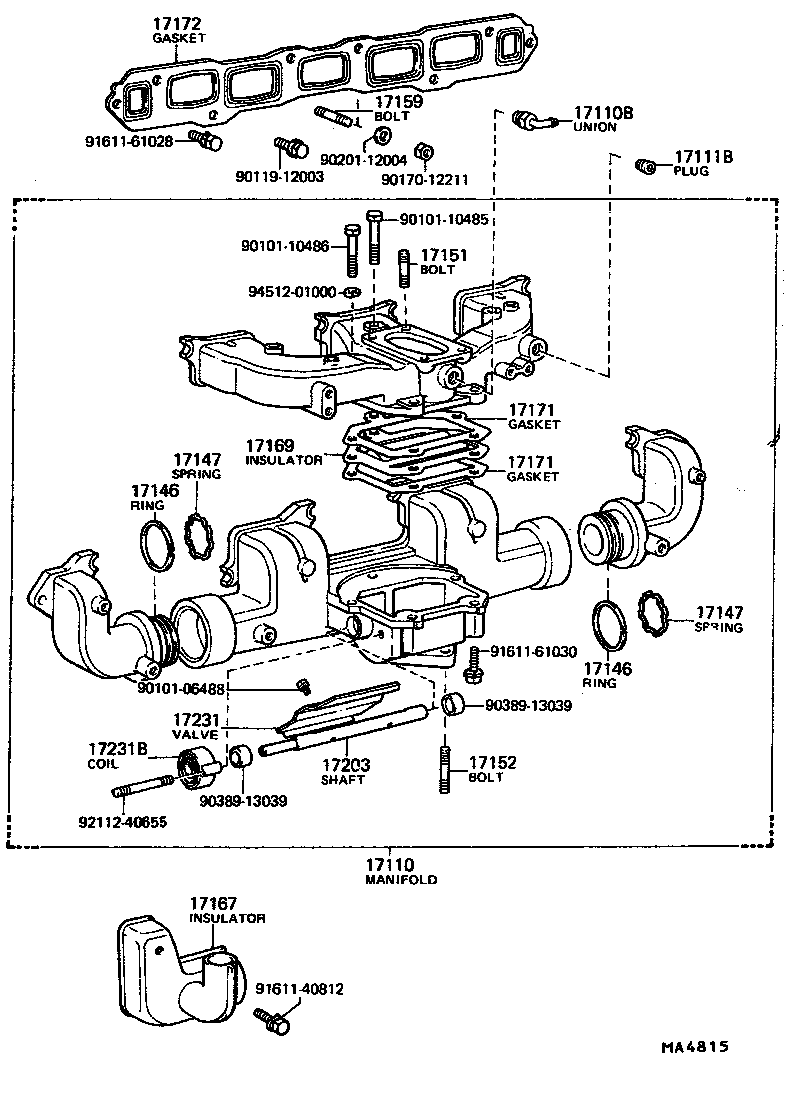

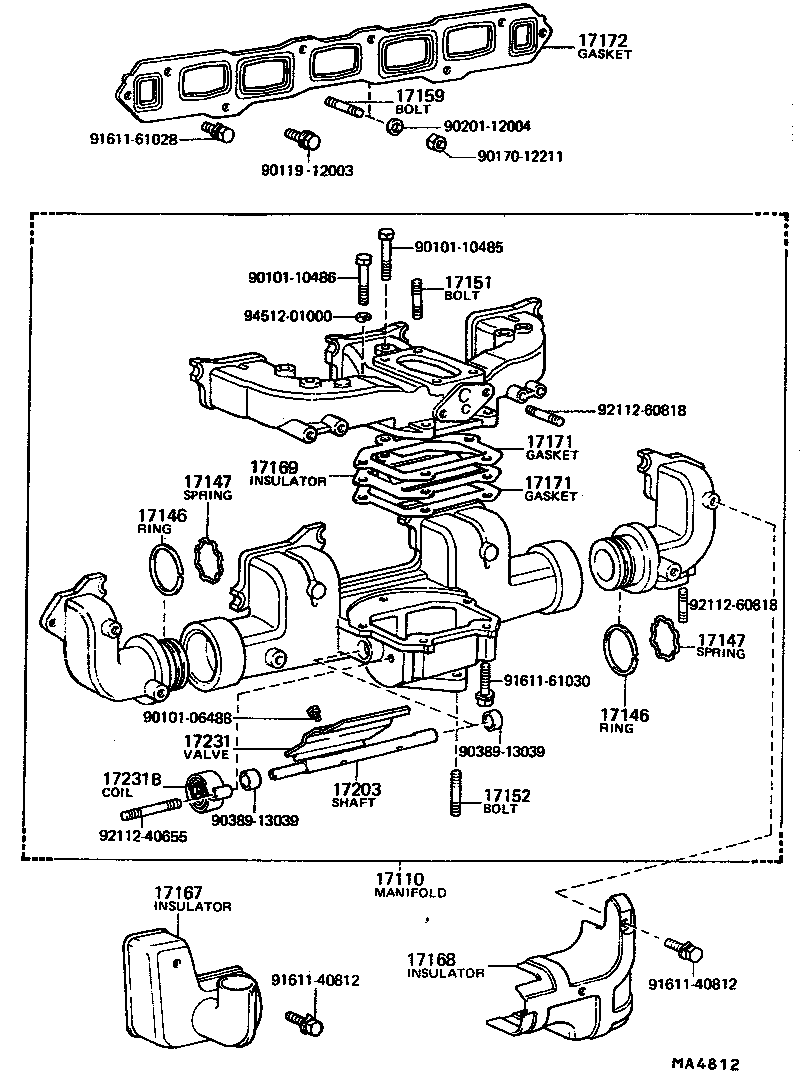

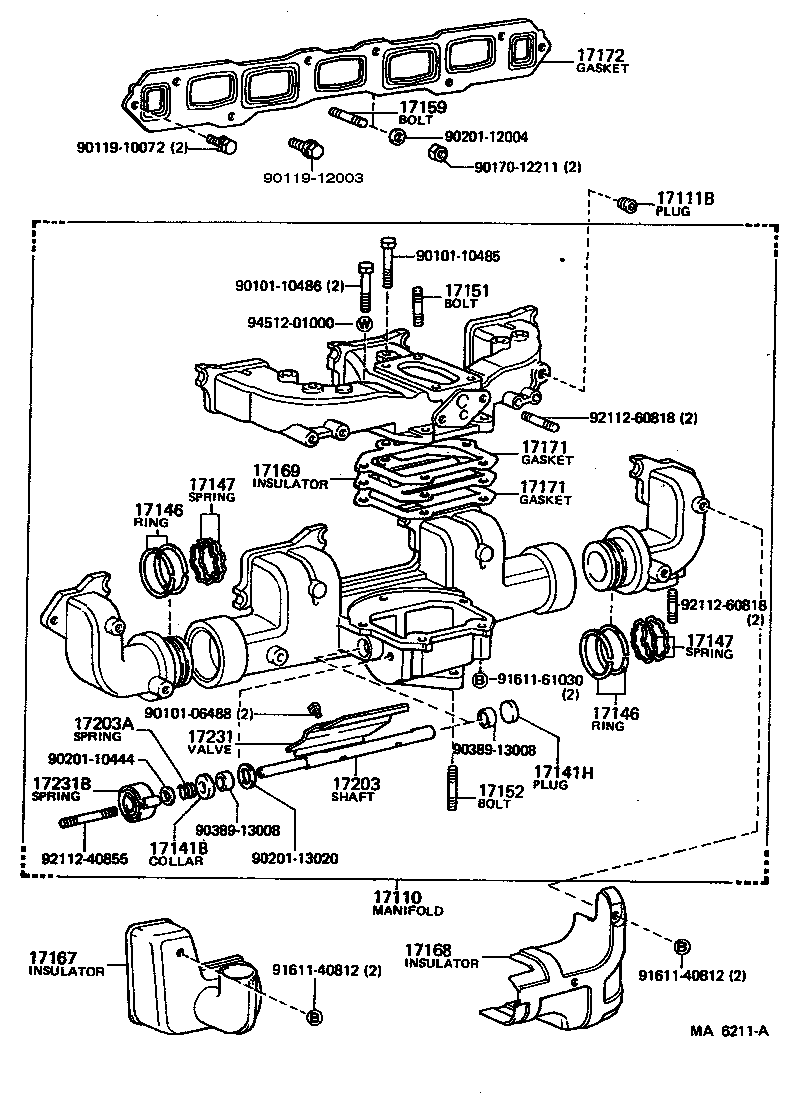

Figure MA8225 MA8225 1980-08 → — Figure MA4812 MA4812 1980-08 → 1982-09 Figure MA6211A MA6211A 1982-09 → 1983-09 Figure MA4815 MA4815 1980-08 → 1981-10

Part groups

PNCDescription
17110 Manifold Assy
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111B Plug, NO.2
17141 Manifold, Exhaust
17141B Collar(FOR EXHAUST MANIFOLD)
17141H Plug, Tight(FOR EXHAUST MANIFOLD)
17146 Ring, Exhaust Manifold
17147 Spring, Exhaust Manifold
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17203 Shaft Sub-assy, Manifold Heat Control
17203A Spring, Compression(FOR HEAT CONTROL SHAFT)
17231 Valve, Manifold Heat Control
17231B Coil, Heat Control Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
