Toyota Land Cruiser

1980-08 → 1984-10 · chassis BJ42,FJ40 · catalogue 781410 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

13 part groups · 3 illustrations

Illustrations

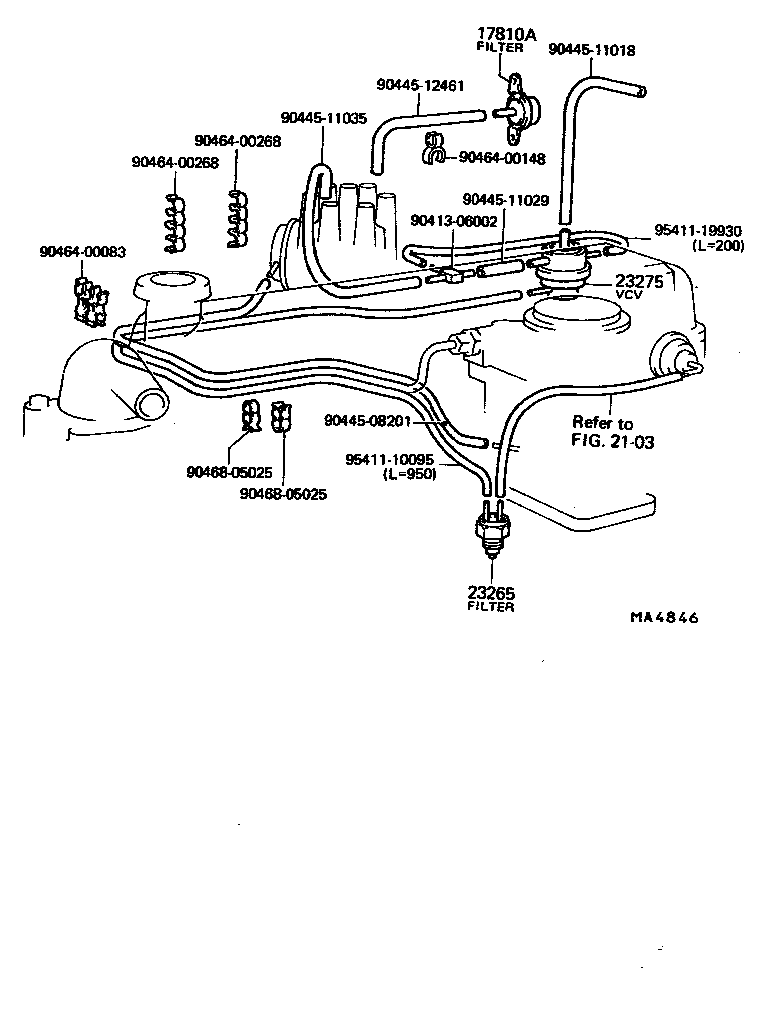

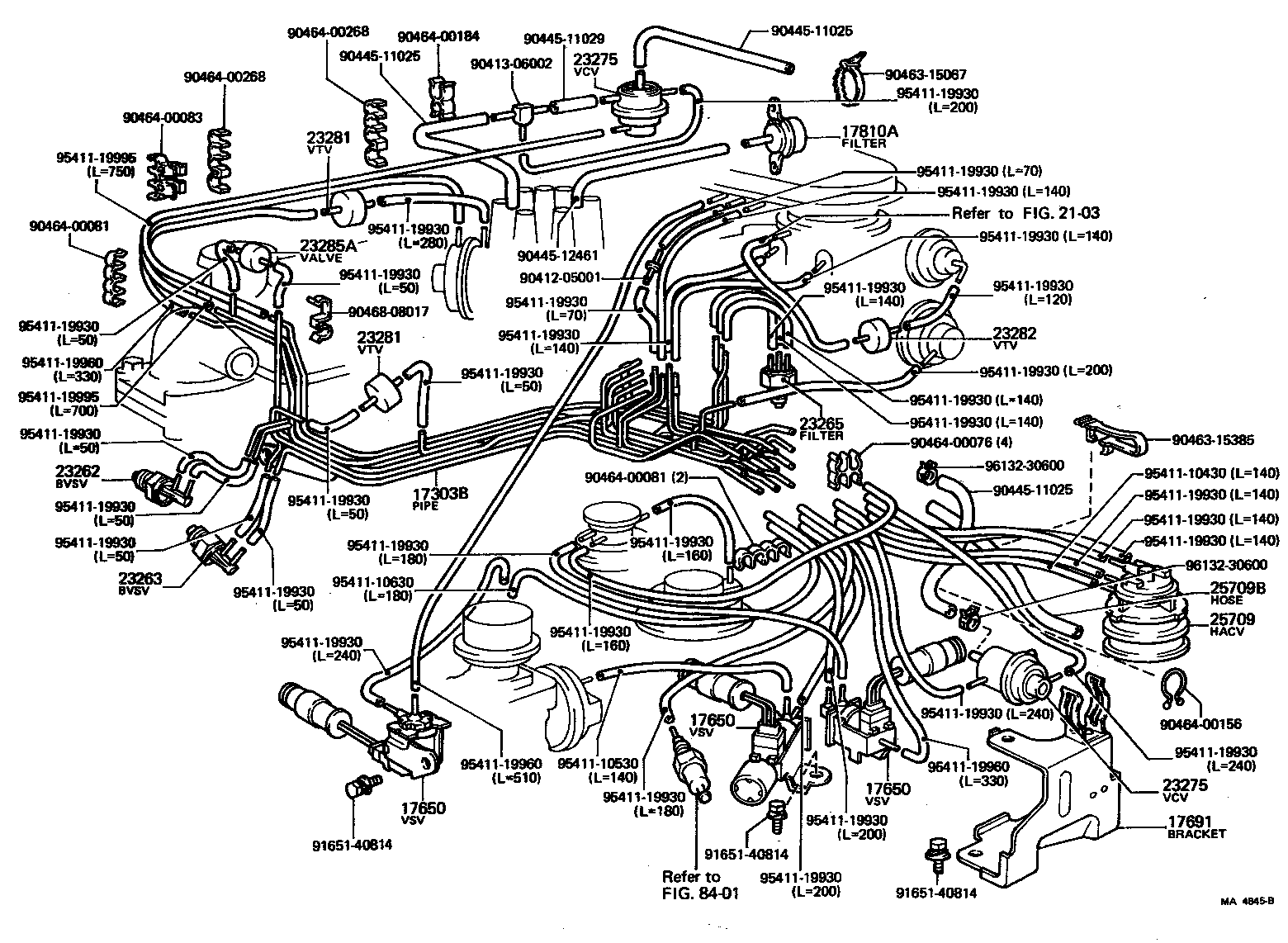

Figure MA9502 MA9502 1980-08 → 1983-09 Figure MA4845B MA4845B 1980-08 → 1983-09 Figure MA4846 MA4846 1980-08 → 1981-10

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17650 Valve Assy, Vacuum Switching
17691 Bracket, Vacuum Control Valve, NO.1
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
25709 Valve Sub-assy, High Altitude Compensator
25709B Hose(FOR HIGH ALTITUDE COMPENSATOR VALVE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
