Toyota Land Cruiser
1980-08 → 1984-10 · chassis BJ42,FJ40 · catalogue 781410 · United States
Discontinued model
Data version 1985-04
Winch

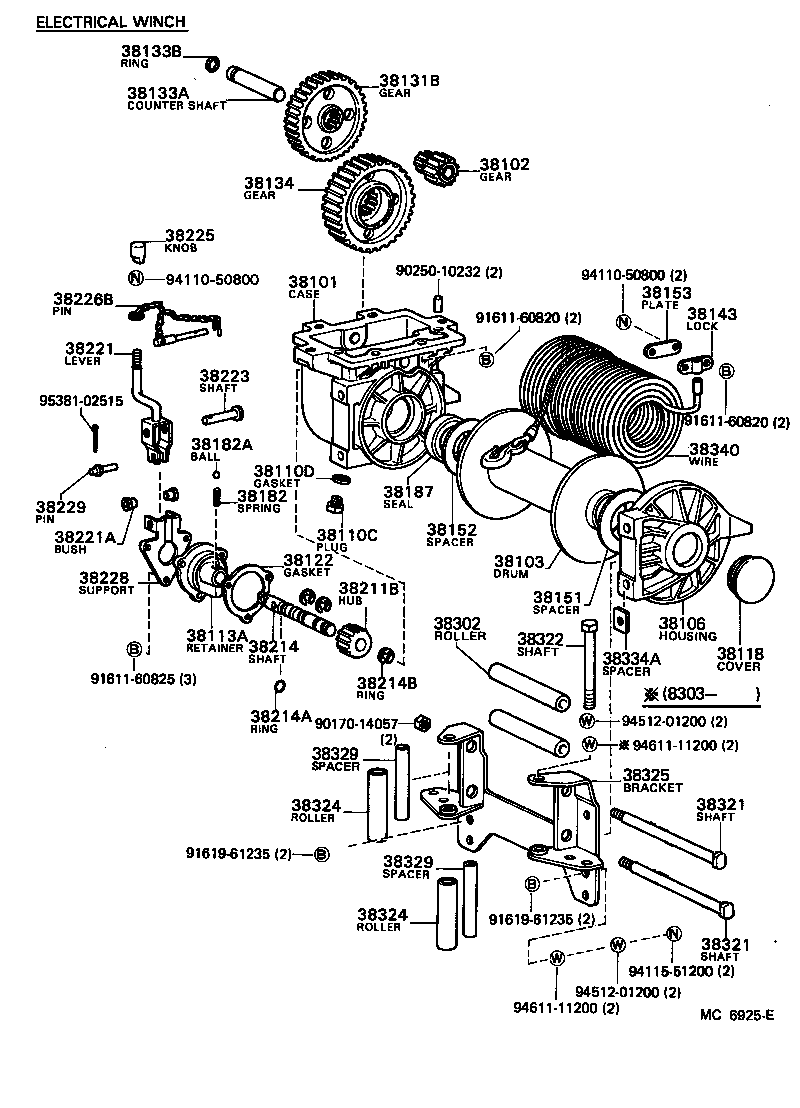

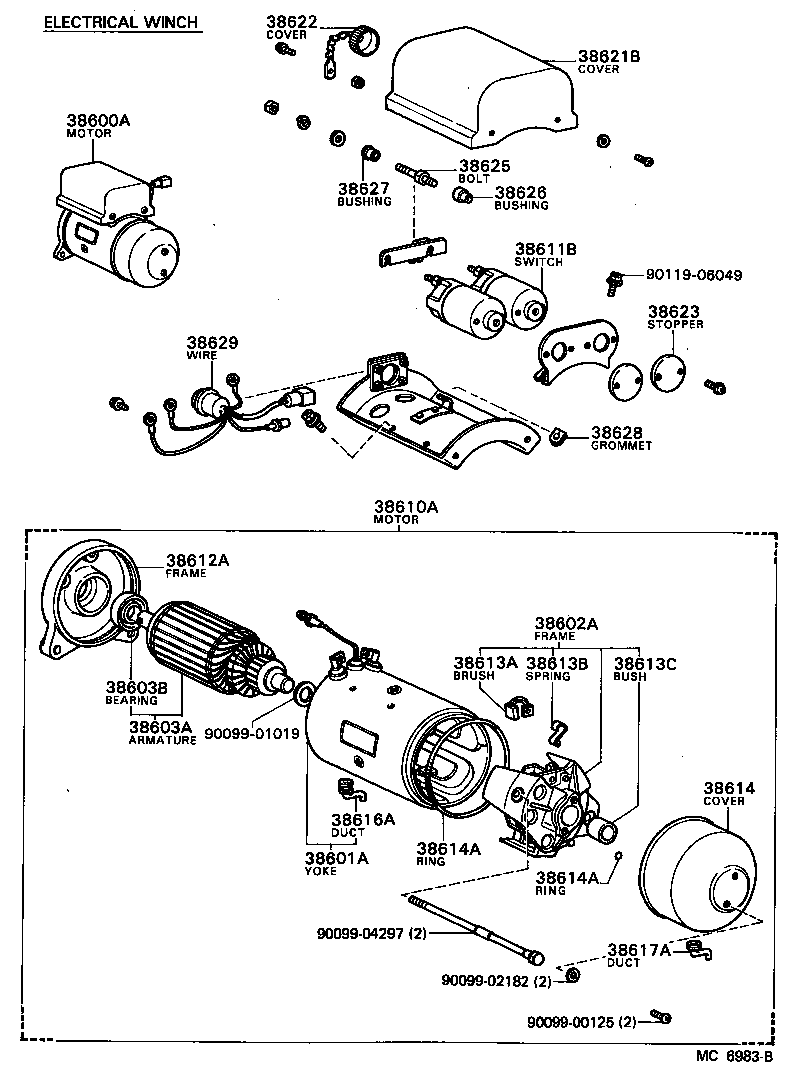

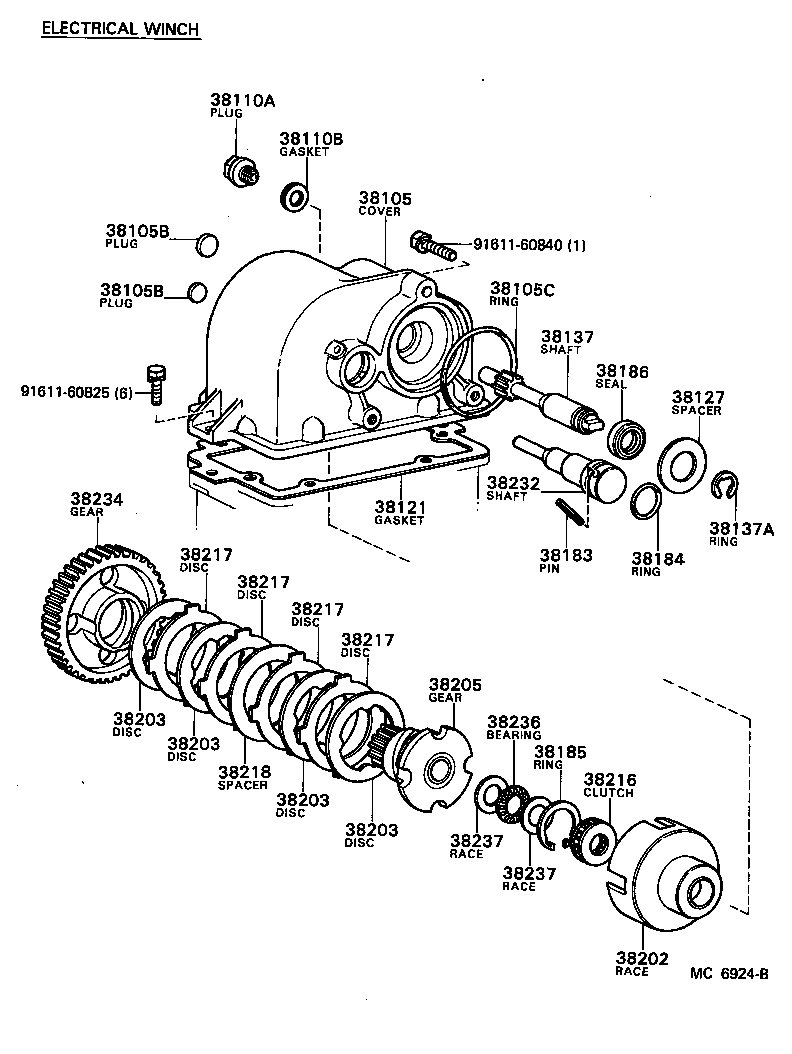

98 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 38101 | Case Sub-assy, Winch Gear |
| 38102 | Gear Sub-assy, Countershaft |
| 38103 | Drum Sub-assy, Winch |
| 38105 | Cover Sub-assy, Winch Gear Case |
| 38105B | Plug, Tight (FOR WINCH GEAR CASE COVER) |
| 38105C | Ring, O (FOR WINCH GEAR CASE COVER) |
| 38106 | Housing Sub-assy, Winch Drum |
| 38110 | Winch Assy |
| 38110A | Plug, Filler |
| 38110B | Gasket (FOR FILLER PLUG) |
| 38110C | Plug, Drain |
| 38110D | Gasket (FOR DRAIN PLUG) |
| 38113A | Retainer, Shift Shaft |
| 38116 | Cover, Winch |
| 38118 | Cover, Winch Drum Housing |
| 38121 | Gasket, Winch Gear Case Cover |
| 38122 | Gasket, Shift Shaft Retainer |
| 38127 | Spacer, Input Shaft |
| 38131B | Gear, Counter, NO.1 |
| 38133A | Countershaft |
| 38133B | Ring, O (FOR COUNTERSHAFT) |
| 38134 | Gear, Winch Output |
| 38137 | Shaft, Winch Input |
| 38137A | Ring, E (FOR WINCH INPUT SHAFT) |
| 38143 | Lock, Wire |
| 38151 | Spacer, Winch Drum, NO.1 |
| 38152 | Spacer, Winch Drum, NO.2 |
| 38153 | Plate, Wire Lock |
| 38182 | Spring, Shift Lock |
| 38182A | Ball (FOR SHIFT LOCK SPRING) |
| 38183 | Pin, Brake Shaft Lock |
| 38184 | Ring, Brake Shaft, O |
| 38185 | Ring, Clutch Outer Race Snap |
| 38186 | Seal, Gear Case Cover Oil |
| 38187 | Seal, Gear Case Oil |
| 38191 | Plate, Winch Caution, NO.1 |
| 38192 | Plate, Winch Caution, NO.2 |
| 38193 | Plate, Winch Caution, NO.3 |
| 38202 | Race Sub-assy, Clutch, Outer |
| 38203 | Disc Sub-assy, Winch Clutch, Inner |
| 38205 | Gear Sub-assy, Brake Shaft Driven |
| 38211B | Hub, Winch Clutch |
| 38214 | Shim, Winch Worm Adjust, NO.2 |
| 38214A | Ring, O (FOR CLUTCH HUB SHIFT SHAFT) |
| 38214B | Ring, E (FOR CLUTCH HUB SHIFT SHAFT) |
| 38216 | Clutch, Winch 1 Way |
| 38217 | Disc, Winch Clutch, Outer |
| 38218 | Spacer, Clutch Disc |
| 38221 | Lever, Clutch Hub Shift |
| 38221A | Bush (FOR CLUTCH HUB SHIFT LEVER) |
| 38223 | Shaft, Clutch Shift Lever |
| 38225 | Knob, Winch Clutch Lever |
| 38226B | Pin, Clutch Shift Lever Lock |
| 38228 | Support, Clutch Shift Lever |
| 38229 | Pin, Clutch Shift Lever |
| 38232 | Shaft, Winch Brake |
| 38234 | Gear, Brake Shaft Drive |
| 38236 | Bearing, Gear Thrust |
| 38237 | Race, Gear Thrust Bearing |
| 38302 | Roller Sub-assy, Winch Wire Guide |
| 38314 | Member, Rear Base |
| 38321 | Shaft, Winch Roller |
| 38322 | Shaft, Winch Roller, NO.2 |
| 38324 | Roller, Winch Wire Guide, NO.2 |
| 38325 | Bracket, Winch Roller, NO.1 |
| 38329 | Spacer, Winch Wire Guide Roller |
| 38333 | Spacer, Member, NO.1 |
| 38334A | Spacer, Rear Member |
| 38335 | Spacer, Member, NO.2 |
| 38340 | Wire Assy, Winch Chain |
| 38600A | Motor Assy, W/Magnet Switch, Winch |
| 38601A | Yoke Sub-assy, Winch Motor |
| 38602A | Frame Sub-assy, Cummutator End (FOR WINCH MOTER) |
| 38603A | Armature Sub-assy, Winch Motor |
| 38603B | Bearing, NO.1 (FOR WINCH MOTOR ARMATURE) |
| 38610A | Motor Assy, Winch |
| 38611B | Switch, Magnet, NO.2 (FOR WINCH MOTOR) |
| 38612A | Frame, Winch Motor End |
| 38613A | Brush, Winch Motor |
| 38613B | Spring, Winch Motor Brush |
| 38613C | Bush (FOR WINCH MOTOR) |
| 38614 | Cover, Commutator Winch |
| 38614A | Ring, O(FOR WINCH MOTOR) |
| 38616A | Duct, Yoke Winch |
| 38617A | Duct, Cover Winch |
| 38621B | Cover, Magnet Switch Winch |
| 38622 | Cover, Connector Winch |
| 38623 | Stopper, Winch Motor |
| 38625 | Bolt, Stud Winch Motor |
| 38626 | Bushing, Stepped Female Winch Motor |
| 38627 | Bushing, Stepped Male Winch Motor |
| 38628 | Gromet, Winch |
| 38629 | Wire, Winch Motor |
| 38640 | Switch Assy, Winch Control |
| 38640A | Bulb (FOR WINCH CONTROL SWITCH) |
| 38641 | Gasket (FOR WINCH CONTROL SWITCH) |
| 38642 | Screw (FOR WINCH CONTROL SWITCH) |
| 38659 | Cover, Winch Control Switch |
