Toyota Land Cruiser
1980-08 → 1984-10 · chassis BJ42,FJ40 · catalogue 781410 · United States
Discontinued model
Data version 1985-04

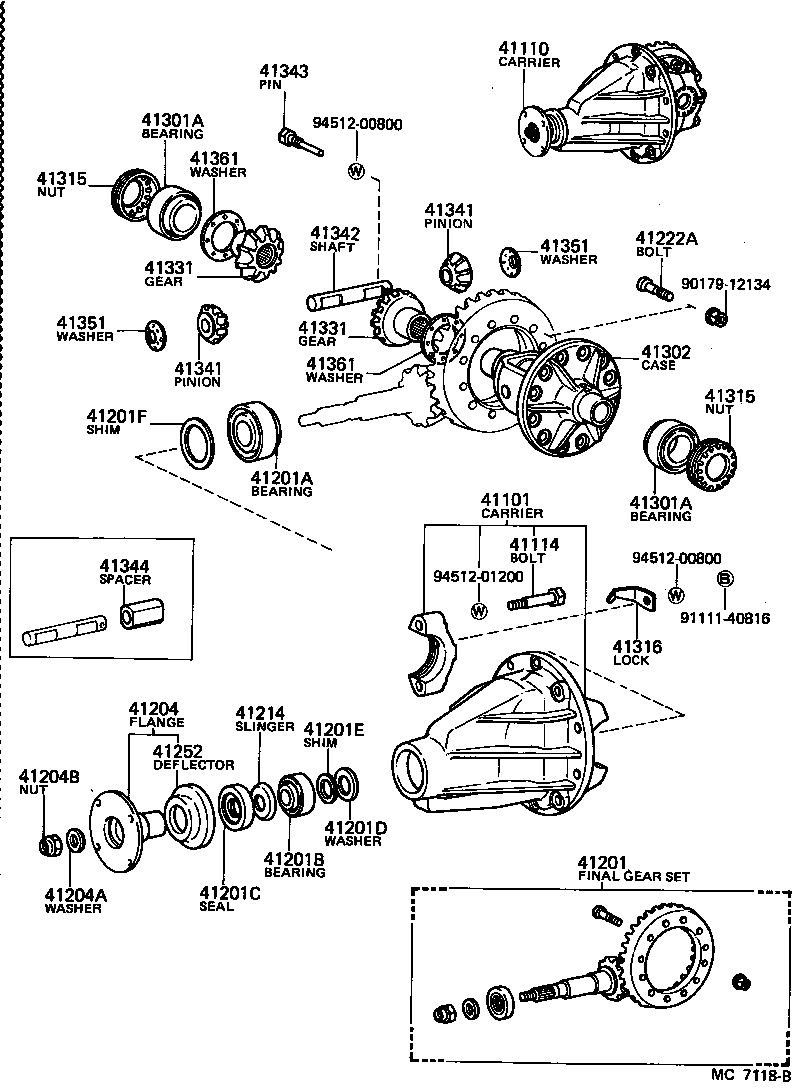

Rear Axle Housing & Differential
42 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 41101 | Carrier Sub-assy, Differential, Rear |
| 41110 | Carrier Assy, Differential, Rear |
| 41110A | Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) |
| 41114 | Bolt, Rear Differential Bearing Cap |
| 41201 | Final Gear Kit, Differential, Rear |
| 41201A | Bearing (FOR REAR DRIVE PINION REAR) |
| 41201B | Bearing (FOR REAR DRIVE PINION FRONT) |
| 41201C | Seal, Oil (FOR REAR DIFFERENTIAL CARRIER) |
| 41201D | Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION) |
| 41201E | Shim (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) |
| 41201F | Shim (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) |
| 41204 | Flange Sub-assy, Rear Drive Pinion Companion, Rear |
| 41204A | Washer, Plate (FOR REAR DRIVE PINION) |
| 41204B | Nut (FOR REAR DRIVE PINION) |
| 41214 | Slinger, Rear Differential Drive Pinion Oil |
| 41222A | Bolt (FOR REAR DIFFERENTIAL RING GEAR SET) |
| 41252 | Deflector, Dust (FOR REAR DIFFERENTIAL) |
| 41301A | Bearing(FOR REAR DIFFERENTIAL CASE) |
| 41302 | Case Sub-assy, Rear Differential |
| 41315 | Nut, Rear Differential Bearing Adjusting |
| 41316 | Lock, Rear Differential Bearing Adjusting Nut |
| 41331 | Gear, Rear Differential Side |
| 41341 | Pinion, Rear Differential |
| 41342 | Shaft, Rear Differential Pinion |
| 41343 | Pin, Rear Differential Pinion Shaft |
| 41344 | Spacer, Differential Pinion Shaft |
| 41351 | Washer, Rear Differential Pinion Thrust |
| 41361 | Washer, Rear Differential Side Gear Thrust, NO.1 |
| 42109 | Cover Sub-assy, Rear Axle Housing |
| 42110 | Housing Assy, Rear Axle |
| 42110A | Plug (FOR REAR AXLE HOUSING FILLER) |
| 42110B | Gasket (FOR REAR AXLE HOUSING FILLER PLUG) |
| 42110D | Gasket (FOR REAR AXLE HOUSING DRAIN PLUG) |
| 42110E | Plug (FOR REAR AXLE HOUSING DRAIN) |
| 42137 | Collar, Rear Axle Housing Side |
| 42139 | Deflector, Rear Axle Housing Oil |
| 42181 | Gasket, Rear Differential Carrier |
| 42183 | Gasket, Rear Axle Housing Cover |
| 42306 | Hose Sub-assy, Rear Axle Breather |
| 42306A | Union (FOR REAR AXLE BREATHER HOUSE) |
| 42306C | Clip, Hose (FOR REAR AXLE BREATHER HOSE) |
| 42306D | Clamp (FOR REAR AXLE BRATHER HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
