Toyota Land Cruiser

1980-08 → 1984-10 · chassis BJ42,FJ40 · catalogue 781410 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

23 part groups · 2 illustrations

Illustrations

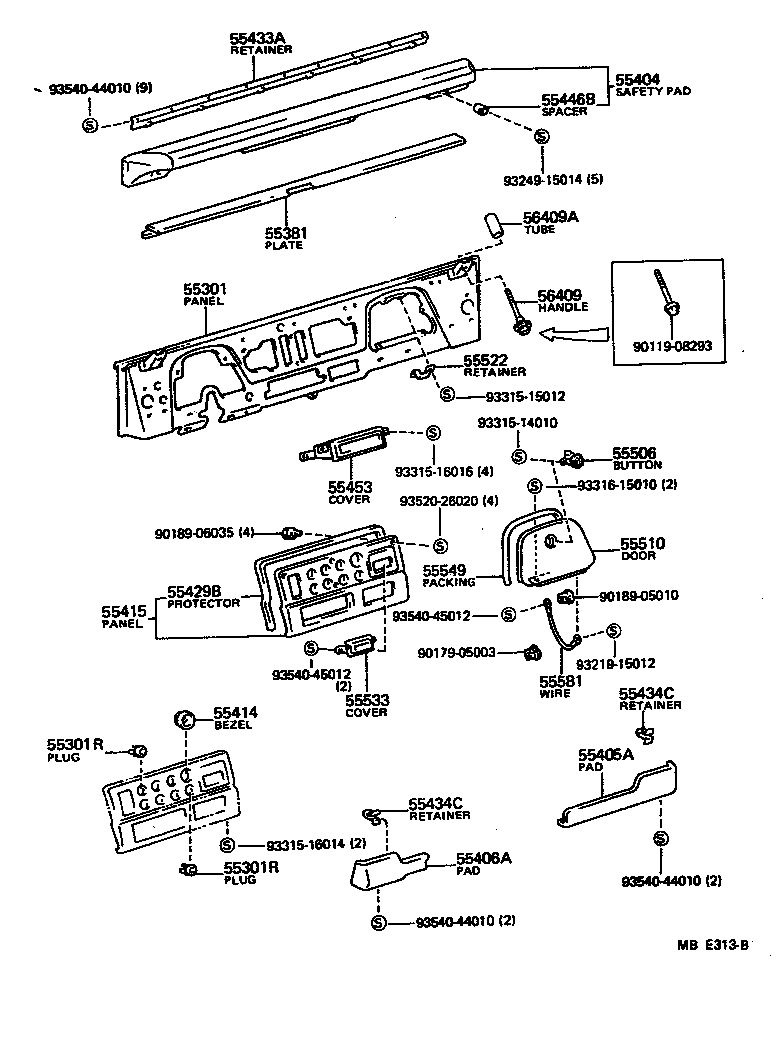

Figure MBB526D MBB526D 1980-08 → 1982-10 Figure MBE313B MBE313B 1982-10 → —

Part groups

PNCDescription
55301 Panel Sub-assy, Instrument
55301R Plug, Hole(FOR INSTRUMENT PANEL)
55321A Cover,Instrument Panel Hole
55381 Panel, Instrument Impact
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55405A Pad Sub-assy, Instrument Panel, Lower RH
55406A Pad Sub-assy, Instrument Panel, Lower LH
55407A Pad Sub-assy, Instrument Panel, Lower Center
55414 Bezel, Cigar Lighter Hole
55415 Panel, Instrument Cluster Finish, Center
55429B Protector, Instrument Cluster Finish Panel
55433A Retainer, Safety Pad Set Plate
55434C Retainer,Instrument Panel Lower Pad Set
55446B Spacer, Instrument Panel Safety Pad, Set
55453 Cover, Radio Tuner Opening
55506 Button Sub-assy, Glove Compartment Door Lock
55510 Door Assy, Glove Compartment
55522 Retainer, Glove Compartment Male
55533 Cover, Auto Clock Hole
55549 Packing, Glove Compartment Door
55581 Wire, Glove Compartment Door Open
56409 Handle Sub-assy, Windshield Catch
56409A Tube, Windshield Catch Handle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
