Toyota Land Cruiser

1980-08 → 1984-10 · chassis BJ42,FJ40 · catalogue 781410 · United States

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Hinge

29 part groups · 2 illustrations

Illustrations

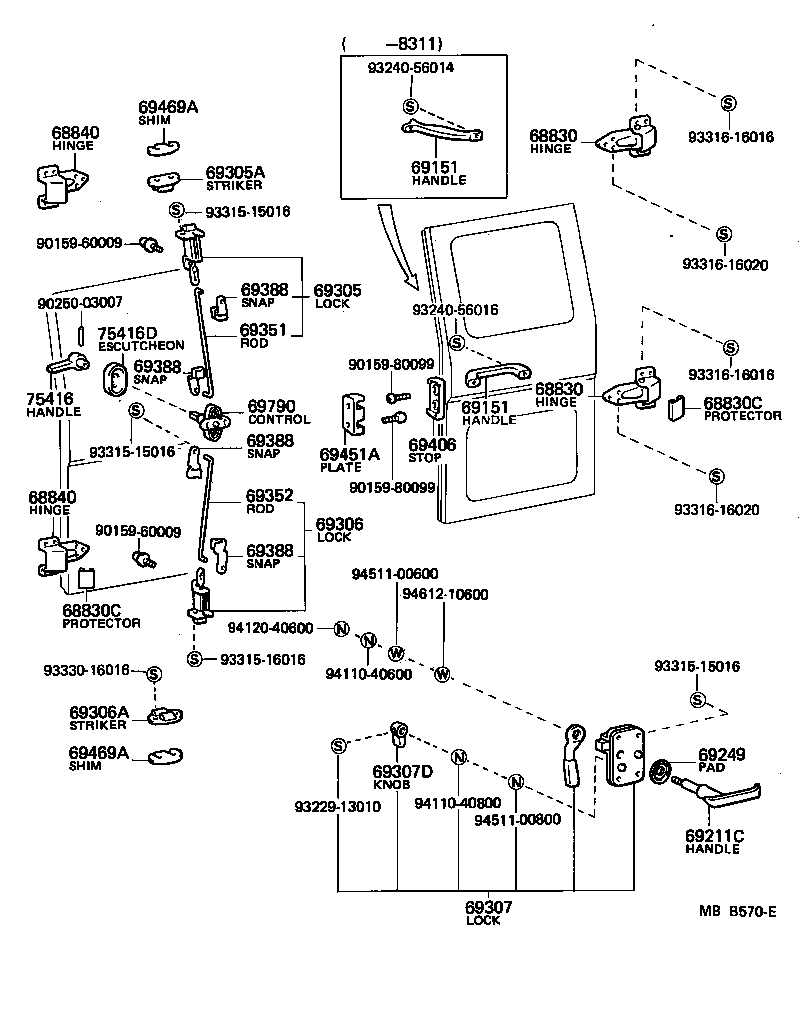

Figure MBB573 MBB573 1980-08 → 1981-10 Figure MBB570E MBB570E 1980-08 → —

Part groups

PNCDescription
66170A Latch Assy, Rear Drop Gate
66280A Chain Assy, Rear Drop Gate, RH
66280B Bolt, Rear Gate Chain Set
66287A Hook, Rear Drop Gate Chain, RH
66288A Hook, Rear Drop Gate Chain, LH
66290A Chain Assy, Rear Drop Gate, LH
66610C Lock Assy, Rear Drop Gate
68830 Hinge Assy, Back Door, RH
68830C Retainer, Back Door Hinge
68840 Hinge Assy, Back Door, LH
68905A Hinge, Rear Drop Gate
69151 Handle, Back Door Inside Pull
69211C Handle, Back Door Outside
69249 Pad, Back Door Outside Handle
69305 Lock Sub-assy, Back Door, Upper
69305A Striker Assy, Back Door, Upper
69306 Lock Sub-assy, Back Door, Lower
69306A Striker Assy, Back Door, Lower
69307 Lock Sub-assy, Back Door, Center
69307D Knob, Door Lock Key(FOR BACK DOOR, CENTER LOCK)
69351 Rod, Back Door Lock Control, Upper
69352 Rod, Back Door Lock Control, Lower
69388 Snap, Rod(FOR DOOR LOCK)
69406 Stop Sub-assy, Back Door Down
69451A Plate, Door Lock Striker
69469A Shim, Back Door Lock Striker
69790 Control Assy, Back Door Lock
75416 Handle, Tail Gate, Inside
75416D Escutcheon, Back Door Inside Handle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
