Toyota Land Cruiser
1980-08 → 1984-10 · chassis BJ42,FJ40 · catalogue 781410 · United States
Discontinued model
Data version 1985-04

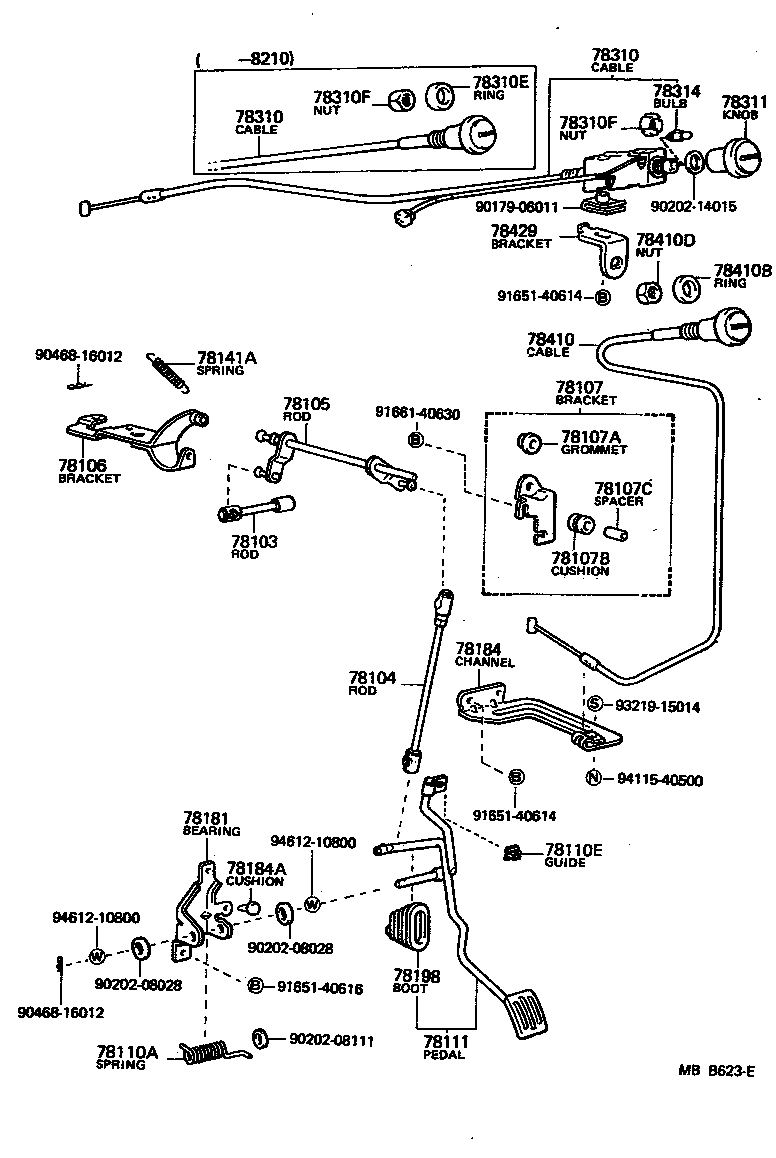

Accelerator Link
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78103 | Rod Sub-assy, Accelerator Connecting, NO.1 |
| 78104 | Rod Sub-assy, Accelerator Connecting, NO.2 |
| 78105 | Rod Sub-assy, Accelerator Connecting, NO.3 |
| 78106 | Bracket Sub-assy, Accelerator Pedal Support |
| 78107 | Bracket Sub-assy, Accelerator Torque Rod |
| 78107A | Grommet (FOR ACCELERATOR TORQUE ROD BRACKET) |
| 78107B | Cushion (FOR ACCELERATOR TORQUE ROD BRACKET) |
| 78107C | Spacer (FOR ACCELERATOR TORQUE ROD BRACKET) |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78110E | Guide, Throttle Wire |
| 78111 | Pedal, Accelerator |
| 78141A | Spring, Tension(FOR ACCELERATOR WIRE RETURN SPRING) |
| 78180 | Wire Assy, Accelerator |
| 78181 | Bearing, Accelerator Pedal Rod Support |
| 78184 | Channel, Accelerator Idle Adjusting Stopper |
| 78184A | Cushion (FOR ACCELERATOR ADJUST STOPPER CHANNEL) |
| 78191 | Bracket, Accelerator Wire Support |
| 78198 | Boot, Accelerator Connecting Rod |
| 78310 | Cable Assy, Choke |
| 78310E | Ring, Choke |
| 78310F | Nut, Choke |
| 78311 | Knob, Choke Control Cable |
| 78314 | Bulb, Choke Warning |
| 78410 | Cable Assy, Throttle Control |
| 78410B | Ring, Throttle |
| 78410D | Nut, Throttle |
| 78429 | Bracket, Throttle Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
