Toyota Land Cruiser

1984-11 → 1987-07 · chassis BJ70 · catalogue 781420 · United States

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

15 part groups · 2 illustrations

Illustrations

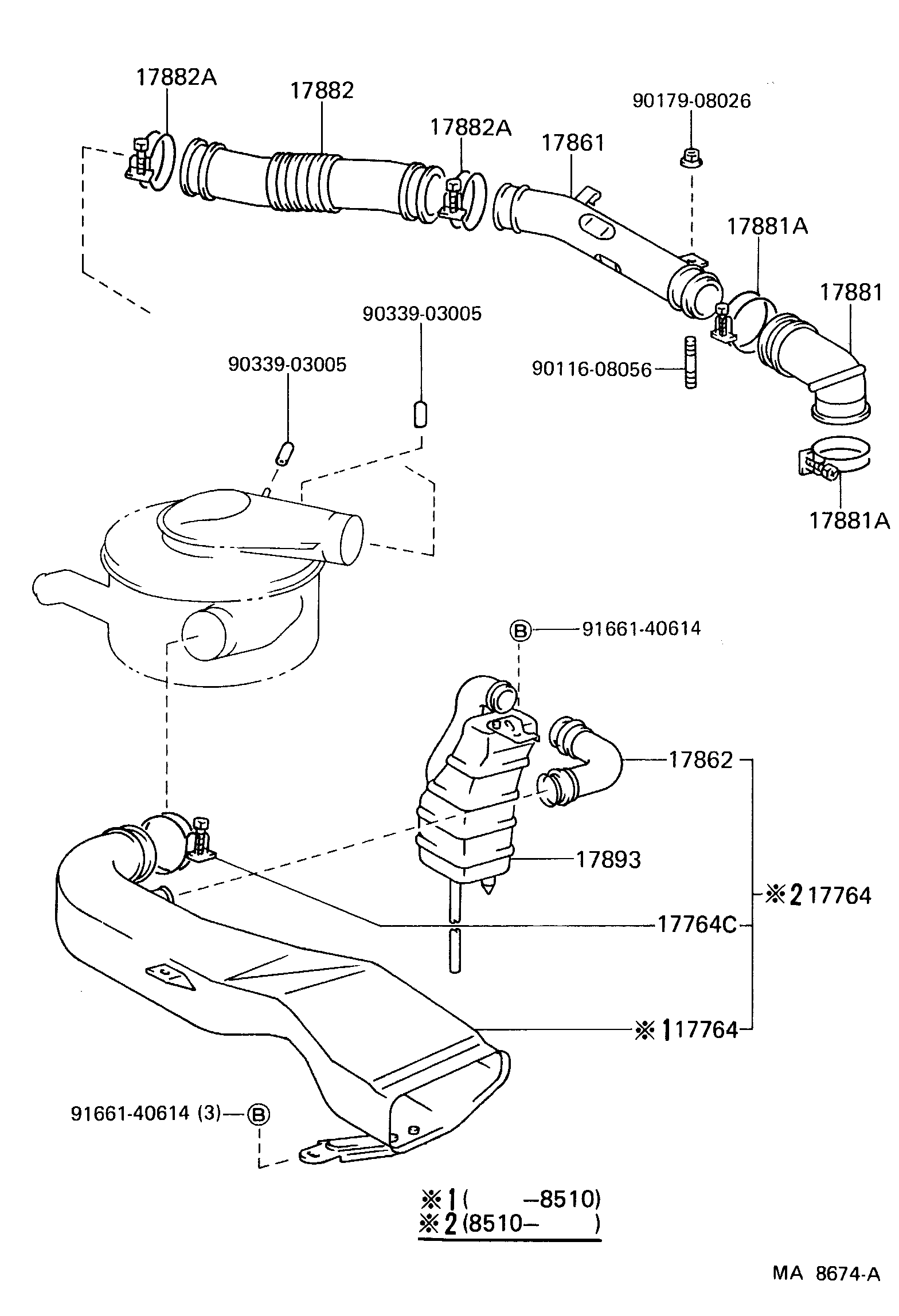

Figure MA7974 MA7974 1984-11 → — Figure MA8674A MA8674A 1984-11 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17764 Duct, Air Cleaner
17764C Clamp, Hose(FOR AIR CLEANER DUCT)
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17861 Connector, Intake Air
17862 Connector, Intake Air, NO.2
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
