Toyota Land Cruiser
1984-11 → 1987-07 · chassis BJ70 · catalogue 781420 · United States
Discontinued model
Data version 1987-12

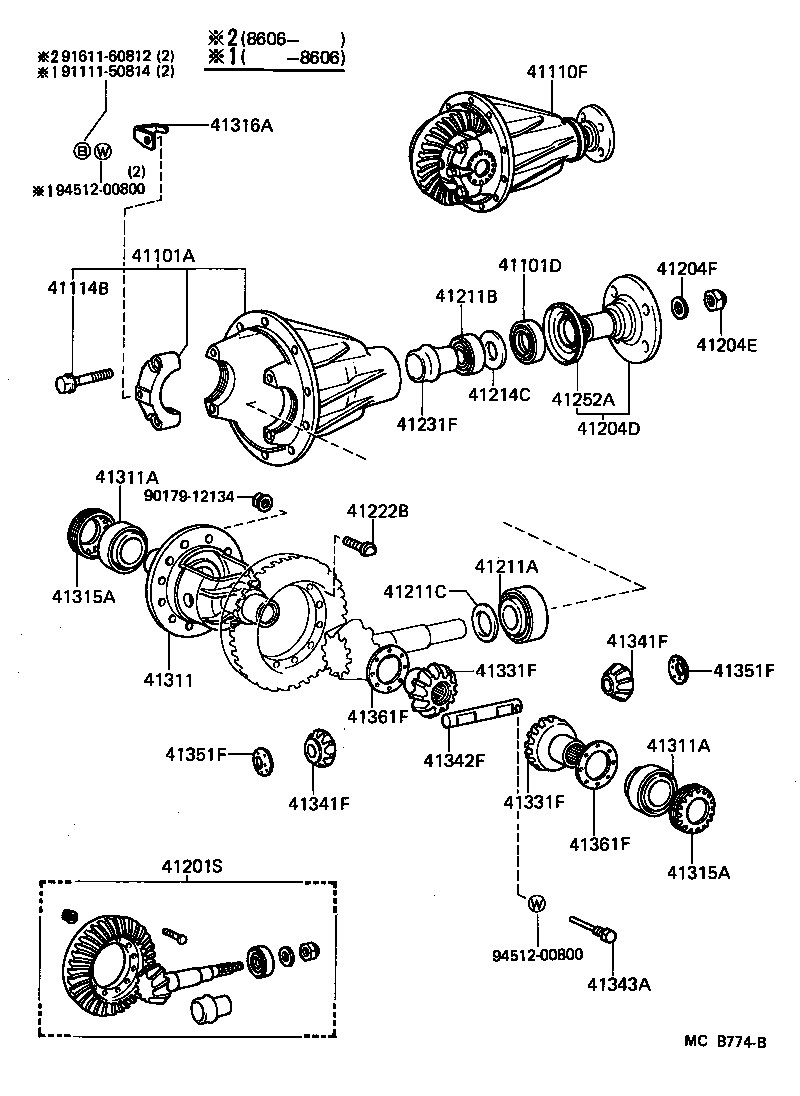

Front Axle Housing & Differential
38 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 41101A | Carrier Sub-assy, Differential, Front |
| 41101D | Seal, Oil (FOR FRONT DIFFERENTIAL CARRIER) |
| 41110C | Bolt, Stud (FOR FRONT DIFFERENTIAL CARRIER) |
| 41110F | Carrier Assy, Differential, Front |
| 41114B | Bolt, Front Differential Bearing Cap |
| 41201S | Final Gear Kit, Differential, Front |
| 41204D | Flange Sub-assy, Front Drive Pinion Companion, Front |
| 41204E | Nut (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) |
| 41204F | Washer, Plate (FOR DRIVE PINION COMPANION FLANGE FRONT) |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41211C | Gear, Differential Ring |
| 41214C | Slinger, Front Differential Drive Pinion Oil |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41231F | Spacer, Front Differential Drive Pinion Bearing |
| 41252A | Deflector, Dust (FOR FRONT DIFFERENTIAL) |
| 41311 | Case, Front Differential |
| 41311A | Bearing (FOR FRONT DIFFERENTIAL CASE) |
| 41315A | Nut, Front Differential Bearing Adjusting |
| 41316A | Lock, Front Differential Bearing Adjusting Nut |
| 41331F | Gear, Front Differential Side |
| 41341F | Pinion, Front Differential |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41343A | Pin, Front Differential Pinion Shaft |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
| 43110 | Housing Assy, Front Axle |
| 43110A | Plug Sub-assy, Drain |
| 43110B | Gasket, Drain |
| 43110C | Plug (FOR FRONT AXLE HOUSING) |
| 43110D | Gasket (FOR FRONT AXLE HOUSING PLUG) |
| 43110F | Gasket, Front Differential Carrier |
| 43209A | Union (FOR FRONT AXLE BREATHER HOSE) |
| 43209B | Clamp (FOR FRONT AXLE BREATHER HOSE) |
| 43209C | Clip, Hose (FOR FRONT AXLE BREATHER HOSE) |
| 43209D | Hose, NO.1 (FOR FRONT AXLE BREATHER) |
| 43209G | Plug, Breather (FOR FRONT AXLE) |
| 43411D | Seal, Type T Oil (FOR FRONT DRIVE SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
