Toyota Land Cruiser
1984-11 → 1987-07 · chassis BJ70 · catalogue 781420 · United States
Discontinued model
Data version 1987-12
Front Spring & Shock Absorber
47 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04481 | Shackle Kit, Front Spring |
| 04482 | Pin Kit, Front Spring |

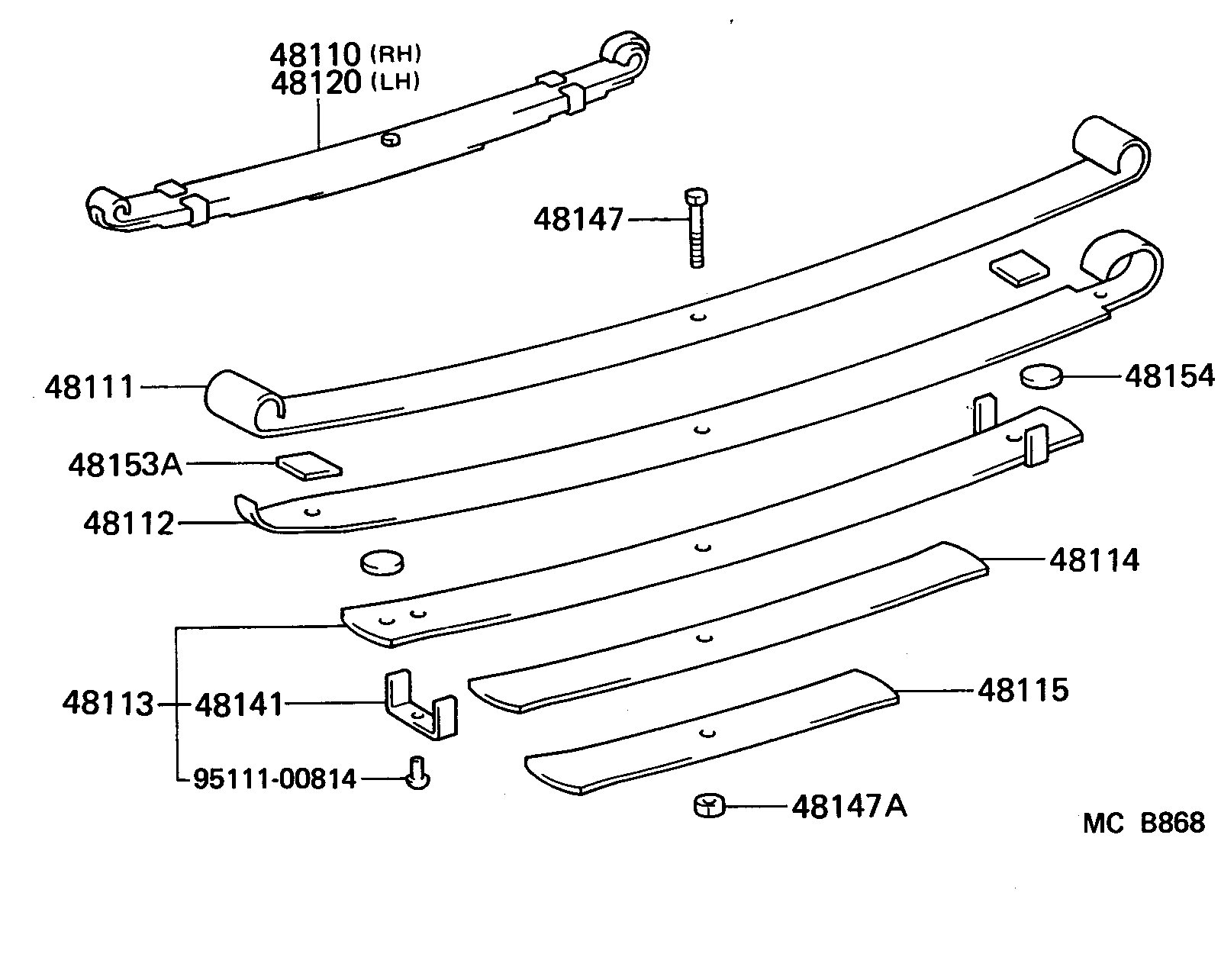

| 48110 | Spring Assy, Front, RH |
| 48110A | Bush(FOR FRONT SPRING SHACKLE) |
| 48110B | Bush(FOR FRONT SPRING PIN) |
| 48111 | Leaf, Front Spring, NO.1 |
| 48112 | Leaf, Front Spring, NO.2 |
| 48113 | Leaf, Front Spring, NO.3 |
| 48114 | Leaf, Front Spring, NO.4 |
| 48115 | Leaf, Front Spring, NO.5 |
| 48120 | Spring Assy, Front, LH |
| 48141 | Clip, Front Spring, NO.1 |
| 48147 | Bolt, Front Spring, Center |
| 48147A | Nut, Front Spring Center Bolt |
| 48153A | Silencer, Front Spring, NO.1 |
| 48154 | Silencer, Front Spring, NO.2 |
| 48304 | Bumper Sub-assy, Front Spring, NO.1 |
| 48305 | Bumper Sub-assy, Front Spring, NO.2 |
| 48346 | Stopper, Bumper, Front |
| 48411 | Bracket, Front Spring(FOR FRONT RH) |
| 48412 | Bracket, Front Spring(FOR FRONT LH) |
| 48414 | Bracket, Front Spring(FOR REAR RH) |
| 48415 | Bracket, Front Spring(FOR REAR LH) |
| 48475 | Plate, Distance(FOR FRONT) |
| 48505 | Seat, Front Spring, RH |
| 48505A | Bolt, U(FOR FRONT SPRING) |
| 48506 | Seat, Front Spring, LH |
| 48510 | Absorber Assy, Shock, Front RH |
| 48510A | Cushion, Front Shock Absorber |
| 48510B | Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER) |
| 48510C | Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER) |
| 48510D | Washer, Front Shock Absorber Cushion, NO.1 |
| 48510E | Washer, Front Shock Absorber Cushion, NO.2 |
| 48510H | Bush(FOR FRONT SHOCK ABSORBER) |
| 48512A | Bracket, Front Shock Absorber, Upper RH |
| 48513 | Bracket, Front Shock Absorber, Upper LH |
| 48520 | Absorber Assy, Shock, Front LH |

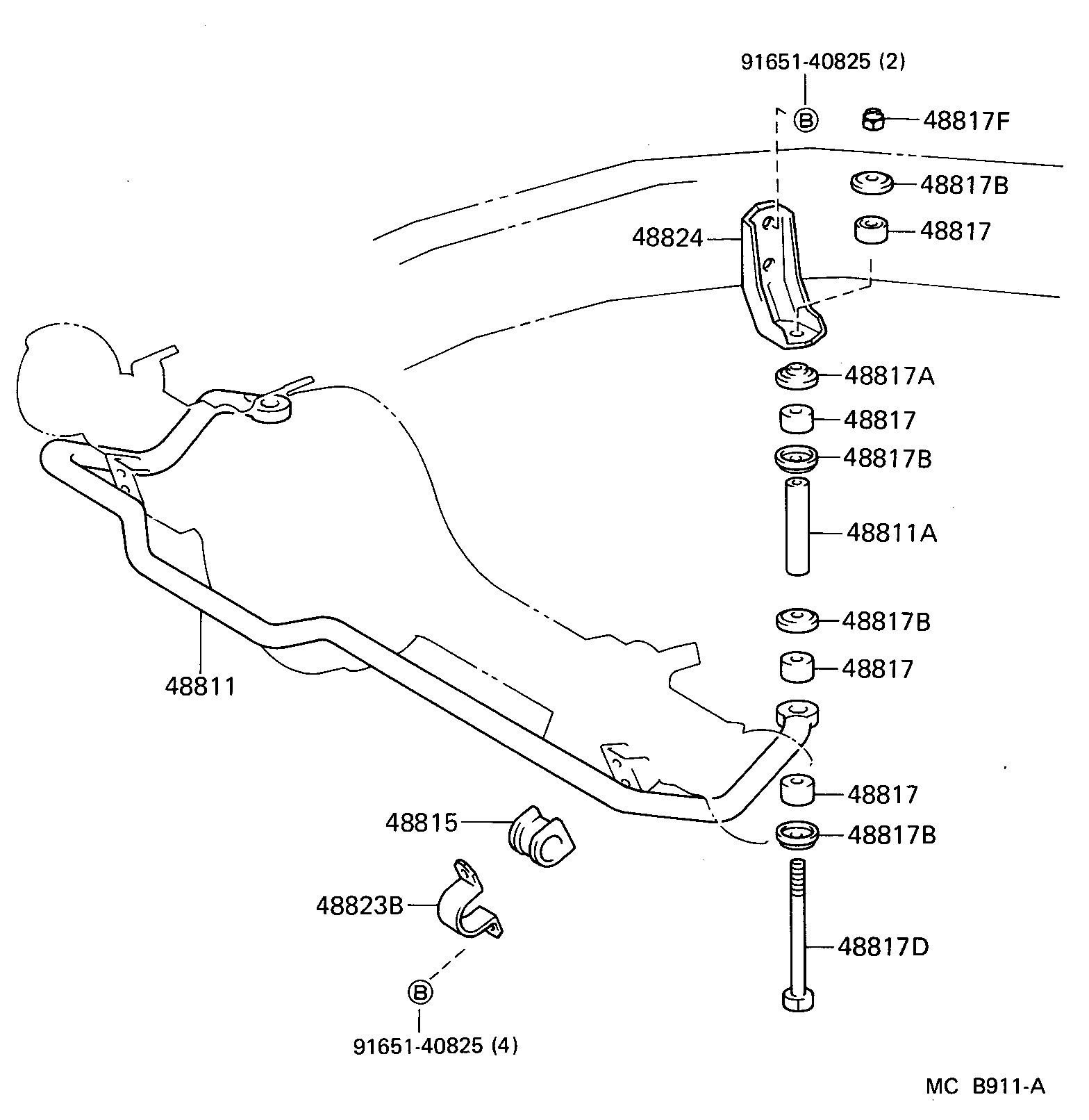

| 48811 | Bar, Stabilizer, Front |
| 48811A | Bush(FOR FRONT STABILIZER BAR) |
| 48815 | Bush, Front Stabilizer Bar, NO.1 |
| 48817 | Cushion, Front Stabilizer |
| 48817A | Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR) |
| 48817B | Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR) |
| 48817D | Bolt(FOR FRONT STABILIZER) |
| 48817F | Nut(FOR FRONT STABILIZER BAR) |
| 48823B | Cover, Front Stabilizer Bracket |
| 48824 | Bracket, Stabilizer, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
