Toyota Land Cruiser
1984-11 → 1987-07 · chassis BJ70 · catalogue 781420 · United States
Discontinued model
Data version 1987-12

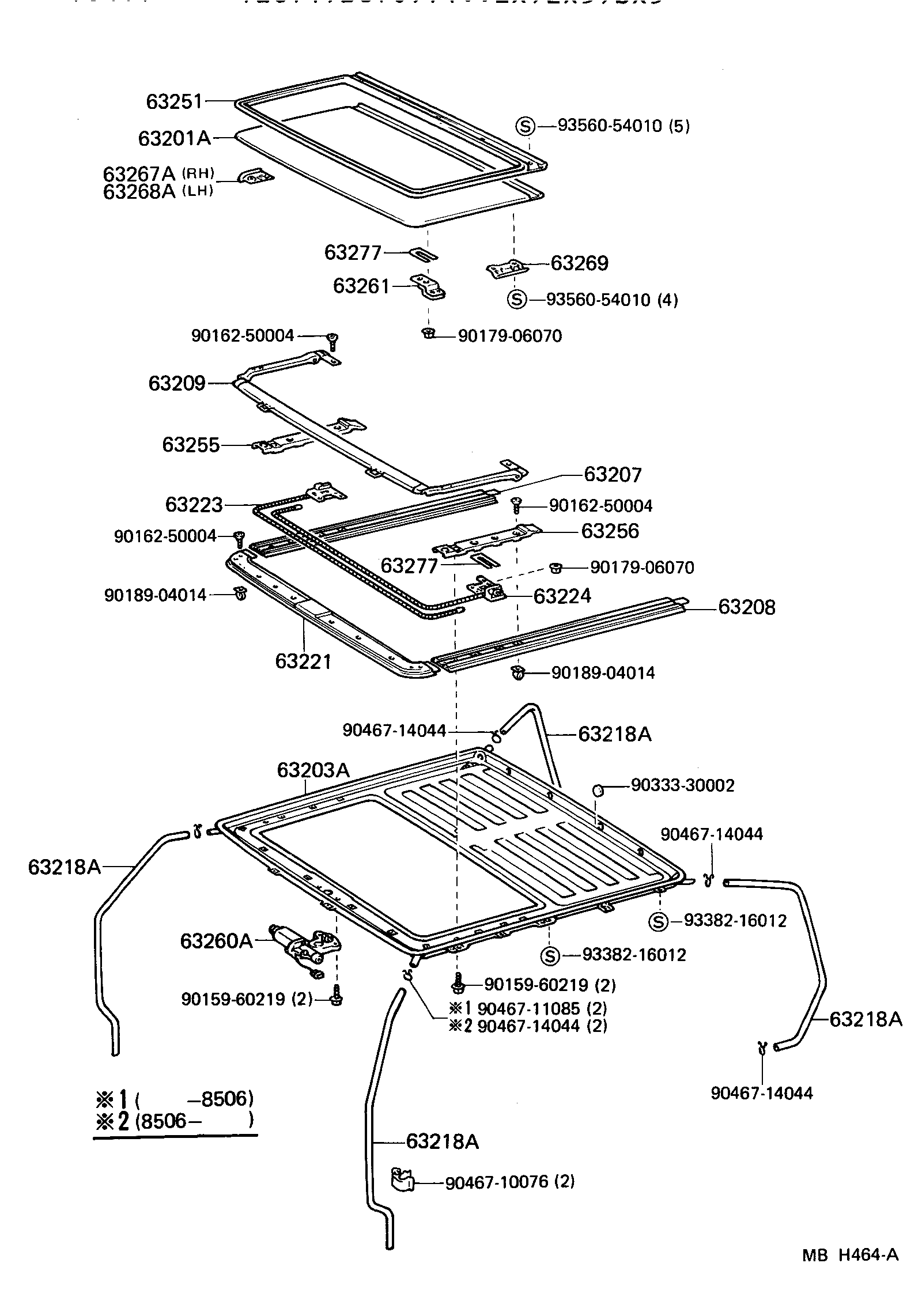

Roof Panel & Back Panel
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63102A | Panel Sub-assy, Windshield Header |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143A | Reinforcement, Roof Panel |
| 63201A | Panel Sub-assy, Sliding Roof OR Removable Roof |
| 63203A | Housing Sub-assy, Sliding Roof OR Removable Roof |
| 63207 | Rail Sub-assy, Sliding Roof Guide, RH |
| 63208 | Rail Sub-assy, Sliding Roof Guide, LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63251 | Weatherstrip, Sliding Roof Panel OR Removable Roof |
| 63255 | Cover, Sliding Roof Guide Rail, RH |
| 63256 | Cover, Sliding Roof Guide Rail, LH |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63261 | Shoe, Sliding Roof, Front |
| 63267A | Protector, Sliding Roof Weatherstrip, RH |
| 63268A | Protector, Sliding Roof Weatherstrip, LH |
| 63269 | Retainer, Sliding Roof Weatherstrip |
| 63277 | Shim, Sliding Roof Rail |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
