Toyota Land Cruiser

1984-11 → 1987-07 · chassis BJ70 · catalogue 781420 · United States

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

33 part groups · 2 illustrations

Illustrations

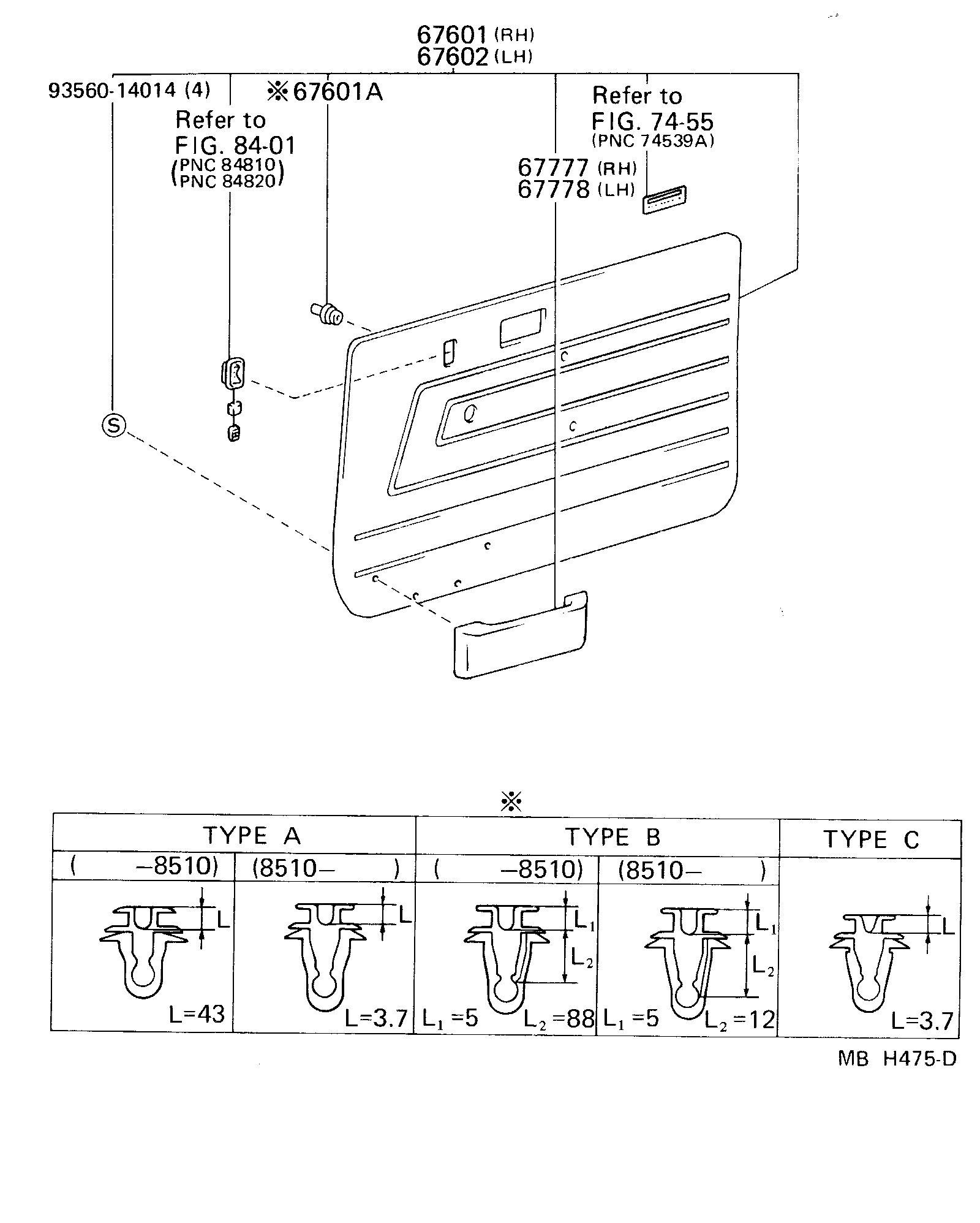

Figure MBH635B MBH635B 1984-11 → — Figure MBH475D MBH475D 1984-11 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67401F Frame Sub-assy, Front Door, Front Lower RH
67402F Frame Sub-assy, Front Door, Front Lower LH
67433 Frame, Front Door Window, Rear Lower RH
67434 Frame, Front Door Window, Rear Lower LH
67481A Seal, Front Door Front Lower Frame, RH
67482A Seal, Front Door Front Lower Frame, LH
67601 Board Sub-assy, Front Door Trim, RH
67601A Retainer(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67777 Pocket, Front Door Trim, RH
67778 Pocket, Front Door Trim, LH
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67861A Retainer(FOR FRONT DOOR WEATHERSTRIP)
67862 Weatherstrip, Front Door, LH
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141 Run, Front Door Glass
68141B Clip, Door Glass Run
68143 Run, Front Door Glass, Lower
68161 Weatherstrip, Front Door Glass, Outer
68161A Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170 Weatherstrip Assy, Front Door Glass, Inner
68170A Clip(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68610 Check Assy, Front Door
68610A Pin(FOR FRONT DOOR CHECK)
68621 Seal, Door Check
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
