Toyota Land Cruiser

1984-11 → 1987-07 · chassis BJ70 · catalogue 781420 · United States

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

16 part groups · 2 illustrations

Illustrations

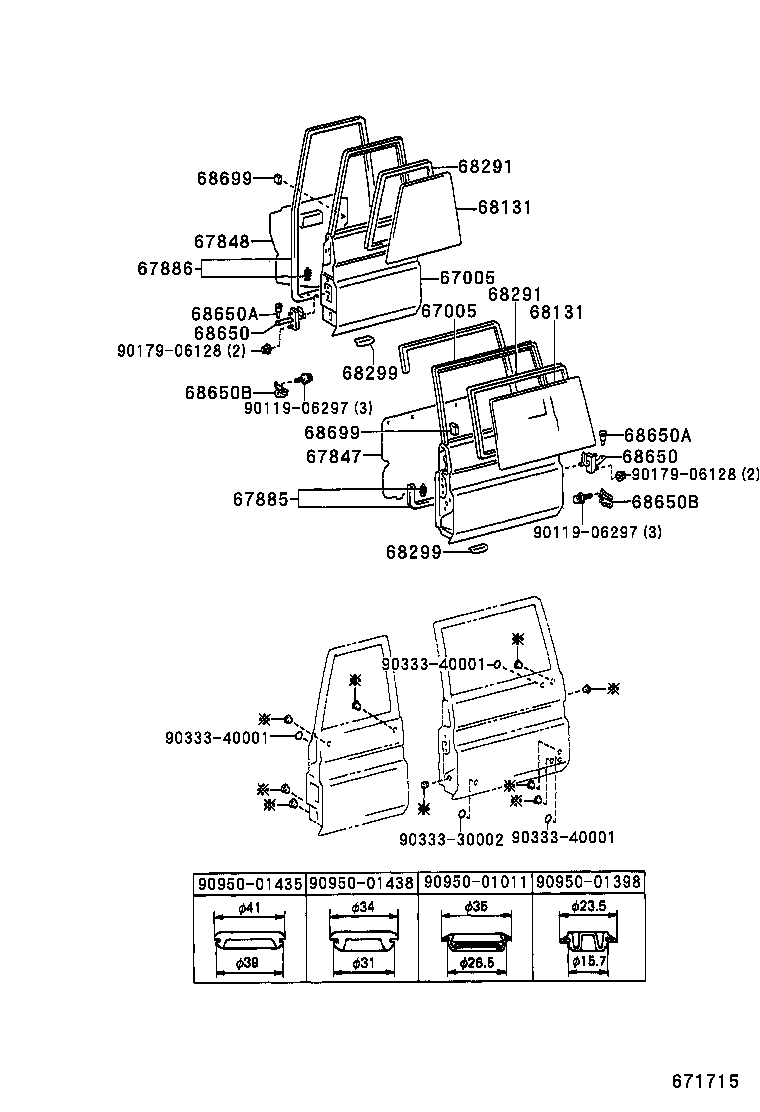

Figure 671716 671716 1984-11 → — Figure 671715 671715 1984-11 → —

Part groups

PNCDescription
62335B Cover, Back Door Opening Trim
64805 Trim Sub-assy, Back Door Opening
67005 Panel Sub-assy, Back Door
67751 Board, Back Door Trim
67847 Cover, Back Door Service Hole, RH
67848 Cover, Back Door Service Hole, LH
67885 Weatherstrip, Back Door, RH
67886 Weatherstrip, Back Door, LH
68131 Glass, Back Door
68291 Weatherstrip, Back Door Glass
68299 Spacer, Back Door Weatherstrip
68650 Check Assy, Back Door
68650A Pin(FOR BACK DOOR CHECK)
68650B Base, Base Door Check
68699 Spacer, Back Door Window Frame
69717 Cover, Back Door Lock Control Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
