Toyota Land Cruiser

1984-11 → 1987-07 · chassis BJ70 · catalogue 781420 · United States

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

7 part groups · 2 illustrations

Illustrations

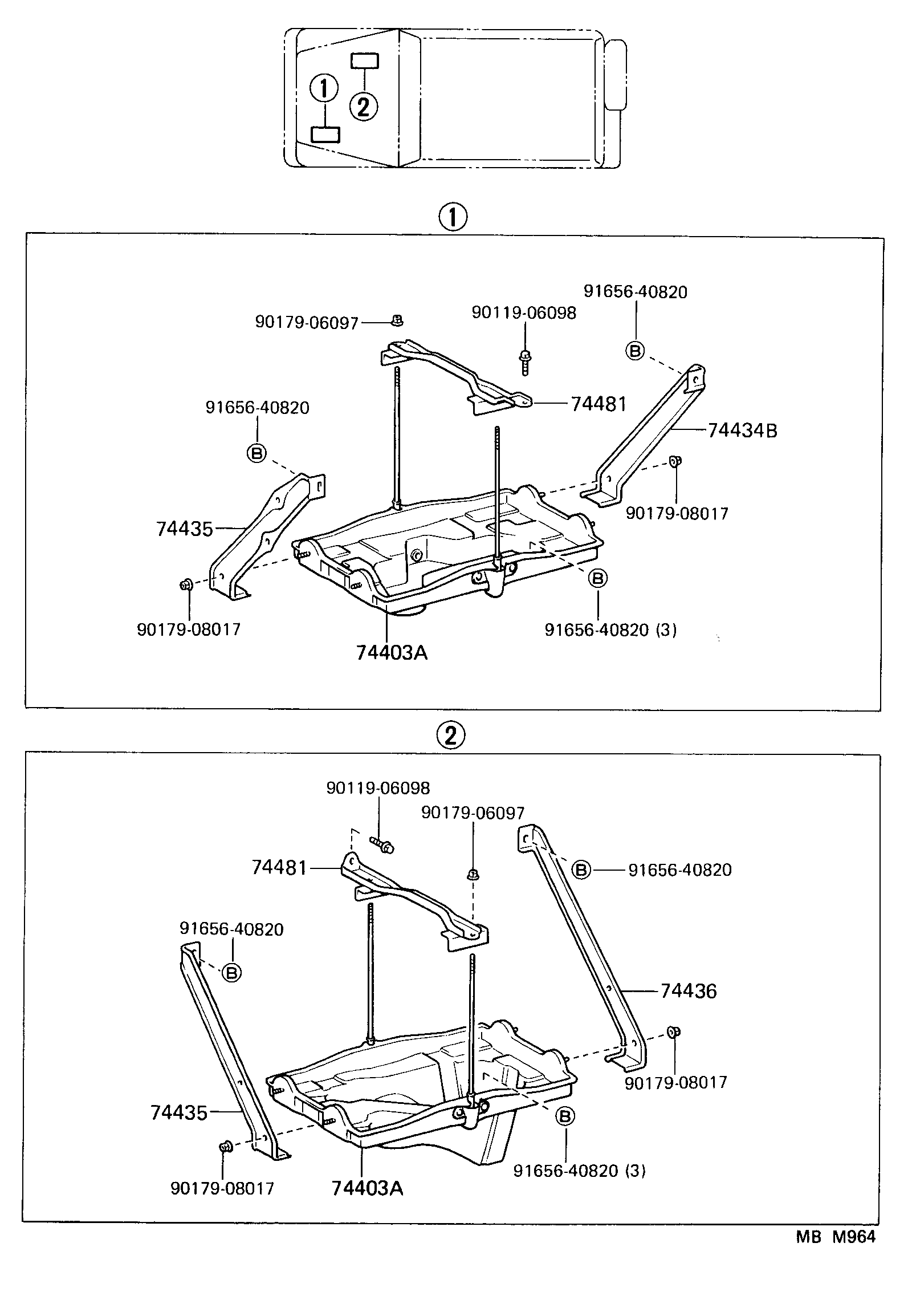

Figure MBH643 MBH643 1984-11 → 1987-04 Figure MBM964 MBM964 1987-04 → —

Part groups

PNCDescription
74403A Carrier Sub-assy, Battery
74407A Bolt Sub-assy, Battery Clamp
74431 Tray, Battery
74434B Support, Battery Tray, NO.2
74435 Support, Battery Tray, NO.3
74436 Support, Battery Tray, NO.4
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
