Toyota Land Cruiser
1984-11 → 1987-07 · chassis BJ70 · catalogue 781420 · United States
Discontinued model
Data version 1987-12

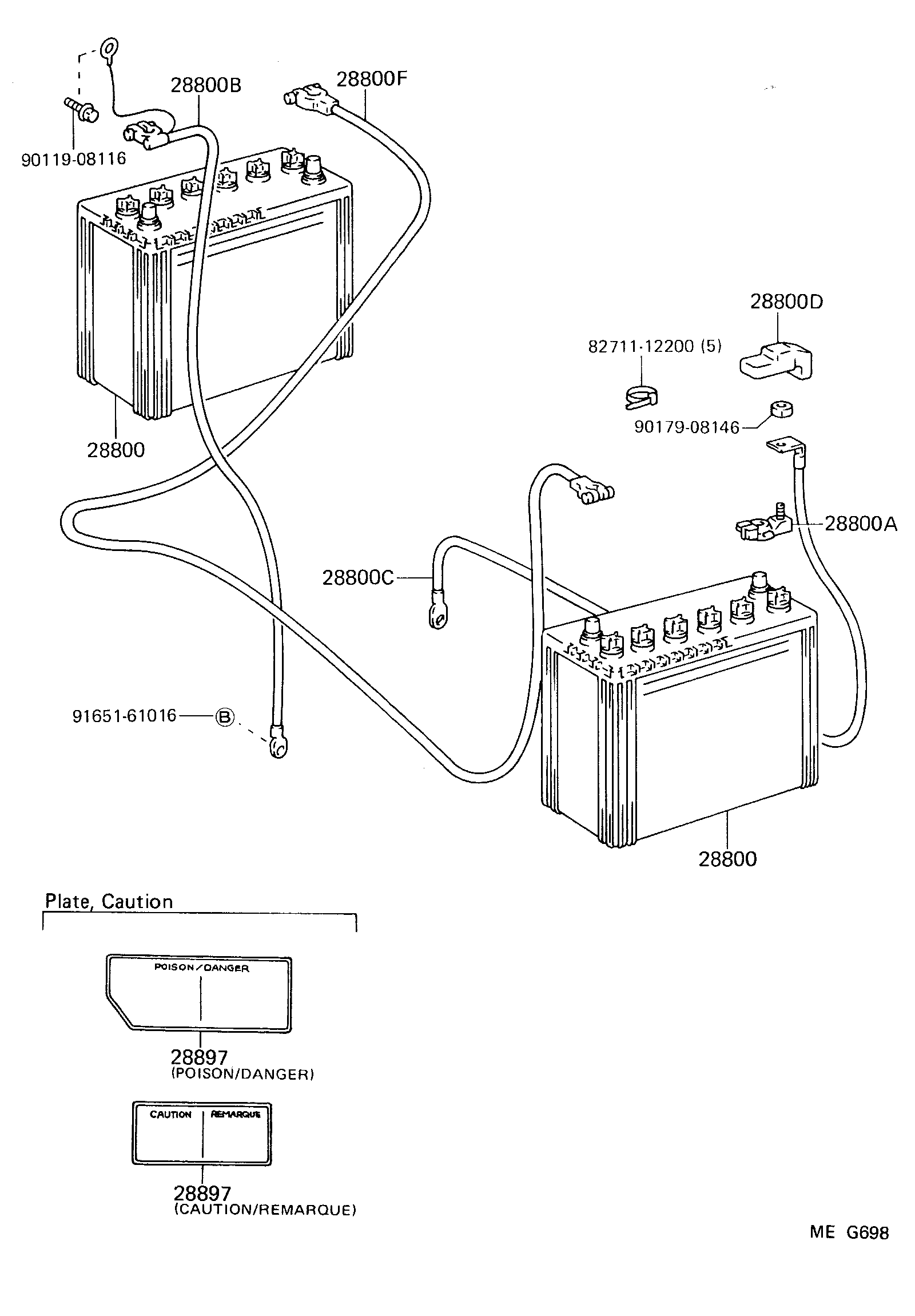

Battery & Battery Cable
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800B | Cable, Battery TO Ground |
| 28800C | Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH) |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800F | Cable, Battery TO Battery |
| 28897 | Plate, Battery Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
