Toyota Land Cruiser

1984-11 → 1987-07 · chassis BJ70 · catalogue 781420 · United States

Discontinued model Data version 1987-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

22 part groups · 4 illustrations

Illustrations

Figure MEF428D

MEF428D 1984-11 → —

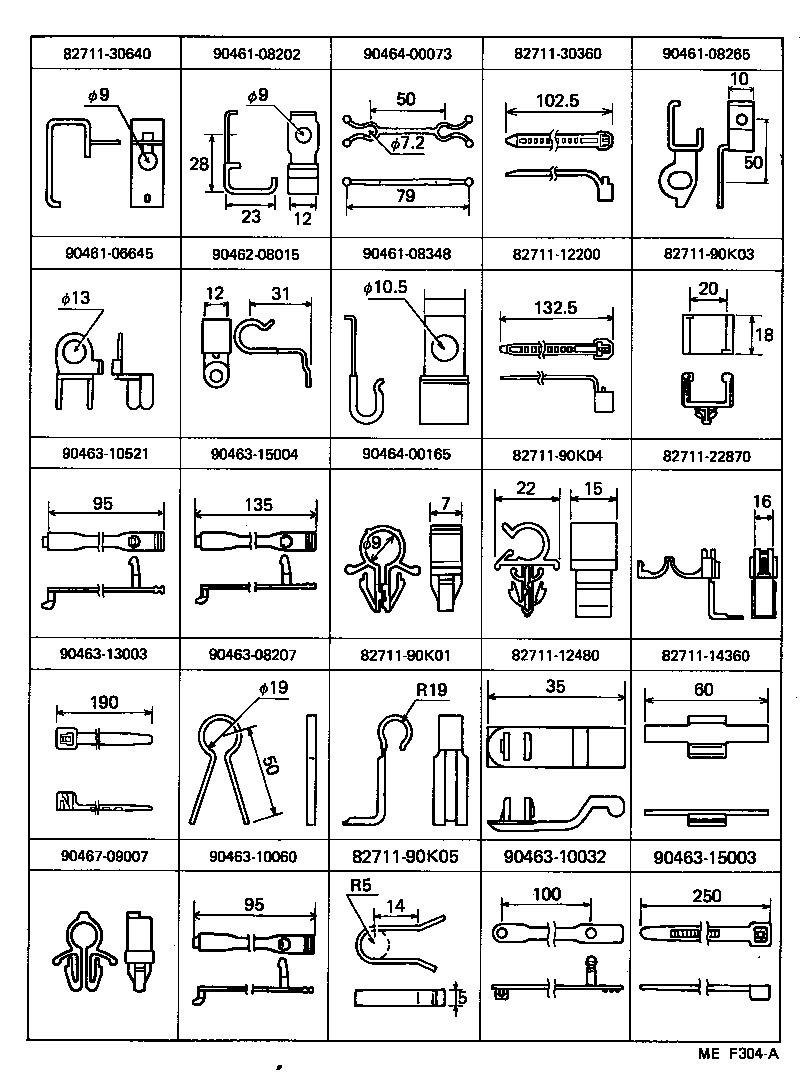

Figure MEF304A

MEF304A 1984-11 → —

Figure MEJ298

MEJ298 1984-11 → —

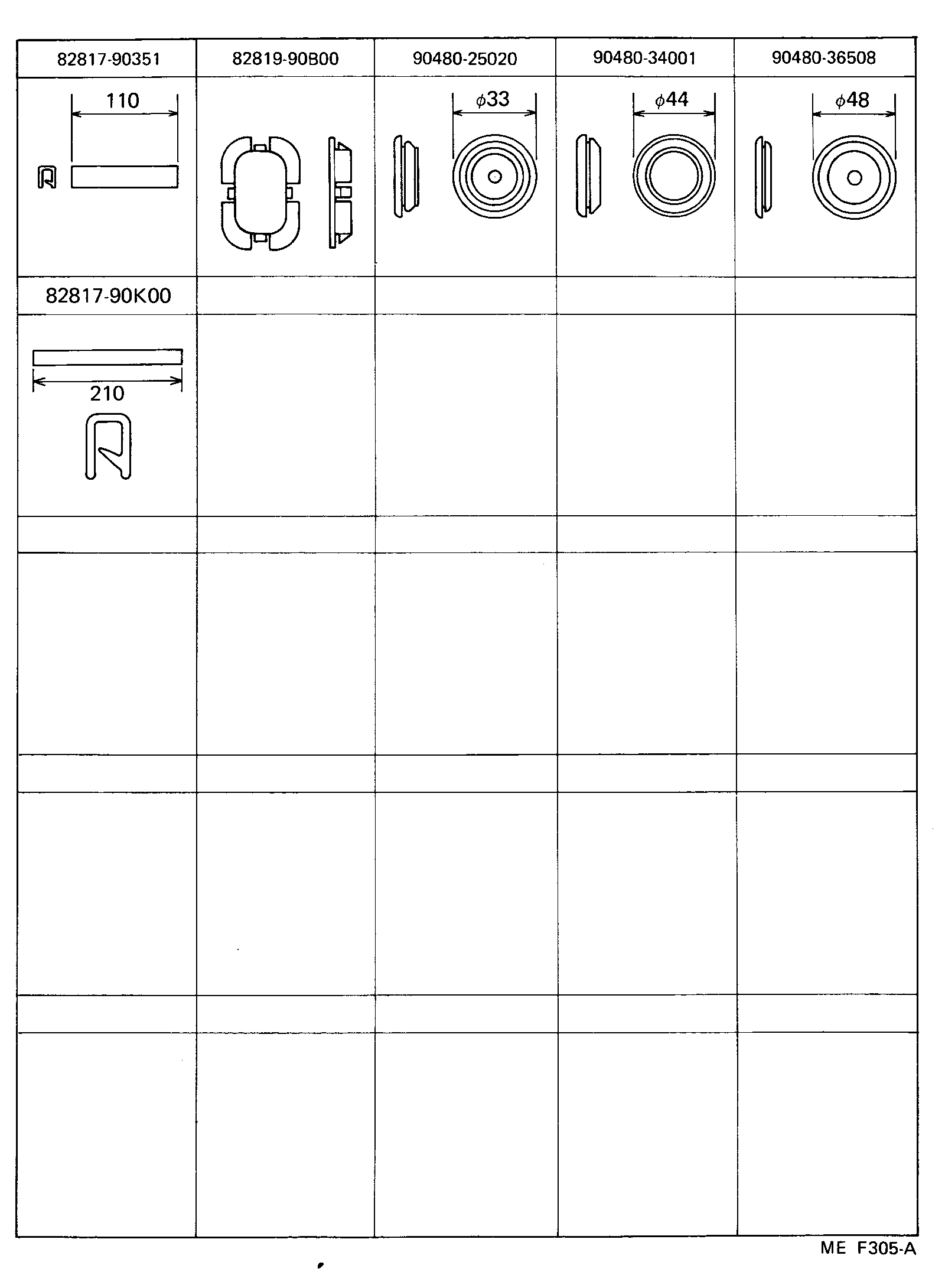

Figure MEF305A

MEF305A 1984-11 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82125	Wire, Transmission
82131	Wire, Cowl
82133	Wire, Cowl, NO.3
82141	Wire, Instrument Panel
82142	Wire, Instrument Panel, NO.2
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82161	Wire, Floor
82162	Wire, Floor, NO.2
82171	Wire, Roof, NO.1
82181B	Wire, Luggage Room, NO.3
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82186	Wire, Rear Window, NO.1
82187	Wire, Rear Window, NO.2
82210C	Fusible Link
82210D	Fusible Link
82211A	Wire, Rear Heater
82345	Diode
82670	Block Assy, Junction, NO.1
82823	Cap, Terminal, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
