Toyota Lexus GX470
2002-11 → 2009-08 · chassis UZJ120 · catalogue 781450 · United States
Supported model
Data version 2010-01

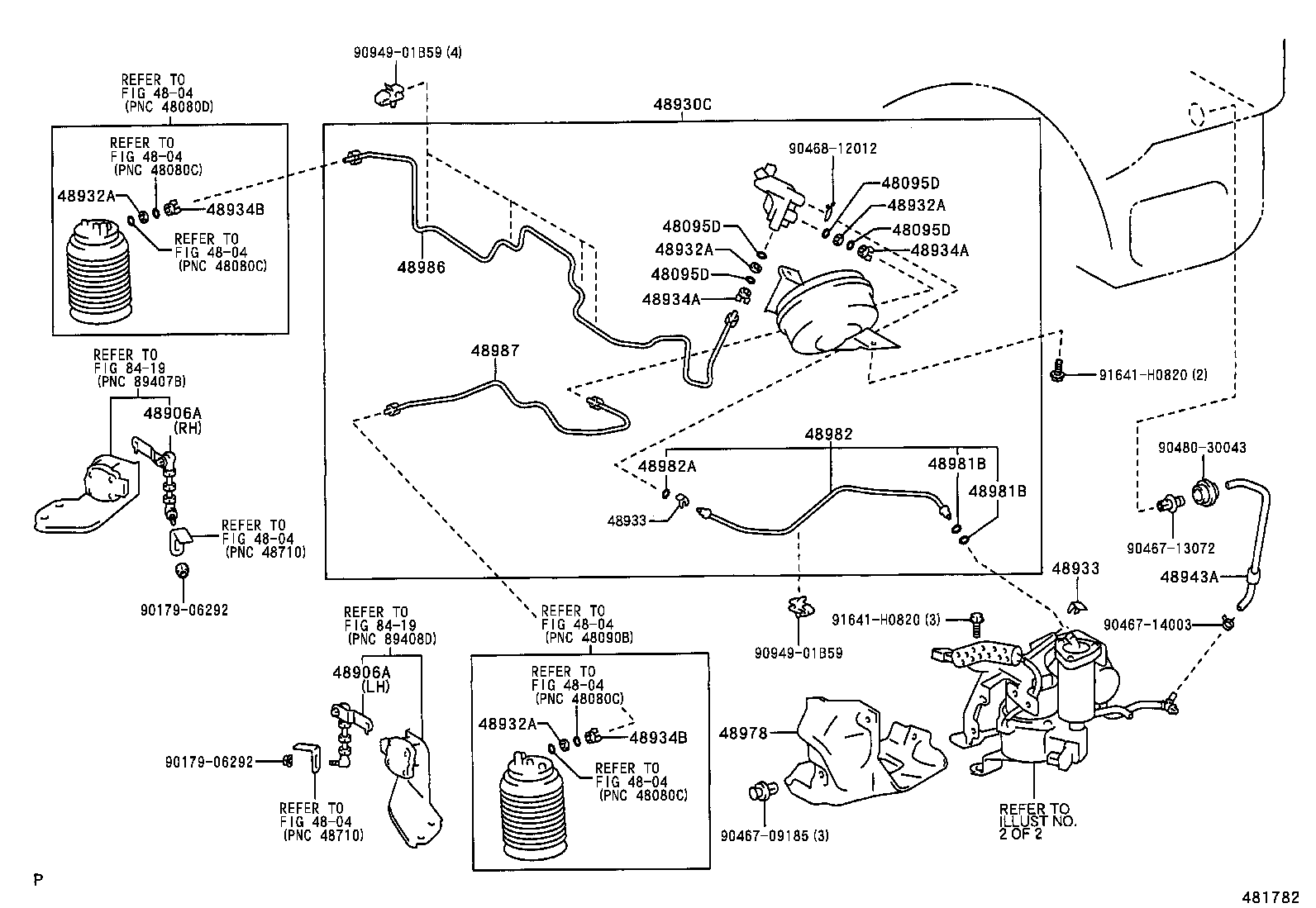

Height Control (AUTO-LEVELER)
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44753B | Clamp, Height Control Tube, NO.1 |
| 48095D | Ring, O(FOR HEIGHT CONTROL VALVE) |
| 48096A | Bush, NO.2(FOR HEIGHT CONTROL VALVE) |
| 48906A | Link Sub-assy, Height Control Sensor, Rear |
| 48910B | Compressor Assy, Height Control |
| 48911 | Bracket, Height Control Compressor |
| 48925 | Filter, Height Control |
| 48930C | Reservoir Assy, Height Control |
| 48932A | Plate, Height Control Tube |
| 48933 | Holder, Air Connector Clip |
| 48934A | Plug, Height Control |
| 48934B | Connector, Height Control Tube |
| 48943 | Hose, Height Control, NO.1 |
| 48943A | Hose, Height Control, NO.3 |
| 48943B | Hose, Height Control, NO.2 |
| 48950 | Dryer Assy, Height Control |
| 48976 | Way, Height Control |
| 48978 | Cover, Height Control Compressor |
| 48981B | Ring, O(FOR HEIGHT CONTROL TUBE NO.1) |
| 48982 | Tube, Height Control, NO.2 |
| 48982A | Ring, O(FOR HEIGHT CONTROL TUBE NO.2) |
| 48986 | Tube, Height Control, NO.6 |
| 48987 | Tube, Height Control, NO.7 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
