Toyota Lexus GX470

2002-11 → 2009-08 · chassis UZJ120 · catalogue 781450 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

22 part groups · 2 illustrations

Illustrations

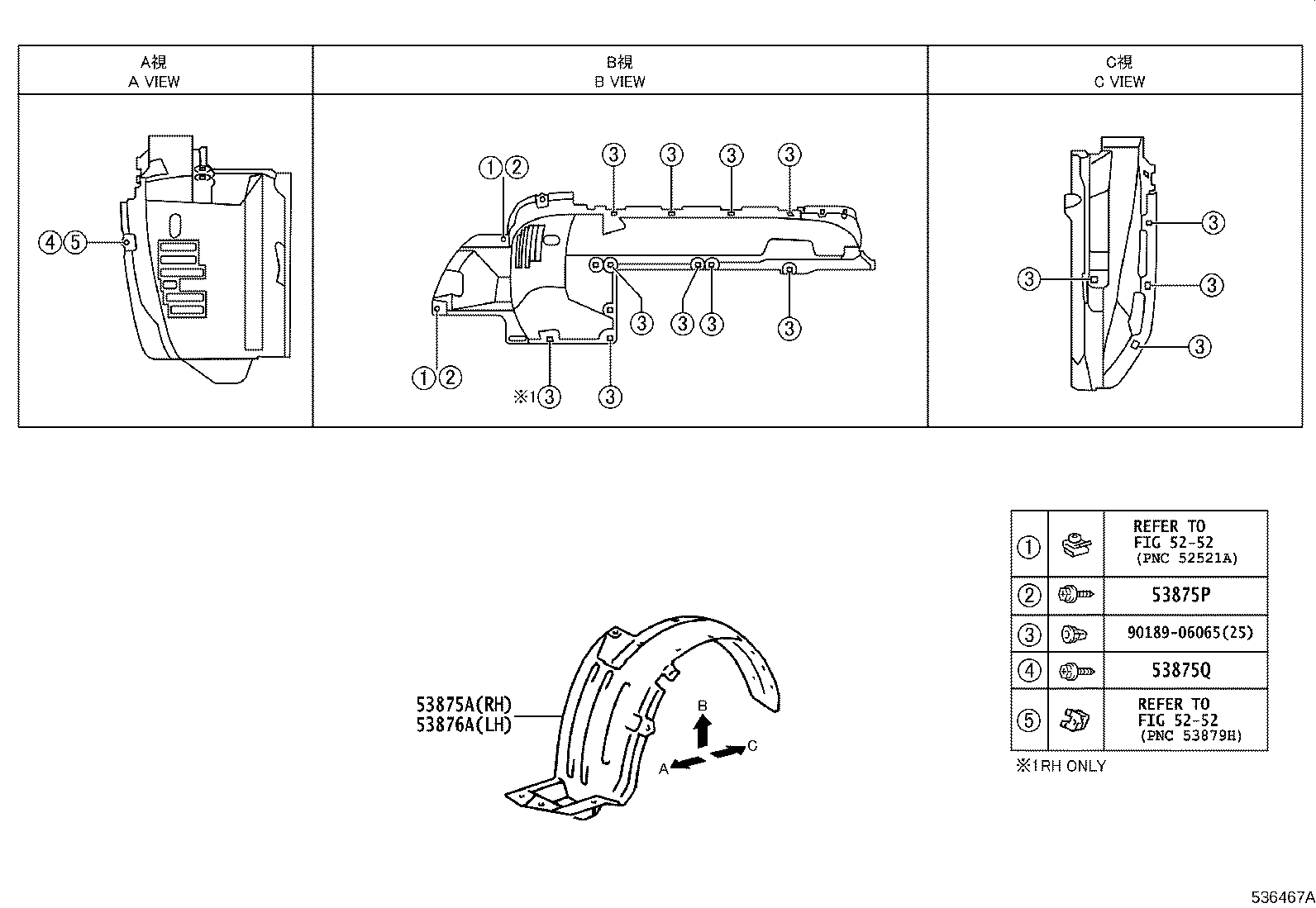

Figure 536466B 536466B 2002-11 → — Figure 536467A 536467A 2002-11 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53301B Cushion, Hood Bumper
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53823E Protector, Front Side Panel, NO.2 RH
53824B Protector, Front Side Panel, NO.2 LH
53827K Protector, Front Fender Side Panel, RH
53828J Protector, Front Fender Side Panel, LH
53835A Brace, Front Fender TO Apron, RH
53836A Brace, Front Fender TO Apron, LH
53866 Seal, Front Fender TO Cowl Side, RH
53867 Seal, Front Fender TO Cowl Side, LH
53875A Liner, Front Fender, RH
53875P Screw, NO.1
53875Q Screw, NO.2
53876A Liner, Front Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
