Toyota Lexus GX470

2002-11 → 2009-08 · chassis UZJ120 · catalogue 781450 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

19 part groups · 2 illustrations

Illustrations

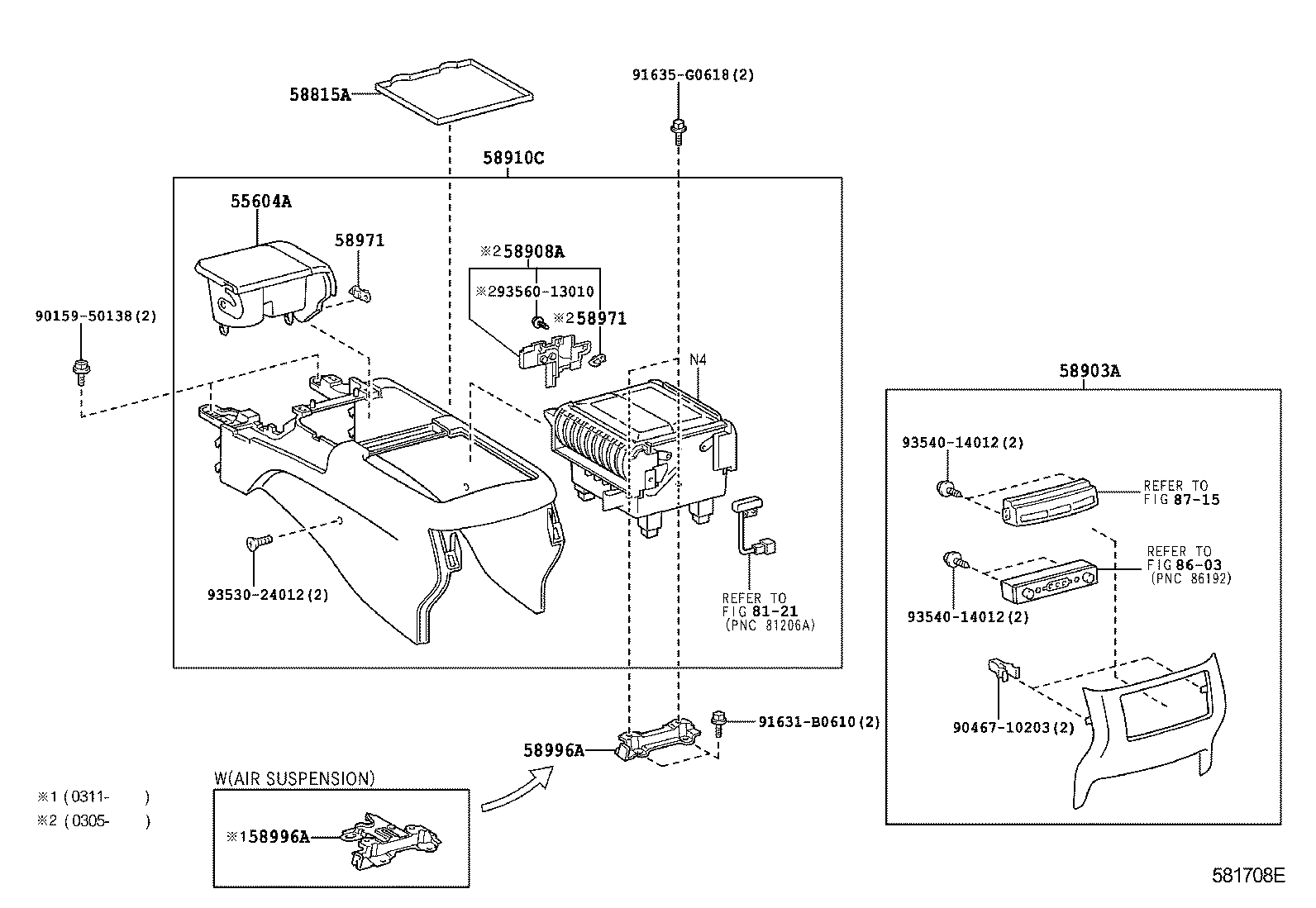

Figure 581707E 581707E 2002-11 → — Figure 581708E 581708E 2002-11 → —

Part groups

PNCDescription
33502R Plate Sub-assy, Shift Lever
55604A Holder Sub-assy, Instrument Panel Cup
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58812A Box, Console, Lower
58815A Carpet, Console Box
58816B Insert, Console Box
58817A Insert, Console Box, Front NO.2
58821C Panel, Console, Upper
58831A Garnish, Console Upper Panel, Front
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58903A Panel Sub-assy, Console Rear End
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58941A Cover, Parking Brake Hole
58971 Lock, Console Compartment Door
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
