Toyota Lexus GX470
2002-11 → 2009-08 · chassis UZJ120 · catalogue 781450 · United States
Supported model
Data version 2010-01

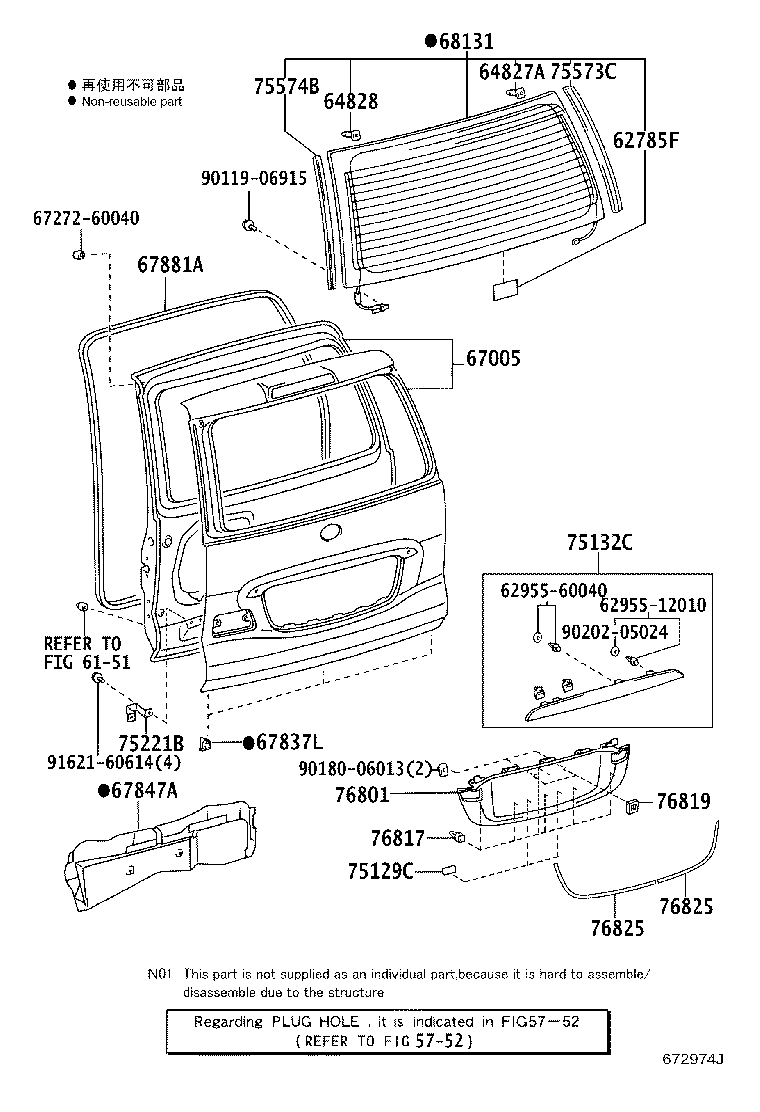

Back Door Panel & Glass
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62785F | Spacer, Back Door Glass |
| 64033F | Grille Sub-assy, Rear Speaker, RH |
| 64034F | Grille Sub-assy, Rear Speaker, LH |
| 64780C | Panel Assy, Back Door Trim, RH |
| 64827A | Clip, Back Window Glass, RH |
| 64828 | Clip, Back Window Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67709B | Pocket Sub-assy, Back Door Trim |
| 67763B | Cover, Back Door Trim, Lower RH |
| 67837L | Seal, Door Dust Proof |
| 67847A | Cover, Back Door Service Hole |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 68131 | Glass, Back Door |
| 75129C | Cushion, Rear Licence Plate |
| 75132C | Cover, License Rear Lamp |
| 75202B | Panel Sub-assy, Tool Box, Upper |
| 75221B | Bracket, Tool Box |
| 75573C | Moulding, Back Window, Outside |
| 75574B | Moulding, Back Window, Outside LH |
| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76817 | Clip, Back Door Outside Garnish |
| 76819 | Seal, Back Door Outside Garnish |
| 76825 | Protector, Back Door Outside Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
