Toyota Lexus GX470
2002-11 → 2009-08 · chassis UZJ120 · catalogue 781450 · United States
Supported model
Data version 2010-01

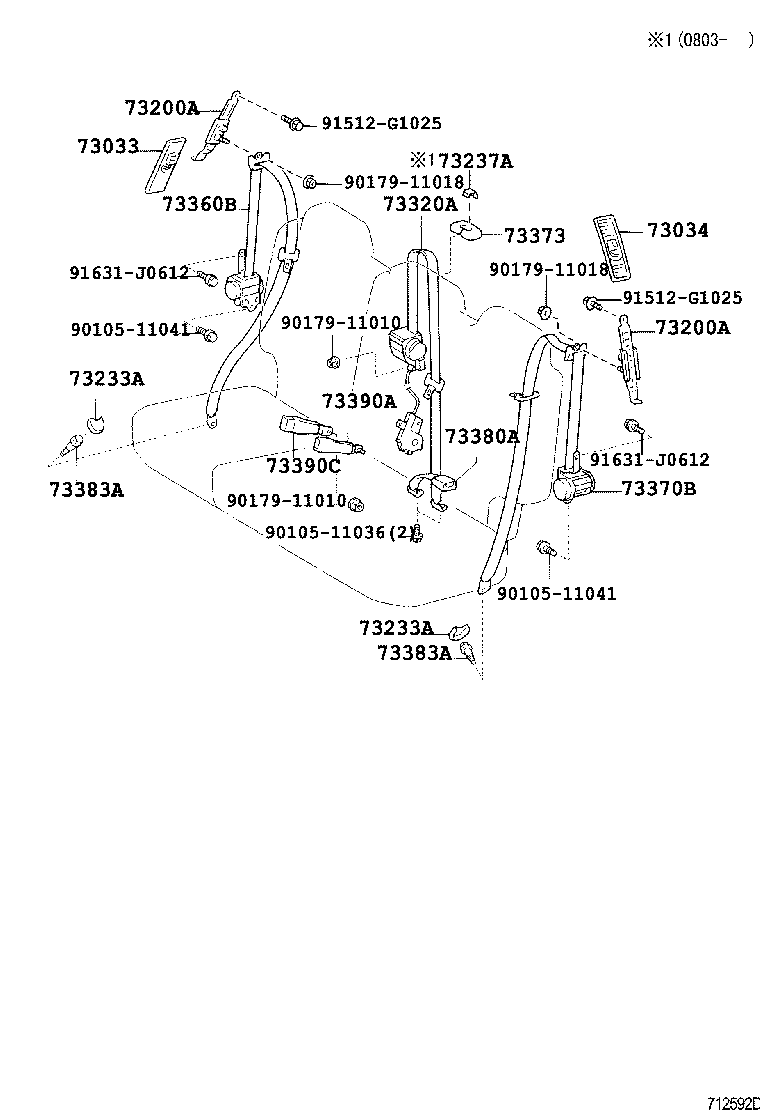

Seat Belt
30 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73033 | Plate Sub-assy, Rear Shoulder Belt Anchor, RH |
| 73034 | Plate Sub-assy, Rear Shoulder Belt Anchor, LH |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73233A | Cover, Lap Belt Outer Anchor, Rear NO.1 Seat |
| 73233B | Cover, Lap Belt Outer Anchor, Rear NO.2 Seat |
| 73237A | Cover, Shoulder Belt Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73302 | Belt Sub-assy, Rear Seat Outer |
| 73307 | Belt Sub-assy, Rear Seat, Inner |
| 73320A | Belt Assy, NO.1 Seat 3 Point Type, LH |
| 73345 | Guide, Rear Seat Shoulder Belt, Center |
| 73360B | Belt Assy, Rear Seat, Outer |
| 73370B | Belt Assy, Rear Seat, Outer |
| 73371A | Hanger Rear Seat Shoulder Belt |
| 73373 | Cover, Rear Seat Shoulder Belt |
| 73380A | Belt Assy, Rear Seat, Inner |
| 73383A | Hook, RR Seat Belt |
| 73390A | Belt Assy, Rear Seat, Inner |
| 73390C | Belt Assy, Rear NO.1 Seat, Inner LH |
| 73510A | Belt Assy, Rear NO.2 Seat, 3 Point Type |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73580A | Belt Sub Assy, Rear NO.2 Seat, Inner |
| 73590 | Belt Assy, Rear NO.2 Seat, Inner LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
