Toyota Lexus GX470

2002-11 → 2009-08 · chassis UZJ120 · catalogue 781450 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

25 part groups · 2 illustrations

Illustrations

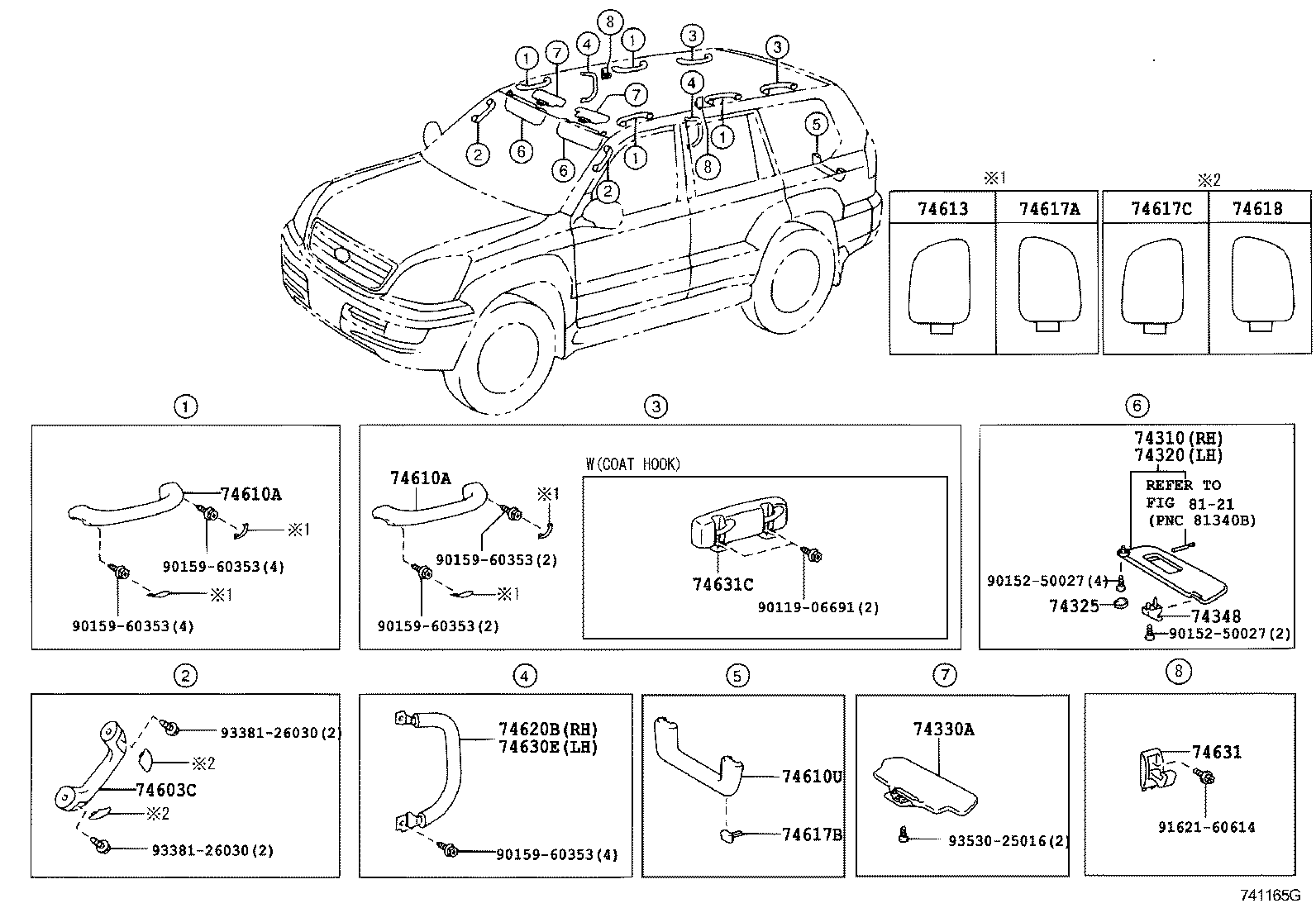

Figure 741164A 741164A 2002-11 → — Figure 741165G 741165G 2002-11 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74250 Armrest Assy, Rear RH
74260 Armrest Assy, Rear LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74325 Cover, Visor Bracket
74330A Visor Assy, Center
74348 Holder, Visor
74603C Grip Sub-assy, Assist
74610A Grip Sub-assy, Assist
74610U Grip Assy, Assist
74613 Plug, Assist Grip
74617A Plug, Assist Grip
74617B Plug, Door Assist Grip
74617C Plug, Assist Grip
74618 Plug, Front Assist Grip
74620B Grip Assy, Assist, Rear
74630E Grip Assy, Assist, Rear LH
74631 Hook, Coat, A
74631C Hook, Coat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
