Toyota Lexus GX470
2002-11 → 2009-08 · chassis UZJ120 · catalogue 781450 · United States
Supported model
Data version 2010-01

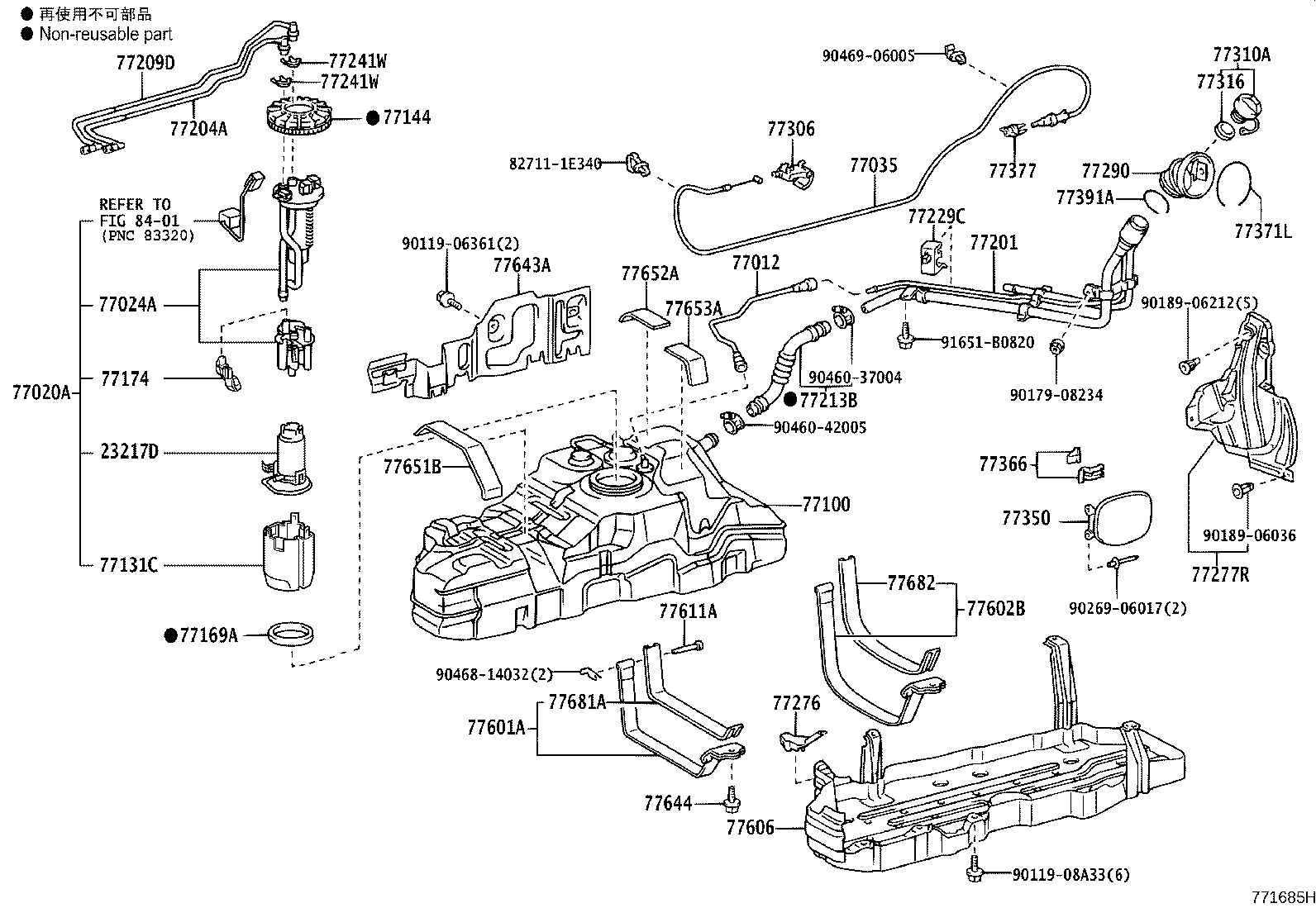

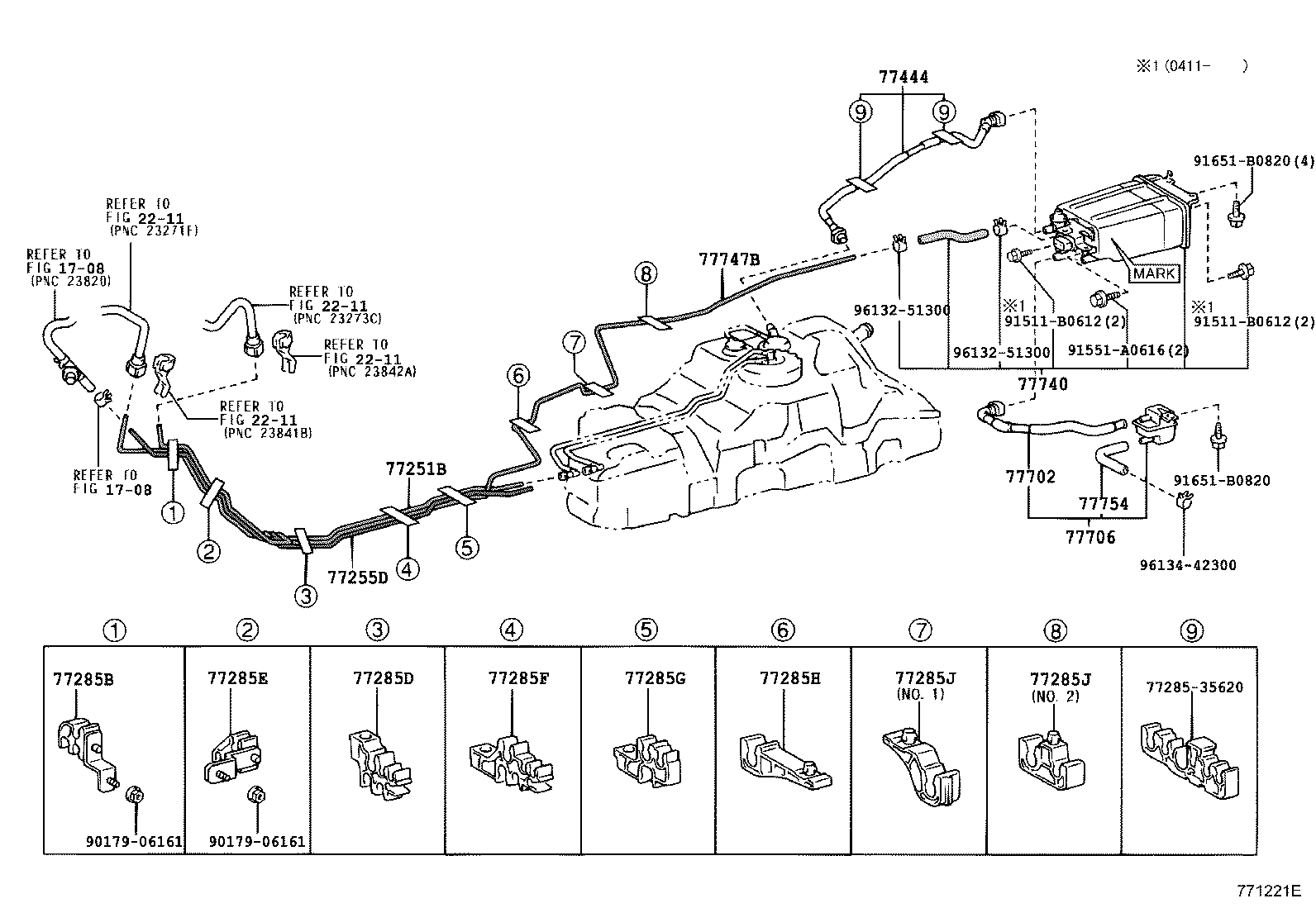

Fuel Tank & Tube
58 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 23217D | Filter, Fuel Pump |
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 23229A | Clip(FOR FUEL PUMP FILTER) |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23300J | Filter Assy, Fuel |
| 77012 | Tube Sub-assy, Fuel Tank Breather |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77131C | Sub-tank, Fuel, NO.1 |
| 77144 | Retainer, Fuel Pump Gauge |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77174 | Support, Fuel Suction, NO.1 |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77204A | Tube, Fuel Tank Return |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77229C | Clamp, Breather Tube |
| 77241W | Clip, Tube Joint |
| 77251B | Tube, Fuel Main |
| 77255D | Tube, Fuel Return |
| 77276 | Protector, Fuel Hose |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77285B | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285E | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77285G | Clamp, Fuel Tube, NO.1 |
| 77285H | Clamp, Fuel Tube, NO.1 |
| 77285J | Clamp, Fuel Tube, NO.1 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77371L | Ring, Fuel Tank Filler Pipe Shield |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391A | Ring, Fuel Inlet Box |
| 77444 | Hose, Fuel Tank Vent |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77643A | Protector, Fuel Tank, NO.3 |
| 77644 | Bolt, Fuel Tank |
| 77651B | Cushion, Fuel Tank |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77681A | Seat, Fuel Tank Band |
| 77682 | Seat, Fuel Tank Band, LH |
| 77702 | Hose Sub-assy, Canister Outlet, NO.2 |
| 77706 | Filter Sub-assy, Charcoal Canister |
| 77740 | Canister Assy, Charcoal |
| 77747B | Tube, Charcoal Canister, NO.1 |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
