Toyota Lexus GX470

2002-11 → 2009-08 · chassis UZJ120 · catalogue 781450 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

26 part groups · 2 illustrations

Illustrations

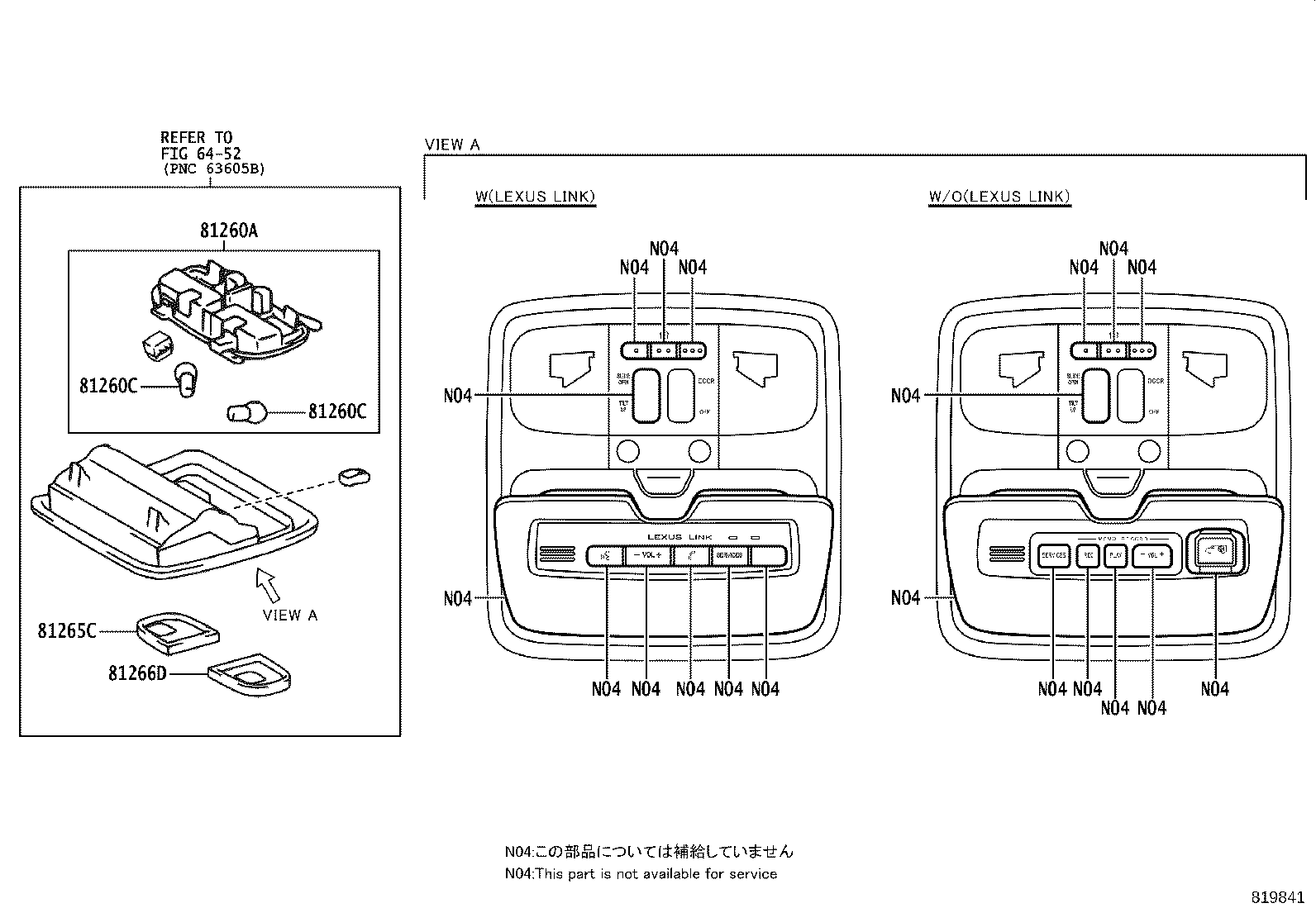

Figure 812396I 812396I 2002-11 → — Figure 819841 819841 2002-11 → —

Part groups

PNCDescription
81080N Lamp Assy, Interior Illumination, NO.1
81090 Lamp Assy, Interior Illumination, NO.2
81205 Lamp Sub-assy, Ash Receptacle
81205B Bulb, Ash Receptacle Lamp
81206A Lamp Sub-assy, Console Box
81230B Bulb(FOR COURTESY LAMP)
81230D Lamp Assy, Front Door Courtesy, RH
81230E Lamp Assy, Front Door Courtesy, LH
81231 Lens, Courtesy Lamp
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81241 Lens, Room Lamp, NO.1
81241A Lens, Room Lamp, NO.2
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81251 Lens, Room Lamp, NO.2
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81260B Bulb(FOR GLOVE BOX)
81260C Bulb(FOR MAP LAMP)
81261B Lens,Glove Box Lamp
81265C Lens, Map Lamp, NO.1
81266D Lens, Map Lamp, NO.2
81291 Lens, Room Lamp, NO.3(FOR REAR)
81340B Bulb (FOR VANITY LAMP)
81399B Cover, Lens
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
