Toyota Lexus GX470
2002-11 → 2009-08 · chassis UZJ120 · catalogue 781450 · United States
Supported model
Data version 2010-01
Wiring & Clamp
43 part groups · 11 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

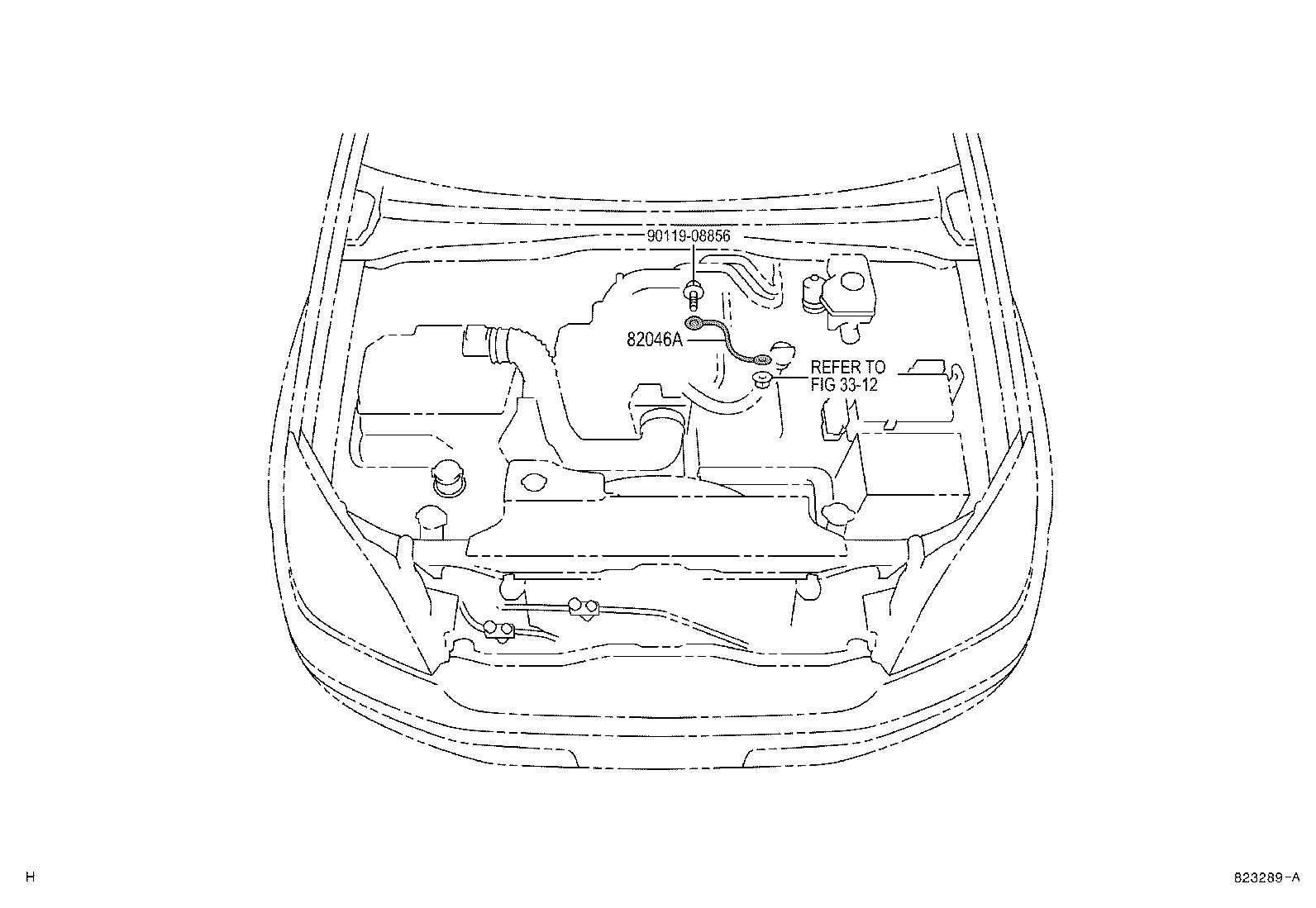

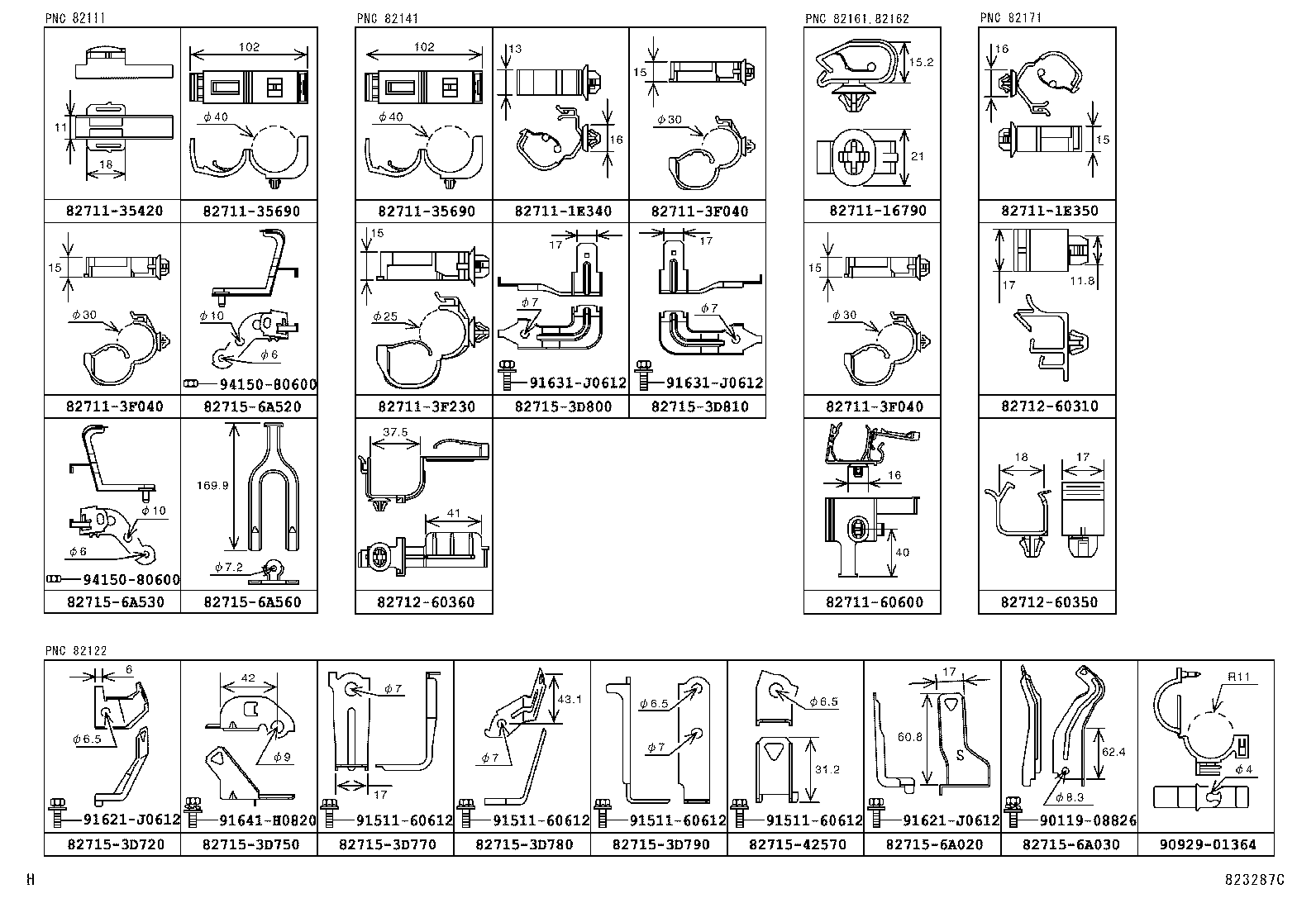

| 82046A | Wire Sub-assy, Body Ground, NO.1 |
| 82111 | Wire, Engine Room Main |

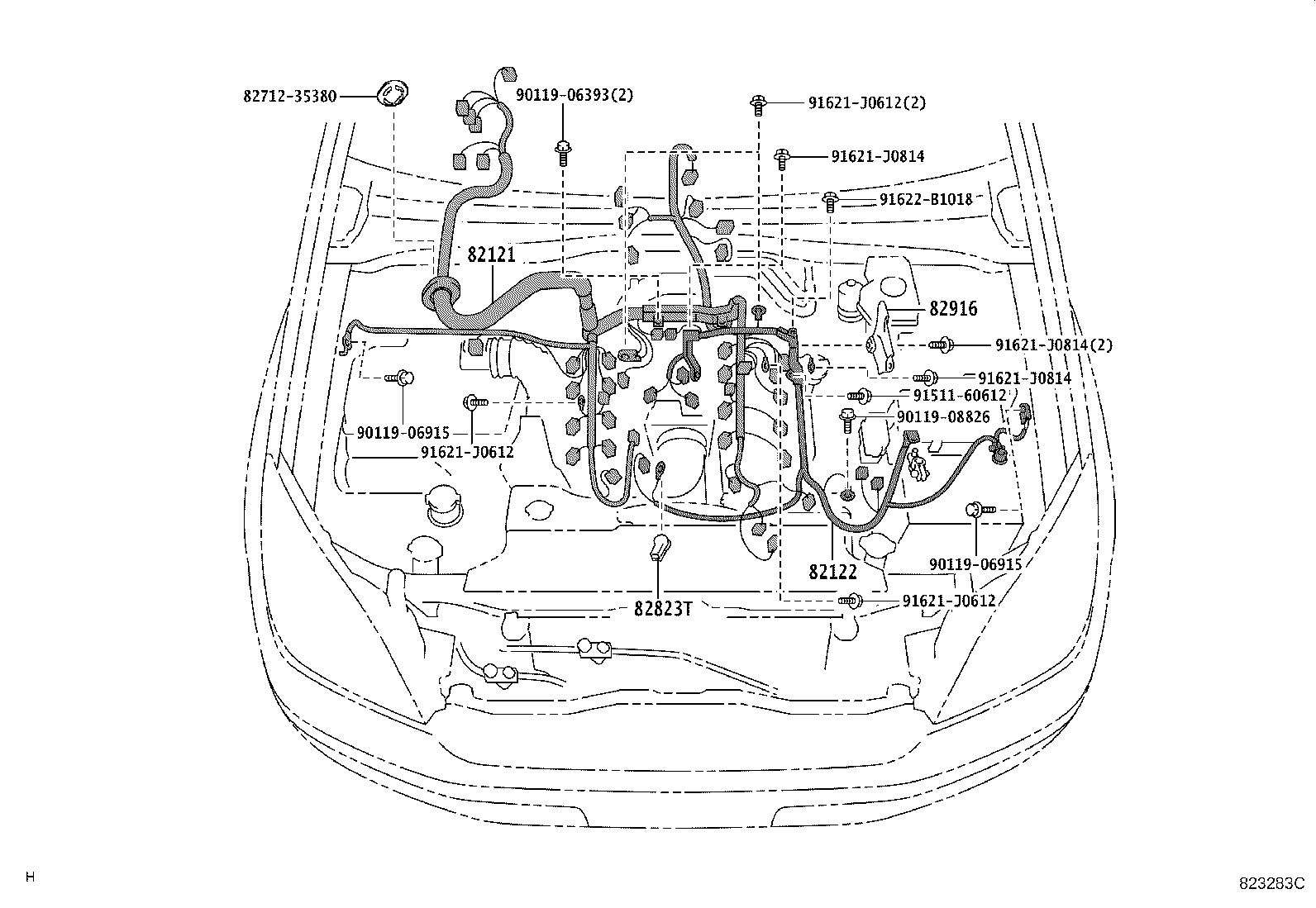

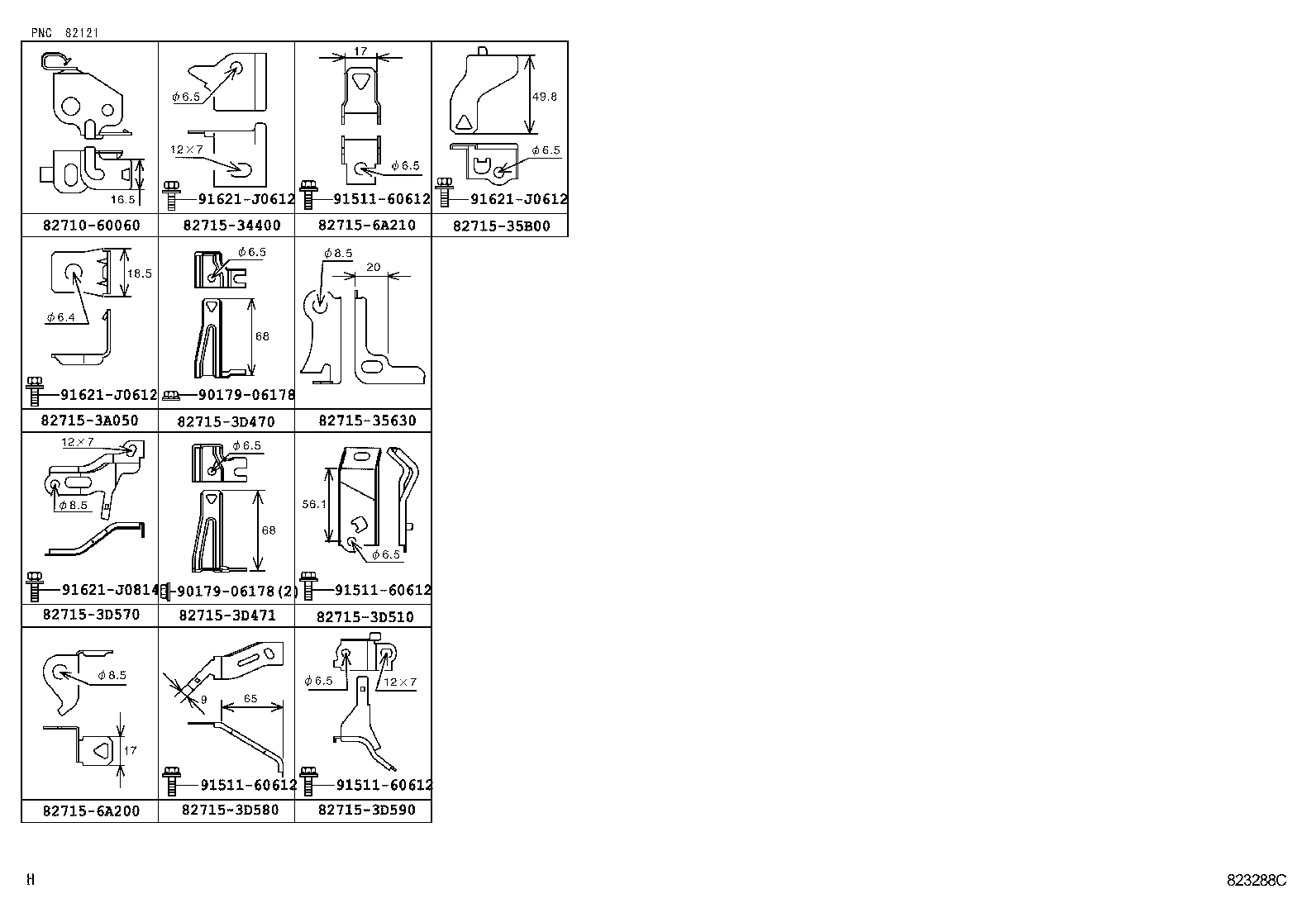

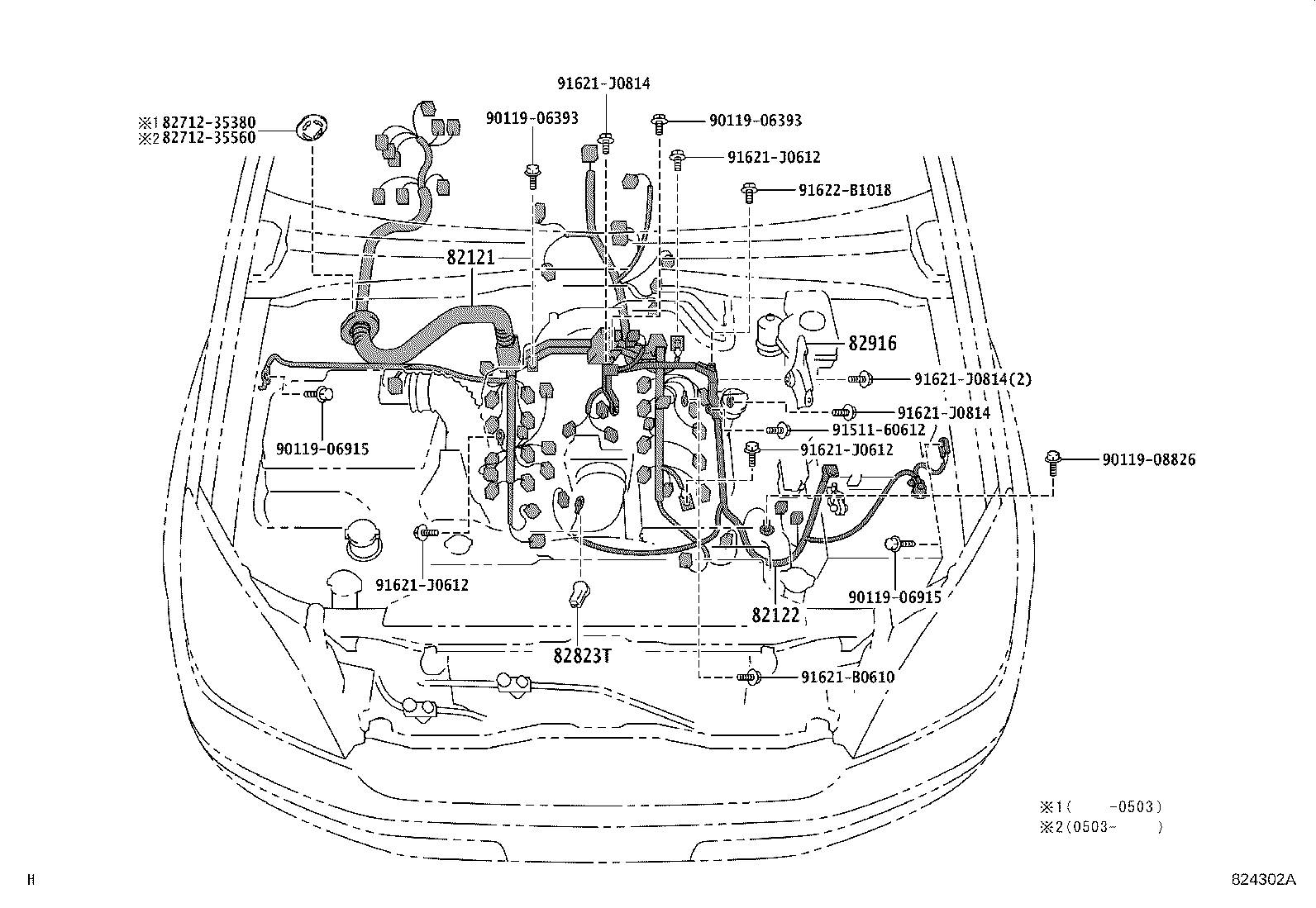

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82132 | Wire, Cowl, NO.2 |

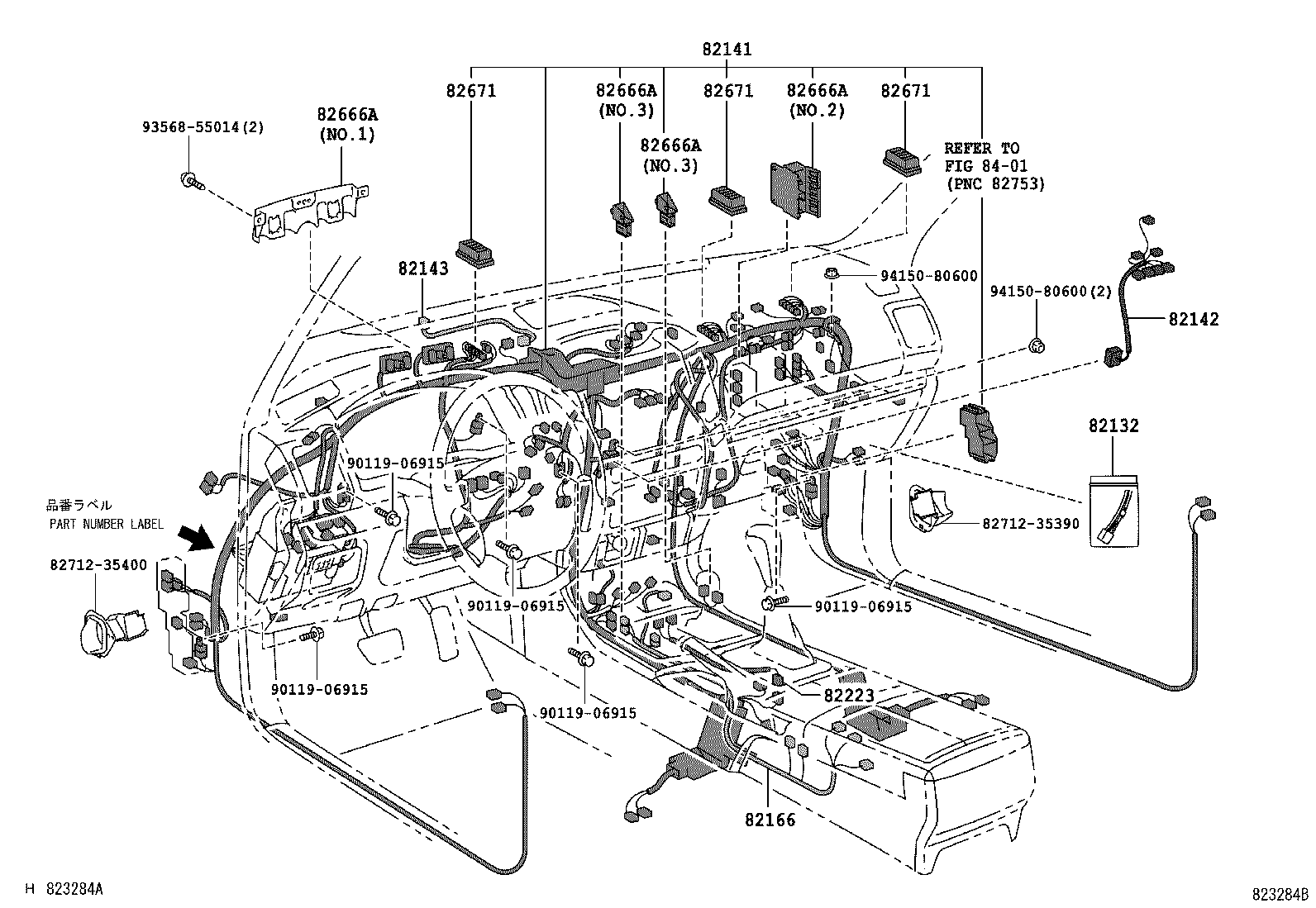

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82143 | Wire, Instrument Panel, NO.3 |

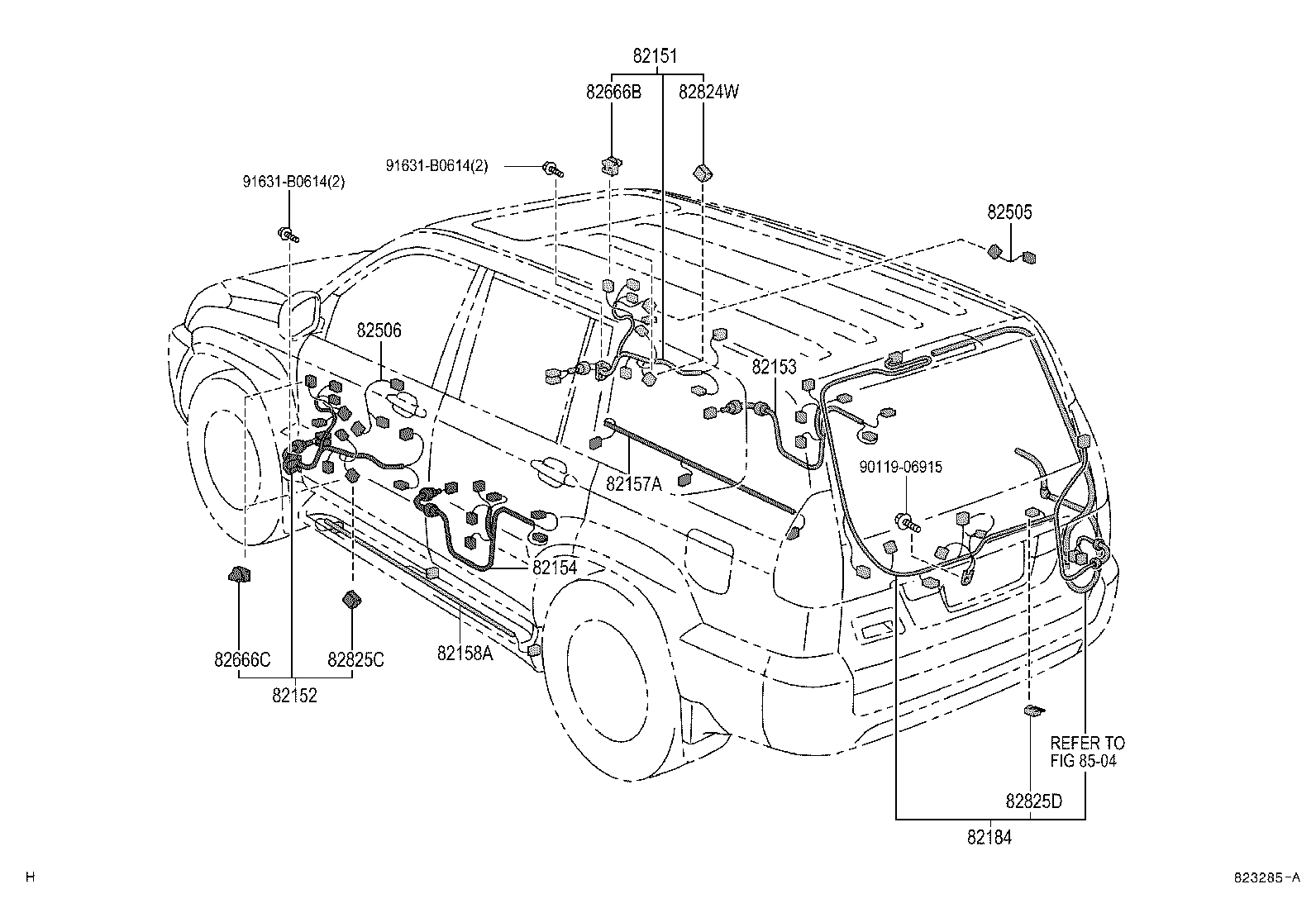

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |
| 82157A | Wire, Step Panel, RH |
| 82158A | Wire, Step Panel, LH |

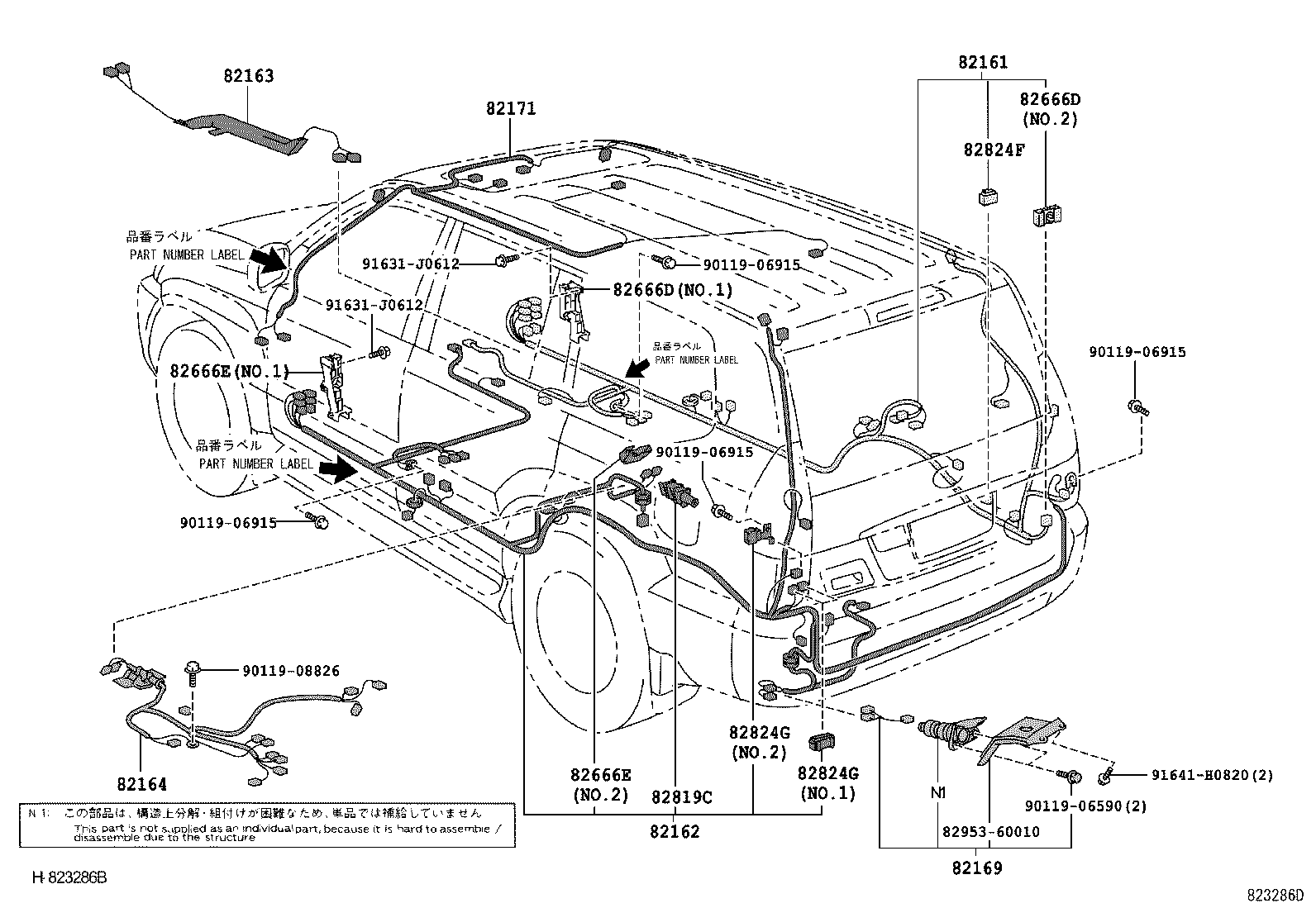

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82163 | Wire, Floor, NO.3 |
| 82164 | Wire, Frame |
| 82166 | Wire, Console Box |

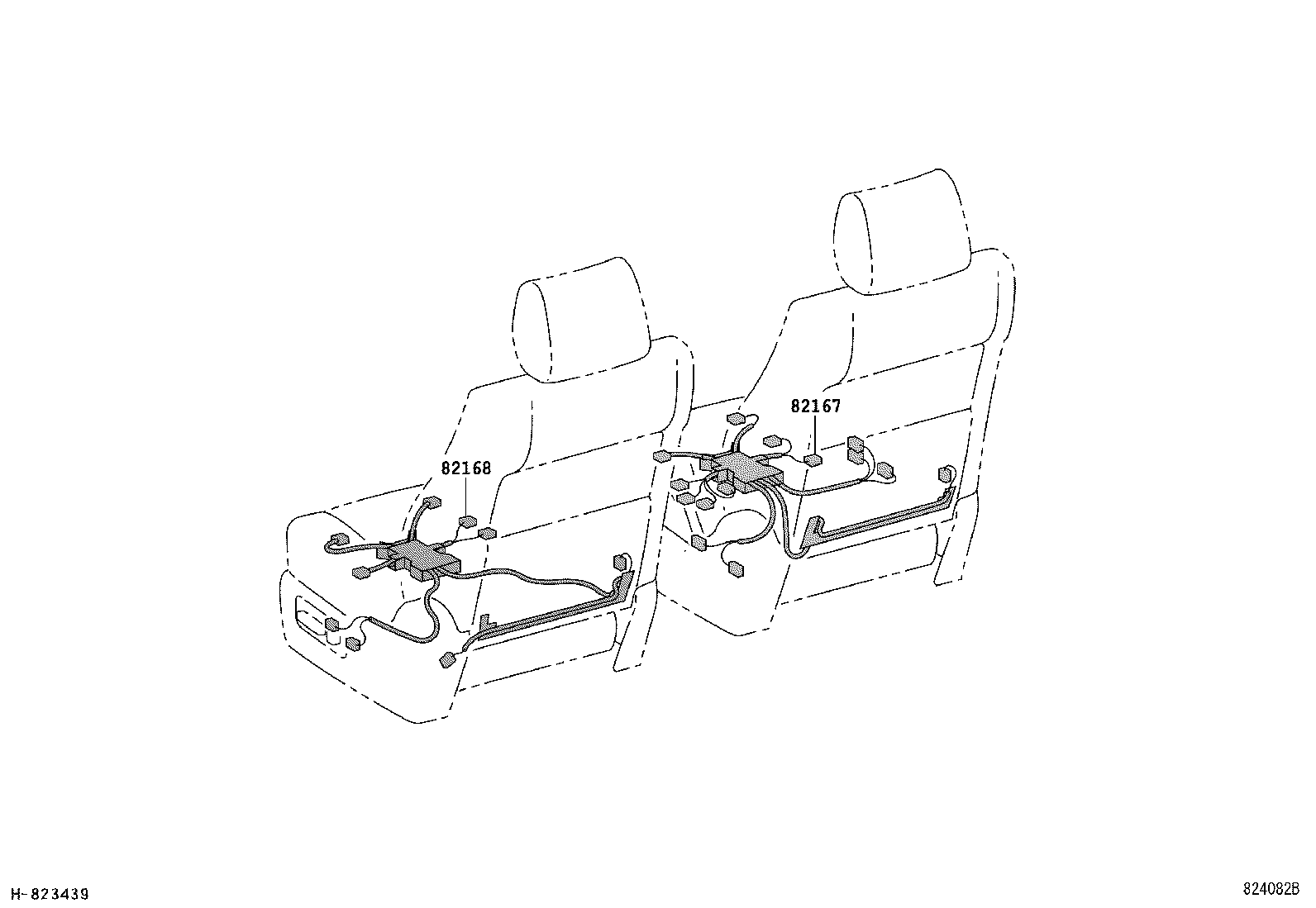

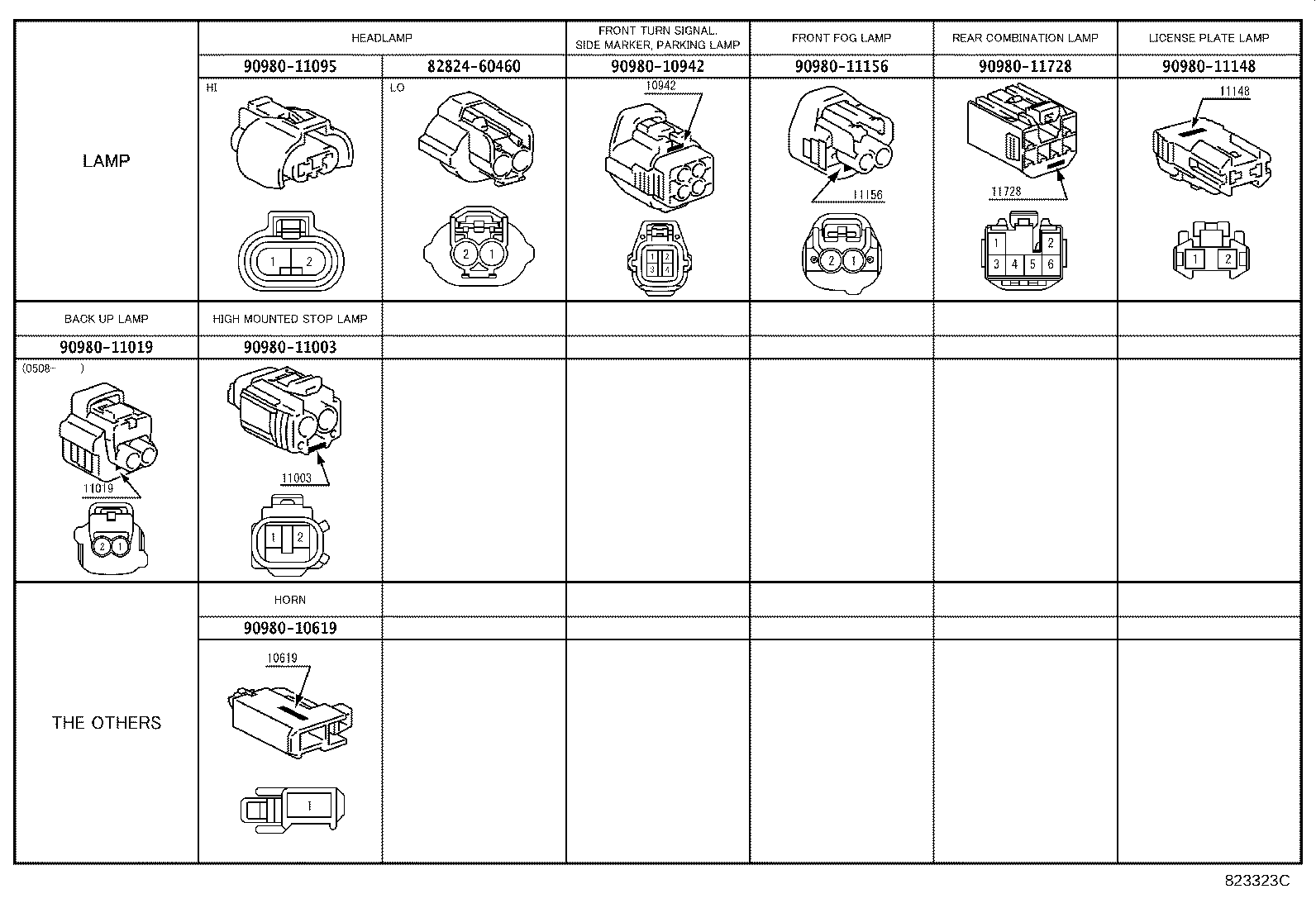

| 82167 | Wire, Seat, NO.1 |
| 82168 | Wire, Seat, NO.2 |
| 82169 | Wire Frame, NO.3 |
| 82171 | Wire, Roof, NO.1 |
| 82184 | Wire, Back Door, NO.1 |
| 82219A | Wire, Sensor |
| 82223 | Wire, Switch |
| 82505 | Wiring Sub-assy, Front Door, RH |
| 82506 | Wiring Sub-assy, Front Door, LH |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82671 | Block, Junction |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82819C | Grommet, Wiring Harness |
| 82823T | Cap, Alternator Terminal |
| 82824F | Connector, Wiring Harness |
| 82824G | Connector, Wiring Harness |
| 82824W | Connector, Wiring Harness |
| 82825C | Connector, Wiring Harness |
| 82825D | Connector, Wiring Harness |
| 82916 | Insulator, Wiring Harness Heat, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
