Toyota Lexus GX470
2002-11 → 2009-08 · chassis UZJ120 · catalogue 781450 · United States
Supported model
Data version 2010-01
Switch & Relay & Computer
115 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |

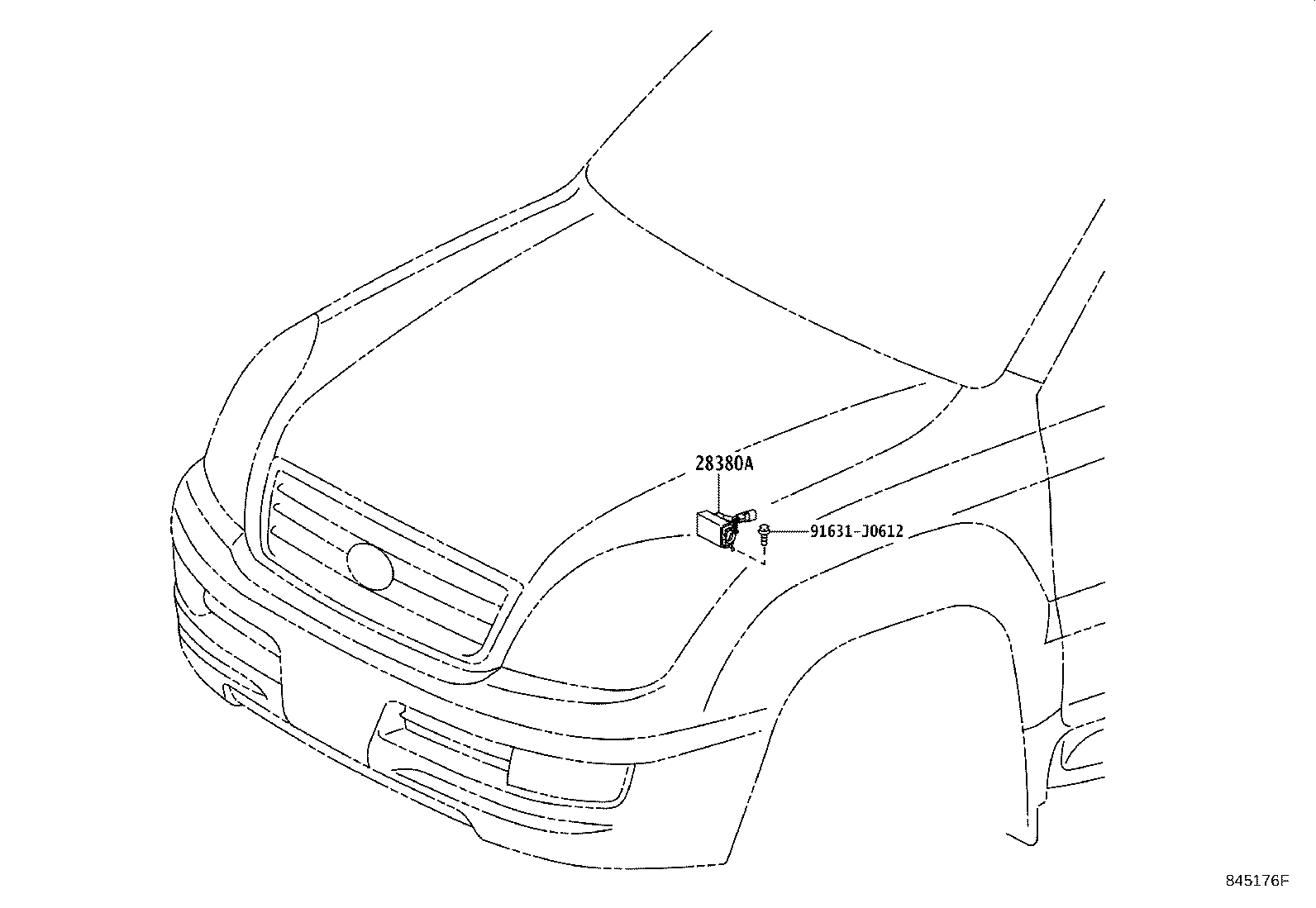

| 28380A | Resister, Fuel Pump |
| 81980 | Flasher Assy, Turn Signal |
| 81985 | Relay, Towing Converter |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663C | Cover, Relay Block Lower, NO.4 |
| 82730 | Block Assy, Instrument Panel Junction |
| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82742A | Block, Engine Room Relay, NO.5 |
| 82753 | Block, Passenger Side Relay |
| 82824L | Pin, Short |
| 83320 | Gage Assy, Fuel Sender |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |
| 84070 | Computer & Switch Assy, Position Control |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84204 | Cable Sub-assy, Steering Pad Switch |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84222B | Switch, Transfer Indicator, NO.2 |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84242 | Switch, Glove Box Lamp |
| 84244B | Switch, Steering Pad, RH |
| 84247A | Switch, Steering Pad, LH |
| 84258A | Cover, Steering Pad, RH |
| 84306 | Cable Sub-assy, Spiral |
| 84310 | Switch Assy, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84415 | Switch, Curtain Airbag Cutoff |
| 84415A | Bulb, Curtain Airbag Cutoff Switch |
| 84450 | Switch Assy, Ignition OR Starter |
| 84480 | Switch Assy, Main |
| 84480B | Bulb, Main Switch Assy |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84725 | Switch, Center Differential Lock |
| 84725B | Blub, Differential Lock Switch |
| 84751 | Switch, Seat Heater |
| 84751B | Bulb, Seat Heater Switch |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84870B | Bulb, Outer Mirror Switch |
| 84870C | Cap, Outer Mirror Switch Bulb |
| 84871 | Switch Assy, Outer Mirror Heater |
| 84871B | Bulb, Outer Mirror Heater Switch |
| 84920 | Switch Assy, Power Seat |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922B | Switch, Front Power Seat, RH |
| 84927 | Switch, Seat Memory |
| 84930 | Switch Assy, Door Control |
| 84988H | Switch, Downhill Assist Control |
| 84988J | Bulb, Downhill Assist Control Switch |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530A | Relay, Power Outlet Socket |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85536 | Bezel, Power Outlet Socket |
| 85539A | Label, Power Outlet Notice, Rear |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85910X | Relay, Heater Mirror |
| 85912 | Relay, Defogger |
| 85916C | Relay, Back UP Lamp |
| 85916D | Relay, Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85930 | Relay Assy, Power Window |
| 85930G | Relay, Acc |
| 85930K | Relay, Acc, NO.2 |
| 85934 | Relay, Magnet-clutch |
| 85934A | Relay Condenser Fan |
| 85943 | Computer, Windshield Wiper |
| 85965 | Relay, Room Lamp Control |
| 86210A | Inverter Assy, Voltage |
| 86530 | Relay Assy, Horn |
| 88650H | Amplifier Assy, Air Conditioner |
| 89111 | Computer, Network Gateway |
| 89226B | Computer, Multiplex Network Body, NO.2 |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235 | Switch, Tilt Steering |
| 89245B | Sensor, Steering |
| 89246B | Disc, Sensor Steering |
| 89430 | Computer Assy, Outer Mirror Control |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89533 | Computer, 4 Wheel Drive Control |
| 89615 | Sensor, Knock Control |
| 89755 | Transmitter, Garage Door Opener |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
