Toyota Lexus GX470

2002-11 → 2009-08 · chassis UZJ120 · catalogue 781450 · United States

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

16 part groups · 4 illustrations

Illustrations

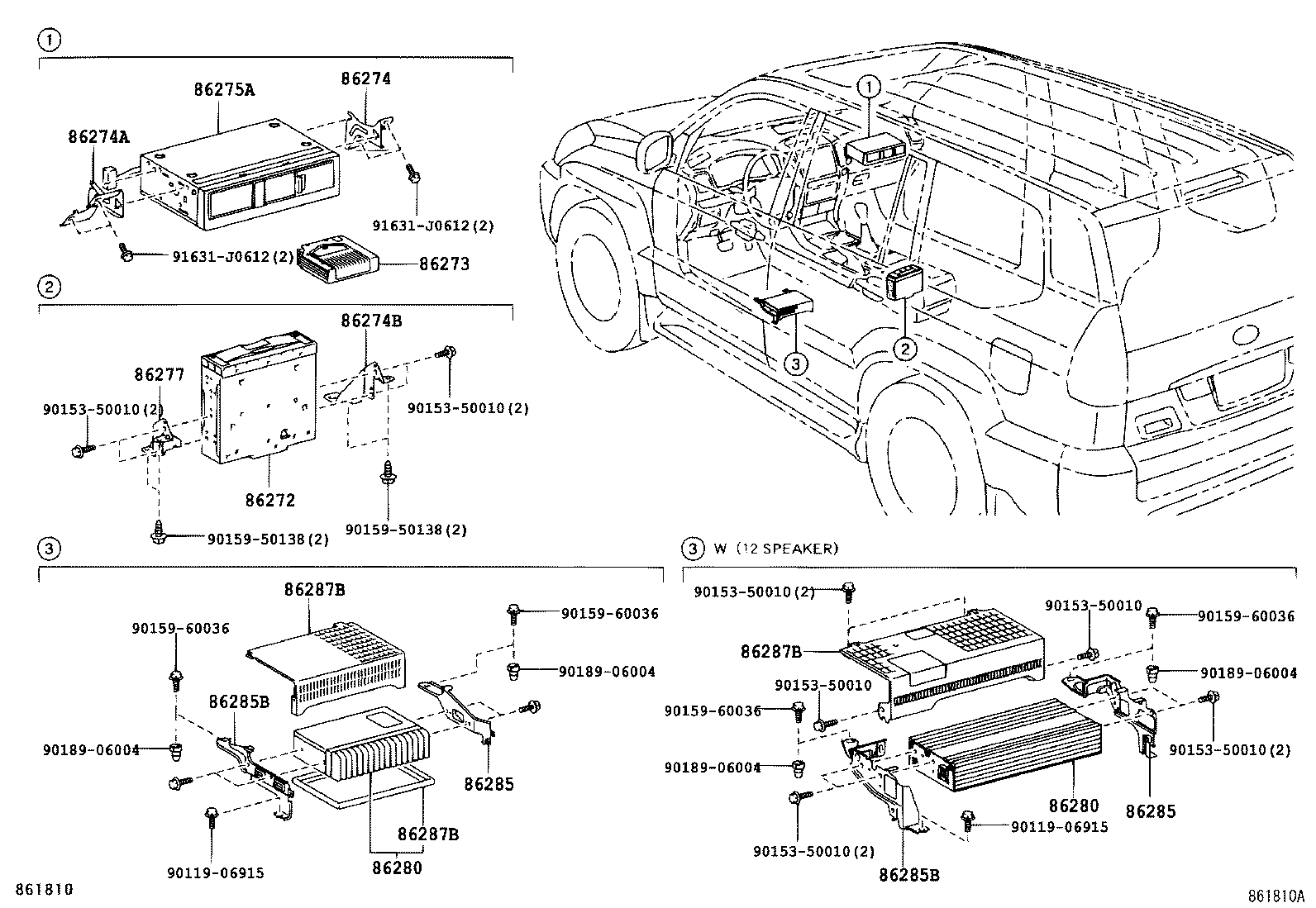

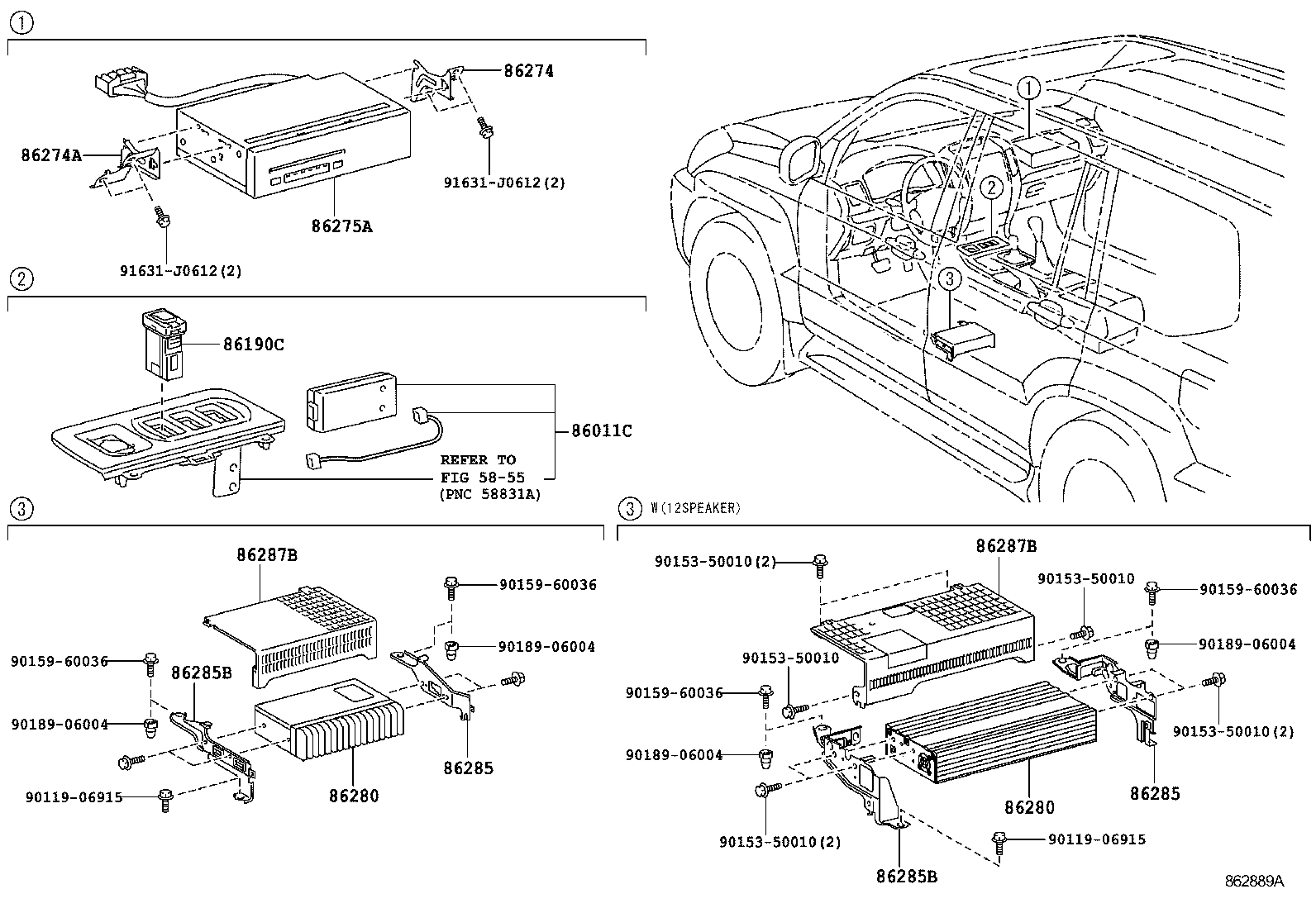

Figure 861809 861809 2002-11 → — Figure 861810A 861810A 2002-11 → 2006-08 Figure 862889A 862889A 2006-08 → — Figure 861811A 861811A 2002-11 → —

Part groups

PNCDescription
86011C Filter, Noise
86120 Receiver Assy, Radio
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86272 Controller, Disc Player
86273 Magazine, Disc Player
86274 Bracket, Disc Player
86274A Bracket, Disc Player
86274B Bracket, Disc Player
86275A Changer, Disc Player
86277 Bracket
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
86287B Cover, Amplifier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
